| Parameter | Value |
|---|---|
| Detection distance | 5000mm |
| Output mode | NPN (N.O./N.C. adjustable) + 4-20mA analog |
| Light source | 650nm red laser, Class 2 |
| Reaction time | 1ms |
| Working voltage | 9~30VDC |
| Protection grade | IP67 |
| Connection | Pre-wired 2M cable (4.0mm, 4-core) |

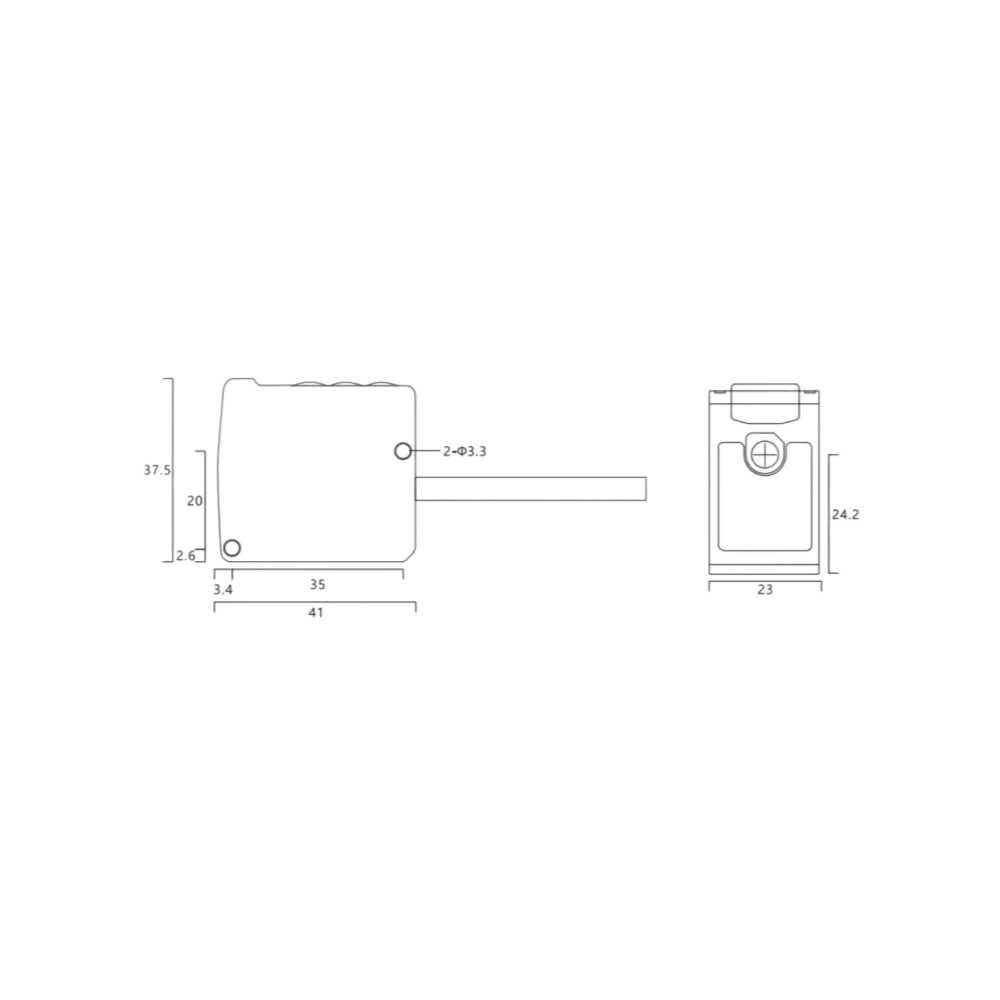

| Dimensions | 41×37.5×23mm |
| Shell material | Aluminum alloy |
| Weight | 45g |
| Ambient temperature | -20~55°C |

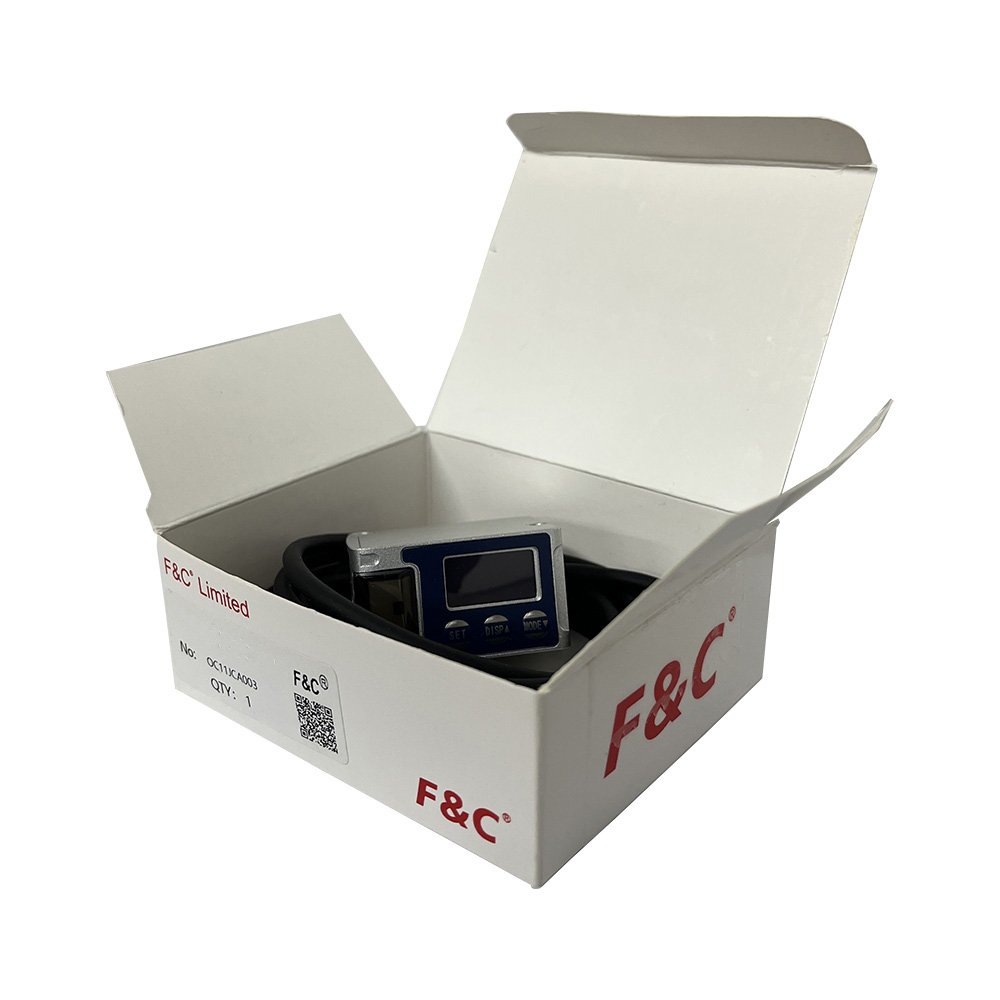

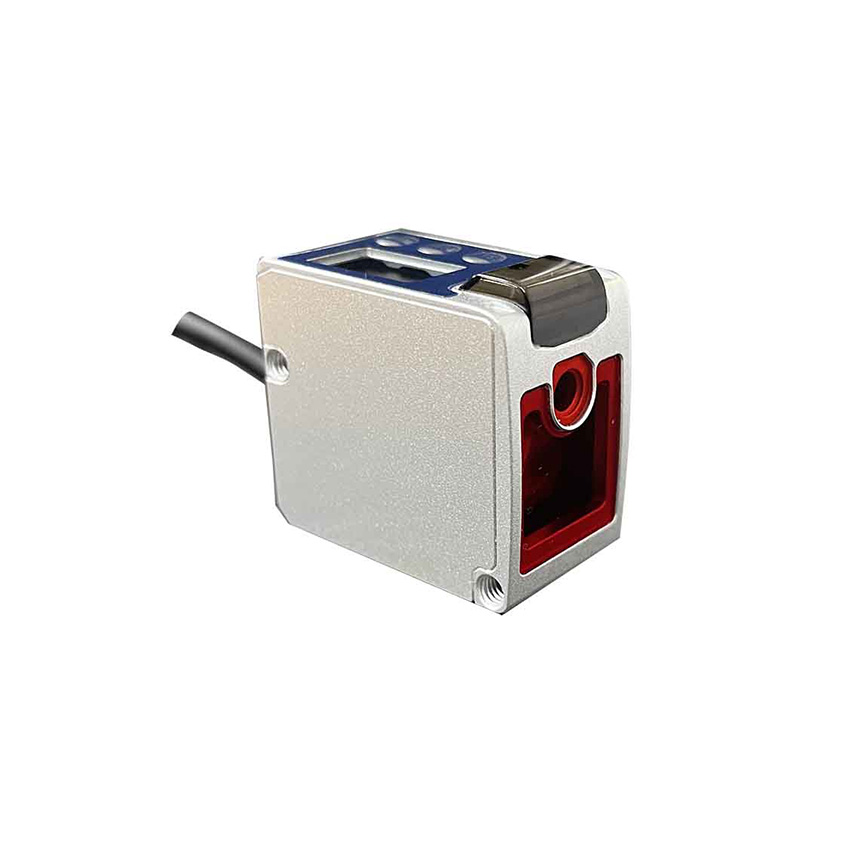

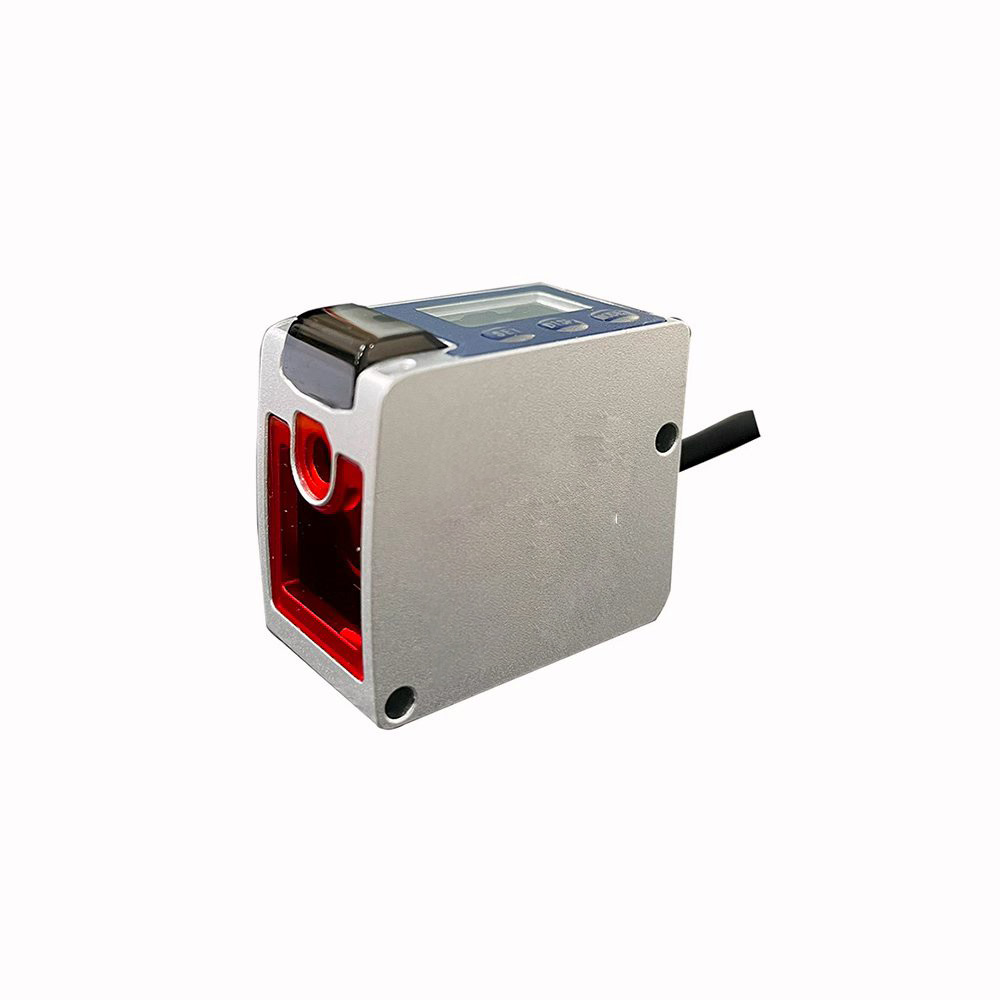

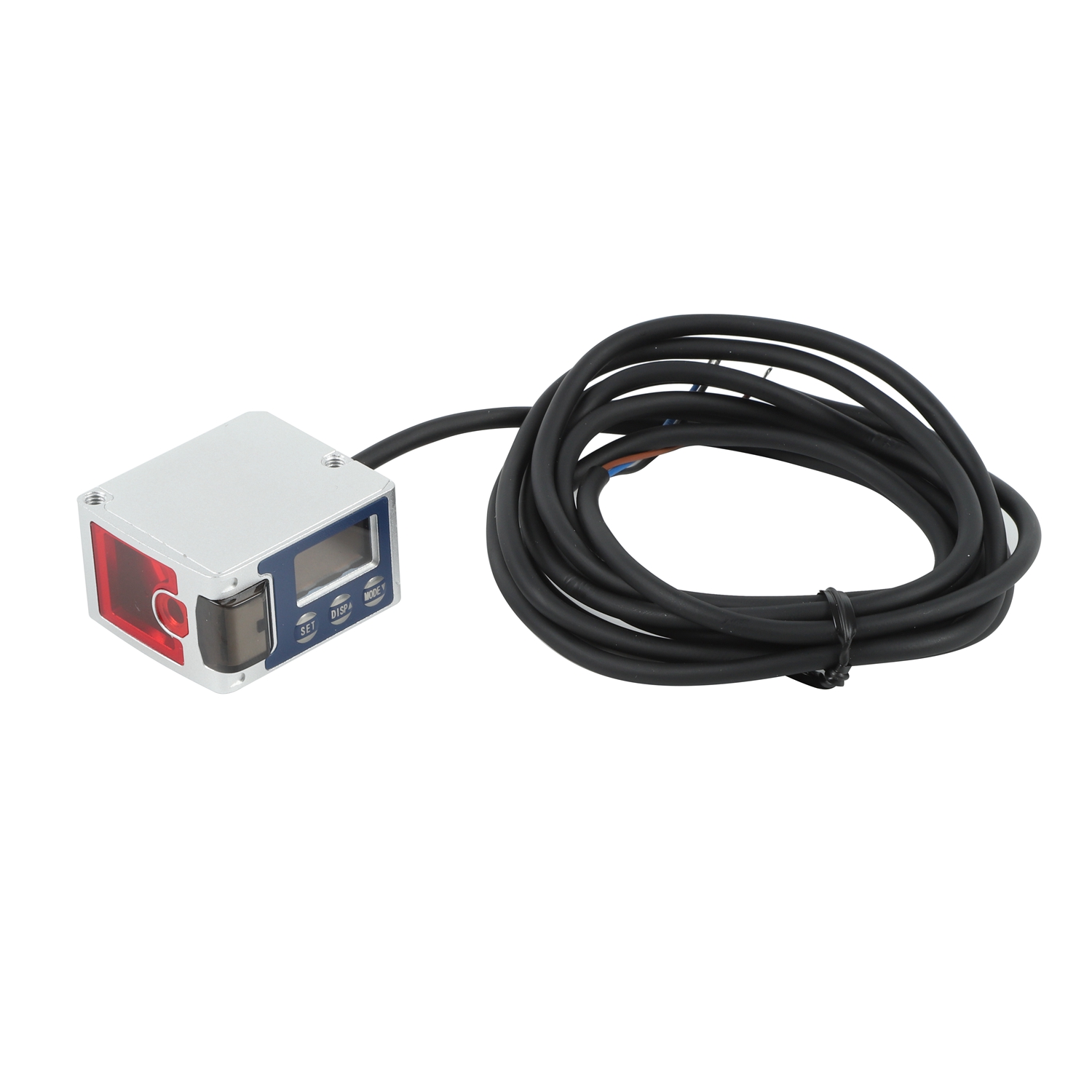

FCWY-500NA
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Detection distance | 5000mm |
Output mode | NPN (N.O./N.C. adjustable) + 4-20mA analog |
Light source | 650nm red laser, Class 2 |
Reaction time | 1ms |
Working voltage | 9~30VDC |
Protection grade | IP67 |
Connection | Pre-wired 2M cable (4.0mm, 4-core) |
Dimensions | 41×37.5×23mm |
Shell material | Aluminum alloy |
Weight | 45g |
Ambient temperature | -20~55°C |
