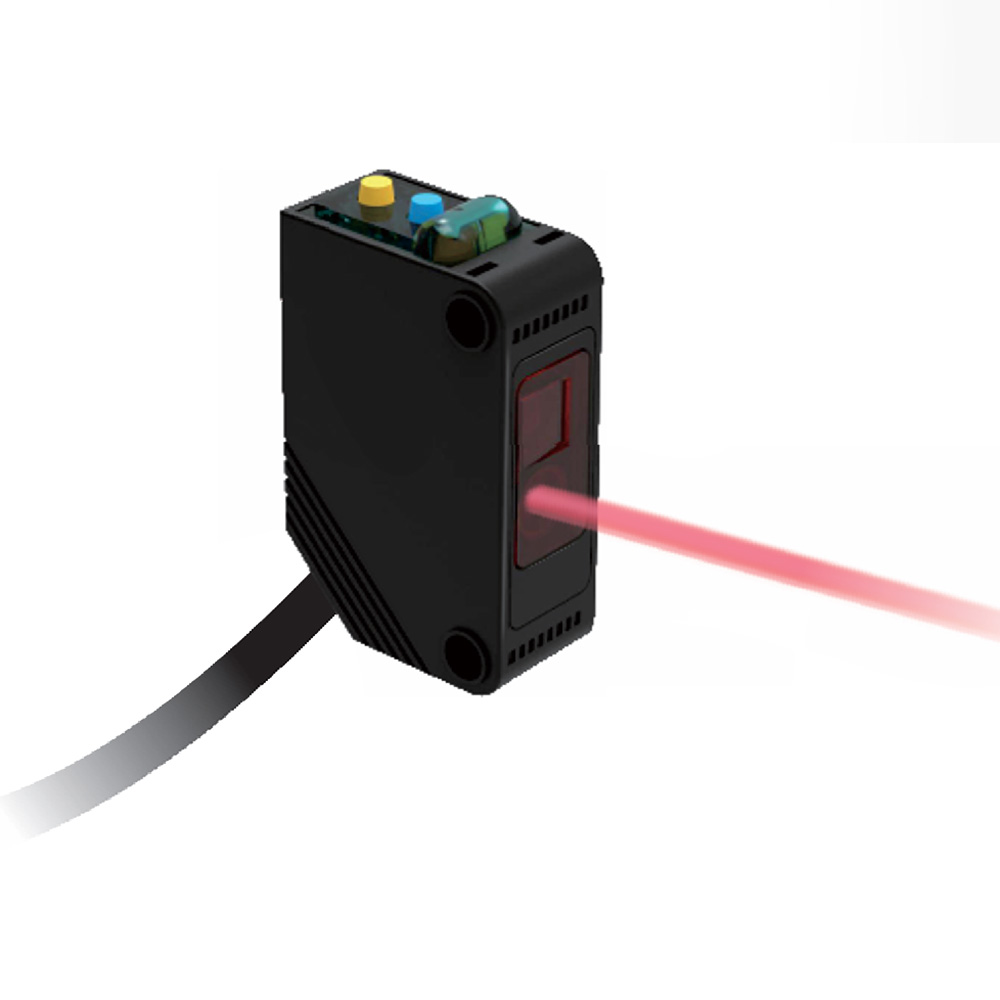

FCB-S200P R2M Laser distance meter

Comprehensive Product Overview & Engineering Guide

Advanced Time-of-Flight (TOF) Technology

When engineering automated systems that require exact positioning, relying on standard proximity sensors often leads to unacceptable latency and positioning errors. The FCB-S200P R2M addresses this critical gap by utilizing advanced Time-of-Flight (TOF) measurement principles. By calculating the exact time it takes for the 650nm red laser pulse to travel to the target and return, this device achieves millimeter-level accuracy across its entire 5 to 100cm sensing range. Furthermore, the exceptional 1ms response time ensures that even in high-speed dynamic measurement scenarios—such as rapid conveyor sorting or robotic arm positioning—the data output remains instantaneous and precise. Automation specialists can rely on this rapid data acquisition to eliminate production bottlenecks, ensuring that fast-moving targets are detected without motion blur or signal delay.

Unmatched Stability in Complex Environments

Industrial environments are rarely pristine, and optical sensors frequently struggle with environmental variables. This laser distance meter is specifically engineered to maintain consistent data output regardless of target surface characteristics or ambient lighting. Whether detecting dark, light, matte, or glossy materials, the sensor remains unaffected by color discrepancies, eliminating the need for constant manual recalibration when production batches change. Additionally, the unit is highly resistant to ambient light disturbances, functioning reliably even when exposed to illuminance levels exceeding 3000 Lux. In complex industrial conditions filled with airborne dust, fluctuating lighting, and unpredictable target textures, the FCB-S200P R2M delivers a steady, reliable signal, dramatically reducing false triggers and minimizing unplanned machine downtime.

Industrial-Grade Durability and Protection

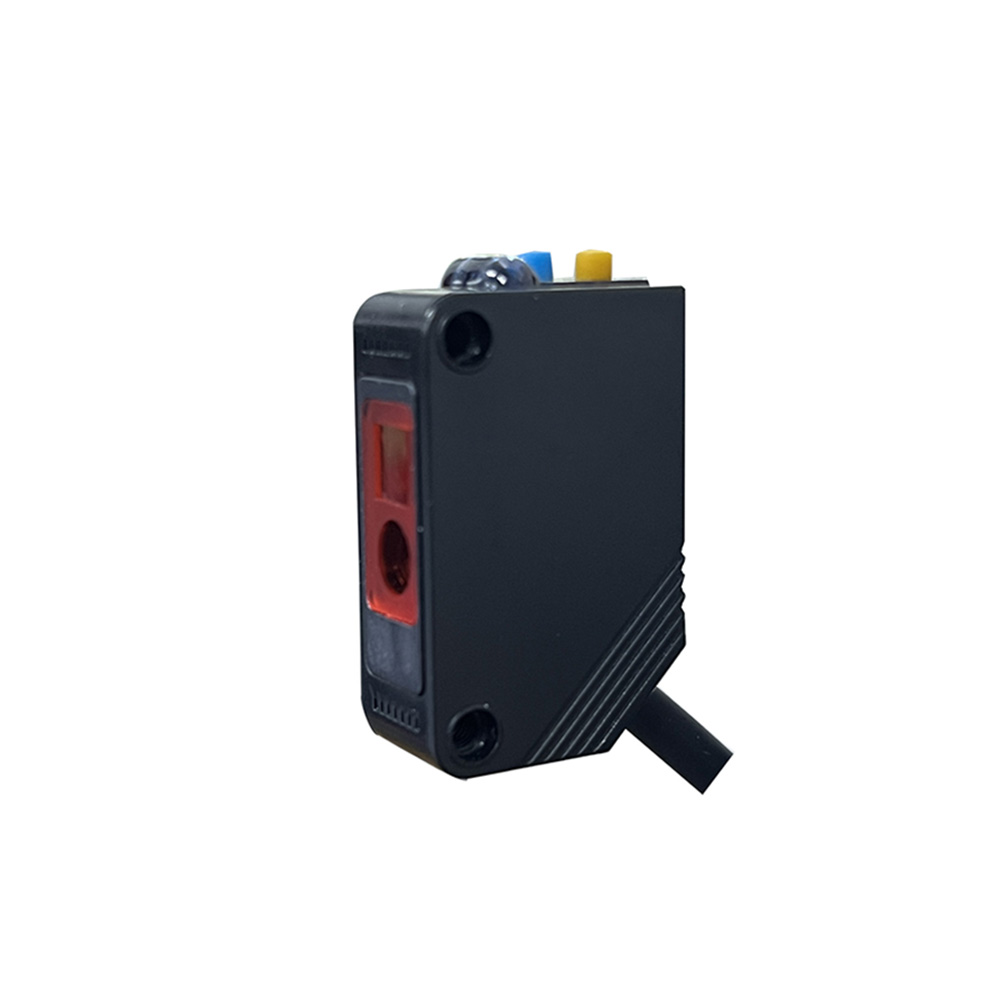

Physical resilience is just as important as measurement accuracy. The FCB-S200P R2M is housed in a rugged PC+ABS enclosure, providing a solid, tactile structural integrity that withstands the daily rigors of factory floors. The optically clear PMMA lens protects the internal laser components while ensuring maximum light transmission. Rated at IP67, the entire unit is heavily sealed against dust ingress and temporary liquid immersion, making it suitable for washdown areas or environments with heavy particulate matter. It operates flawlessly across a wide temperature range of -20 to 55°C (without freezing or ice formation) and can be stored safely in temperatures up to 70°C. Furthermore, the device is rigorously tested for vibration resistance (10 to 50Hz across X, Y, and Z axes for two hours each), ensuring internal alignments remain secure even when mounted on heavily vibrating machinery.

Flexible Integration for Automation Systems

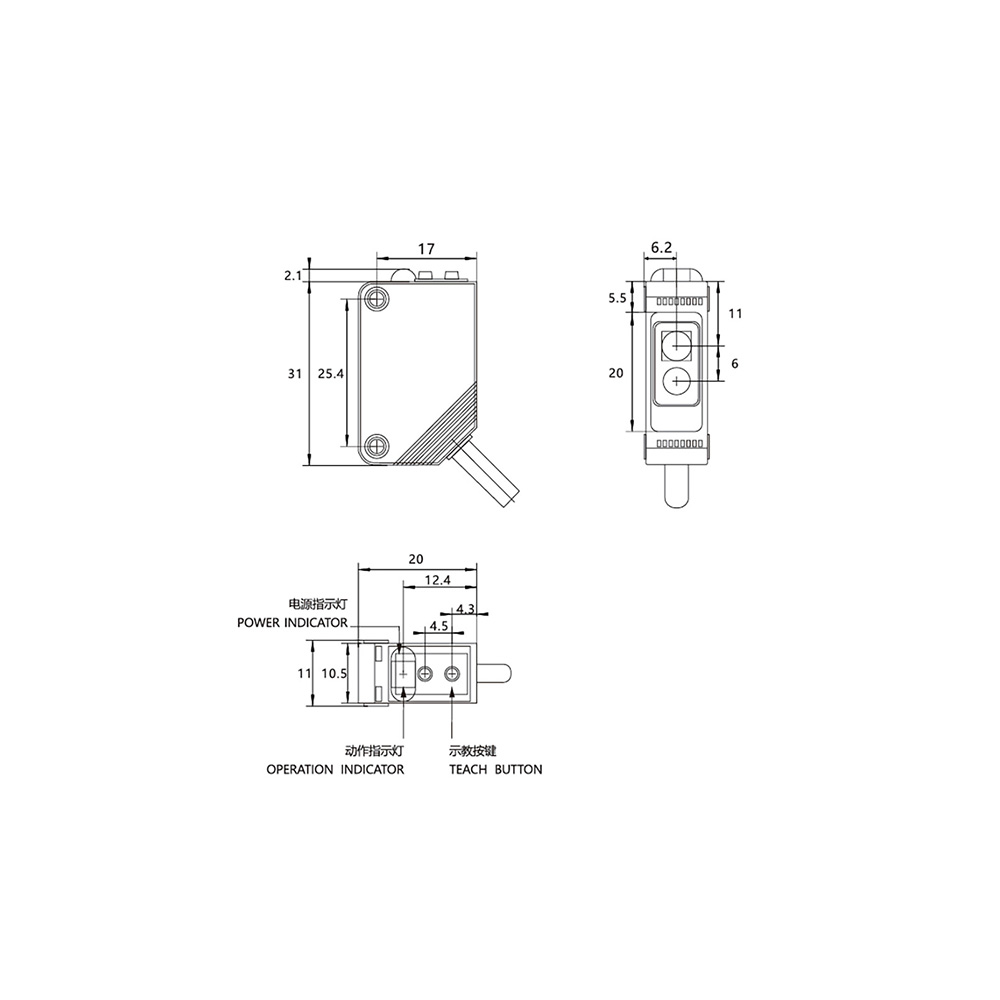

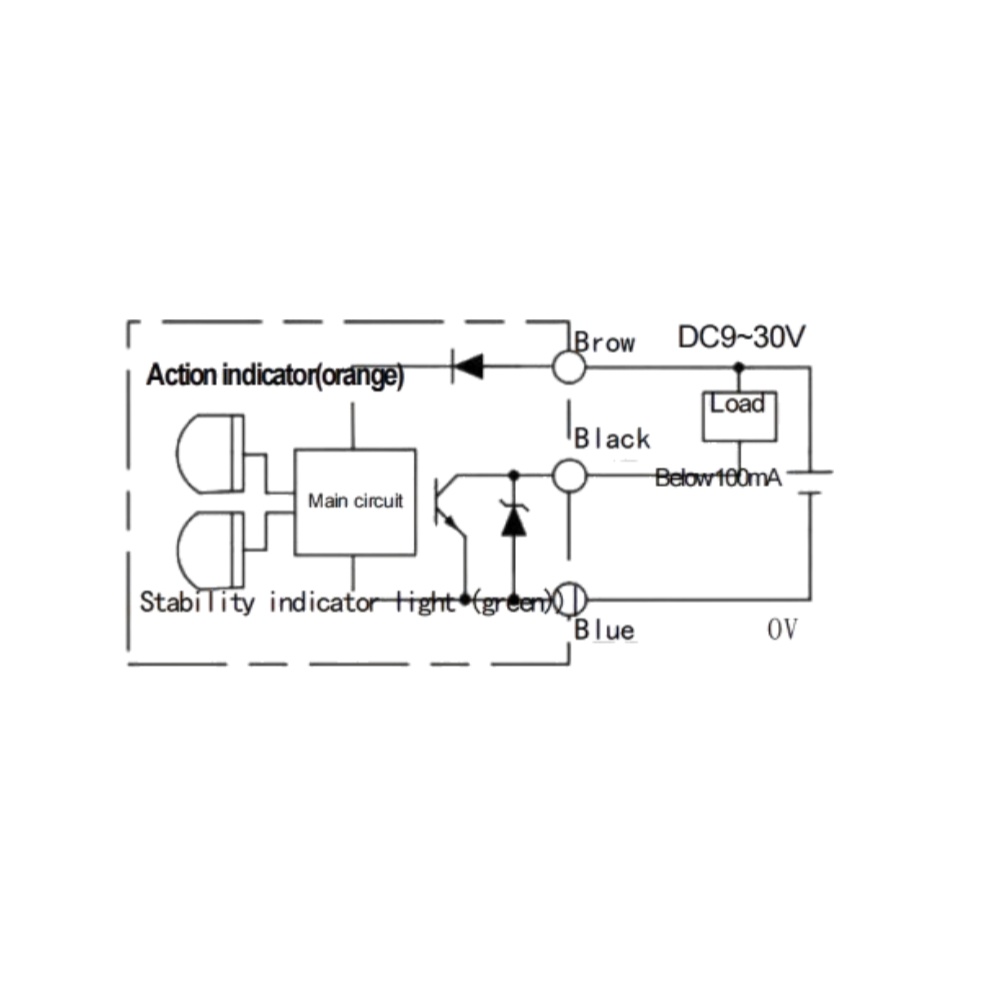

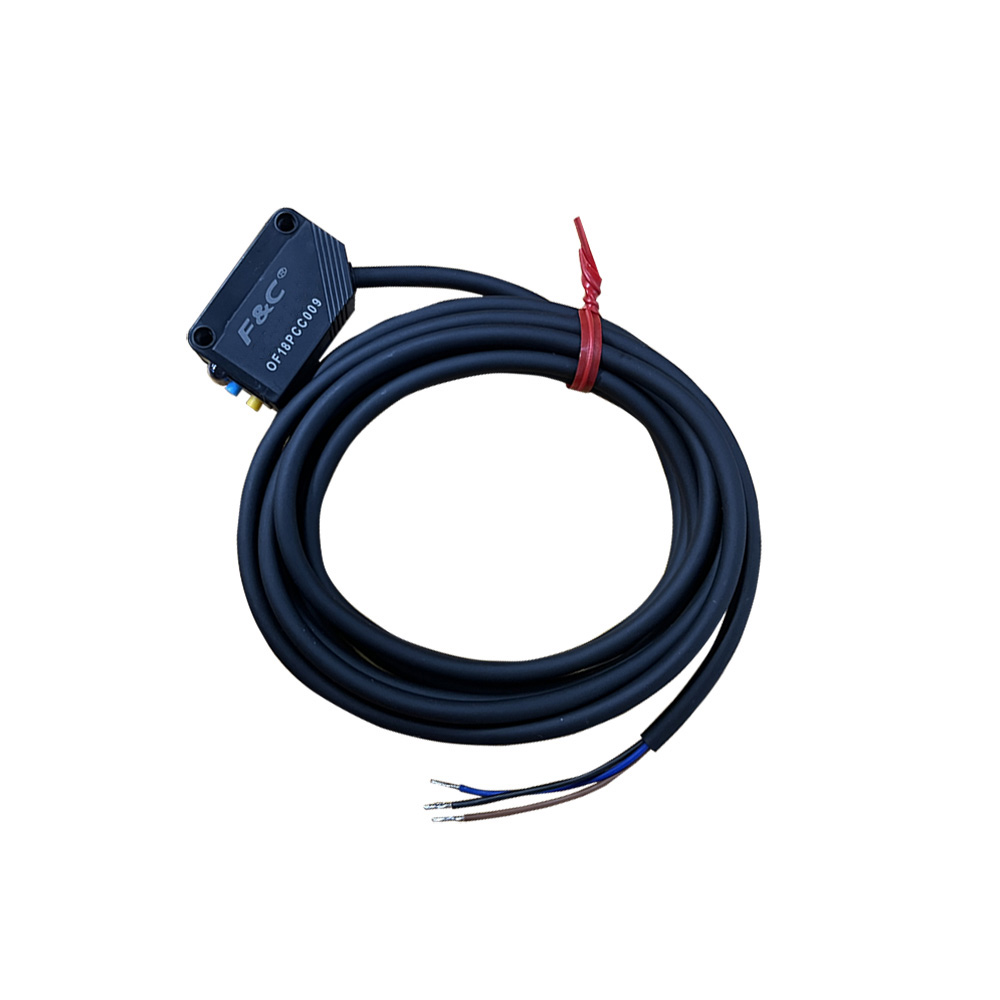

Space constraints are a constant challenge in modern machine design. Measuring merely 33×20×11mm and weighing just 7g, this compact sensor easily fits into tight mechanical clearances where traditional bulky sensors cannot be deployed. The electrical integration is equally streamlined. It features a PNP output mode that is fully adjustable between Normally Open (N.O.) and Normally Closed (N.C.) configurations, granting engineers maximum flexibility when wiring into existing PLC architectures. The physical connection is facilitated by a pre-wired 4.0mm, 3-core, 2-meter flexible cable, which provides immediate readiness for installation without requiring additional proprietary connectors. Clear visual feedback is provided via an orange output LED and a green power LED, allowing maintenance personnel to verify operational status at a single glance.

Primary Industry Applications

The versatility of the FCB-S200P R2M makes it an essential component across multiple sectors requiring precise distance detection and positioning. By integrating this sensor, facility managers and system integrators can solve complex automation challenges:

• Smart Manufacturing: Ensures precise alignment of components during automated assembly, preventing mechanical collisions and reducing material waste.
• Packaging Machinery: Accurately detects the presence, position, and fill level of varied packaging materials, regardless of print color or surface reflectivity.
• Plastic Machinery: Monitors the ejection and positioning of molded parts in real-time, functioning reliably despite the elevated temperatures and vibrations typical of injection molding processes.
• Warehousing and Logistics: Facilitates exact positioning for automated guided vehicles (AGVs) and automated storage and retrieval systems (AS/RS), ensuring safe and efficient material handling.

Dedicated Procurement and Engineering Support

Selecting the right sensing technology requires more than just reviewing a specification sheet; it requires comprehensive mechanical and technical backing. To facilitate a smooth evaluation and integration process, technical teams have access to a complete suite of engineering resources. This includes downloadable 3D models and detailed CAD drawings, allowing mechanical designers to simulate mounting clearances and verify system compatibility before physical installation begins. Comprehensive selection manuals provide deep insights into operational parameters and best-practice configurations. For projects requiring empirical validation, sample testing programs are available, supported by one-on-one technical guidance from experienced application engineers. This dedicated support structure ensures that procurement professionals and engineering teams can confidently specify, deploy, and maintain their automated systems with minimal risk and accelerated project timelines.
