| Parameter | Value |
|---|---|
| Detection distance | 10000mm |
| Working voltage | 12~24VDC ±10% |
| Current consumption | ≤50mA |
| Residual voltage | <1.5VDC |
| Load current | 50mA |
| Protection circuit | Reverse polarity protection, output short circuit protection |

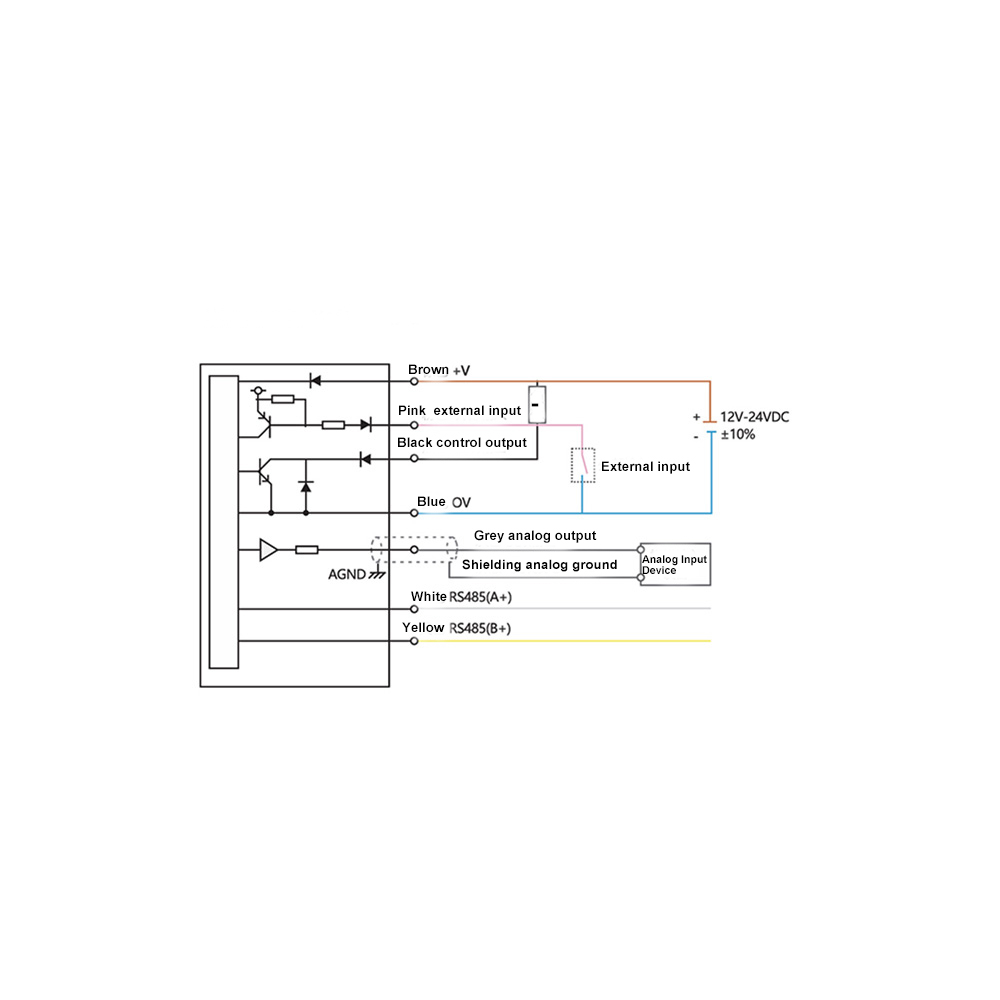

| Output mode | NPN (N.O./N.C. adjustable) + RS485 |
| Analog current output | 4-20mA (alarm: 0mA), impedance <300Ω |
| Light source | 655±10nm red laser, Class 2, <1mW |
| Indicator light | Red blind zone indicator, green stability indicator |
| Adjustment range | Adjustable |
| Repeatability accuracy | ±5mm |
| Reaction time | 50-200ms (adjustable) |
| Protection grade | IP67 |
| Connection method | M12 connector |

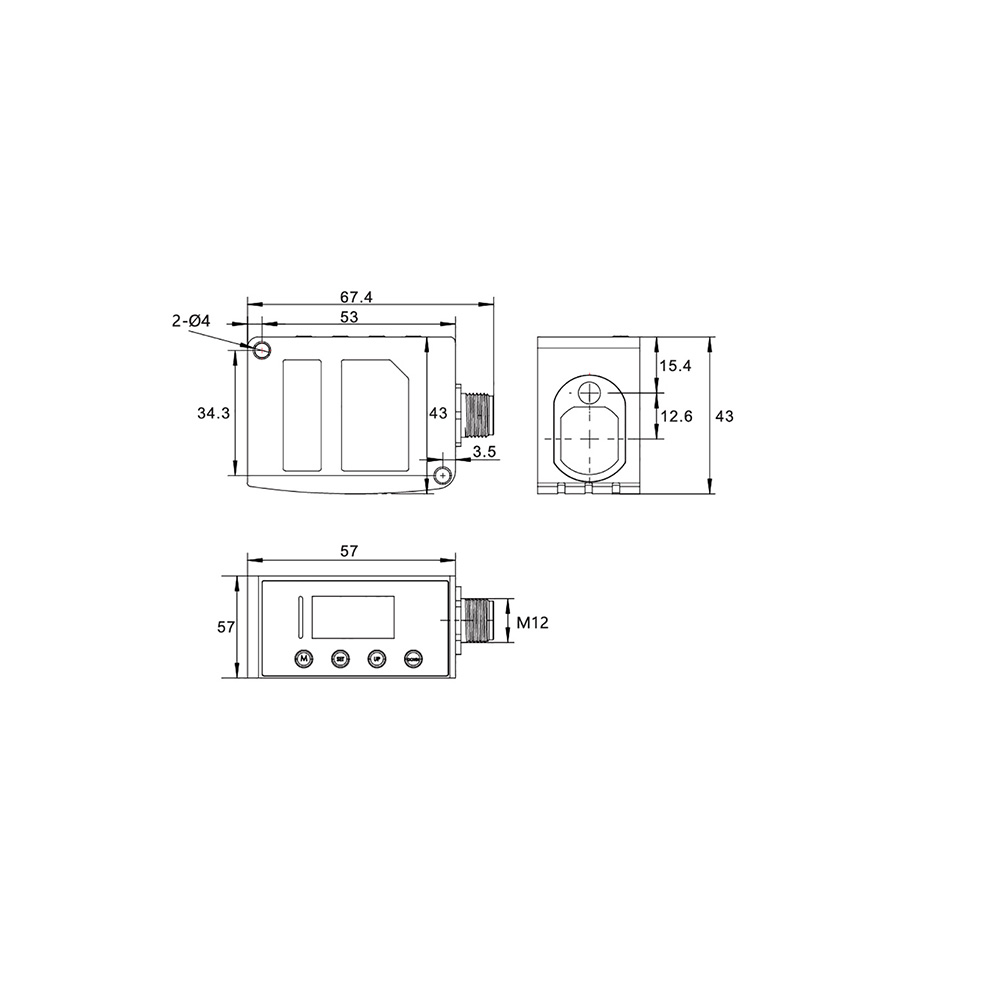

| Dimensions | 67.4 × 57 × 43mm |
| Housing material | Aluminum alloy |
| Lens material | PMMA |
| Weight | 150g |
| Ambient temperature | -10~45°C (no frost/ice) |
| Storage temperature | -20~60°C (no frost/ice) |
| Ambient illuminance | Incandescent: receiving surface <3000Lux |
| Environmental humidity | 35~85% RH (no frost/ice) |
| Vibration resistance | 10~50Hz, 2 hours each in X, Y, Z |
| Use elevation | 2000m |
| Tightening torque | 0.5 Nm |
| Certification | CE |

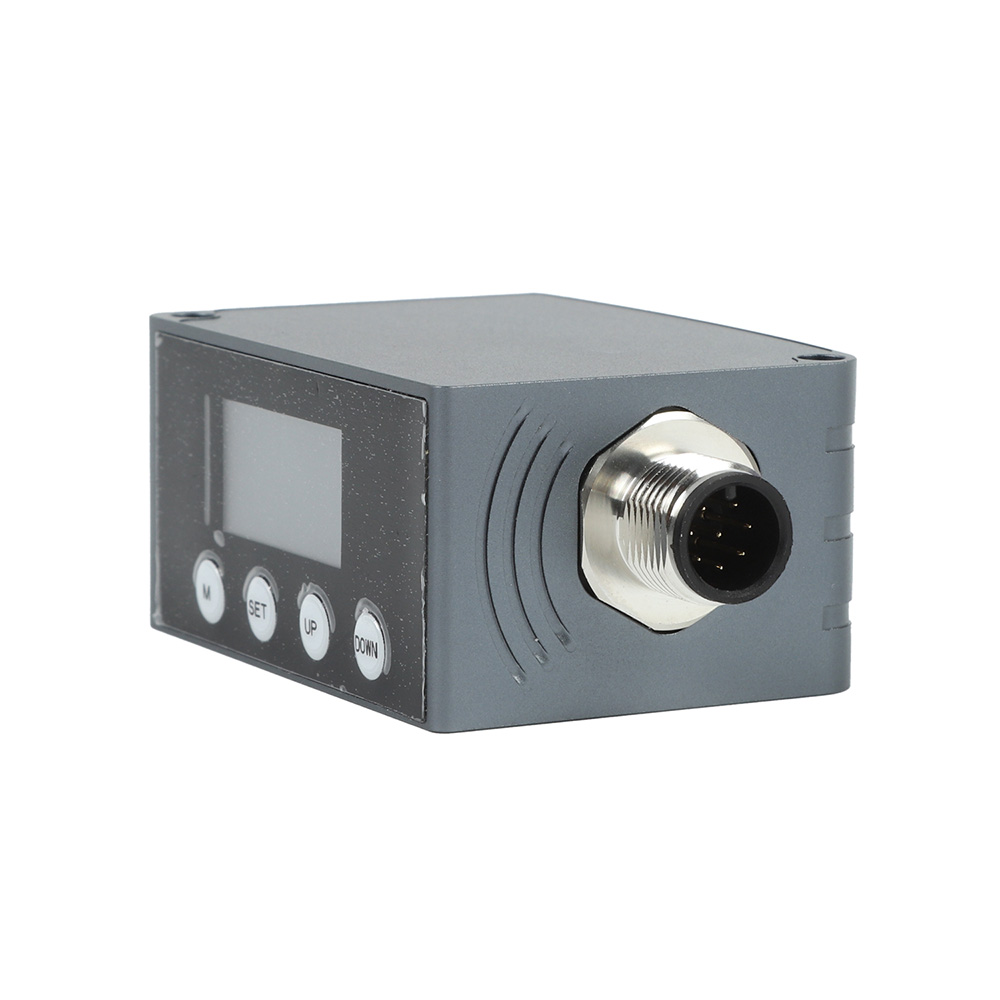

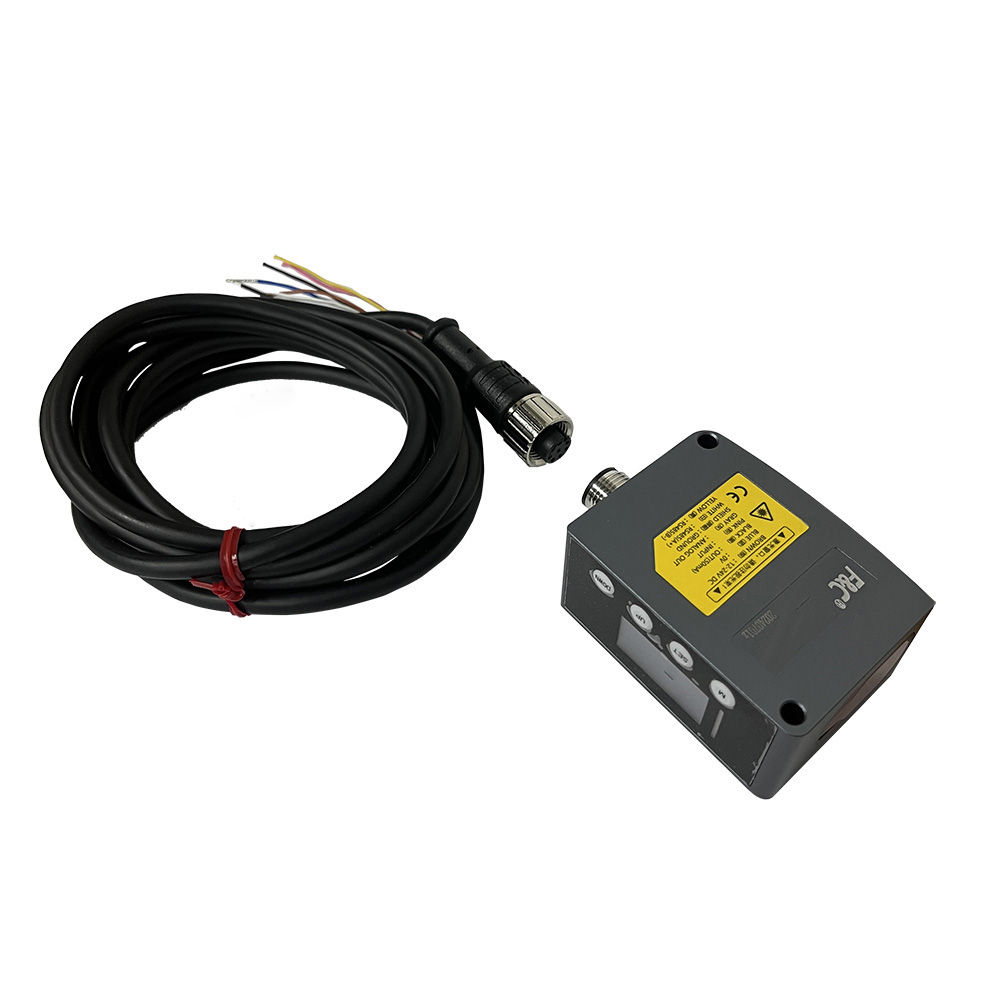

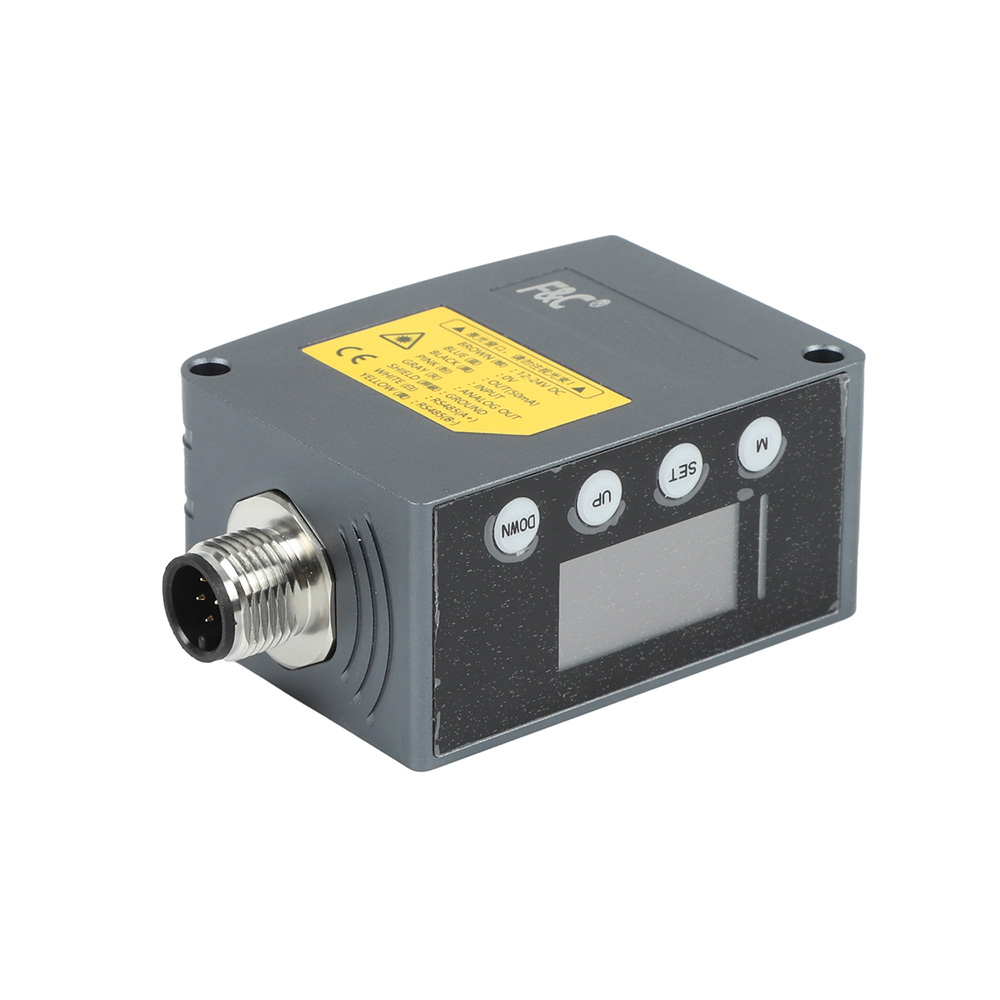

FCWY-1000NA/485
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Detection distance | 10000mm |
Working voltage | 12~24VDC ±10% |
Current consumption | ≤50mA |
Residual voltage | <1.5VDC |
Load current | 50mA |
Protection circuit | Reverse polarity protection, output short circuit protection |
Output mode | NPN (N.O./N.C. adjustable) + RS485 |
Analog current output | 4-20mA (alarm: 0mA), impedance <300Ω |
Light source | 655±10nm red laser, Class 2, <1mW |
Indicator light | Red blind zone indicator, green stability indicator |
Adjustment range | Adjustable |
Repeatability accuracy | ±5mm |
Reaction time | 50-200ms (adjustable) |
Protection grade | IP67 |
Connection method | M12 connector |
Dimensions | 67.4 × 57 × 43mm |
Housing material | Aluminum alloy |
Lens material | PMMA |
Weight | 150g |
Ambient temperature | -10~45°C (no frost/ice) |
Storage temperature | -20~60°C (no frost/ice) |
Ambient illuminance | Incandescent: receiving surface <3000Lux |
Environmental humidity | 35~85% RH (no frost/ice) |
Vibration resistance | 10~50Hz, 2 hours each in X, Y, Z |
Use elevation | 2000m |
Tightening torque | 0.5 Nm |
Certification | CE |
