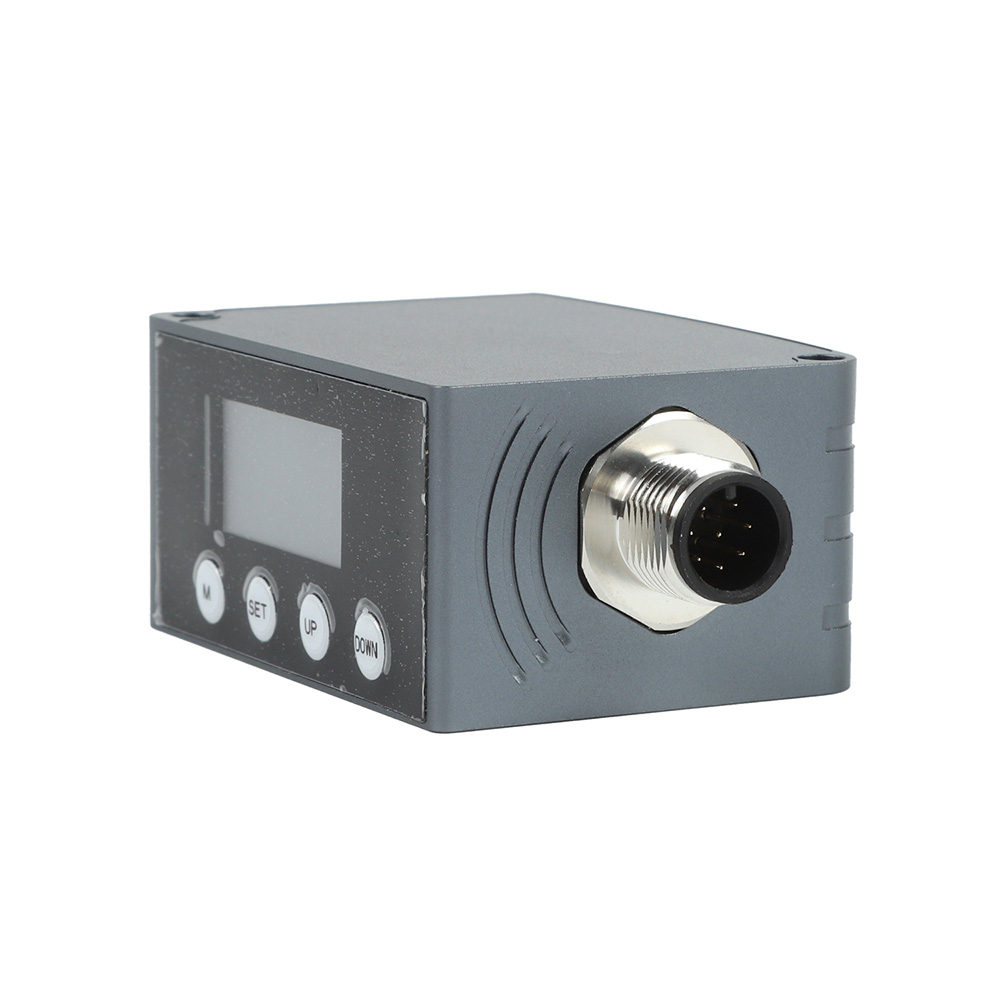

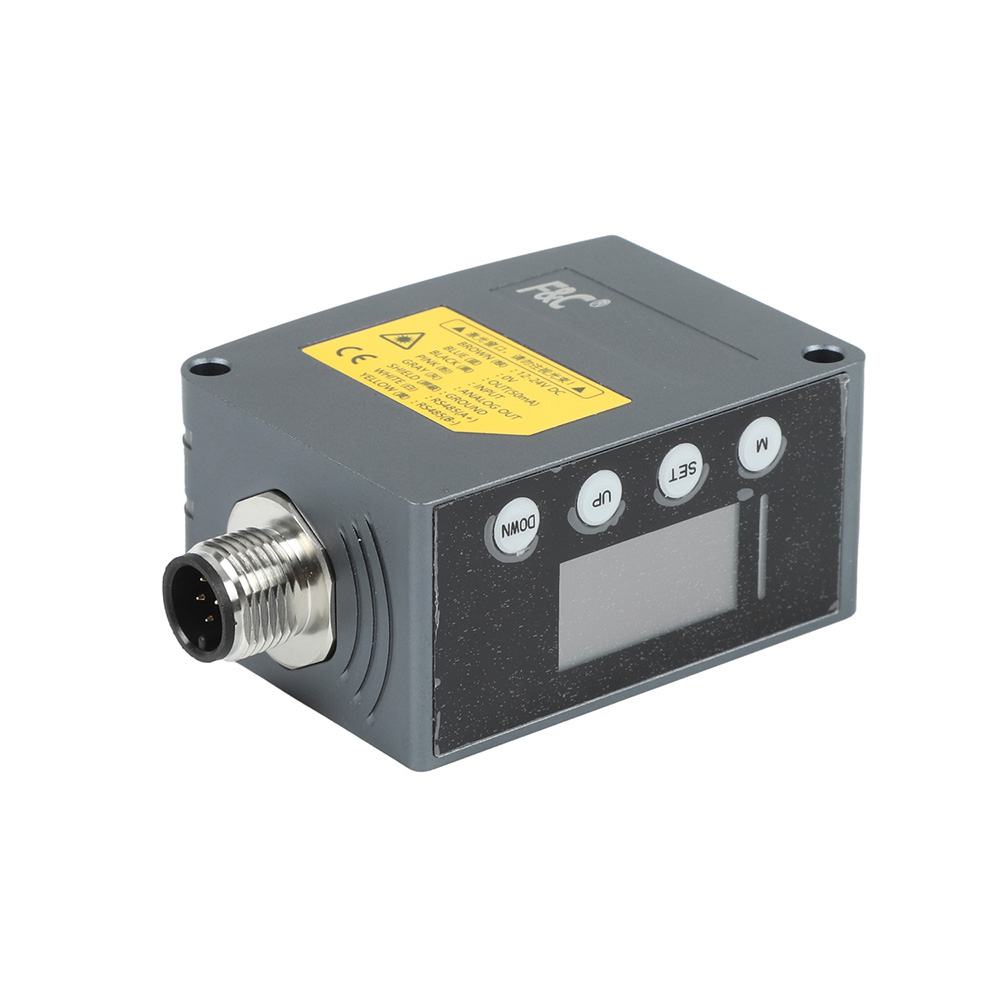

FCWY-2000PA/485 Laser distance meter

Parameter	Value

Measurement distance	0.1m - 20m
Measurement error	±(2mm + d × 0.01%)
Laser type	Red semiconductor laser, Class II, 655±10nm, <1mW
Supply voltage	12-24VDC ±10% (ripple P-P 10%)
Current consumption	≤50mA @24V

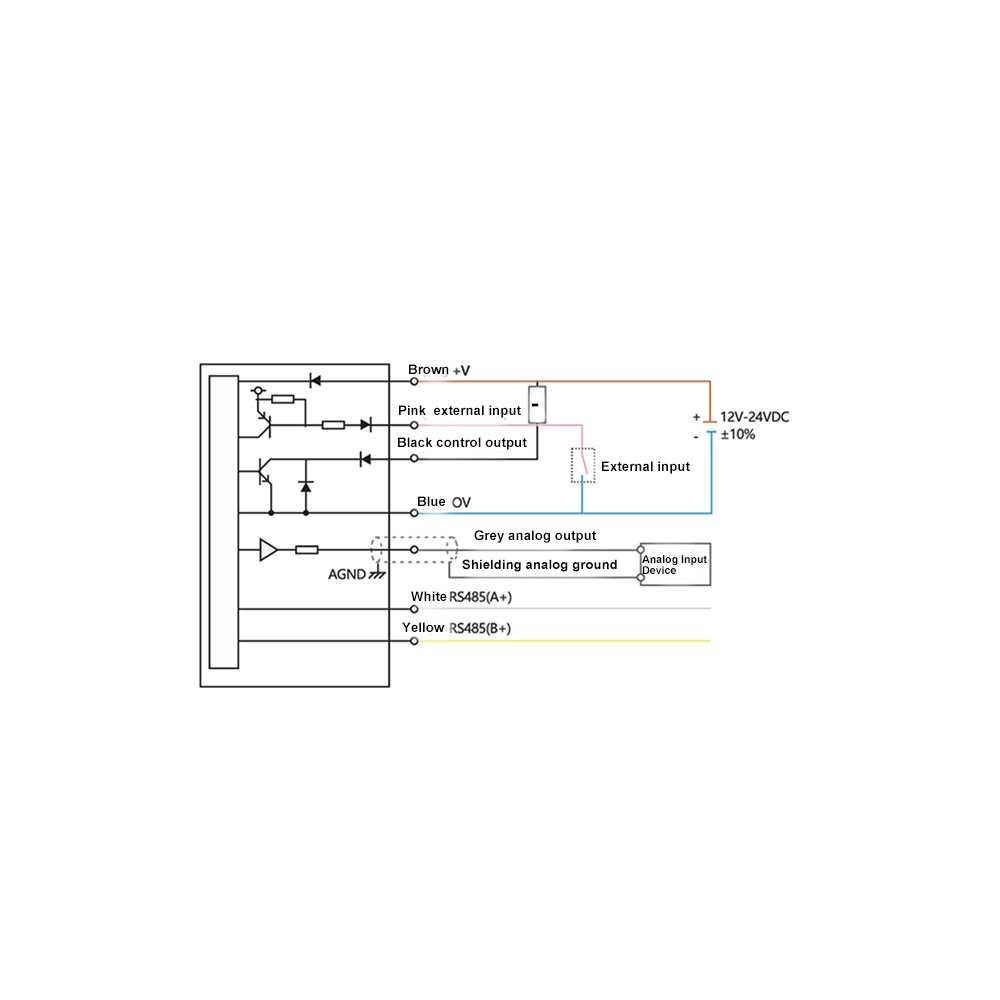

Control output	NPN or PNP open-drain (N.O./N.C. switchable)
Output conditions	Max current: 50mA, Residual voltage: <1.5V, Leakage current: <0.1mA
Short circuit protection	Auto recovery type
Analog voltage output	0-5V (alarm: 5.2V), output impedance: 100Ω
Analog current output	4-20mA (alarm: 0mA), output impedance: ≤300Ω
Response time	50-200ms
External input	NPN non-contact input
Protection rating	IP67
Working temperature	-10°C ~ +45°C (no condensation/frost)
Storage temperature	-20°C ~ +60°C
Working humidity	35% ~ 85% RH
Ambient illuminance	Incandescent: receiving surface ≤3000 Lux
Altitude rating	≤2000m

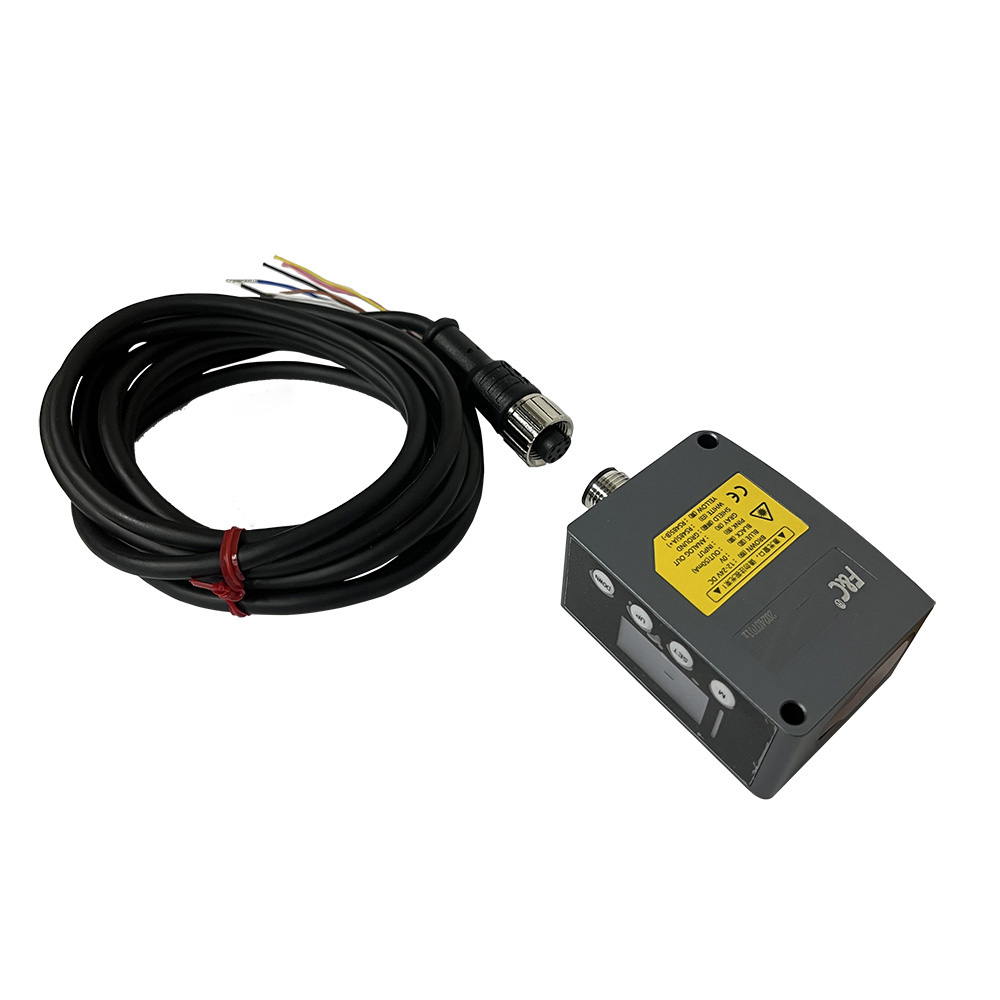

Cable	8-core composite cable, 2m
Housing material	Aluminum
Certification	CE

Product Description

Parameter	Value
Measurement distance	0.1m - 20m
Measurement error	±(2mm + d × 0.01%)
Laser type	Red semiconductor laser, Class II, 655±10nm, <1mW
Supply voltage	12-24VDC ±10% (ripple P-P 10%)
Current consumption	≤50mA @24V
Control output	NPN or PNP open-drain (N.O./N.C. switchable)
Output conditions	Max current: 50mA, Residual voltage: <1.5V, Leakage current: <0.1mA
Short circuit protection	Auto recovery type
Analog voltage output	0-5V (alarm: 5.2V), output impedance: 100Ω
Analog current output	4-20mA (alarm: 0mA), output impedance: ≤300Ω
Response time	50-200ms
External input	NPN non-contact input
Protection rating	IP67
Working temperature	-10°C ~ +45°C (no condensation/frost)
Storage temperature	-20°C ~ +60°C
Working humidity	35% ~ 85% RH
Ambient illuminance	Incandescent: receiving surface ≤3000 Lux
Altitude rating	≤2000m
Cable	8-core composite cable, 2m
Housing material	Aluminum
Certification	CE
