| Parameter | Value |
|---|---|
| Sensing distance | 1000mm |
| Output mode | PNP (N.O./N.C. adjustable) |
| Light source | 650nm red laser, Class 2 |
| Response time | 1ms |
| Operating voltage | 9~30VDC |
| Connection | Pre-wired 2M cable (4.0mm, 3-core) |
| Protection rating | IP64 |
| Dimensions | 33×20×11mm |
| Weight | 7g |
| Temp. range | -20~55°C |
| Certification | CE |

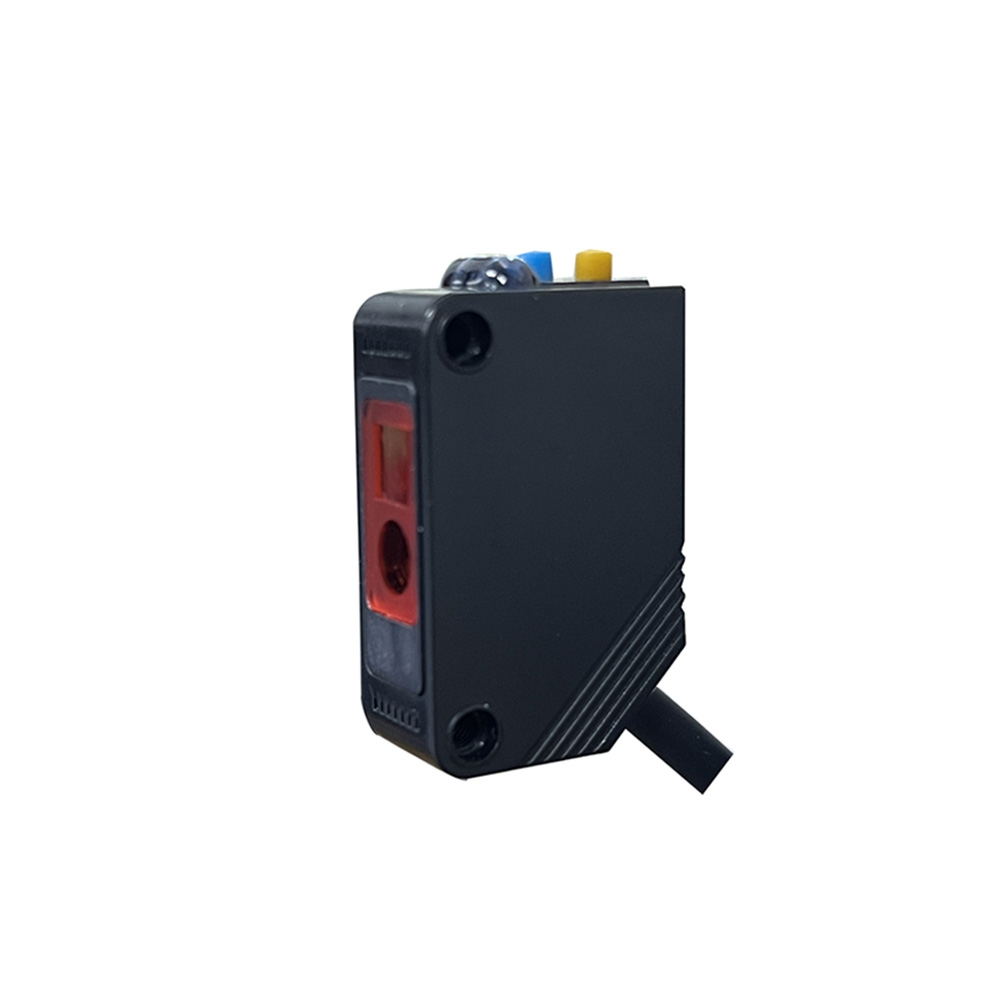

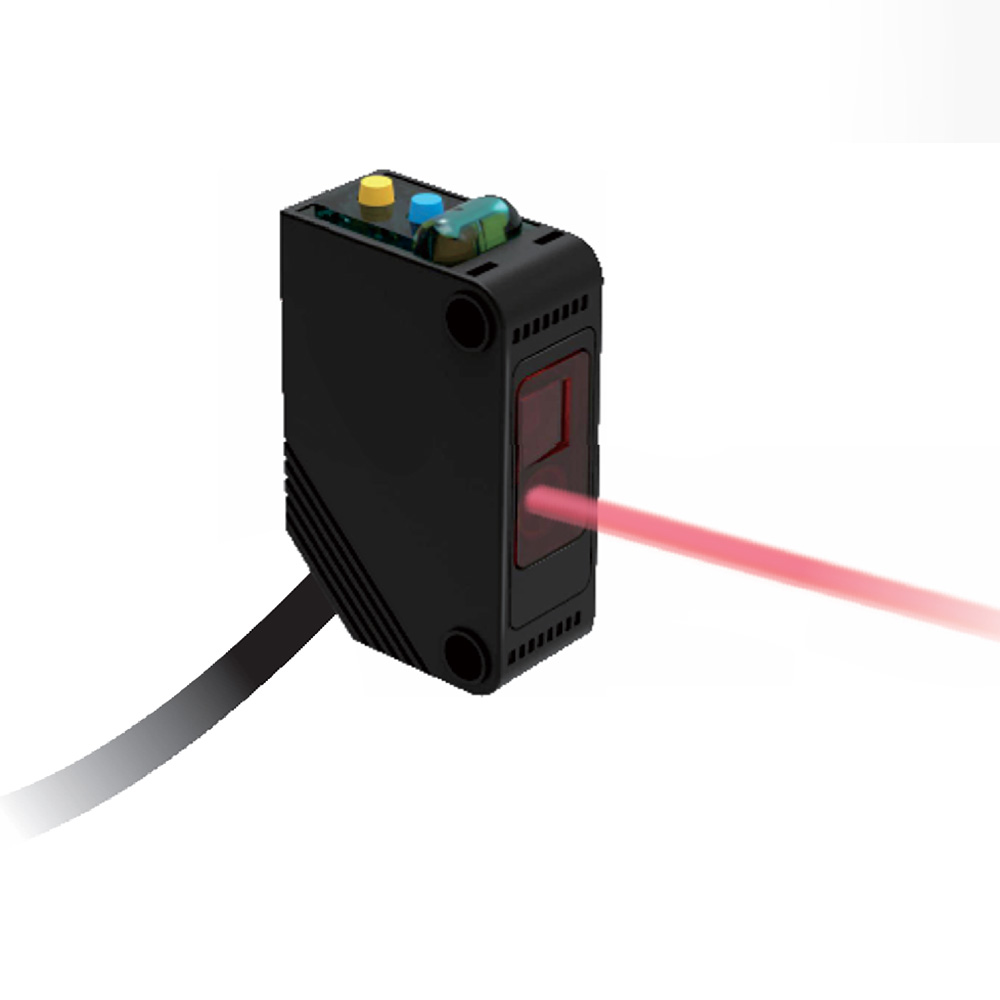

FCB-S100P R2M
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Sensing distance | 1000mm |
Output mode | PNP (N.O./N.C. adjustable) |
Analog voltage output | NA |
Analog current output | NA |
Response time | 1ms |
Load current | 100mA |
Operating voltage | 9~30VDC |
Laser class | Class 2 |
Light source | 650nm red laser |
Adjustment range | Adjustable |
Repeat accuracy | ±5mm |
Protection circuit | Reverse polarity protection |
Power consumption | <0.5W |
Absolute accuracy | ±40mm |
Laser power | <1.0mW |

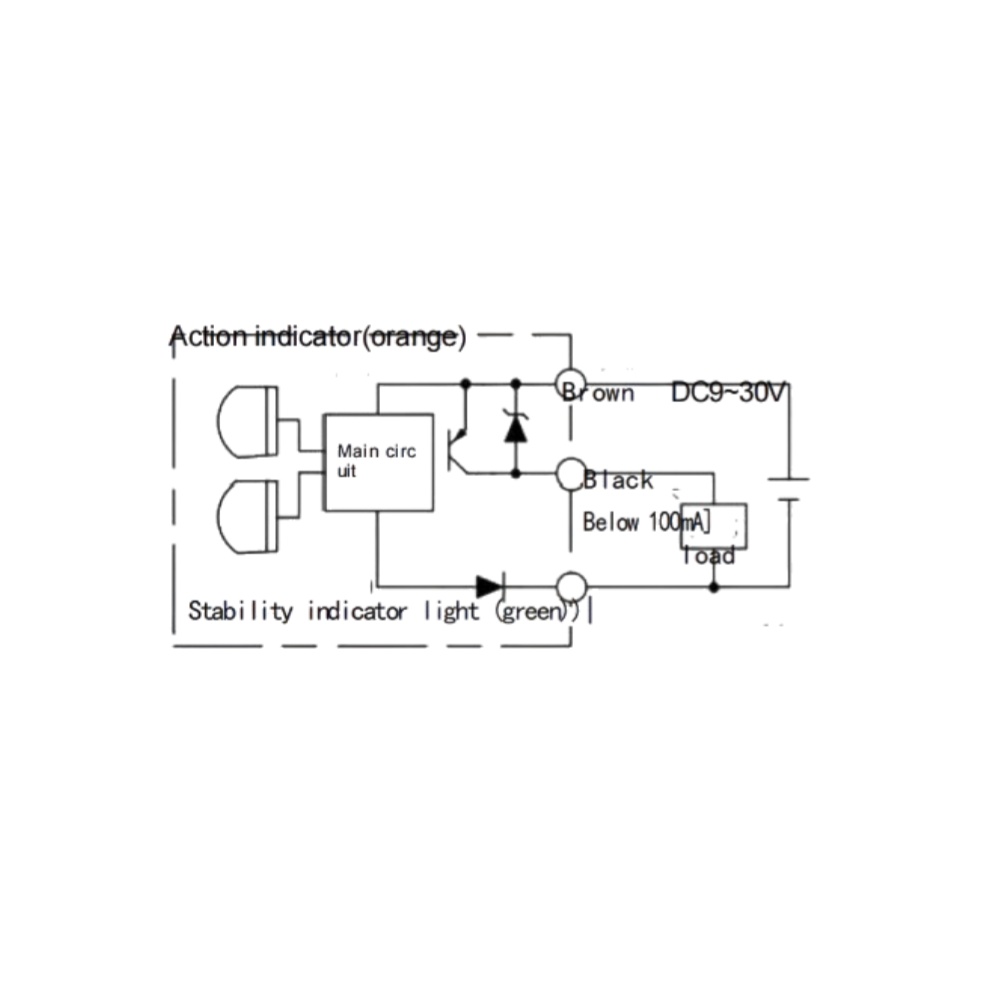

Indicators | Orange output LED, green power LED |
Residual voltage | <1VDC |
Ambient temperature | -20~55°C (no freezing/ice) |

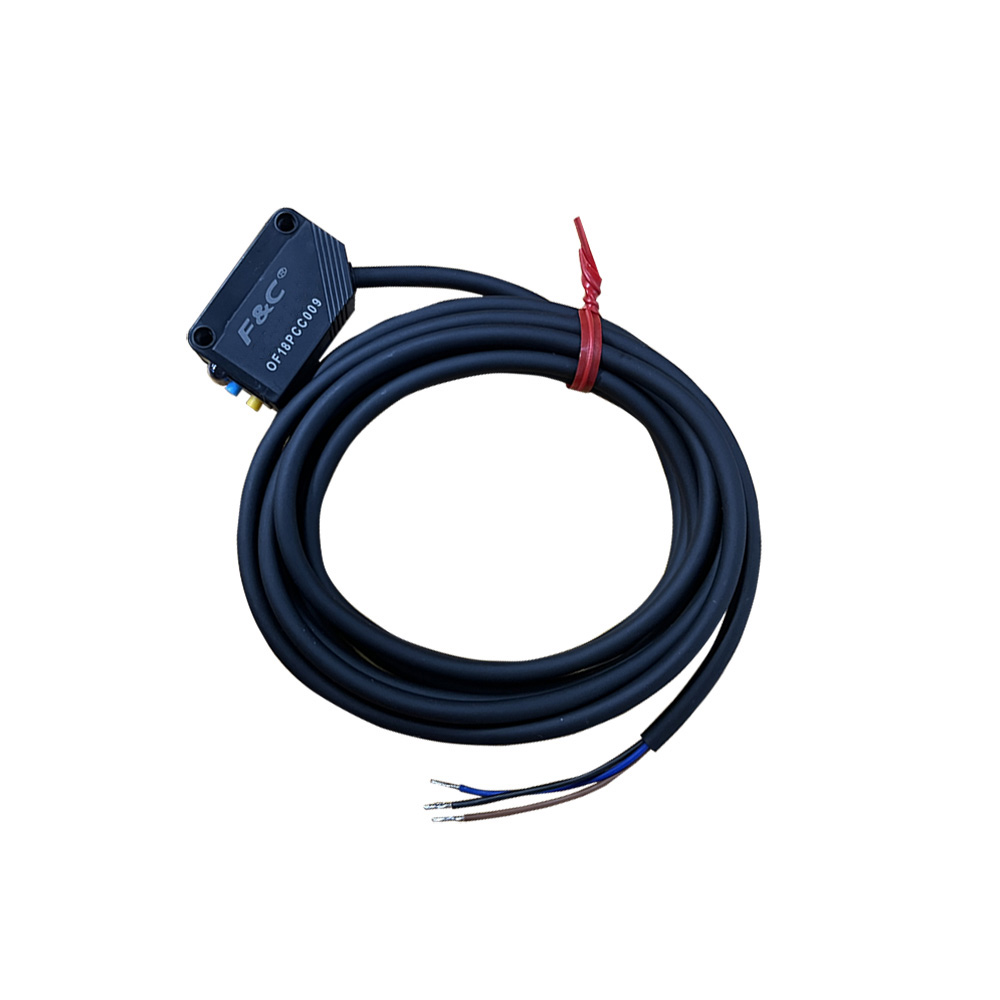

Cable specification | 4.0mm 3-core 2M flexible cable |
Dielectric strength | 1000VDC 50/60Hz 1min (charging parts to housing) |
Vibration resistance | 10~50Hz, 2 hours each in X,Y,Z directions |
Housing material | PC+ABS |
Storage temperature | -40~70°C (no freezing/ice) |
Weight | 7g |
Pollution degree | 2 |
Lens material | PMMA |
Connection method | Pre-wired cable |
Protection rating | IP64 |
Ambient illuminance | <4000Lux |

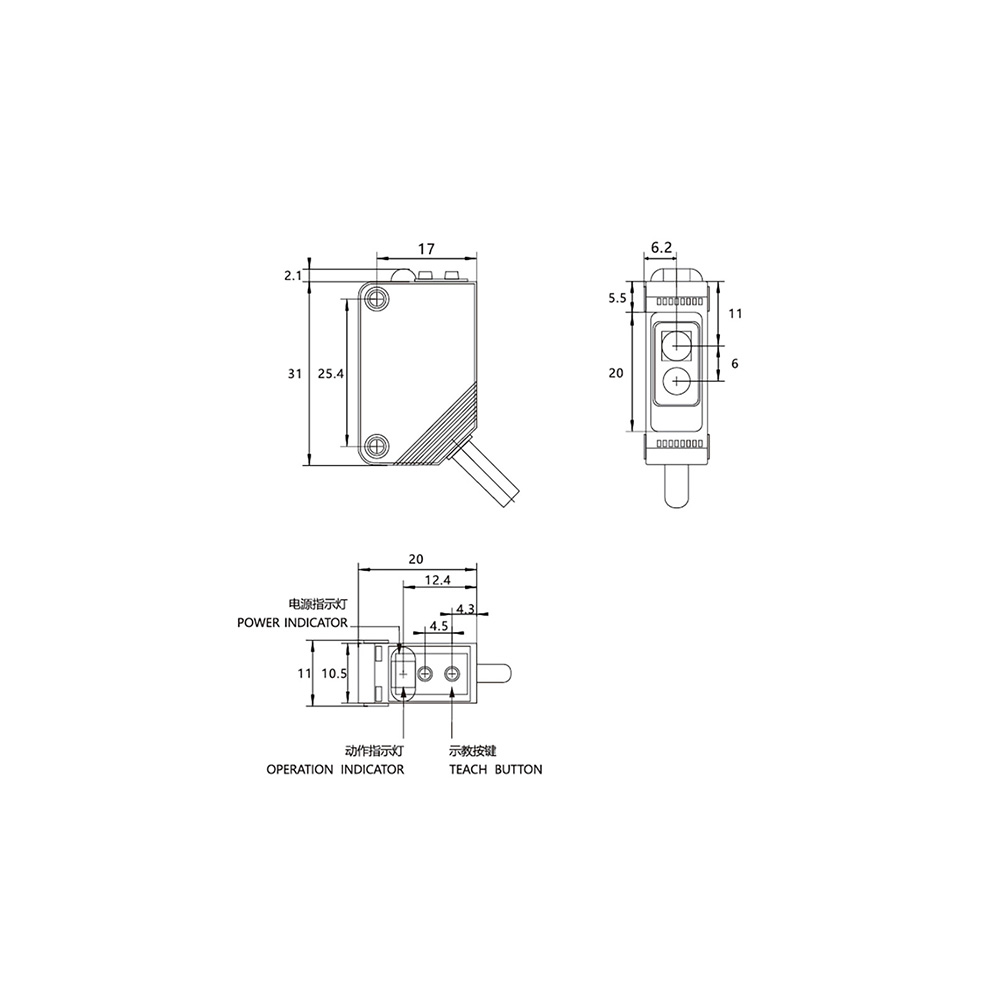

External dimensions | 33×20×11mm |
Altitude rating | 2000m |
Tightening torque | 0.5 Nm |
