| Parameter | Value |
|---|---|
| Sensing distance | 1000mm |
| Output mode | 0-10V analog output |
| Light source | 650nm red laser, Class 2 |
| Response time | 1ms |
| Operating voltage | 9~30VDC |
| Protection rating | IP67 |
| Connection | Pre-wired 2M cable (4.0mm, 4-core) |
| Dimensions | 41×37.5×23mm |
| Housing material | Aluminum alloy |
| Weight | 45g |
| Temp. range | -20~55°C |
| Operating voltage | 9~30VDC |
| Protection rating | IP67 |
| Pre-wired 2M cable (4.0mm, 4-core) | |

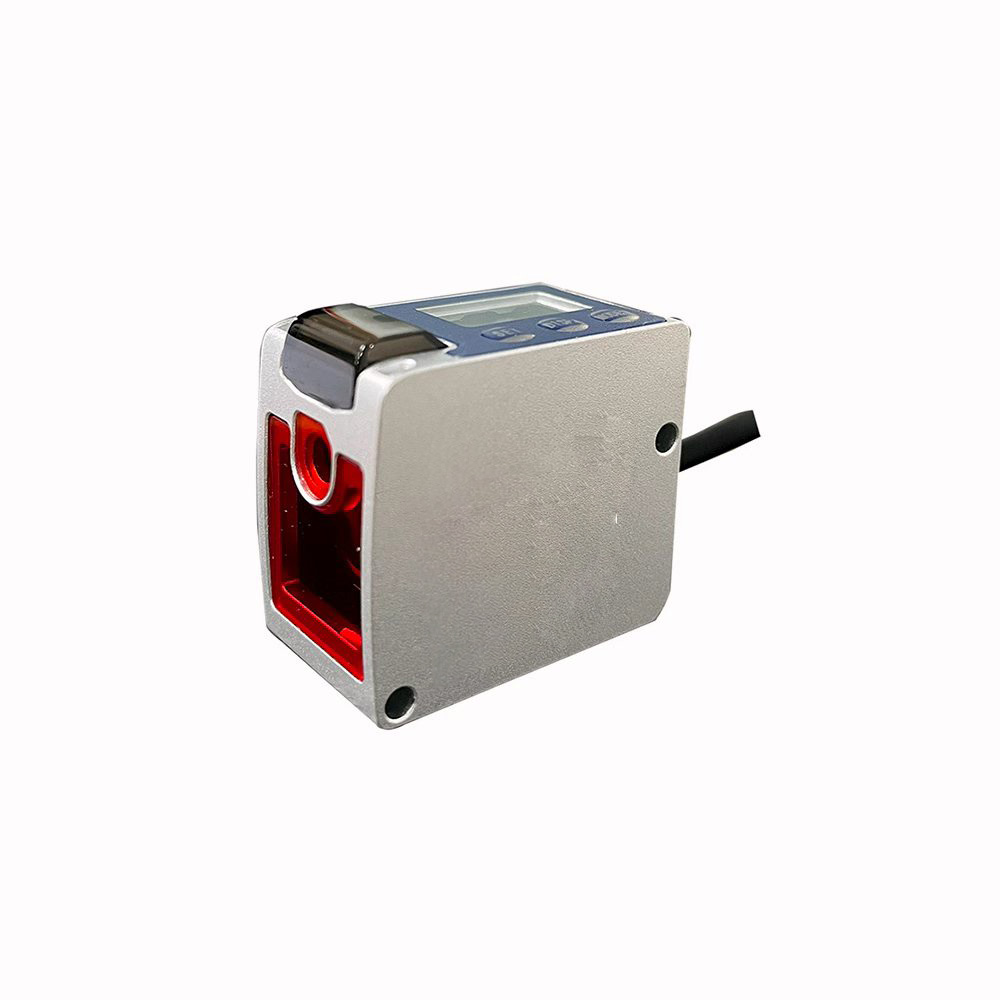

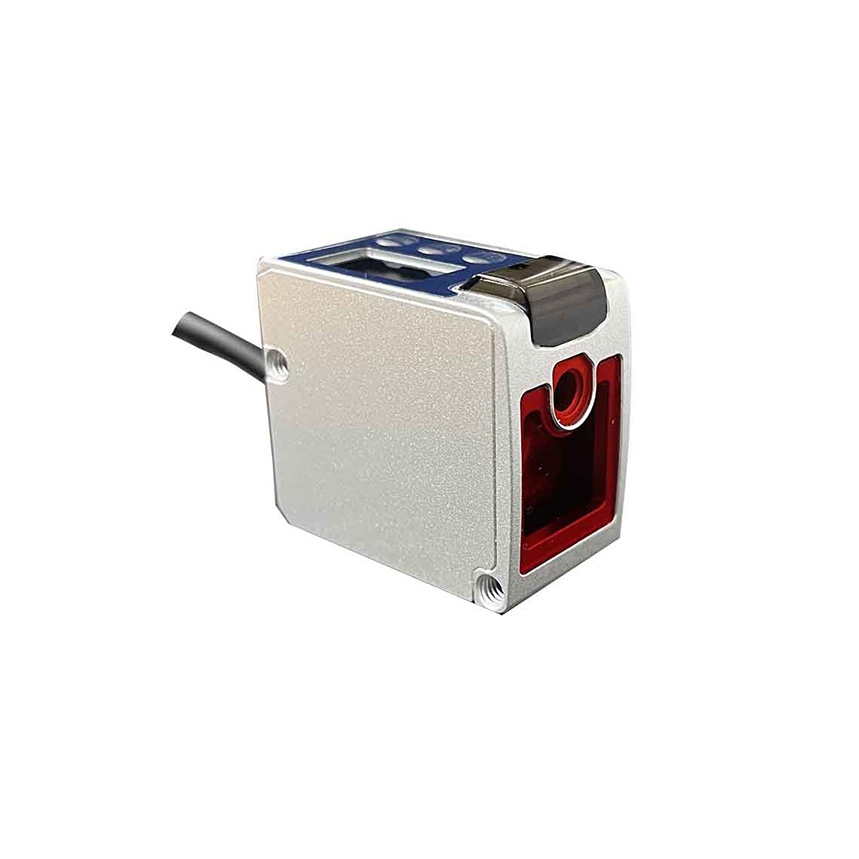

FCWY-100V
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Sensing distance | 1000mm |
Operating voltage | 9~30VDC |
Residual voltage | <1VDC |
Load current | 100mA |
Protection circuit | Reverse polarity protection, output short-circuit protection |
Output mode | NA |
Analog voltage output | 0-10V (load impedance <500Ω) |
Light source | 650nm red laser |
Indicators | Red blind zone indicator, green stability indicator |
Adjustment range | Adjustable |
Repeat accuracy | ±5mm |
Response time | 1ms |
Laser power | <1.3mW |
Laser class | Class 2 |
Power consumption | <1W |
Absolute accuracy | ±50mm |
Protection rating | IP67 |
Connection method | Pre-wired cable |

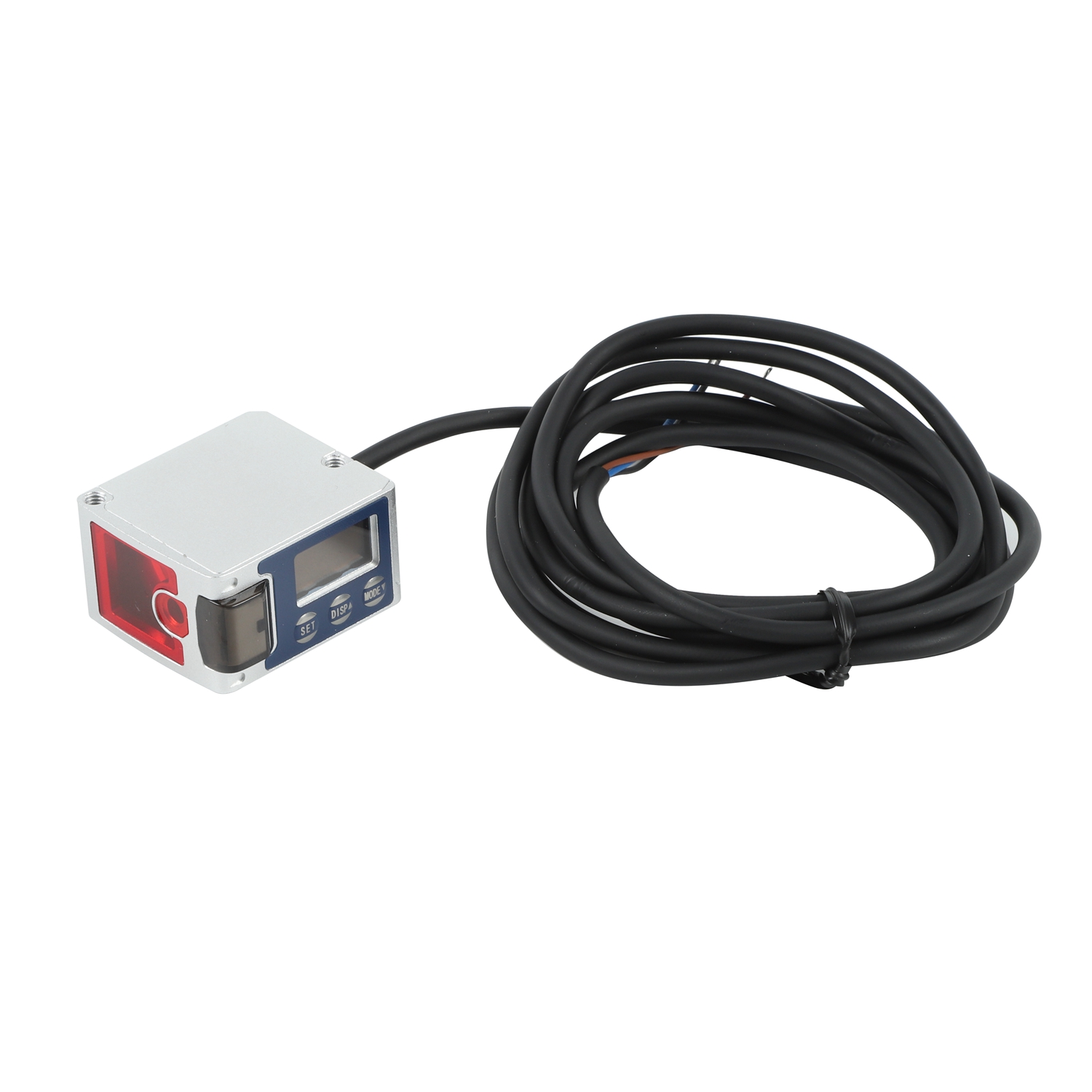

Cable specification | 4.0mm 4-core 2M flexible cable |

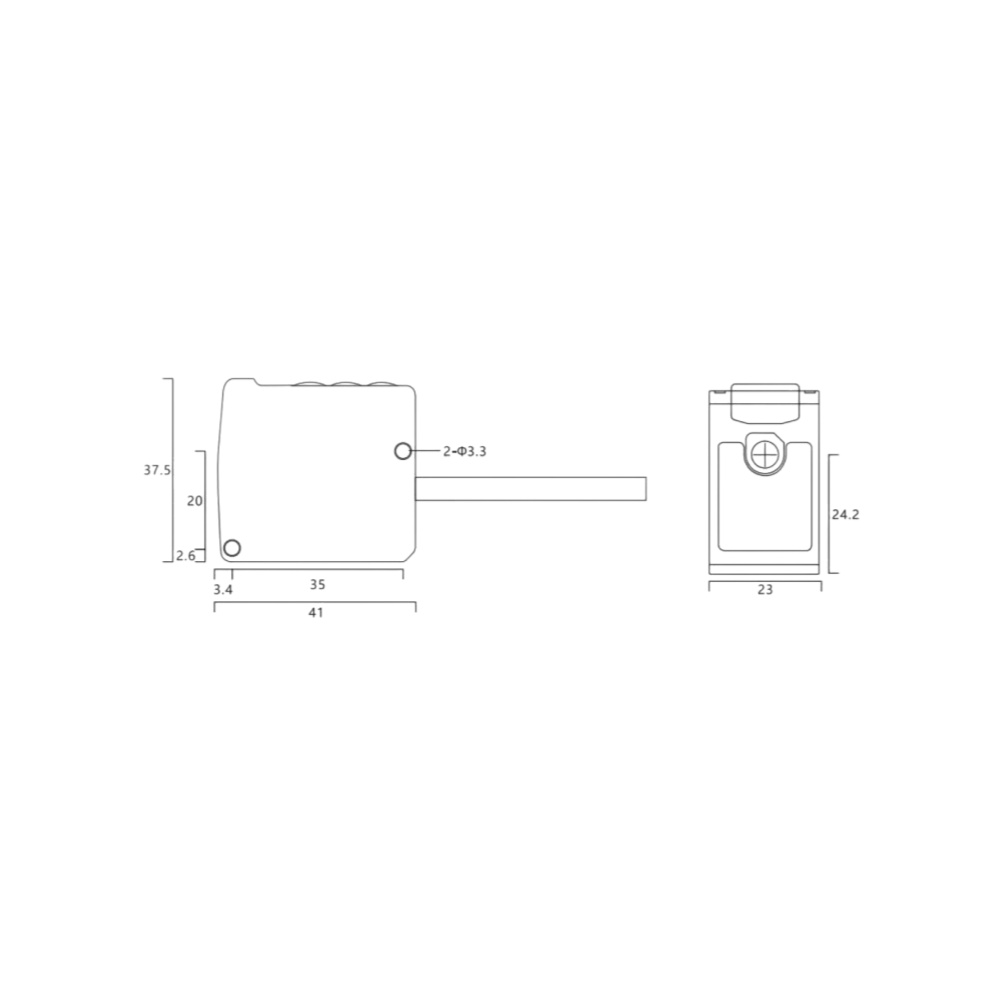

External dimensions | 41×37.5×23mm |
Housing material | Aluminum alloy |
Lens material | Red glass |
Weight | 45g |
Ambient temperature | -20~55°C (no freezing/ice) |
Dielectric strength | 1000VDC 50/60Hz 1min (charging parts to housing) |
Storage temperature | -40~85°C (no freezing/ice) |
Ambient illuminance | Incandescent: >10000Lux at 1M, >3000Lux at 5M |
Ambient humidity | 35~85% RH (no freezing/ice) |
Pollution degree | 2 |
Vibration resistance | 10~50Hz, 2 hours each in X,Y,Z directions |
Altitude rating | 2000m |
Tightening torque | 0.5 Nm |
