| Parameter | Value |
|---|---|
| Measurement distance | 0.1m - 50m |
| Measurement error | ±(2mm + d × 0.01%) |
| Laser type | Red semiconductor laser, Class I, 655±10nm, <1mW |
| Supply voltage | 12-24VDC ±10% (ripple P-P 10%) |
| Current consumption | ≤50mA @24V |

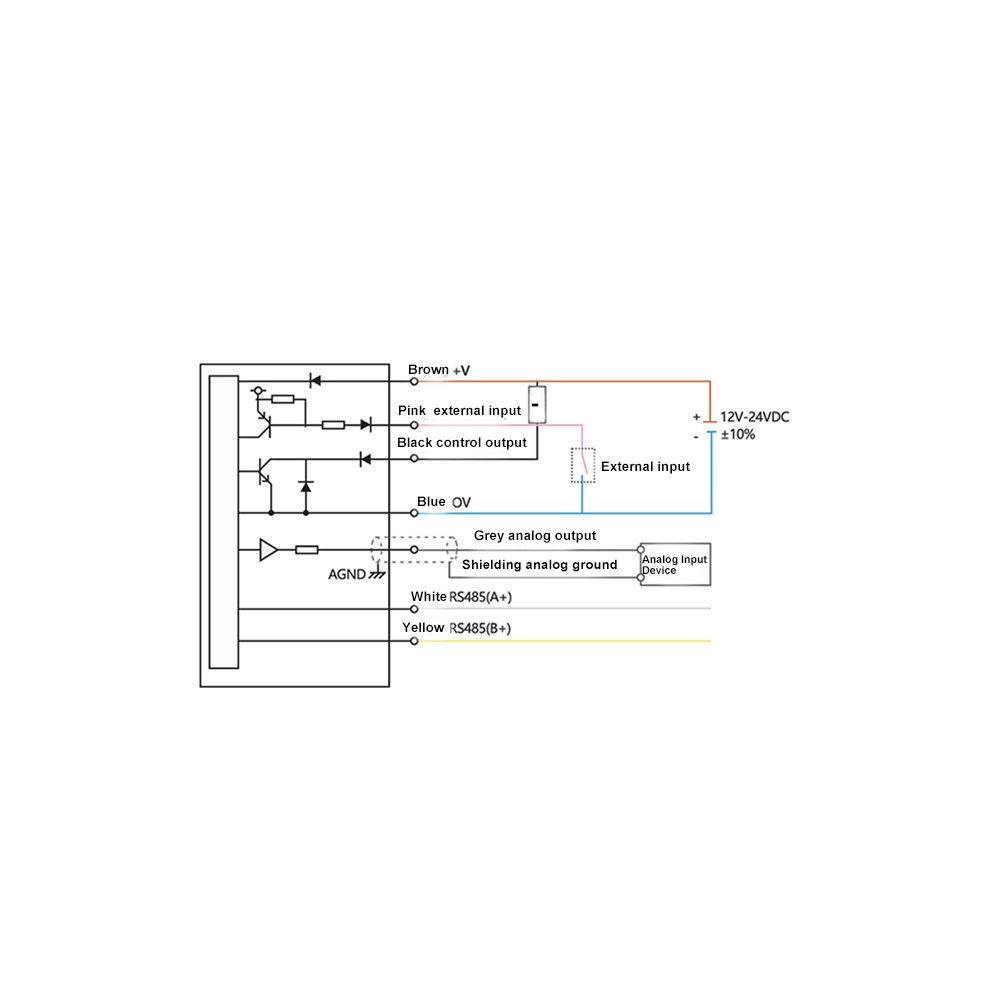

| Control output | NPN or PNP open-drain (N.O./N.C. switchable) |
| Output conditions | Max current: 50mA, Residual voltage: <1.5V, Leakage current: <0.1mA |
| Short circuit protection | Auto recovery type |
| Analog voltage output | 0-5V (alarm: 5.2V), output impedance: 100Ω |
| Analog current output | 4-20mA (alarm: 0mA), output impedance: ≤300Ω |
| Response time | 50-200ms |
| External input | NPN non-contact input |
| Protection rating | IP67 |
| Working temperature | -10°C ~ +45°C (no condensation/frost) |
| Storage temperature | -20°C ~ +60°C |
| Working humidity | 35% ~ 85% RH |
| Ambient illuminance | Incandescent: receiving surface ≤3000 Lux |
| Altitude rating | ≤2000m |

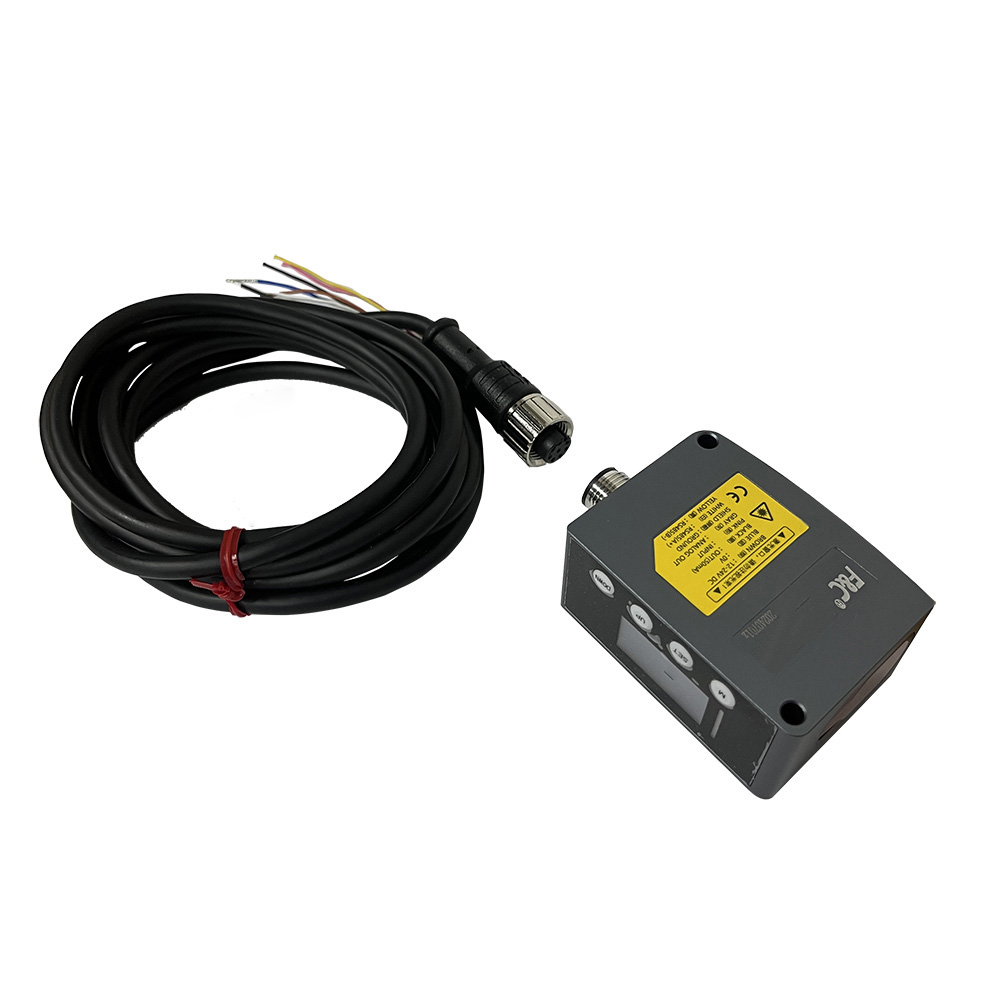

| Cable | 8-core composite cable, 2m |
| Housing material | Aluminum |
| Weight | Approx. 150g |
| Certification | CE |

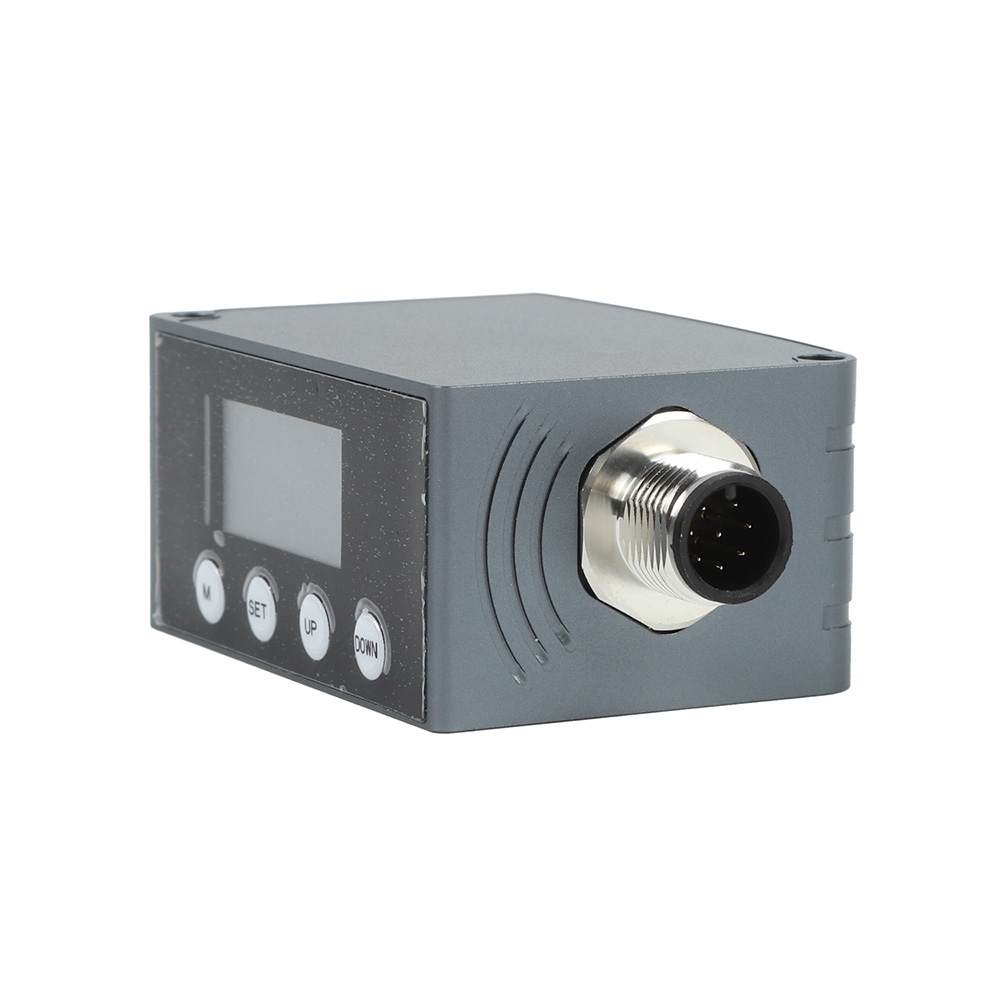

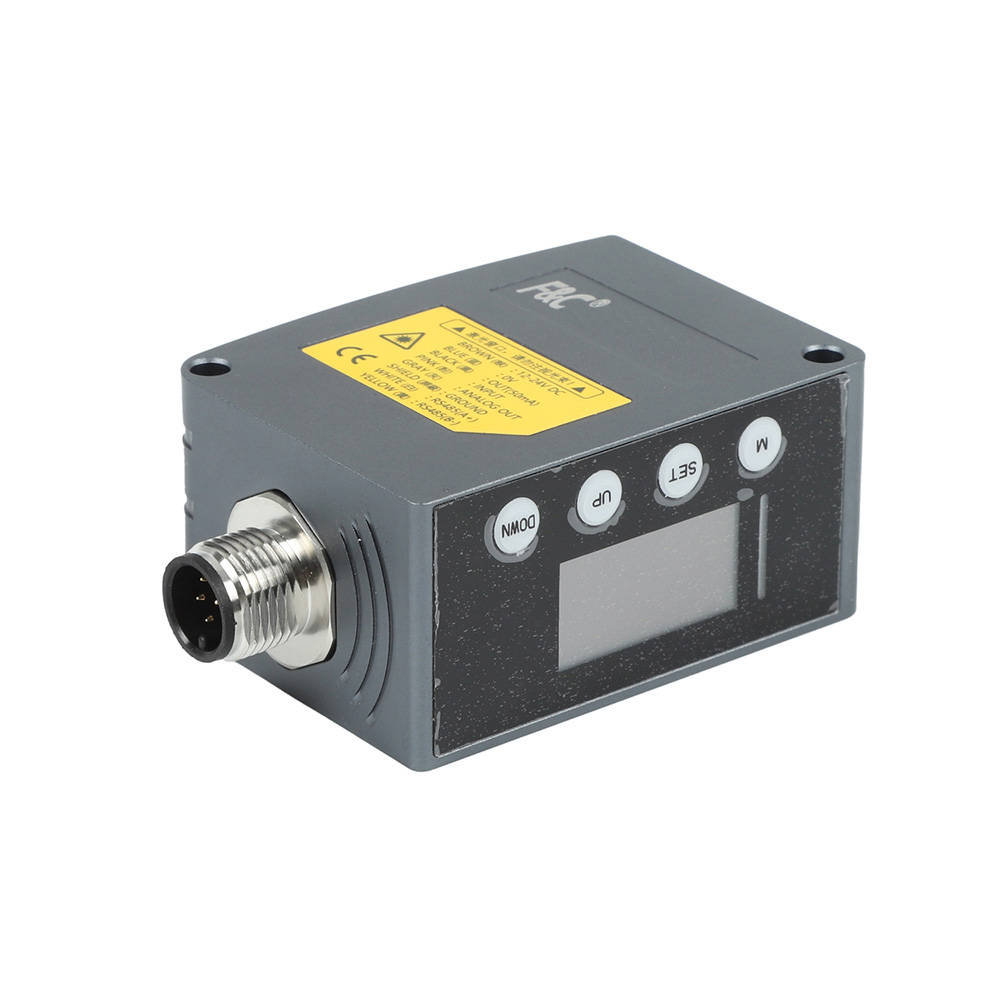

FCWY-5000PA/485
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Measurement distance | 0.1m - 50m |
Measurement error | ±(2mm + d × 0.01%) |
Laser type | Red semiconductor laser, Class I, 655±10nm, <1mW |
Supply voltage | 12-24VDC ±10% (ripple P-P 10%) |
Current consumption | ≤50mA @24V |
Control output | NPN or PNP open-drain (N.O./N.C. switchable) |
Output conditions | Max current: 50mA, Residual voltage: <1.5V, Leakage current: <0.1mA |
Short circuit protection | Auto recovery type |
Analog voltage output | 0-5V (alarm: 5.2V), output impedance: 100Ω |
Analog current output | 4-20mA (alarm: 0mA), output impedance: ≤300Ω |
Response time | 50-200ms |
External input | NPN non-contact input |
Protection rating | IP67 |
Working temperature | -10°C ~ +45°C (no condensation/frost) |
Storage temperature | -20°C ~ +60°C |
Working humidity | 35% ~ 85% RH |
Ambient illuminance | Incandescent: receiving surface ≤3000 Lux |
Altitude rating | ≤2000m |
Cable | 8-core composite cable, 2m |
Housing material | Aluminum |
Weight | Approx. 150g |
Certification | CE |
