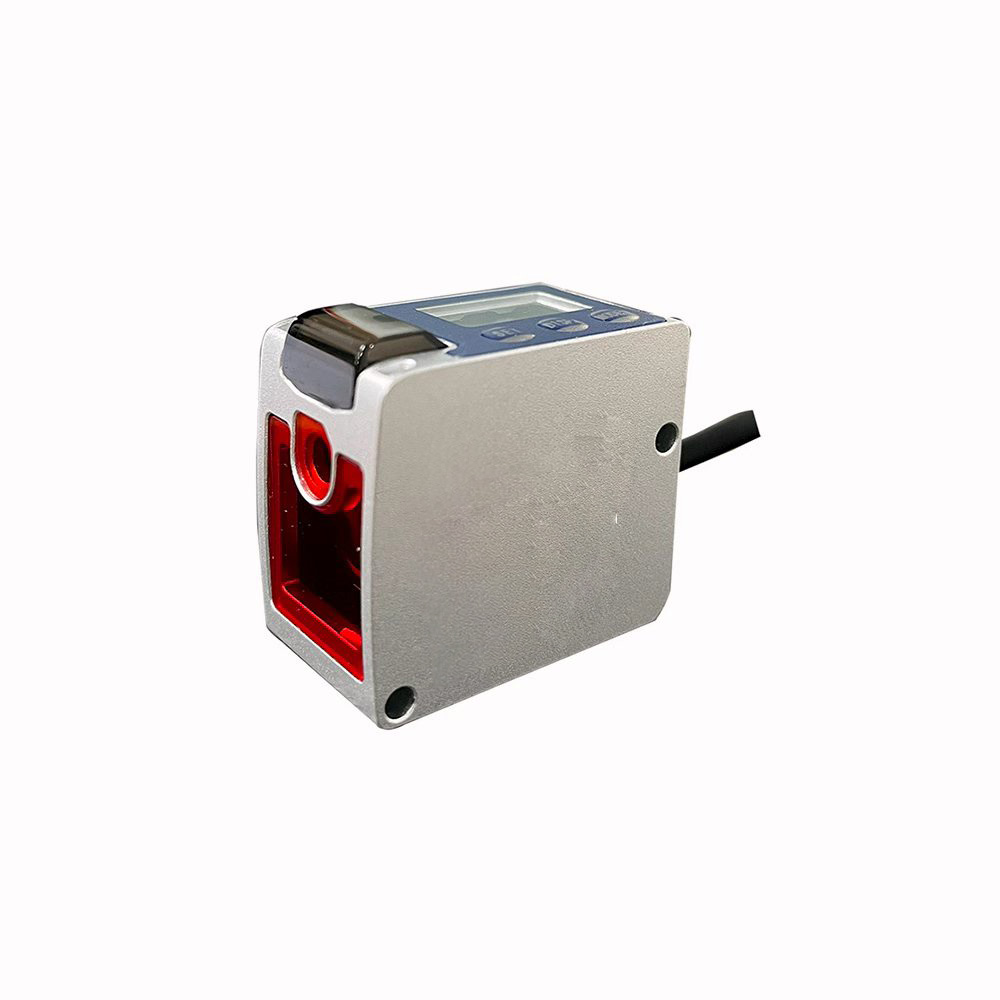

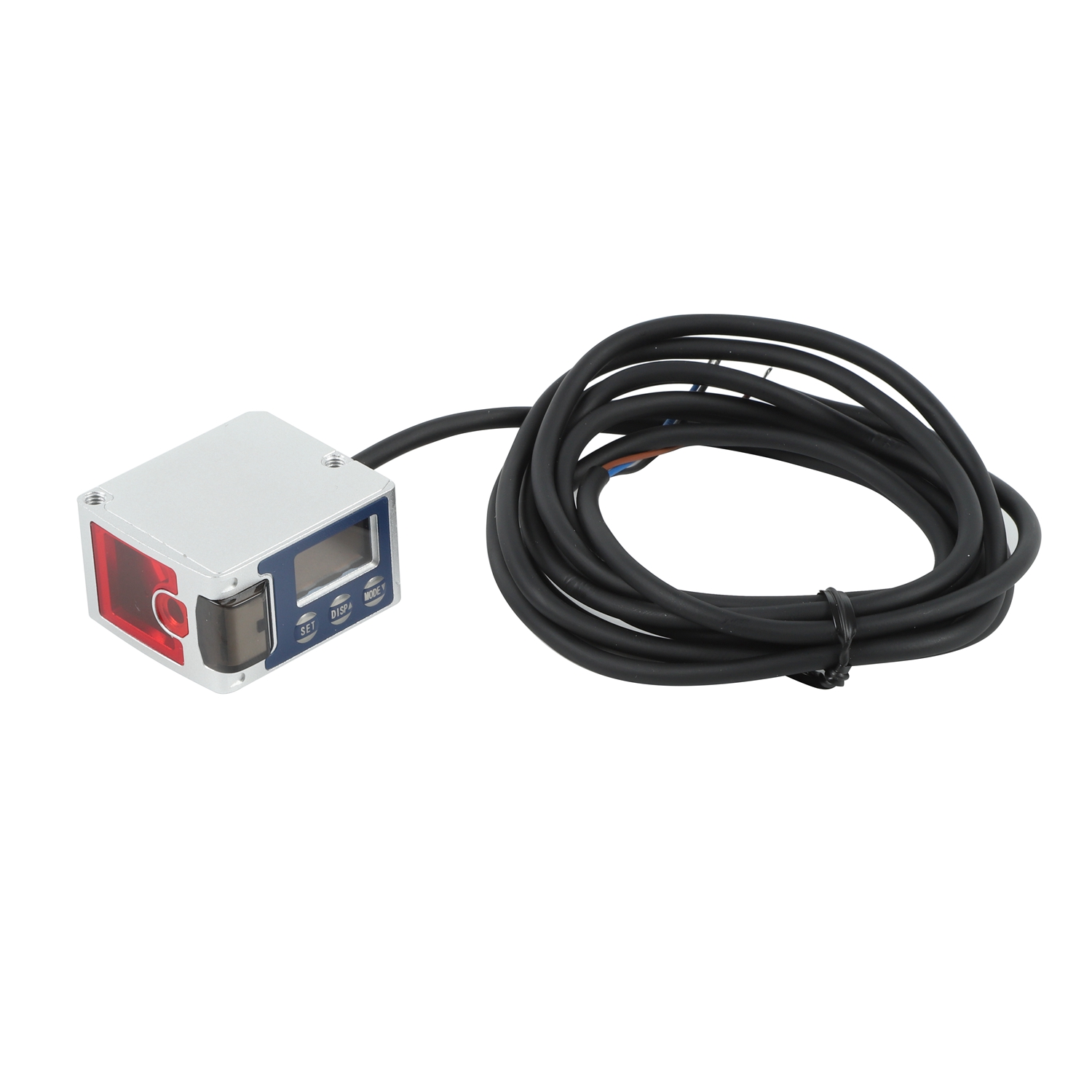

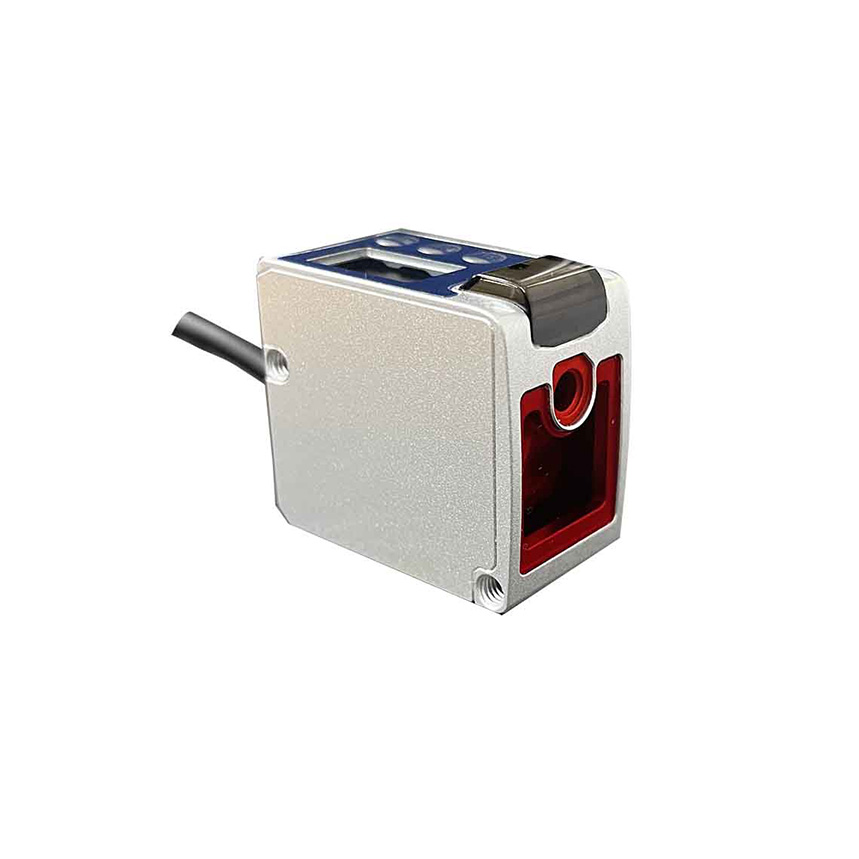

FCWY-200NA Laser distance meter

Parameter	Value
Detection distance	2000mm
Output mode	NPN (N.O./N.C. adjustable) + 4-20mA analog
Light source	650nm red laser, Class 2
Reaction time	1ms
Working voltage	9~30VDC
Protection grade	IP67
Connection	Pre-wired 2M cable (4.0mm, 4-core)
Dimensions	41×37.5×23mm
Shell material	Aluminum alloy
Weight	45g
Ambient temperature	-20~55°C

Product Description

Parameter	Value
Detection distance	2000mm
Working voltage	9~30VDC
Current consumption	NA
Residual voltage	<1VDC
Load current	100mA
Protection circuit	Reverse power connection protection, output short circuit protection
Output mode	NPN (N.O./N.C. adjustable)
Luminous light source	650nm red laser
Indicator light	Orange output indicator, green stability indicator
Adjustable distance range	Adjustable
Repeatability accuracy	±5mm
Reaction time	1ms
Laser power	<1.3mW
Laser grade	Class 2
Power consumption	<1W
Analog voltage output	NA
Analog current output	4-20mA (load impedance <500Ω)
Absolute accuracy	±50mm
Protection grade	IP67
Connection method	Pre-wired cable
Cable specification	4.0mm 4-core 2M flexible cable

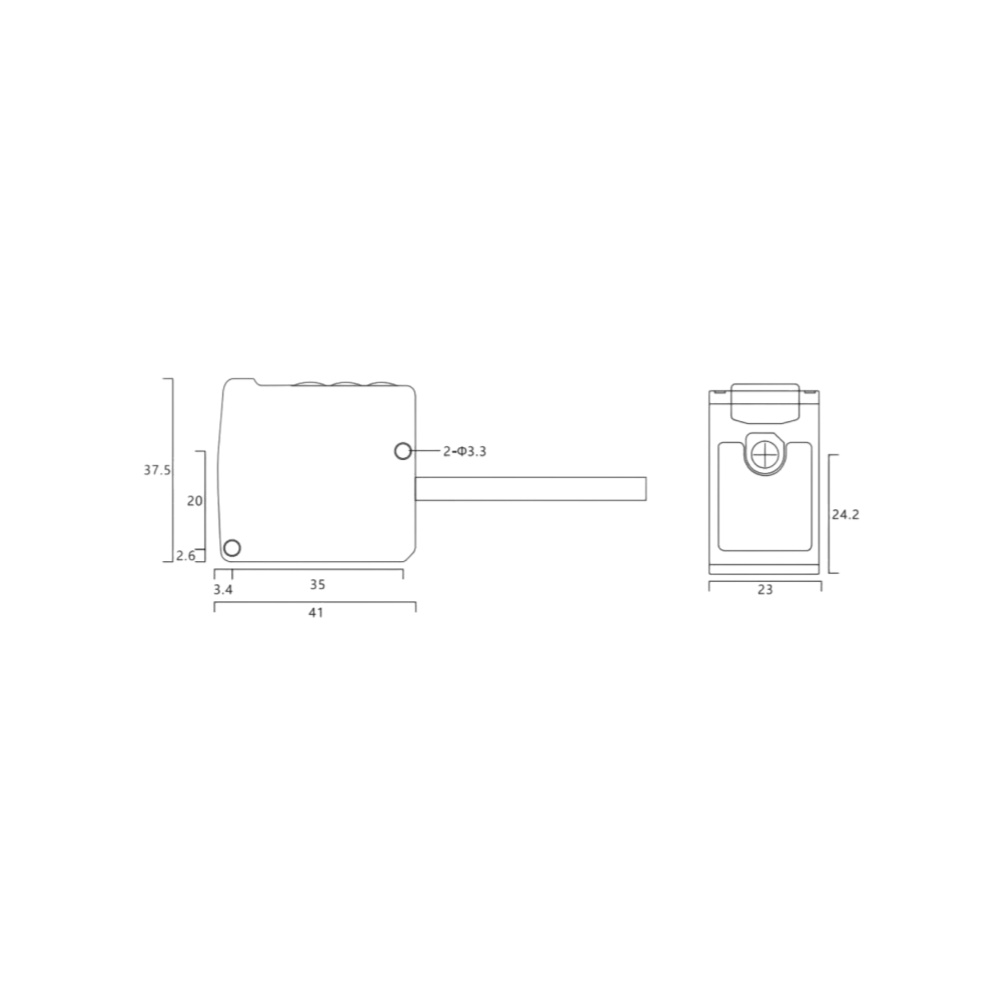

Overall dimensions	41×37.5×23mm
Shell material	Aluminum alloy
Lens material	Red glass
Weight	45g
Ambient temperature	-20~55°C (no frost or ice)
Impact withstand voltage	1000VDC 50-60Hz for 1 minute (between charging part and housing)
Storage temperature	-40~85°C (no frost or ice)
Ambient illuminance	Incandescent lamp: >10,000 Lux at 1M, >3,000 Lux at 5M
Environmental humidity	35~85% RH (no frost or ice)
Degree of defilement	2
Vibration resistance	10~50Hz, 2 hours each in X, Y, Z directions
Use elevation	2000m
Tightening torque	0.5 Nm
