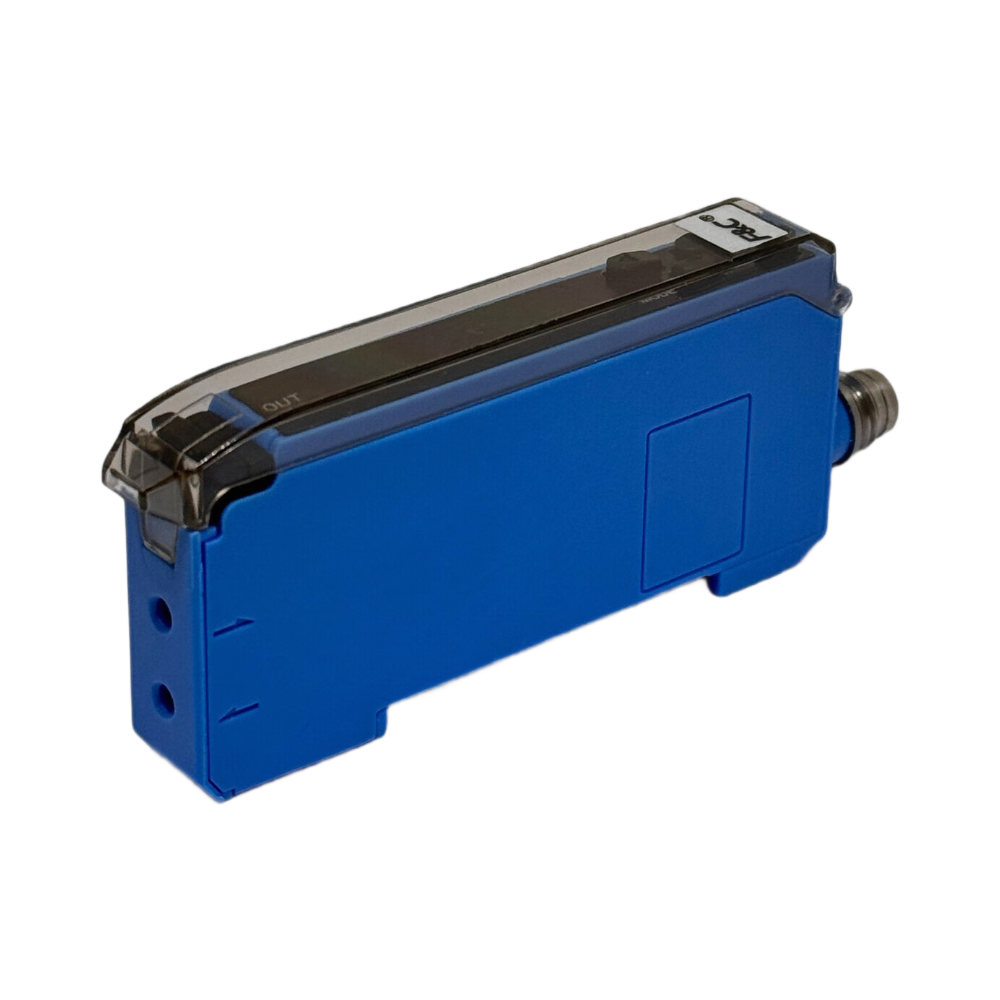

FF-403BP General-purpose digital display amplifier

Comprehensive Details of the FF-403BP Digital Display Amplifier

Core Performance and Intuitive Operation

When outfitting a modern production facility, the speed and accuracy of your sensory equipment dictate the overall efficiency of the line. The FF-403BP general-purpose digital display amplifier is engineered to deliver exceptional real-time detection with an ultra-fast response time that can be selected from 50μs, 1ms, or 16ms depending on the specific operational demands. This rapid processing ensures that even the fastest-moving objects on an automated conveyor are captured with absolute precision. Paired with a 470nm blue modulated light source, this unit provides a highly focused beam that excels in identifying subtle contrasts and minute targets.

Beyond raw speed, the physical interaction with the device has been meticulously refined. Operators will immediately notice the tactile, responsive click of the interface buttons during the one-touch quick setup process. This physical feedback eliminates guesswork on the factory floor. The visual feedback is equally impressive, featuring a brilliant dual-color digital display: a 4-digit green LED for your set parameters and a 4-digit red LED for real-time detected values. In dimly lit industrial environments, the crisp, bright glow of these numbers allows technicians to monitor status effortlessly from a distance. Furthermore, the built-in parameter recovery function acts as a critical safeguard, allowing engineers to instantly restore previous configurations, thereby drastically reducing manual calibration time and minimizing costly operational pauses.

Versatile Application Scenarios in Confined Spaces

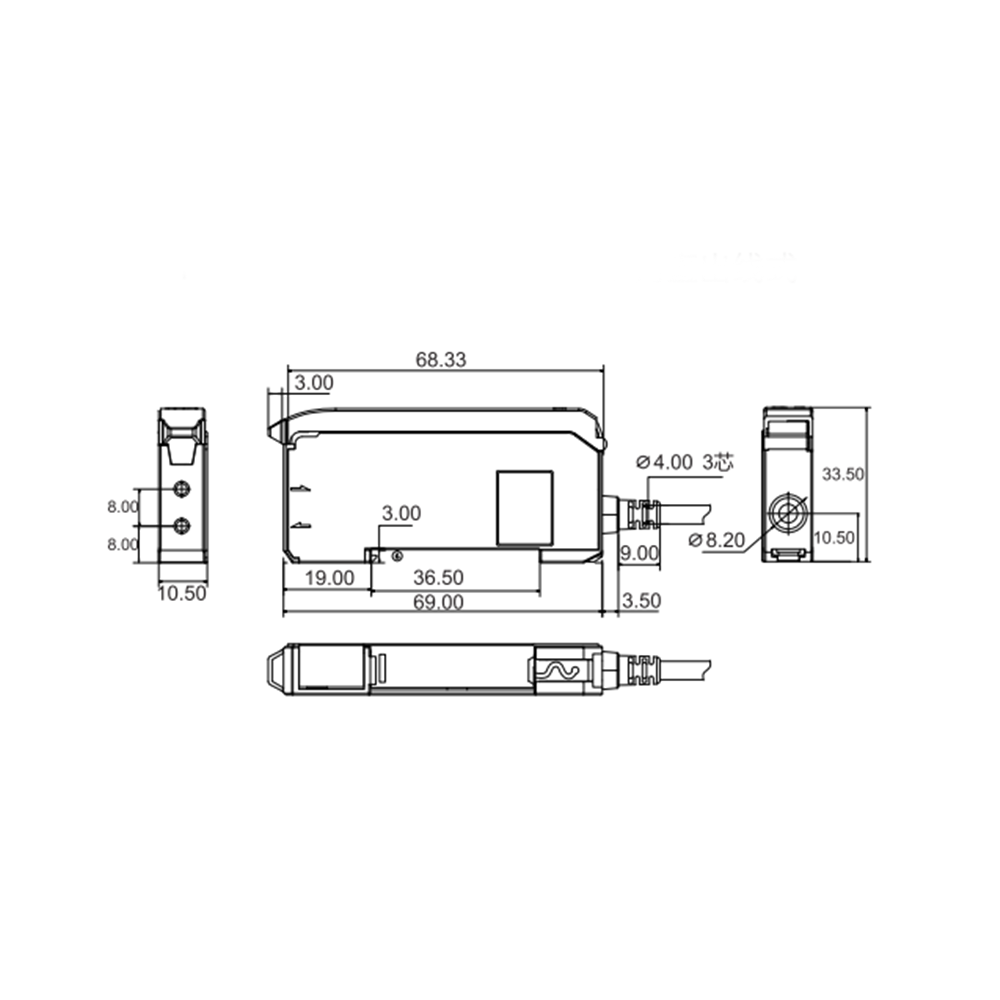

The physical footprint of sensory components is a constant challenge in dense machinery. Measuring a remarkably compact 69 × 33.5 × 10.5 mm, this amplifier is designed to slide into the tightest enclosures without interfering with moving mechanical parts.

• Adaptable Fiber Optic Integration: Because the exact detection method and distance depend on the specific fiber used, this amplifier serves as a universal brain for a wide array of optical probes, making it incredibly versatile across different stations on the same assembly line.
• Precision Position Detection: Ideal for semiconductor manufacturing and micro-electronics assembly, where identifying the exact presence or absence of a millimeter-sized component is critical to preventing downstream assembly errors.
• Space-Restricted Installations: The slim profile, combined with the secure M4 screw fastening system, ensures that the unit remains firmly anchored even in awkward, hard-to-reach mounting locations within packaging machinery or robotic arms.

Industrial-Grade Durability and Safety Mechanisms

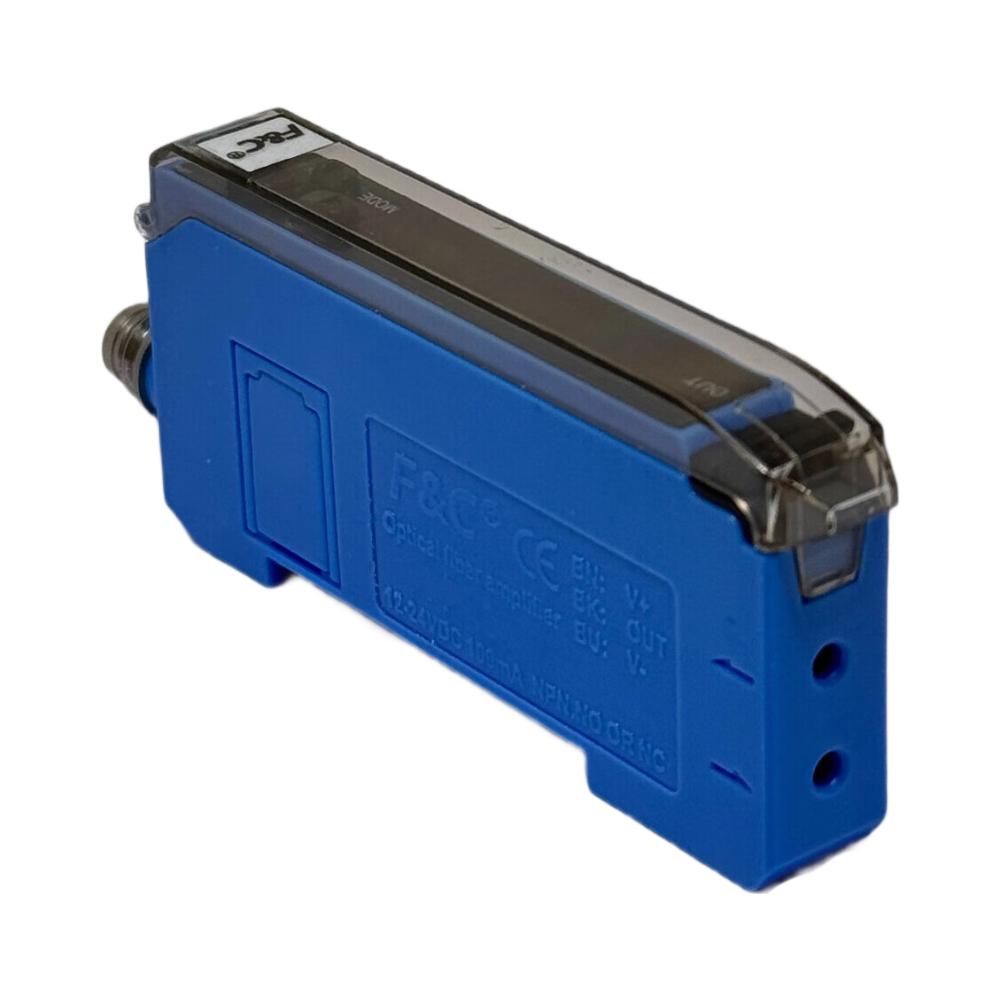

Rugged Material Construction: Pick up the FF-403BP, and you will immediately feel the dense, rigid structure of its PC + POM housing. This material blend is specifically chosen for its excellent mechanical strength and resistance to continuous friction and impact, ensuring the internal electronics remain perfectly shielded.

Environmental Resilience: Rated at IP54 for protection, the enclosure effectively repels dust accumulation and withstands splashing liquids common in heavy manufacturing environments. It is engineered to maintain continuous operation in ambient temperatures ranging from -10 to 50°C and storage conditions from -20 to 60°C, provided there is no freezing or ice formation.

Electrical Safeguards: Wiring errors during rapid facility upgrades can destroy sensitive equipment. This unit features comprehensive electrical defenses, including built-in thermal protection against output short-circuits and strict reverse polarity protection. With a dielectric strength of 1000VDC (50/60Hz 1min) and insulation resistance exceeding 50MΩ, the internal circuitry is heavily fortified against unexpected power anomalies.

Vibration Tolerance: Heavy machinery generates constant kinetic energy. This amplifier is tested to endure vibration resistance cycles of 10~55Hz with a 1.5mm amplitude for two hours across each X, Y, and Z axis, guaranteeing that the internal components will not shake loose during aggressive mechanical operations.

Stringent Quality Certification and Supply Chain Reliability

Compliance with international safety directives is non-negotiable for large-scale facility integration. The FF-403BP carries full CE certification, confirming that it meets rigorous European standards for health, safety, and environmental protection. This credential provides peace of mind for procurement teams sourcing components for global deployment. On the logistical front, our mature manufacturing facilities operate with strict quality control protocols, ensuring that every 65g unit performs identically to the last. We maintain extensive, ready-to-ship inventory levels to support immediate, large-volume procurement requirements. For specialized integration projects, our extensive background in OEM manufacturing allows us to adapt and scale production rapidly, ensuring that your most urgent project deadlines are consistently met without compromising on precision.

Comprehensive After-Sales and Technical Support

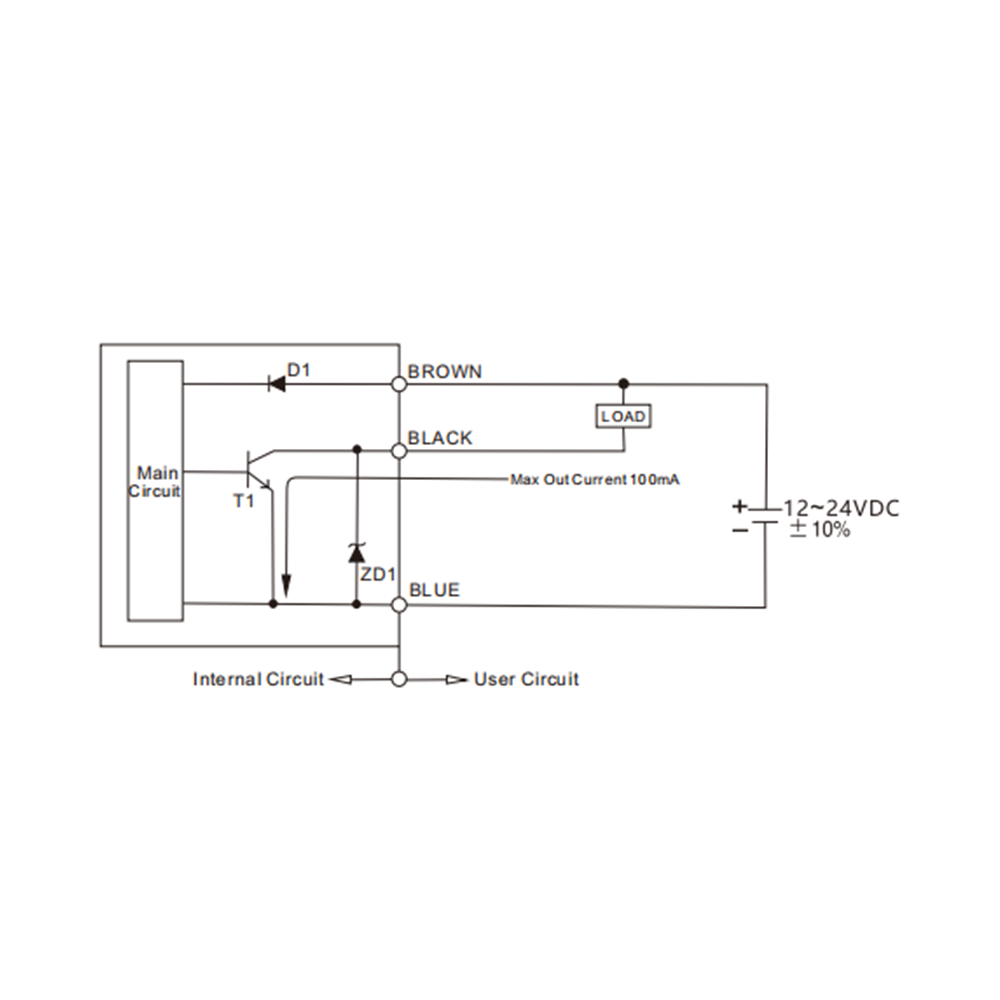

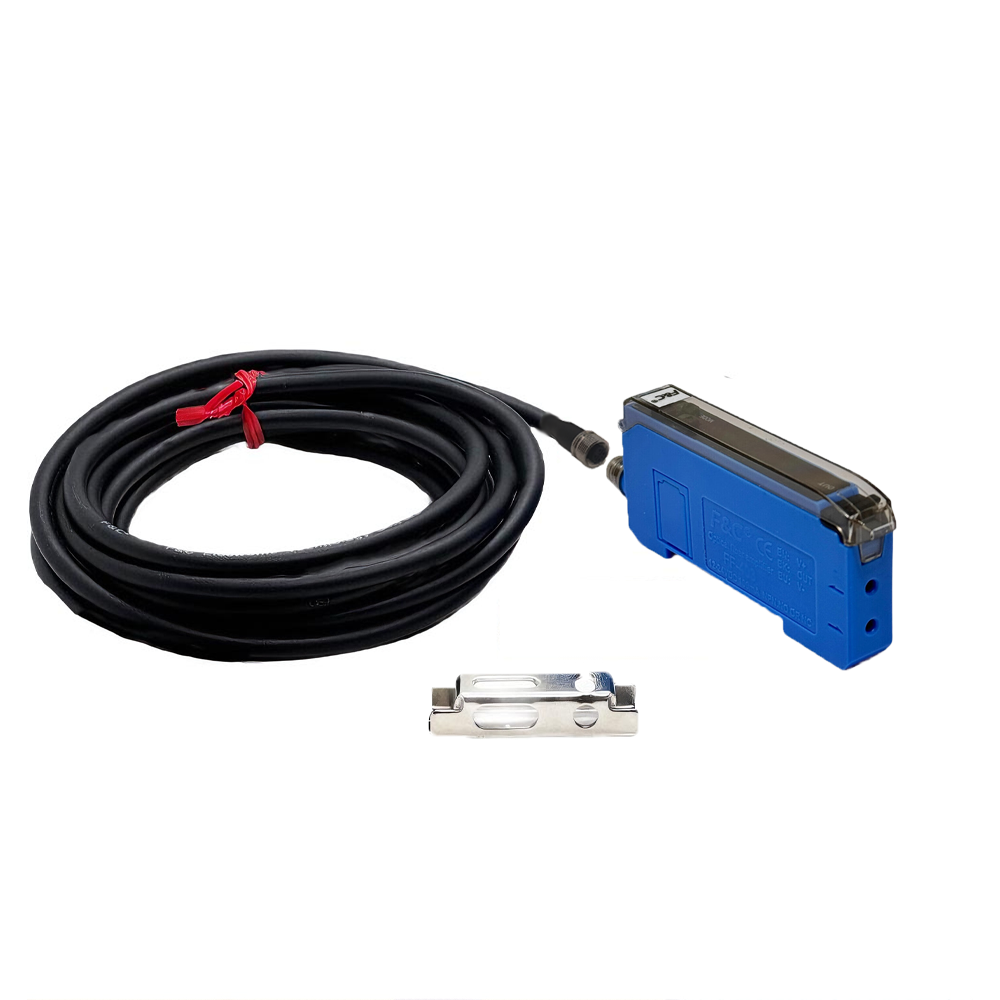

Integrating new sensory technology requires reliable backing long after the initial delivery. We provide complimentary testing samples, allowing your engineering team to physically wire the pre-wired 4.0mm 3-core 2M flexible cable into your specific setup and validate its performance firsthand. Once integrated, the product is supported by a comprehensive, long-term warranty that protects your investment. Should any configuration challenges arise, our dedicated team of technical specialists is available around the clock to provide expert online guidance. From optimizing the PNP (N.O./N.C. adjustable) output mode to fine-tuning the response time for specific line speeds, our support infrastructure is designed to ensure your operations run continuously and efficiently.
