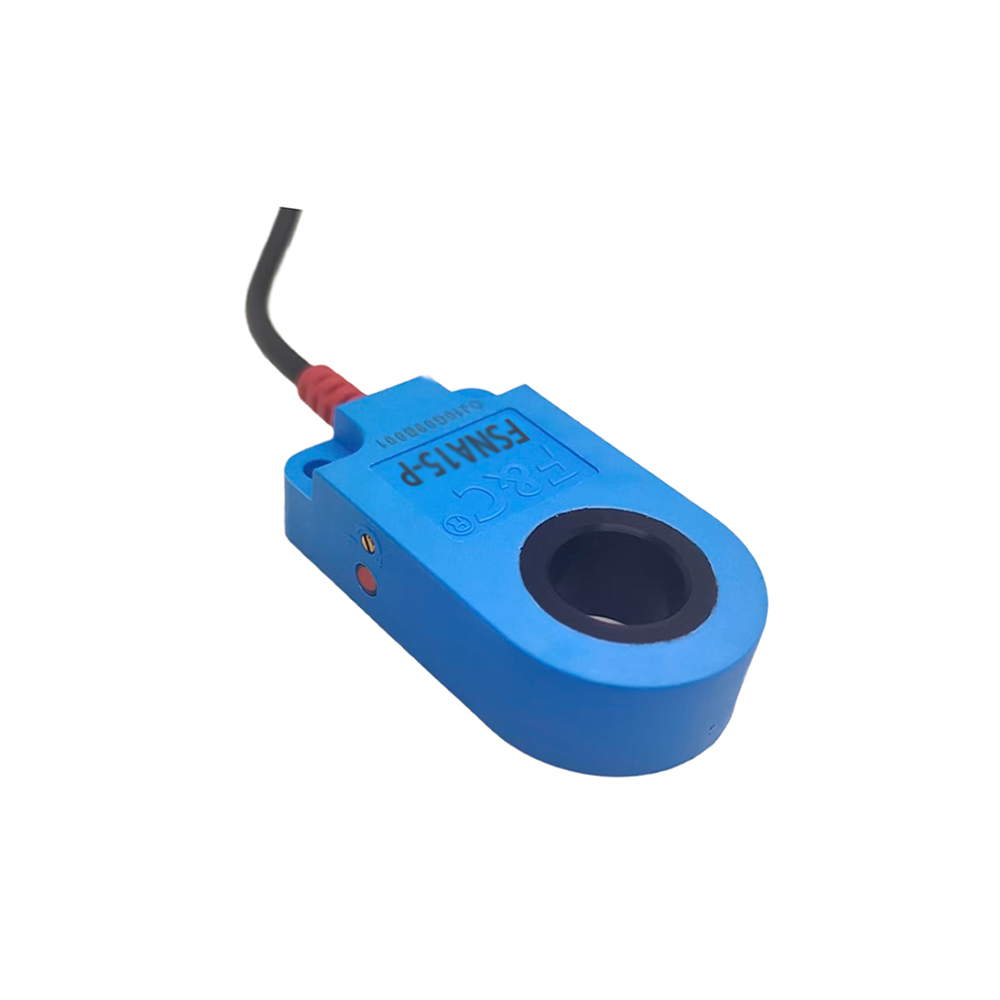

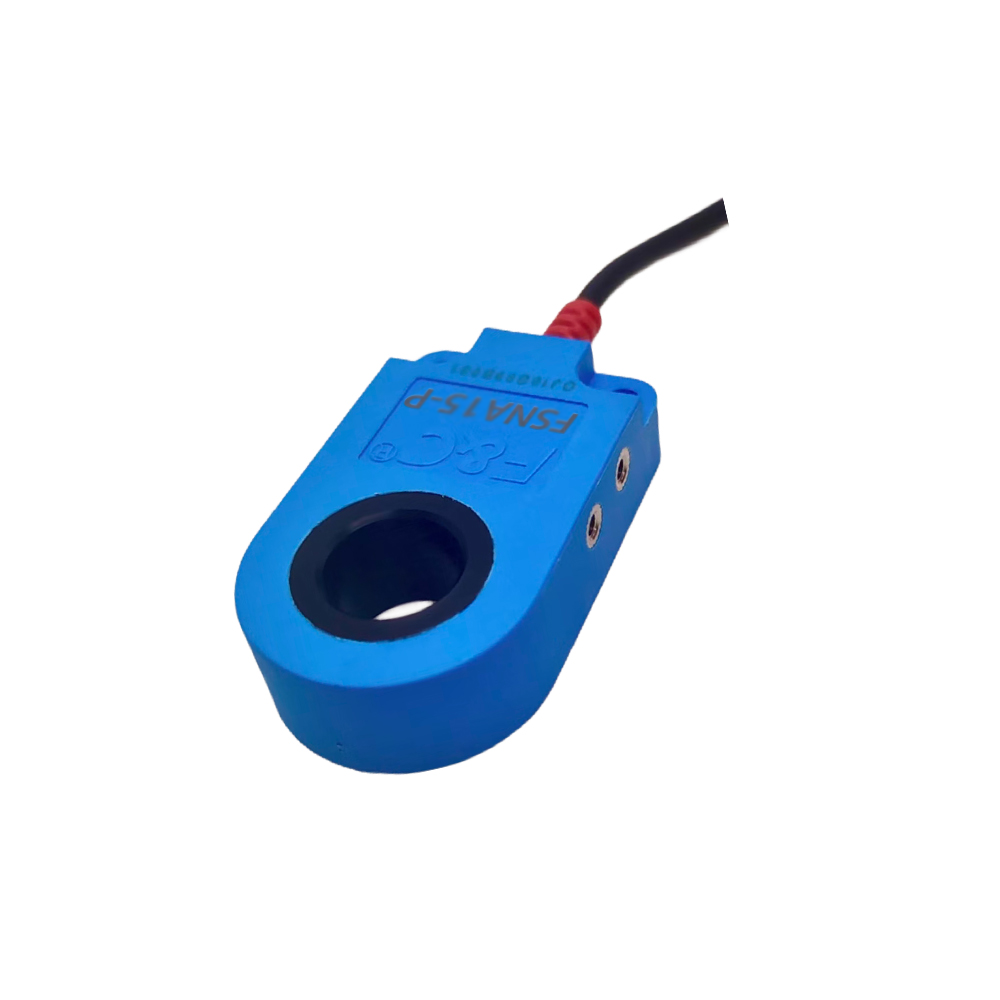

Ring Proximity Sensor FSNA15-P

Parameter Specification
Product Description Channel Size φ15 / Output Mode PNP.NO / Sensing Frequency 1KHz
Certification CE
Cable Specification Φ4.0 3-core 2M Flexible Cable
Connection Type Direct Lead-out Type
Material ABS+PBT
Net Weight 74.45g
Protection Rating IP66

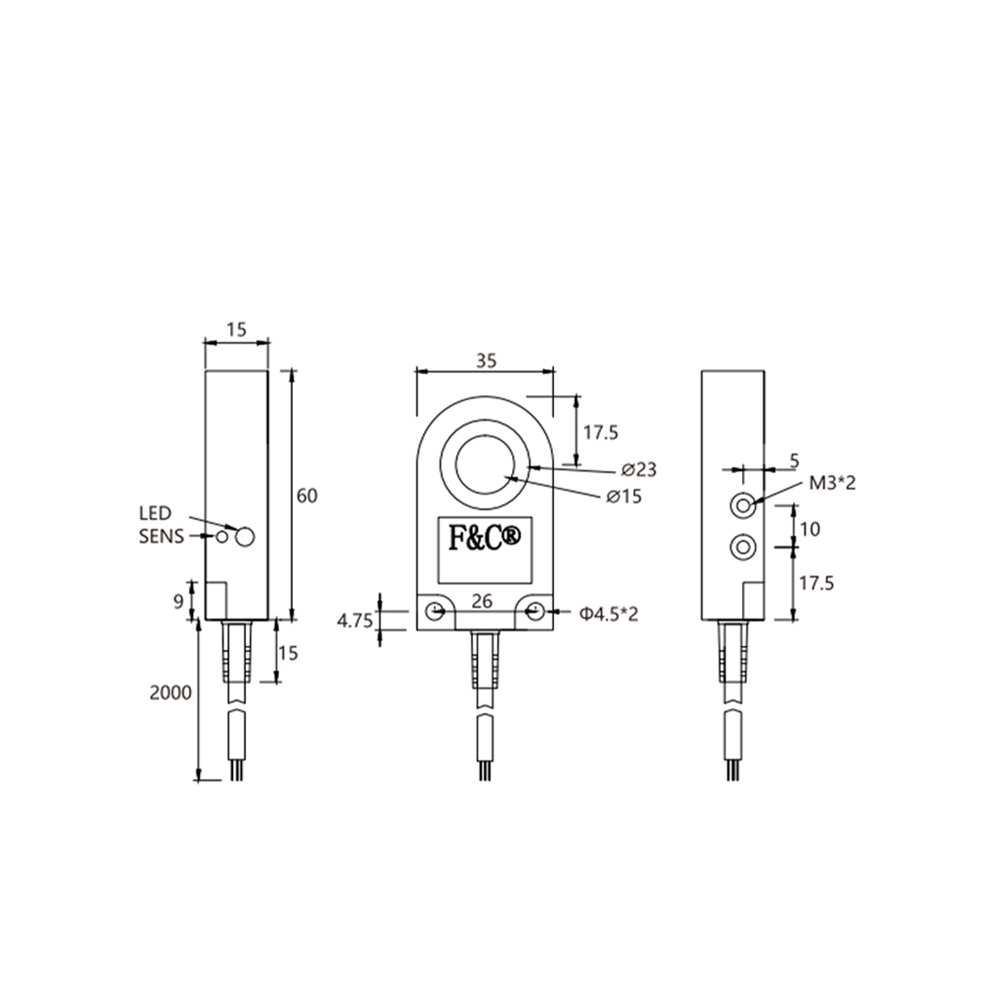

Dimensions (L×W×H) 35×60×15mm
Standard Test Object φ4×3 (metal wire)
Channel Diameter φ15

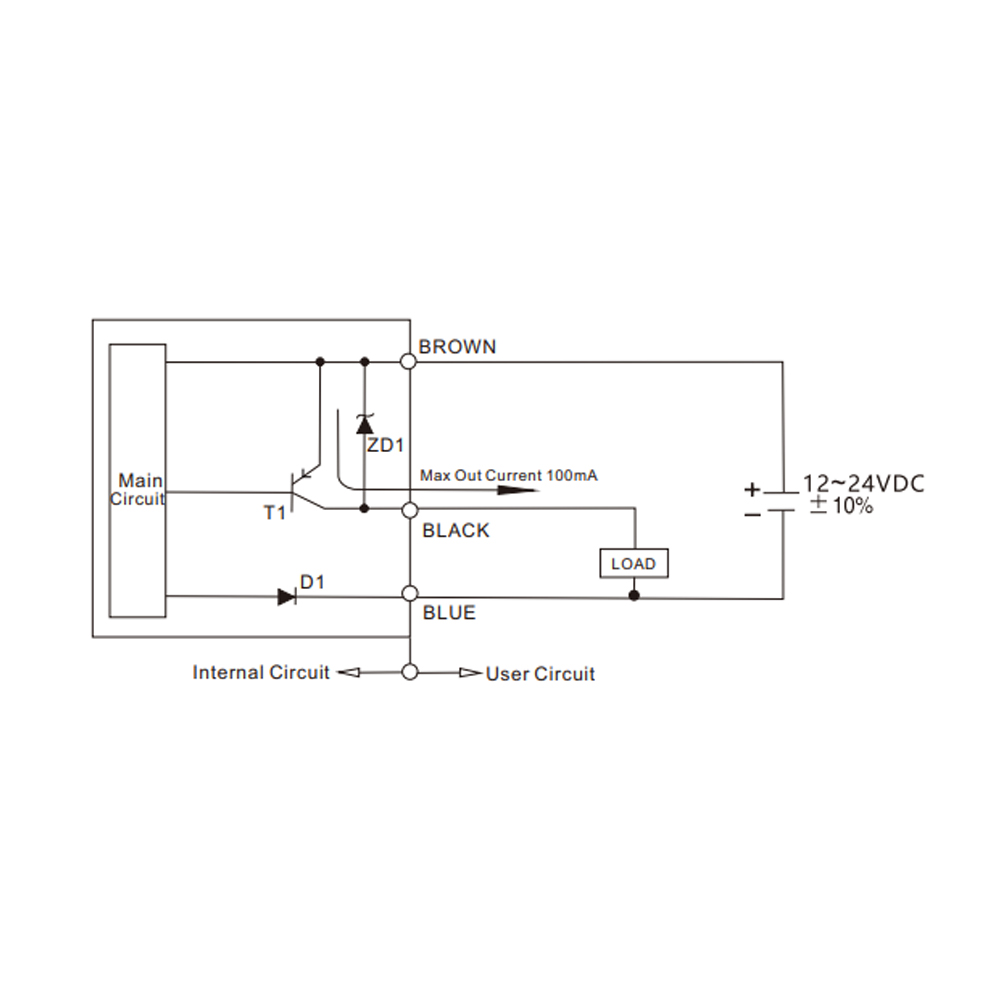

Output Configuration PNP.NO (Normally Open)
Sensing Frequency 1KHz
Hysteresis <10% of sensing distance
Dielectric Withstand Voltage 1000VAC 50~60Hz 1min (between live part and housing)
Supply Current <10mA
Load Current 100mA
Reverse Polarity Protection Yes
Operating Voltage 12~24VDC ±10%
Adjustable Sensing Range Adjustable
Repeat Accuracy ≤2% of sensing distance
Insulation Resistance ≥20MΩ (between live part and housing)
EFT Level NA
Detectable Objects Steel / Metal
Mounting Type Non-shielded
Leakage Current (No Load) <0.01mA
Output Short-Circuit Protection Yes
Residual Voltage <1.5VDC
Operating Temperature -25 ~ 70℃ (no frost/icing)
Temperature Drift ±10% of sensing distance at ≤25℃
Relative Humidity 35~95% RH (no condensation); Storage: 35~95% RH (no condensation)

Model:
FSNA15-P
Brand:
F&C

Availability:

Quantity:



Inquire Add to Basket

15mm PNP Ring Sensor PNP Ring Proximity Switch FSNA15-P Sensor 15mm Metal PNP Detector

Product Description

Parameter	Specification
Product Description	Channel Size φ15 / Output Mode PNP.NO / Sensing Frequency 1KHz
Certification	CE
Cable Specification	Φ4.0 3-core 2M Flexible Cable
Connection Type	Direct Lead-out Type
Material	ABS+PBT
Net Weight	74.45g
Protection Rating	IP66
Dimensions (L×W×H)	35×60×15mm
Standard Test Object	φ4×3 (metal wire)
Channel Diameter	φ15
Output Configuration	PNP.NO (Normally Open)
Sensing Frequency	1KHz
Hysteresis	<10% of sensing distance
Dielectric Withstand Voltage	1000VAC 50~60Hz 1min (between live part and housing)
Supply Current	<10mA
Load Current	100mA
Reverse Polarity Protection	Yes
Operating Voltage	12~24VDC ±10%
Adjustable Sensing Range	Adjustable
Repeat Accuracy	≤2% of sensing distance
Insulation Resistance	≥20MΩ (between live part and housing)
EFT Level	NA
Detectable Objects	Steel / Metal
Mounting Type	Non-shielded
Leakage Current (No Load)	<0.01mA
Output Short-Circuit Protection	Yes
Residual Voltage	<1.5VDC
Operating Temperature	-25 ~ 70℃ (no frost/icing)
Temperature Drift	±10% of sensing distance at ≤25℃
Relative Humidity	35~95% RH (no condensation); Storage: 35~95% RH (no condensation)
