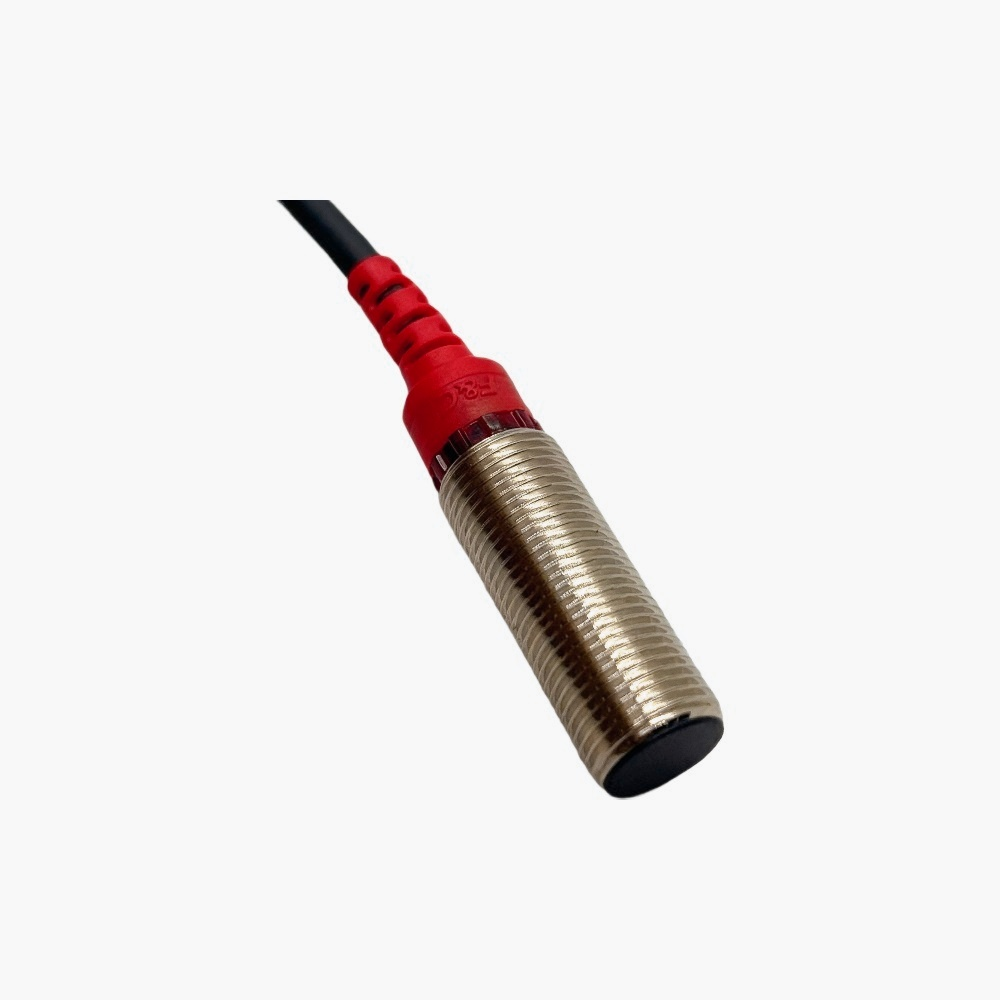

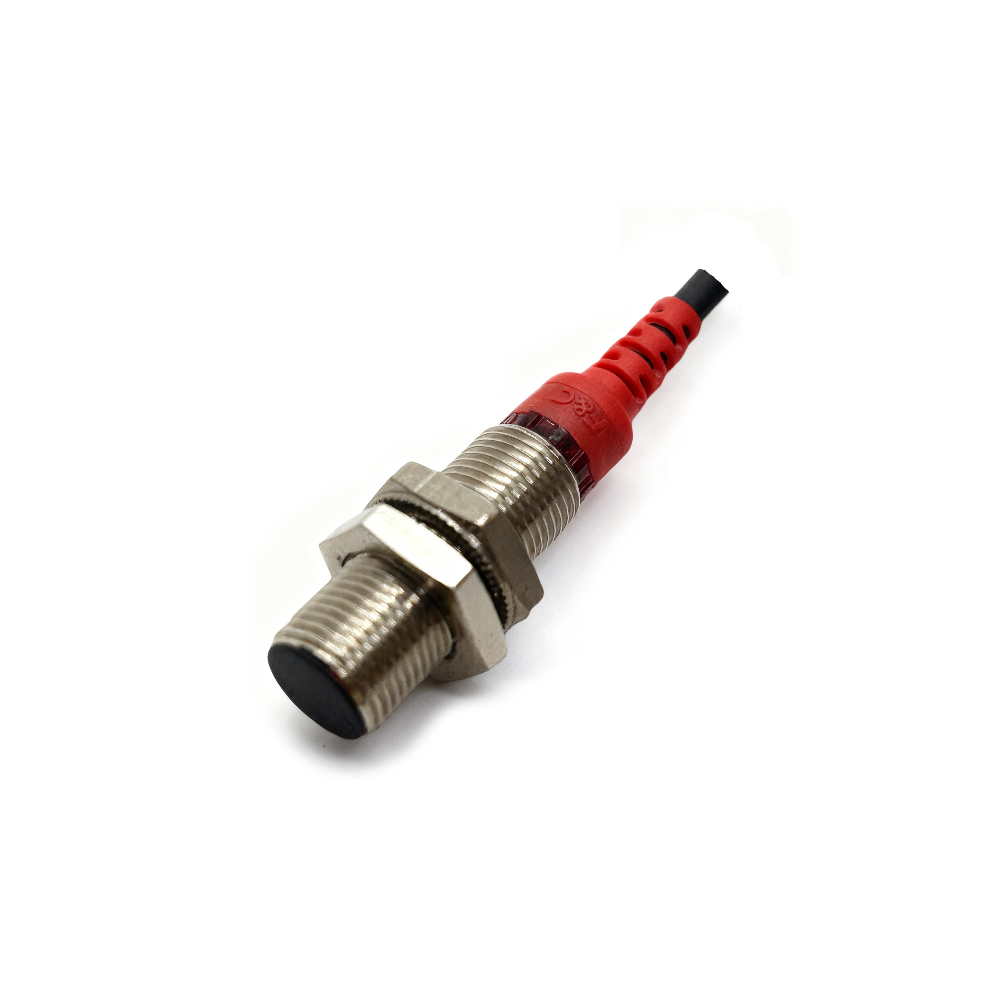

FSCM1202-N High Repeat Accuracy Inductive Proximity Sensor

Comparison Items FSCM1202-N
Product Description Detection Distance: 2mm±10% / Mounting Type: Shielded / Output Mode: PNP, NO
Mechanical Parameters

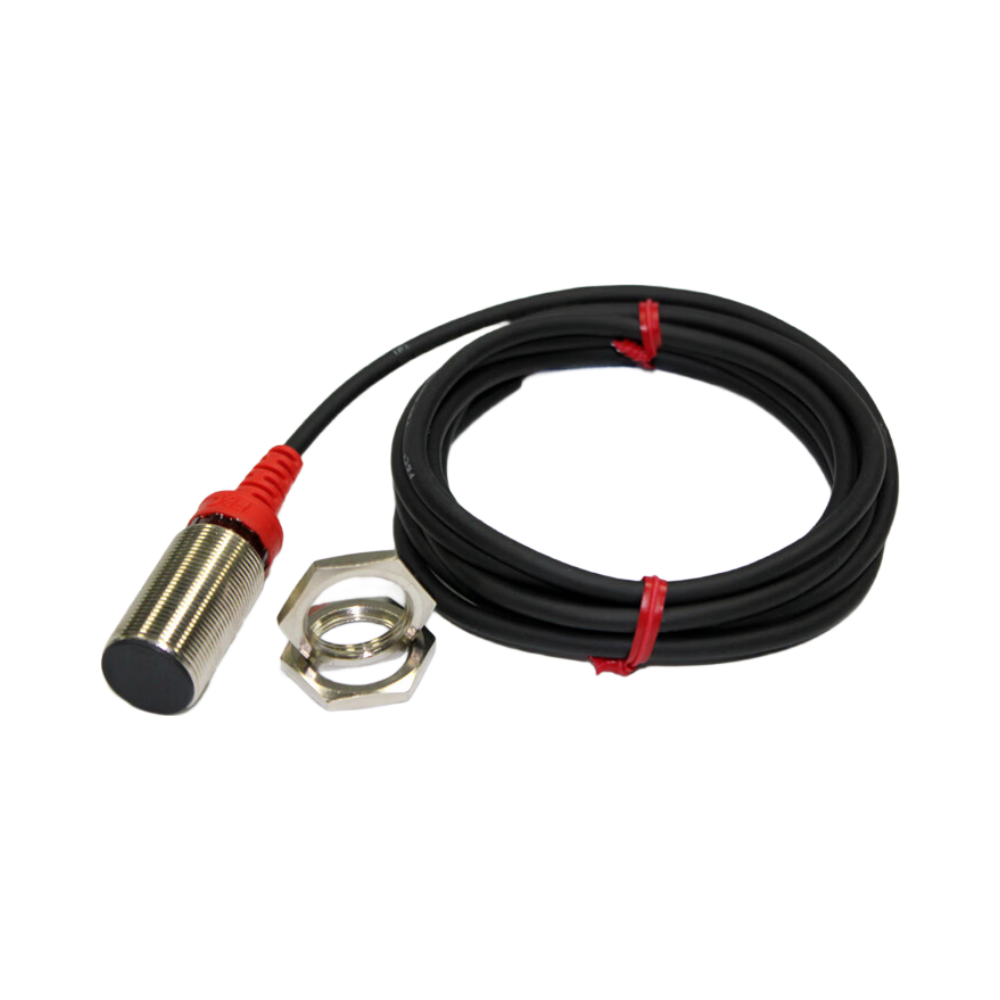

Connecting Cable Specification Φ4.0 3-core 2M Flexible Cable
Vibration Resistance 10 to 55 Hz, Double Amplitude 1.5 mm, X
Thread Length 45mm
Connection Type Direct Outlet Type
Material PBT + Nickel-Plated Copper
Dimensions M12*1mm
Net Weight 63.2g
Protection Rating IP67

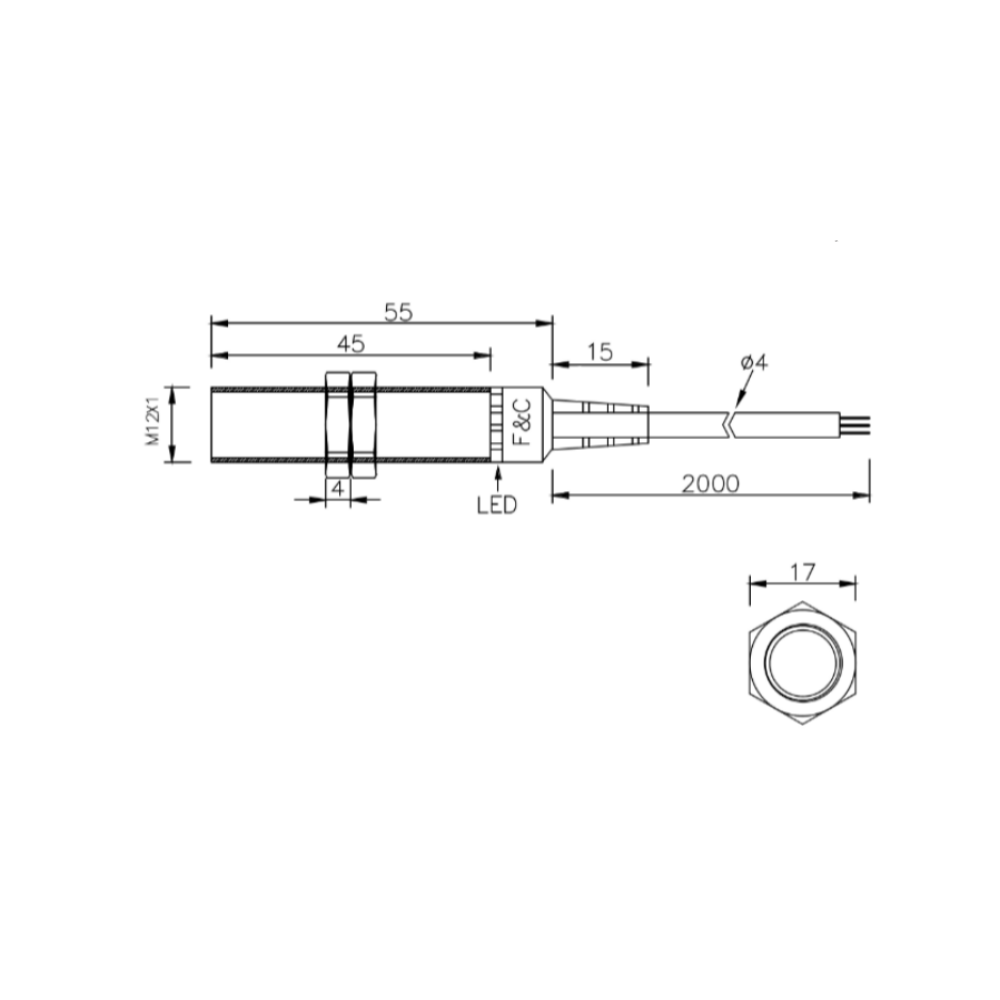

Overall Dimensions M12*55mm
Maximum Tightening Torque 10Nm
Certifications
Certification CE
SKU Attributes
Detection Distance 2mm±10%

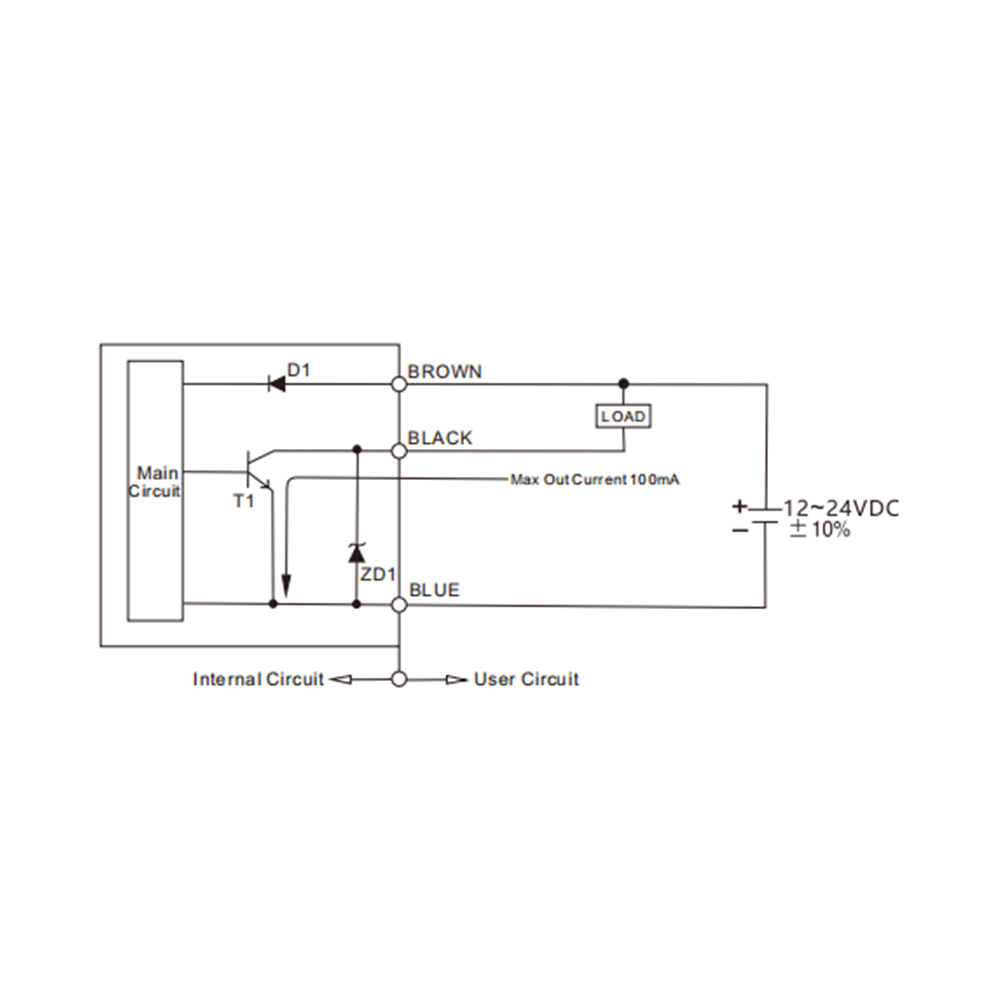

Output Mode PNP, NO
Connection Type Direct Outlet Type
Mounting Type Shielded
Electrical Parameters
Detection Distance 2mm±10%
Hysteresis Distance < 10% of Detection Distance
Dielectric Withstand Voltage 1000VAC 50~60Hz 1min (Between Charging Circuit and Housing)
Consumption Current < 10mA
Load Current 100mA
Operating Voltage 12 ~ 24VDC±10%
Reverse Polarity Protection Yes
Adjustable Distance Range Non-adjustable
Repeat Accuracy ≤±0.5% of Detection Distance
Insulation Resistance ≥20MΩ (Between Charging Circuit and Housing)
Standard Test Object 12121mm (Iron)
