Ring Proximity Sensor FSNA03-N

Engineering Overview: FSNA03-N Ring Proximity Sensor

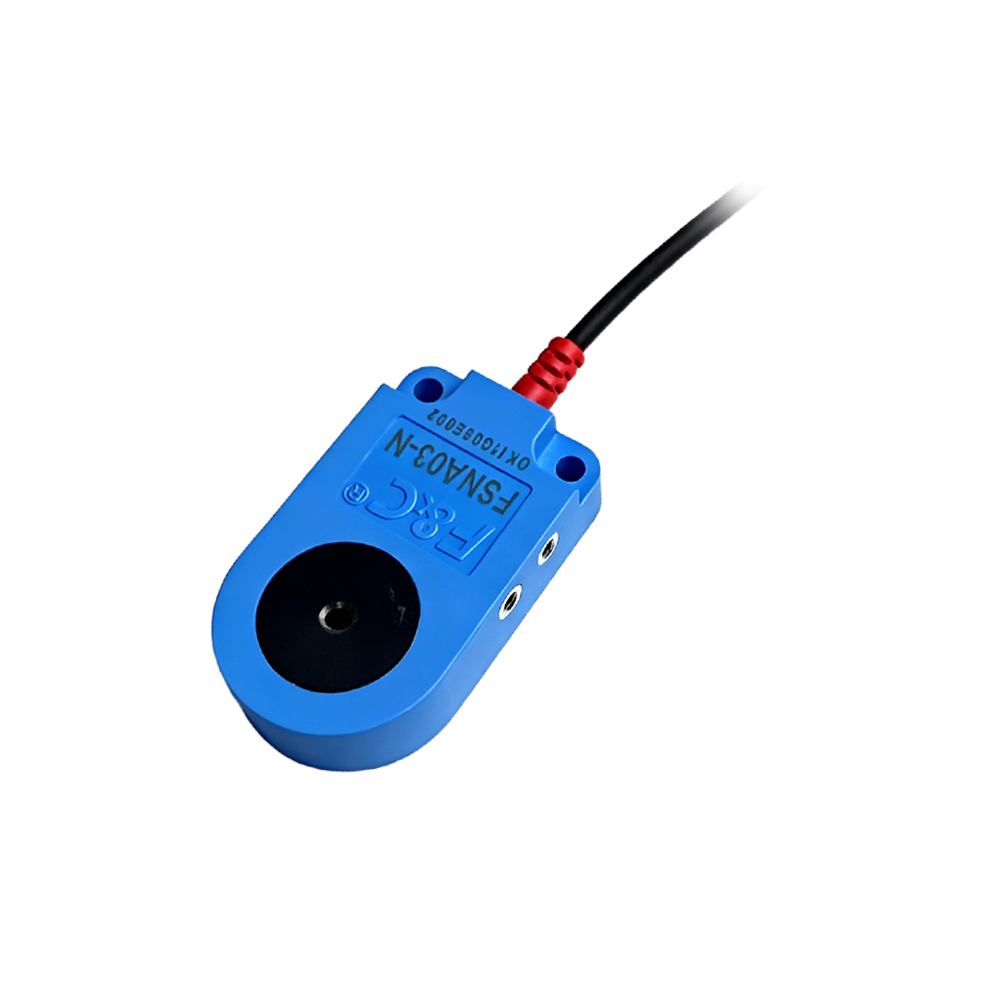

The FSNA03-N represents a highly specialized approach to dynamic metal detection, engineered specifically for environments where standard tubular sensors fall short. By utilizing a continuous 3mm circular aperture, this component establishes a concentrated, uniform electromagnetic field that completely surrounds the target object. This 360-degree sensing envelope ensures that regardless of the object's orientation or slight trajectory deviations as it passes through the channel, detection remains absolute. Housed in a dense, industrial-grade ABS and PBT polymer blend, the exterior shell offers a smooth, rigid tactile feel that inherently resists degradation from cutting fluids, machine oils, and mechanical abrasion. Operating with an NPN.NO output configuration, it integrates directly into standard logic controllers, providing a critical data stream for automated counting, sorting, and verification processes.

Intelligent Detection & Sensitivity Control

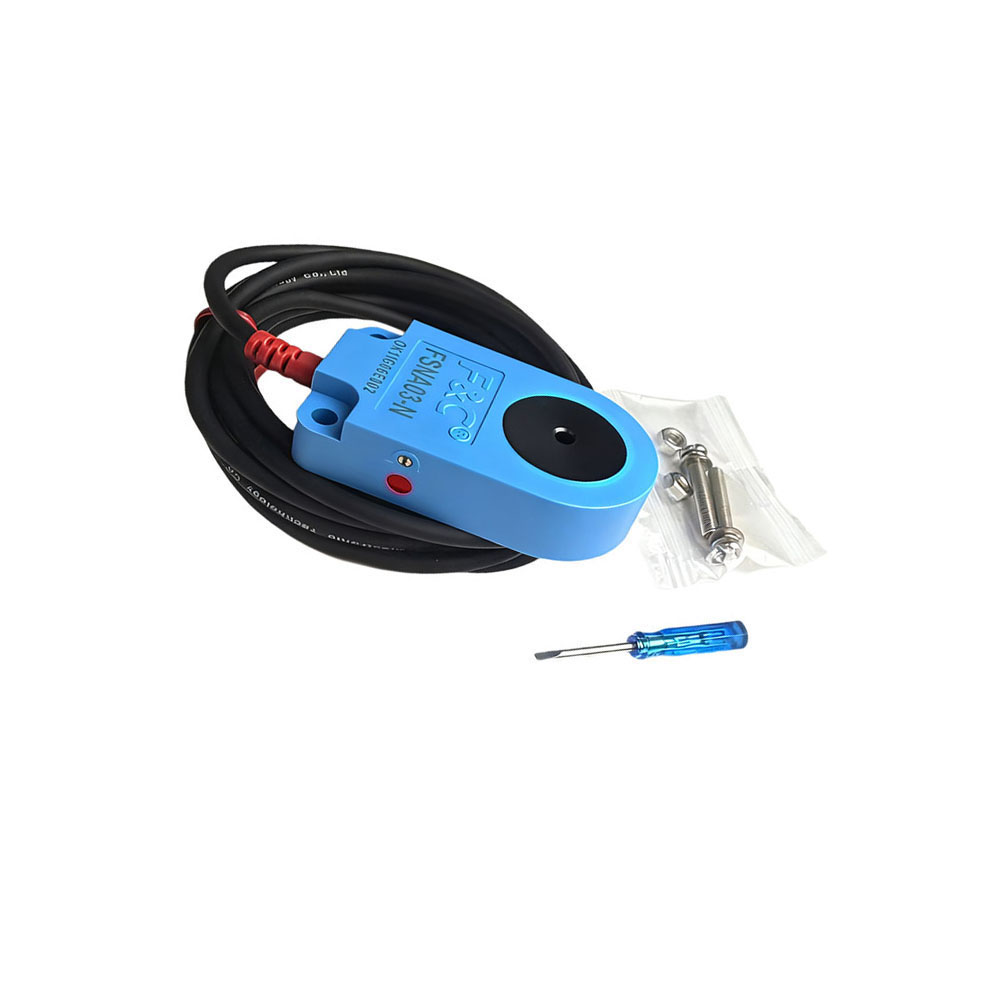

In high-throughput manufacturing, capturing the movement of micro-components demands extraordinary responsiveness. This unit operates at a rapid 1KHz sensing frequency, meaning it evaluates the magnetic field one thousand times per second. This rapid cycle time allows it to reliably detect fast-moving, tiny metallic objects—such as miniature fasteners, springs, or continuous wire strands—without dropping signals or generating false positives. Furthermore, the built-in adjustable sensing range empowers technicians to fine-tune the detection threshold. By rotating the precise adjustment potentiometer, engineers can calibrate the field strength to ignore non-target debris or accommodate different metal compositions, from highly magnetic carbon steel to less reactive non-ferrous materials. The hysteresis distance is strictly maintained at less than 10% of the sensing distance, preventing erratic switching when an object hovers near the detection boundary.

Robust Structural Integrity & Environmental Shielding

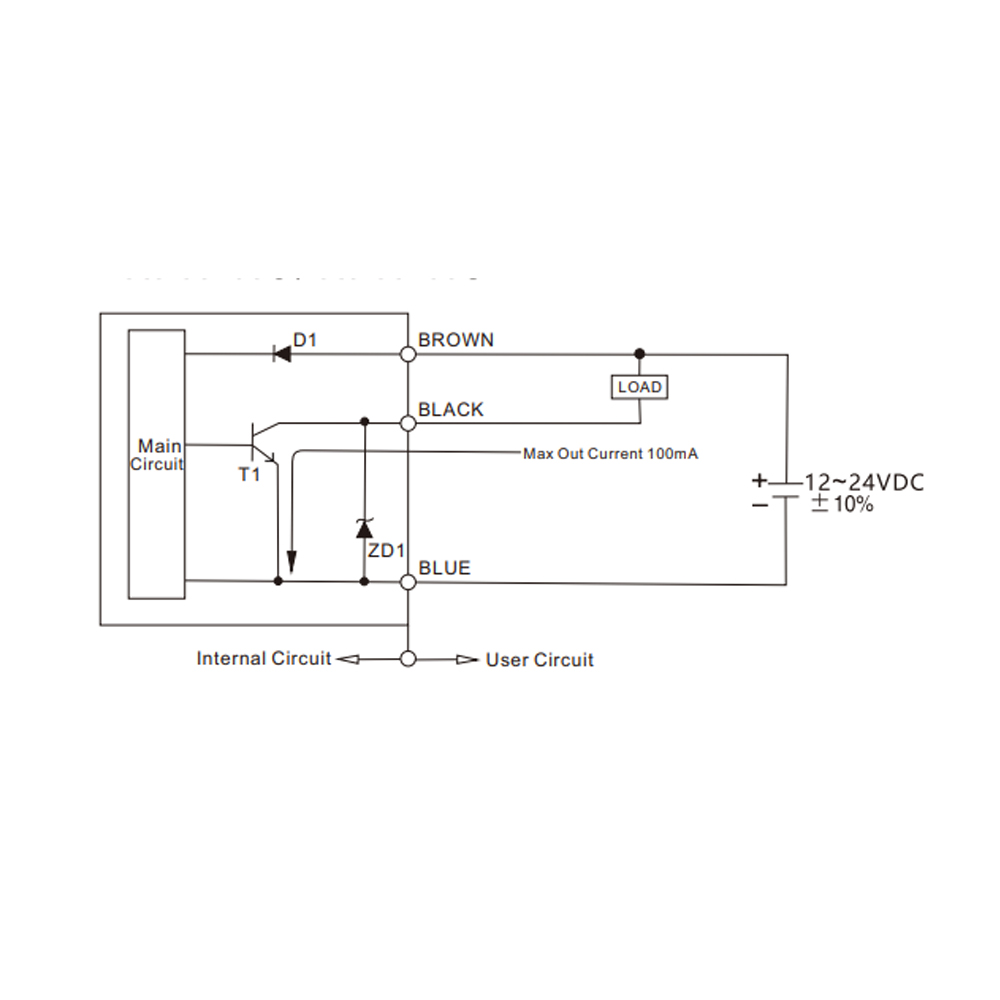

Industrial deployment requires components that can withstand harsh, unpredictable conditions. The IP66 protection rating guarantees that the internal circuitry is hermetically sealed against heavy dust ingress and forceful liquid splashes, making it highly suitable for machining centers where coolant spray is prevalent. Internally, the electronics are securely potted to absorb intense mechanical vibrations generated by nearby stamping presses or heavy motors. On the electrical front, the sensor is fortified with comprehensive safeguards. It operates reliably across a 12 to 24VDC voltage range with a ±10% tolerance, while integrated short-circuit protection and reverse polarity protection prevent catastrophic failure during accidental miswiring. Additionally, the built-in high-performance amplifier effectively filters out ambient electromagnetic interference, ensuring the signal remains crisp and unambiguous even in electrically noisy factory environments.

Seamless Integration & Custom Engineering Support

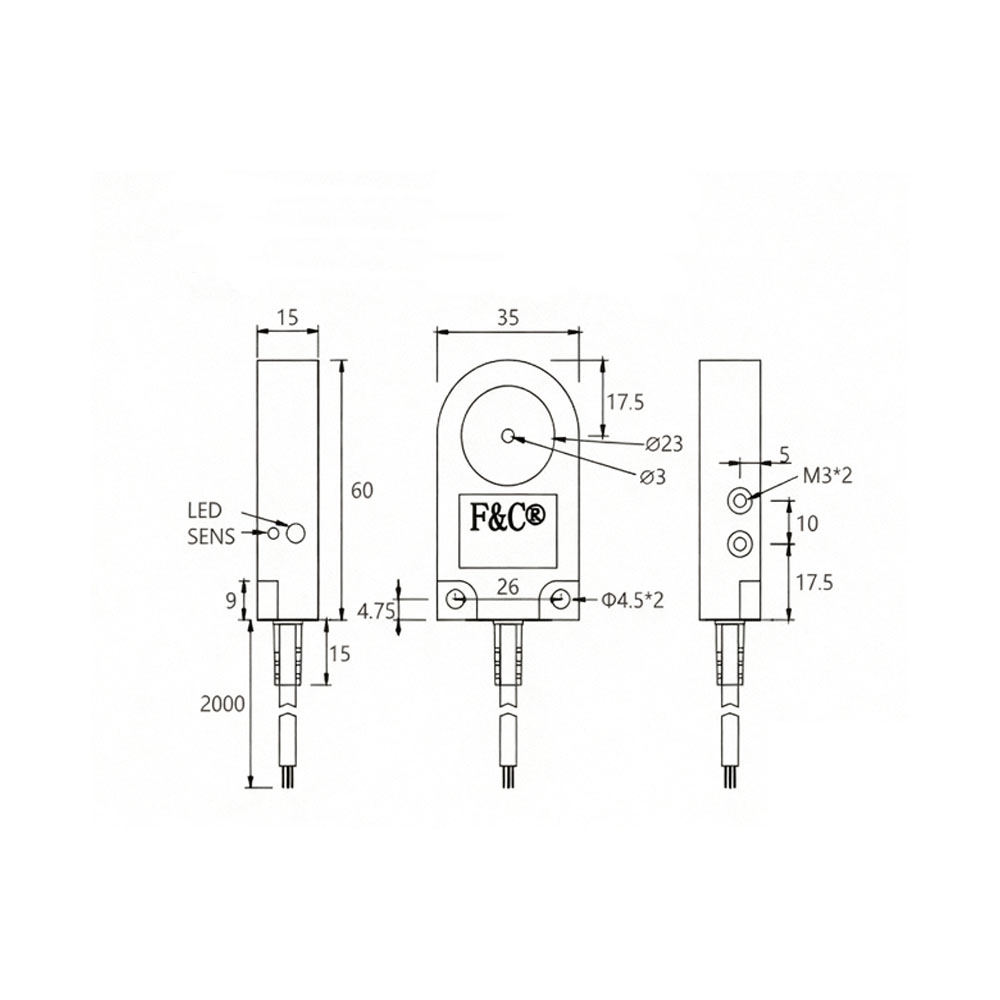

To accelerate the equipment design phase, comprehensive 3D CAD models are readily available in universally accepted formats, including SOLIDWORKS, STEP, and AutoCAD. This allows mechanical engineers to virtually mount the sensor, verify clearances, and design custom feed tubes within their digital assemblies long before physical prototyping begins. While the 3mm channel size is standard for micro-parts, the broader series encompasses a wide spectrum of aperture dimensions—ranging from 6mm up to 30mm—alongside alternative PNP output configurations to match diverse architectural requirements. For specialized machinery builders, extensive OEM and customization services are accessible. Whether an application demands a non-standard cable length beyond the default 2-meter flexible 3-core wire, or requires a specific termination like a quick-disconnect M8 connector instead of the direct outlet type, the physical attributes can be tailored to align precisely with proprietary routing and assembly standards.

Operational Visibility & Typical Deployments

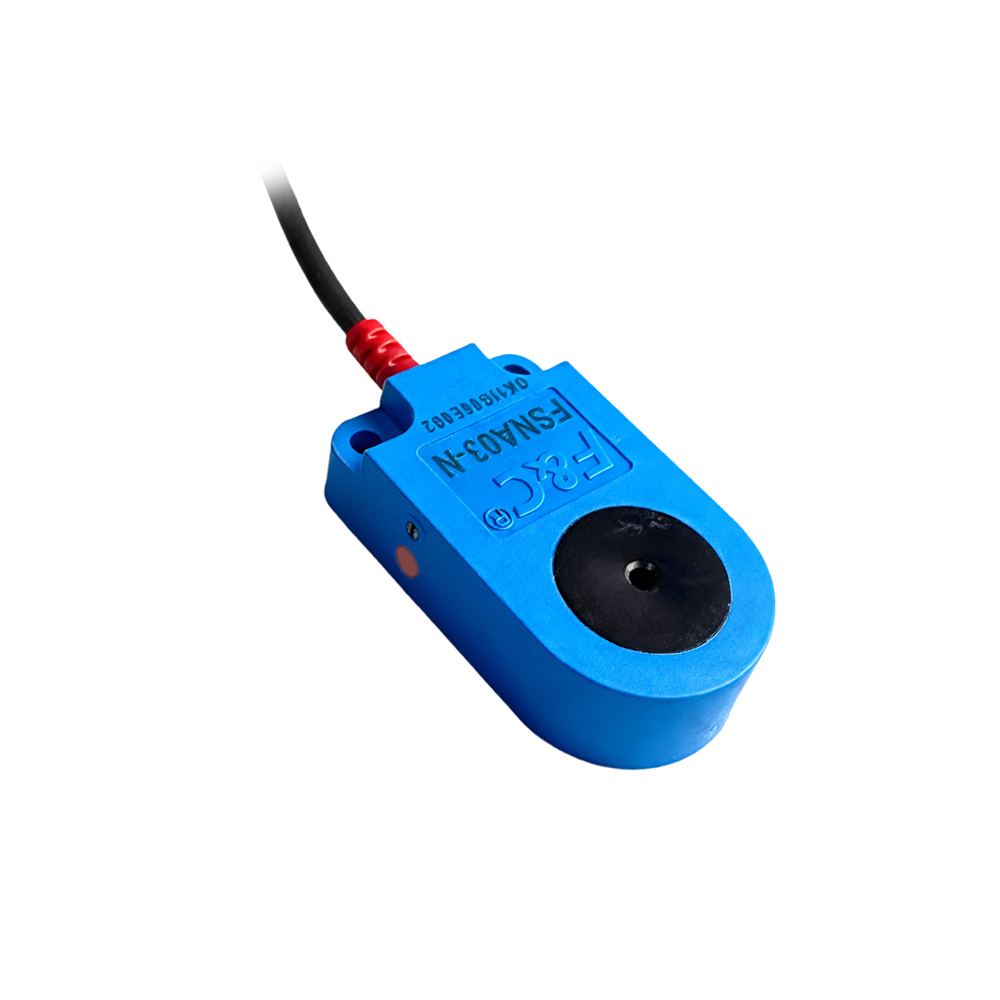

Minimizing downtime relies heavily on intuitive, immediate diagnostics. This sensor is equipped with a high-brightness LED action indicator that emits a sharp, omnidirectional glow the instant a target is detected. In dimly lit enclosures or complex machine underbellies, this visual feedback allows maintenance personnel to instantly confirm operational status without requiring multimeters or intrusive testing. The combination of high-speed response, rugged construction, and precise adjustability makes this ring sensor an indispensable asset across numerous automated applications.

• Automatic Screw Driving Machines: Verifying the successful feed and passage of individual micro-screws before the driving bit engages.
• Wire & Cable Manufacturing: Acting as an instantaneous break detector for fine copper or steel wires spooling at high velocities.
• Hardware Packaging Lines: Providing exact, high-speed counting of small metallic components dropping into retail blister packs or bulk boxes.
• Spring Coiling Equipment: Monitoring the continuous ejection of finished springs to ensure the cutting mechanism is operating in sync.
