| Type | Slot-type Photoelectric Sensor |
| Sensing Distance | 15 mm |

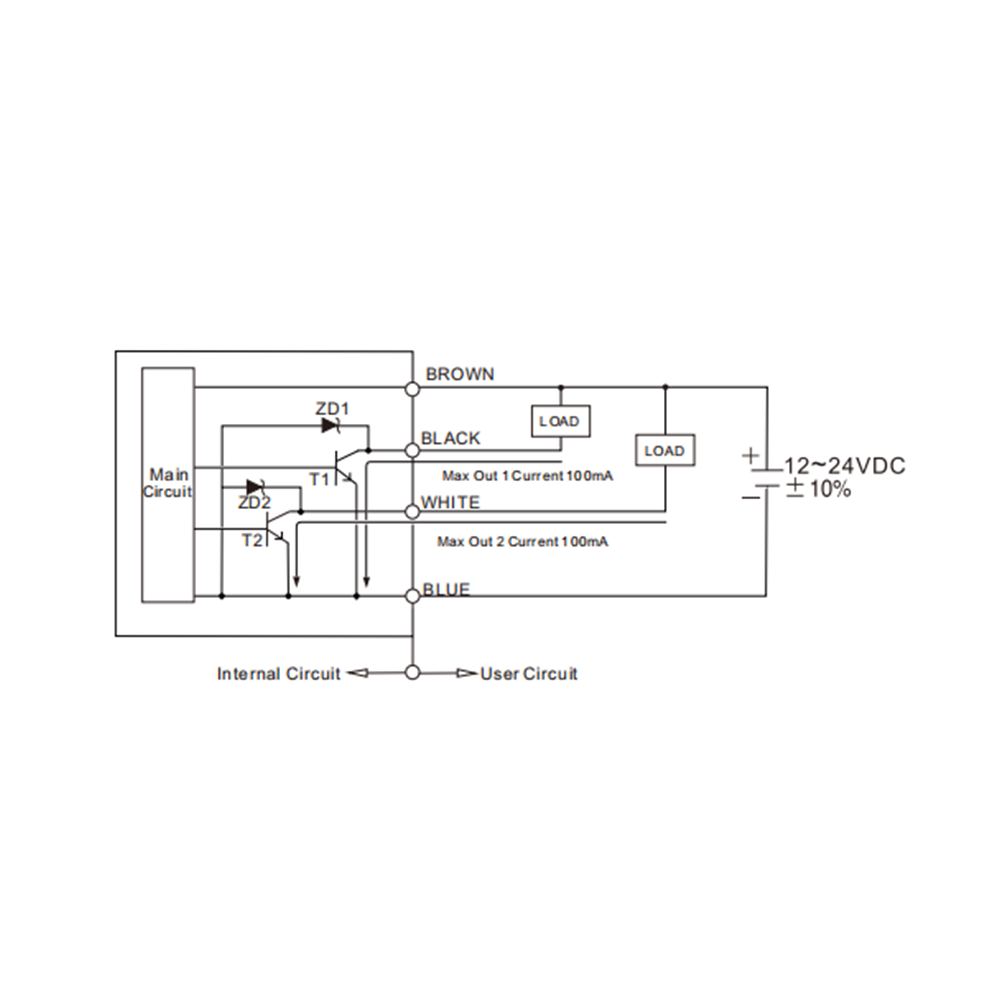

| Output Mode | NPN, NO/NC (adjustable) |
| Connection | 2m straight-out cable |
| Mechanical | Housing: PC, IP54, Size 10×28×32mm |
| Operating Voltage | 12~24 VDC ±10% |
| Response Time | 2 ms |
| Load Current | 100 mA |
| Protection | Reverse polarity protection |
| Ambient Conditions | -10~50℃, 35~85%RH, IP54 |

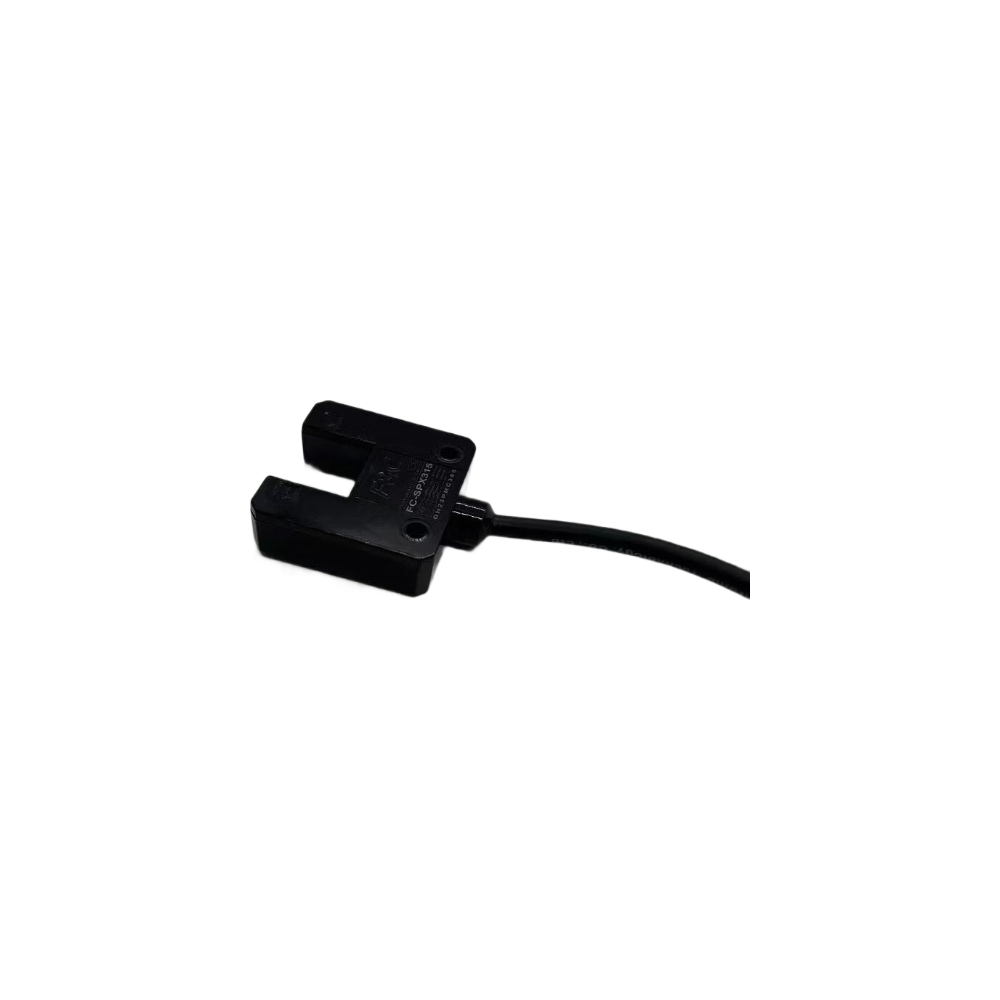

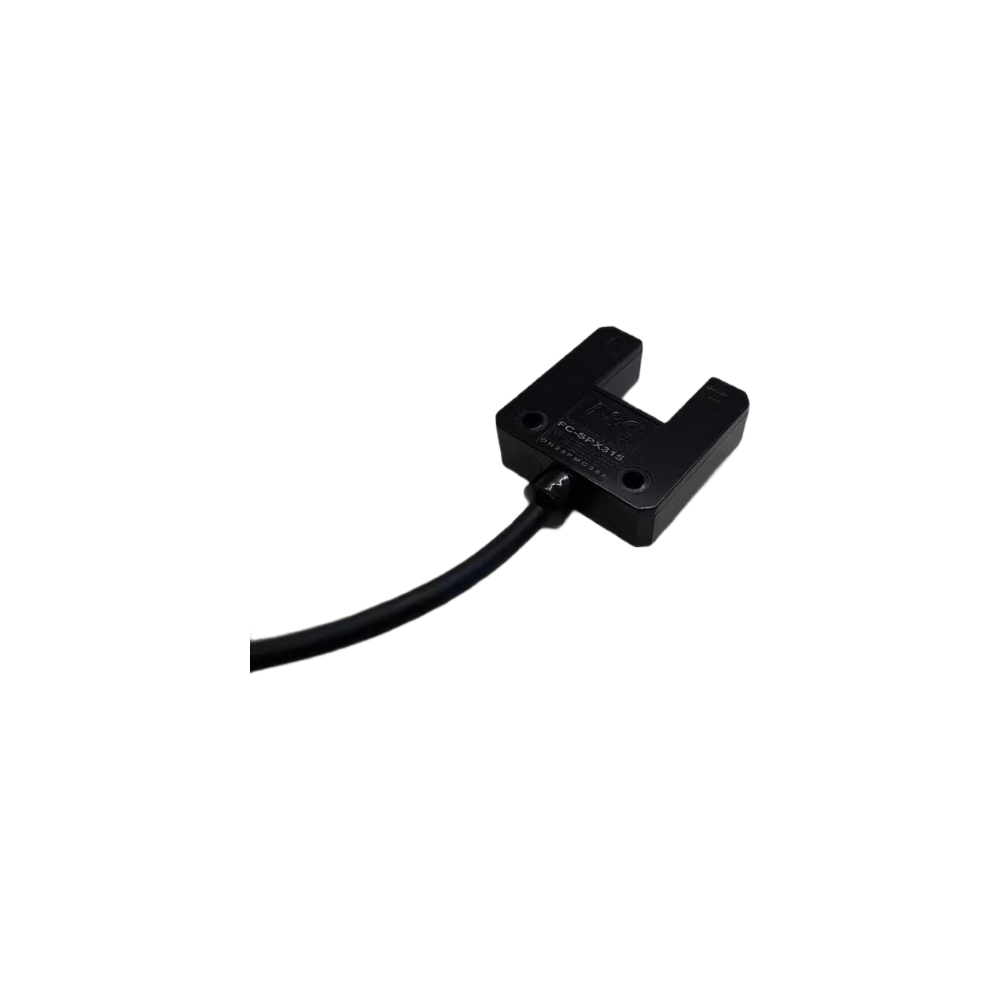

FC-SPX315
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Specification |
|---|---|
Type | Slot-type Photoelectric Sensor |
Sensing Distance | 15 mm |
Output Mode | NPN, NO/NC (adjustable) |

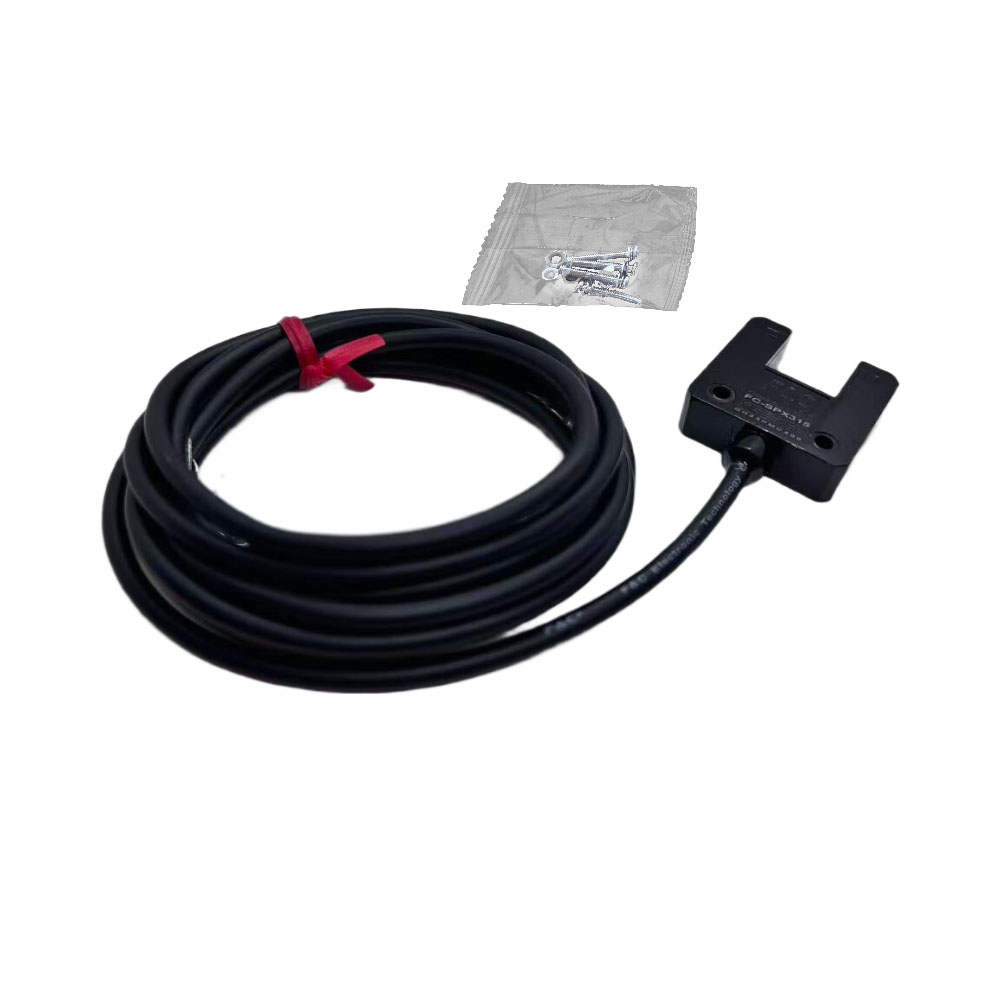

Connection | 2m straight-out cable |

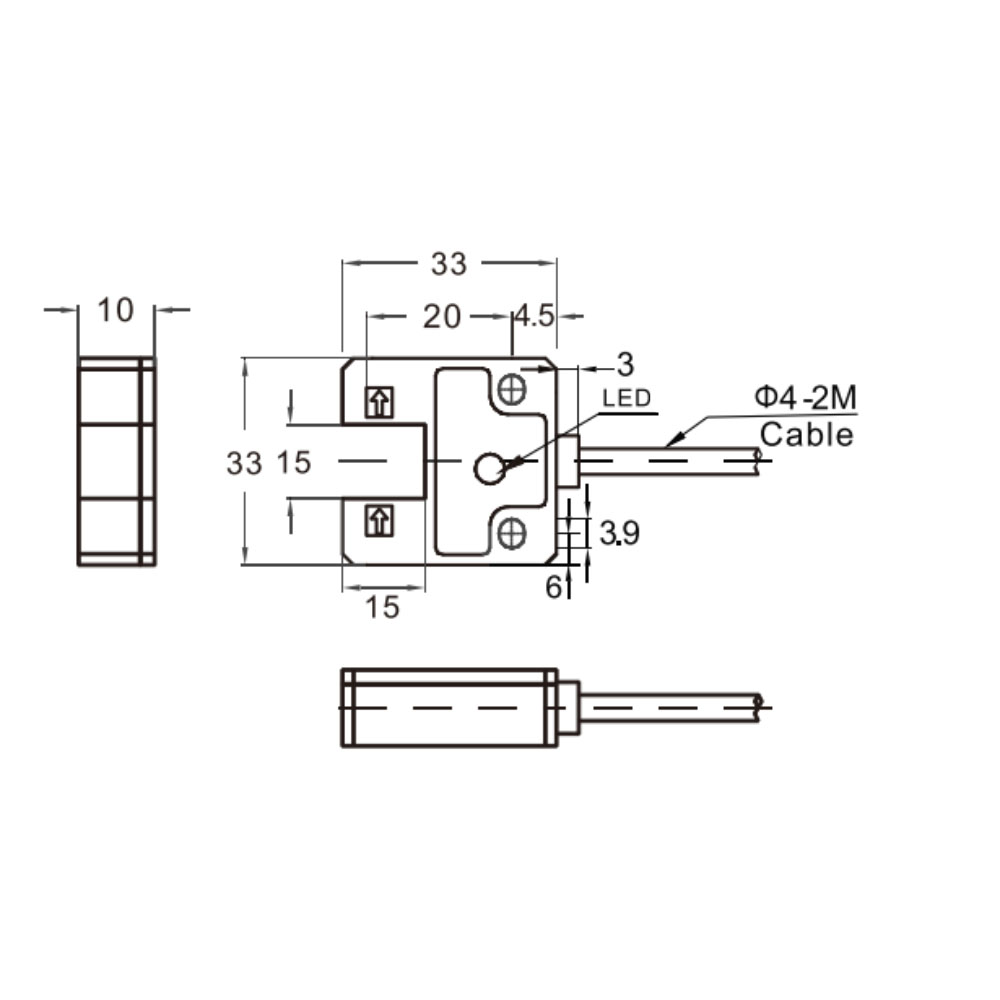

Mechanical | Housing: PC, IP54, Size 10×28×32mm |
Operating Voltage | 12~24 VDC ±10% |
Response Time | 2 ms |
Load Current | 100 mA |
Protection | Reverse polarity protection |
Ambient Conditions | -10~50℃, 35~85%RH, IP54 |
