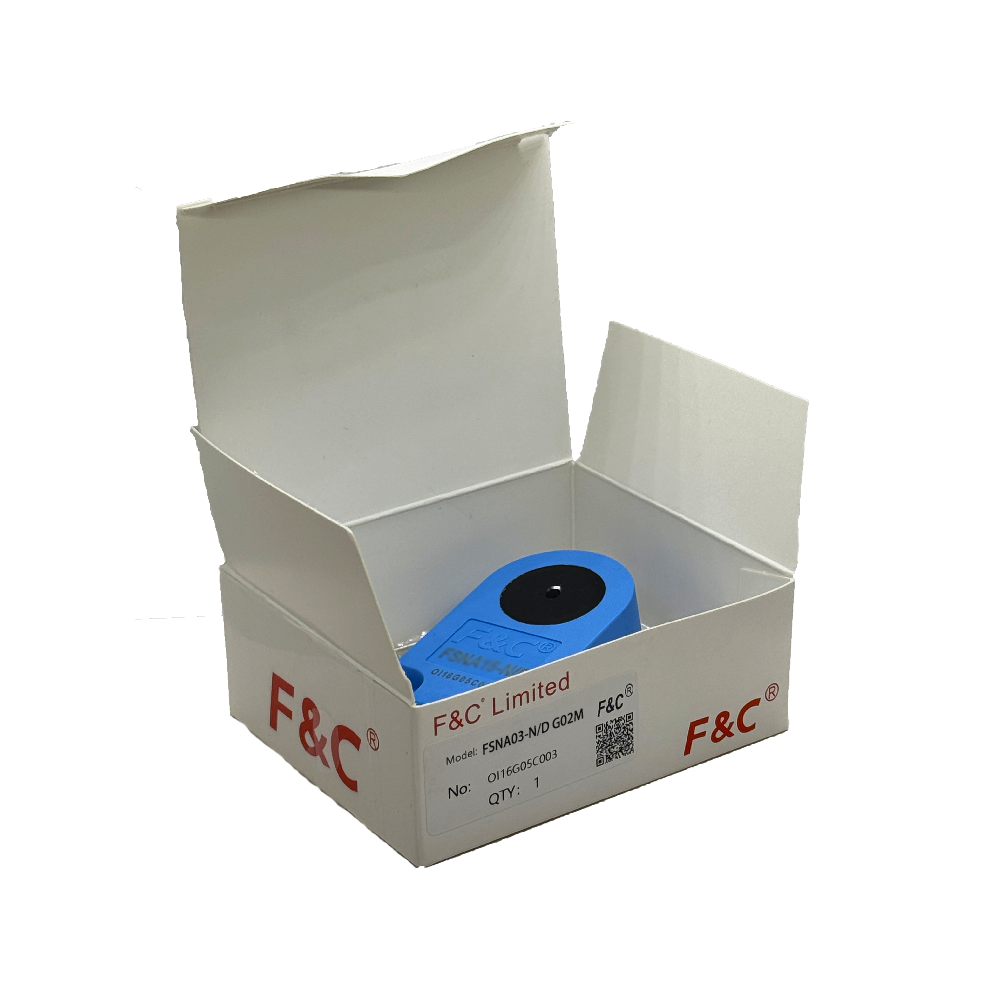

Ring Proximity Sensor FSNA03-N/D G02M

Product Overview

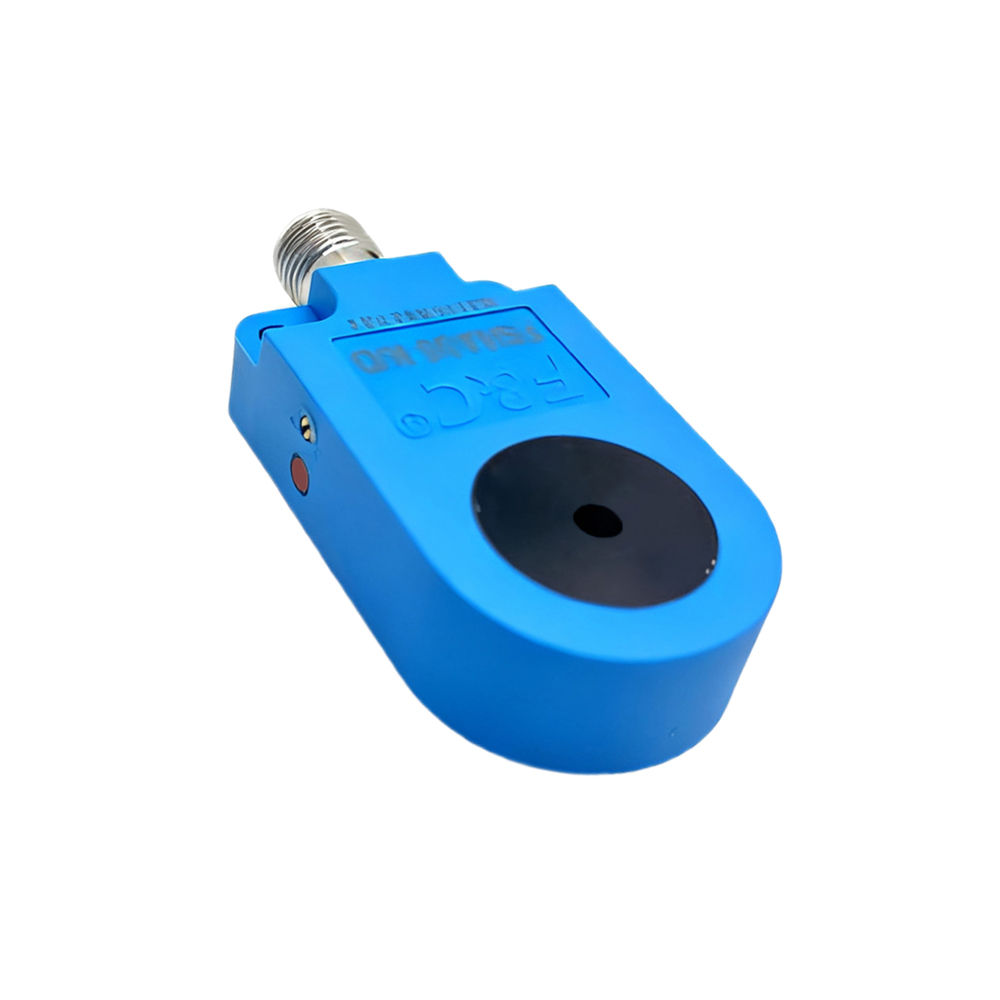

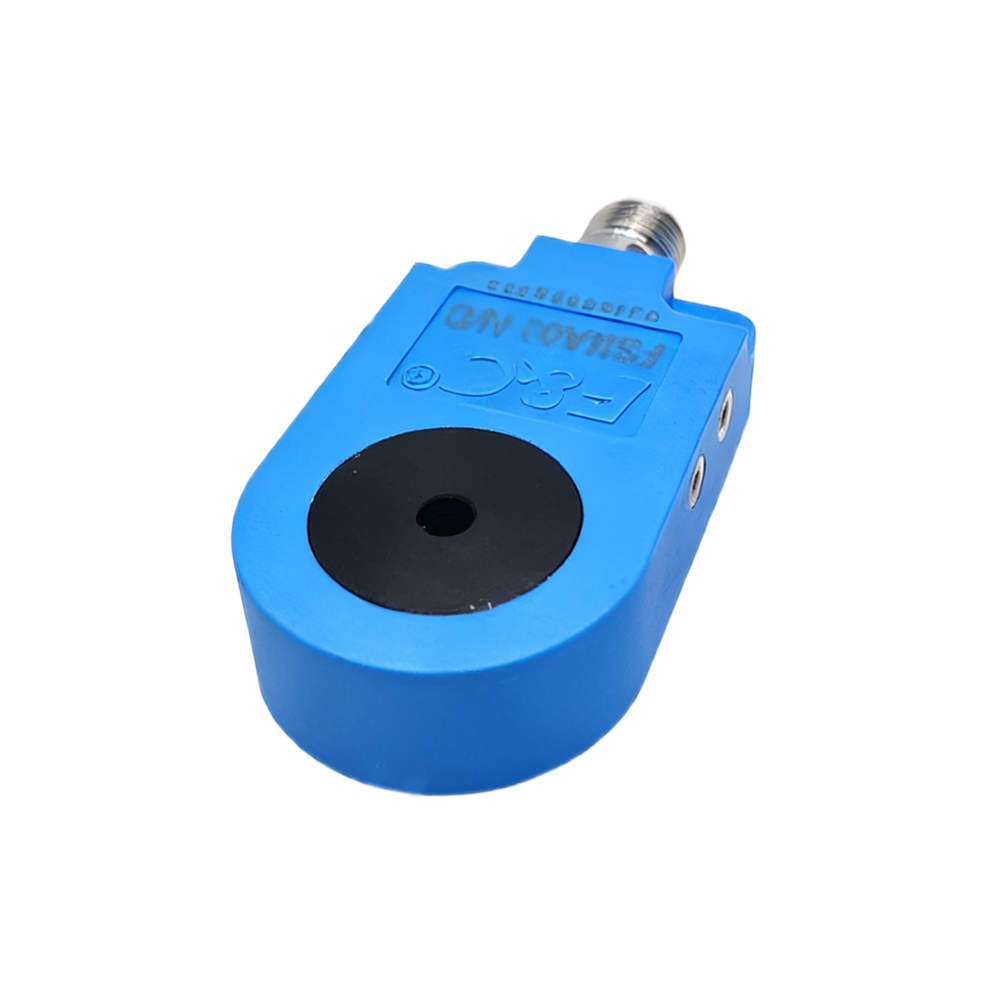

The FSNA03-N/D G02M Ring Proximity Sensor is engineered for precision detection in demanding automated environments. Designed specifically for identifying minute metallic objects as small as φ1*2, this sensor operates at a rapid 1KHz sensing frequency, ensuring that fast-moving components are captured with absolute accuracy. The physical construction features a compact ring profile with a 3mm channel size, allowing it to integrate efficiently into tightly constrained mechanical layouts where traditional cylindrical sensors simply cannot fit.

Enclosed in a heavy-duty ABS+PBT housing, the sensor feels solid and substantial to the touch, providing excellent resistance against physical impact, vibration, and chemical exposure common in industrial factory settings. Backed by comprehensive CE certification, it delivers a dependable repeat accuracy of ≤2% and an exceptionally low leakage current of less than 0.01mA. This precise combination of rapid response times and stable electrical performance ensures consistent, long-term operation without false triggers, keeping your automated production lines running at peak efficiency day after day.

Advanced Engineering and Protective Capabilities

Environmental Resilience

Rated at IP66, the smooth, tightly sealed outer shell prevents dust ingress and withstands powerful water jets. Whether exposed to cooling fluids in metalworking or washdown procedures in packaging facilities, the sensor maintains its structural and electrical integrity. It operates flawlessly across a wide temperature range of -25 to 70℃, resisting condensation and icing. Furthermore, the minimal temperature drift (±10% of sensing distance at <25℃) guarantees that environmental fluctuations will not compromise your precise detection thresholds.

Electrical Safeguards

Wiring errors during maintenance can lead to extensive delays and costly component replacement. This unit incorporates built-in reverse polarity protection and output short-circuit protection. If a technician accidentally crosses connections during a rapid deployment, the internal circuitry remains completely shielded. Additionally, the hysteresis distance is kept tightly under 10% of the sensing distance, ensuring crisp, definitive switching without chattering when objects pass through the channel.

Comprehensive Technical Support

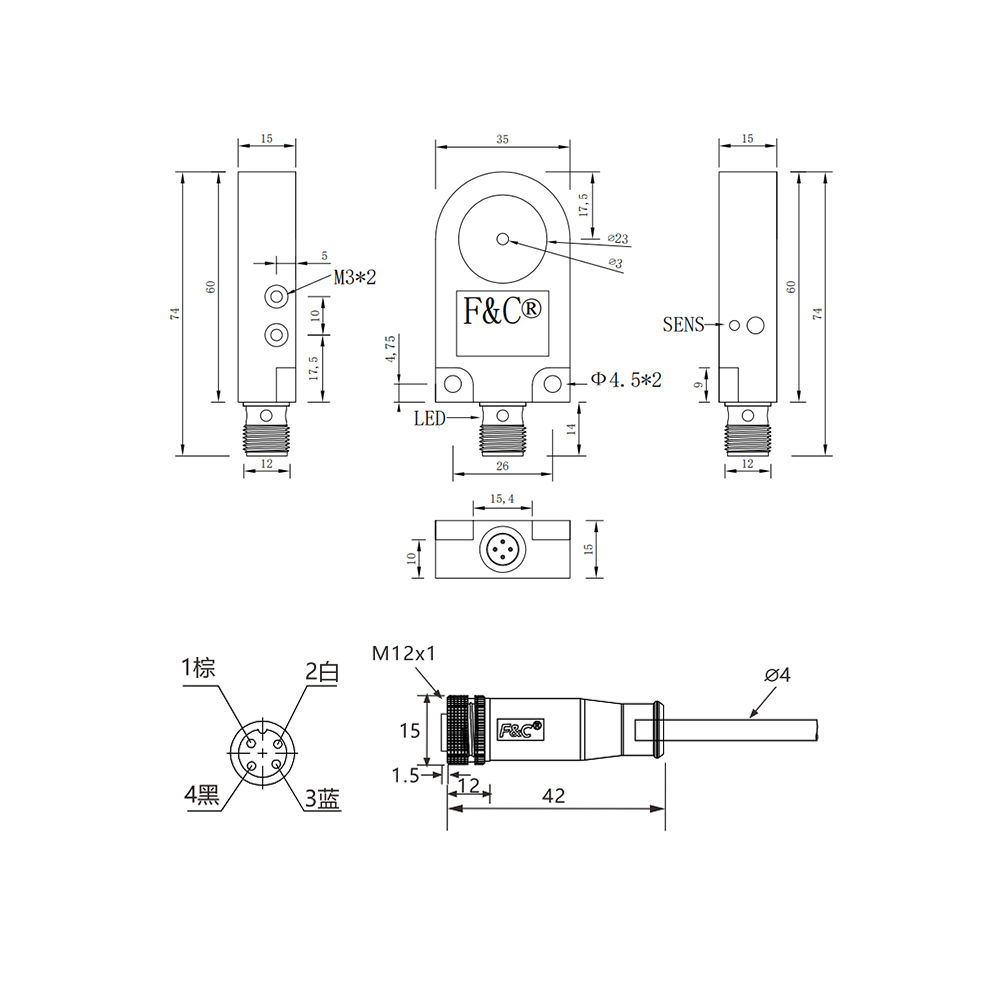

To accelerate your mechanical design phase, we provide complete technical documentation. Engineers can easily access detailed 3D models, precise CAD drawings, and extensive product manuals. This wealth of data allows for accurate spatial planning, collision checking, and swift mechanical integration long before the physical hardware arrives on your facility floor.

Technical Specifications

Primary Industry Applications

The unique ring configuration and rapid 1KHz sensing frequency make this proximity sensor highly adaptable across multiple automated sectors. By passing materials directly through the 3mm channel, systems can achieve reliable counting, positioning, and defect detection of small metallic elements.

• Automotive Manufacturing: Utilized in component feeding systems to verify the presence of small screws, pins, and fasteners before they reach robotic assembly arms, preventing costly misassemblies.
• Electronic Assembly: Ideal for detecting delicate metallic leads and micro-components on high-speed surface mount technology (SMT) lines, where precision is critical and mounting space is severely limited.
• Food and Beverage Processing: Employed in canning and bottling machinery to monitor the rapid flow of metal caps or foil seals, ensuring continuous production without mechanical jamming.
• Smart Packaging Machinery: Integrates seamlessly into automated sorting and bagging equipment to count metallic clips or staples, providing accurate inventory tracking and packaging consistency.
• Textile and Garment Automation: Used to detect broken needles or rogue metallic threads during the weaving process, preventing damage to downstream machinery and ensuring fabric integrity.

Installation and Maintenance Guidelines

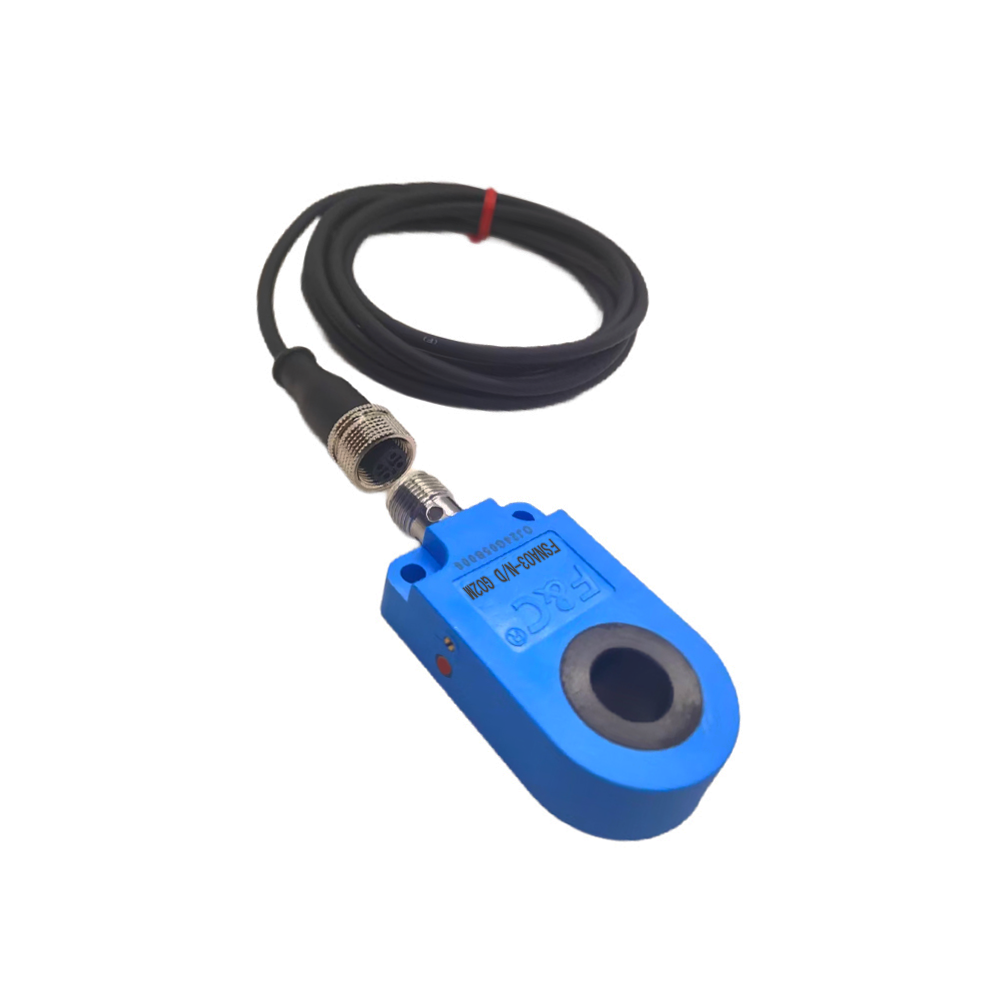

Proper setup ensures maximum lifespan and consistent detection accuracy. The FSNA03-N/D G02M utilizes a standard M12 connector, which provides a secure, vibration-resistant connection characterized by a distinct tactile click upon locking.

Wiring and Setup

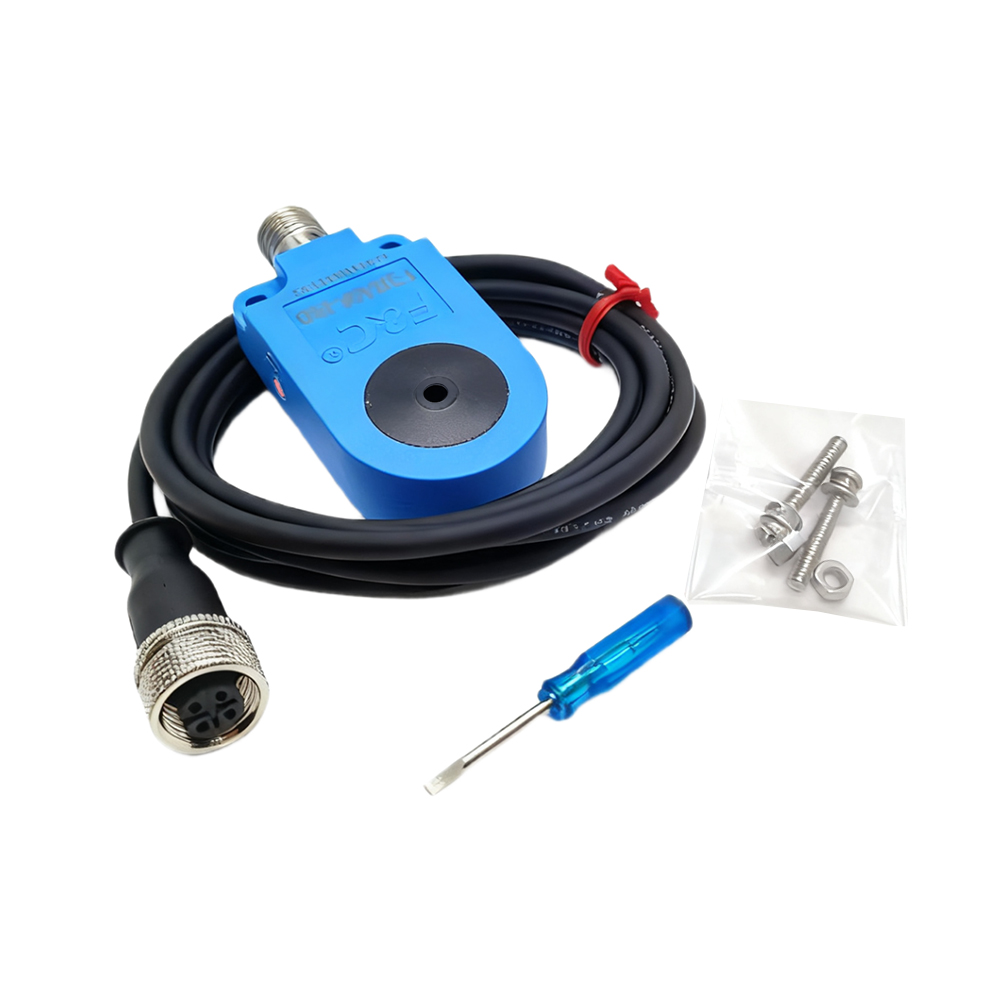

The device features a φ4.0 3-core 2M female connector cable, outputting an NPN.NO signal. Ensure your programmable logic controller (PLC) is correctly configured to accept a sinking input. The operating voltage must remain within the specified 12~24VDC ±10% range. While the device handles minor voltage fluctuations gracefully, utilizing a regulated power supply prevents erratic switching behavior and extends internal component life.

Operational Best Practices

• Electromagnetic Clearance: Maintain adequate distance from strong electromagnetic fields, such as large industrial motors or heavy-duty transformers, to prevent inductive interference that could cause false positive readings.
• Channel Maintenance: Keep the 3mm detection channel free from heavy grease, dust, or metallic shavings buildup. Although the sensor is highly resilient, physical blockages inside the ring can alter the magnetic sensing dynamics.
• Cable Routing: Avoid sharp bends in the 2-meter connection cable. Route the wiring through protective conduits to shield it from moving mechanical parts and excessive friction.
• Connector Inspection: Regularly inspect the M12 connector for secure seating, as continuous factory vibrations can occasionally loosen improperly torqued fittings over time.

Following these guidelines significantly reduces the risk of common operational faults, lowering long-term maintenance expenses and maximizing your equipment uptime.
