FSCM1202-N2M12 High Repeatability Proximity Sensor

FSCM1202-N2M12 Proximity Sensor: Detailed Product Information & Operational Advantages

Exceptional Precision & Tactile Craftsmanship

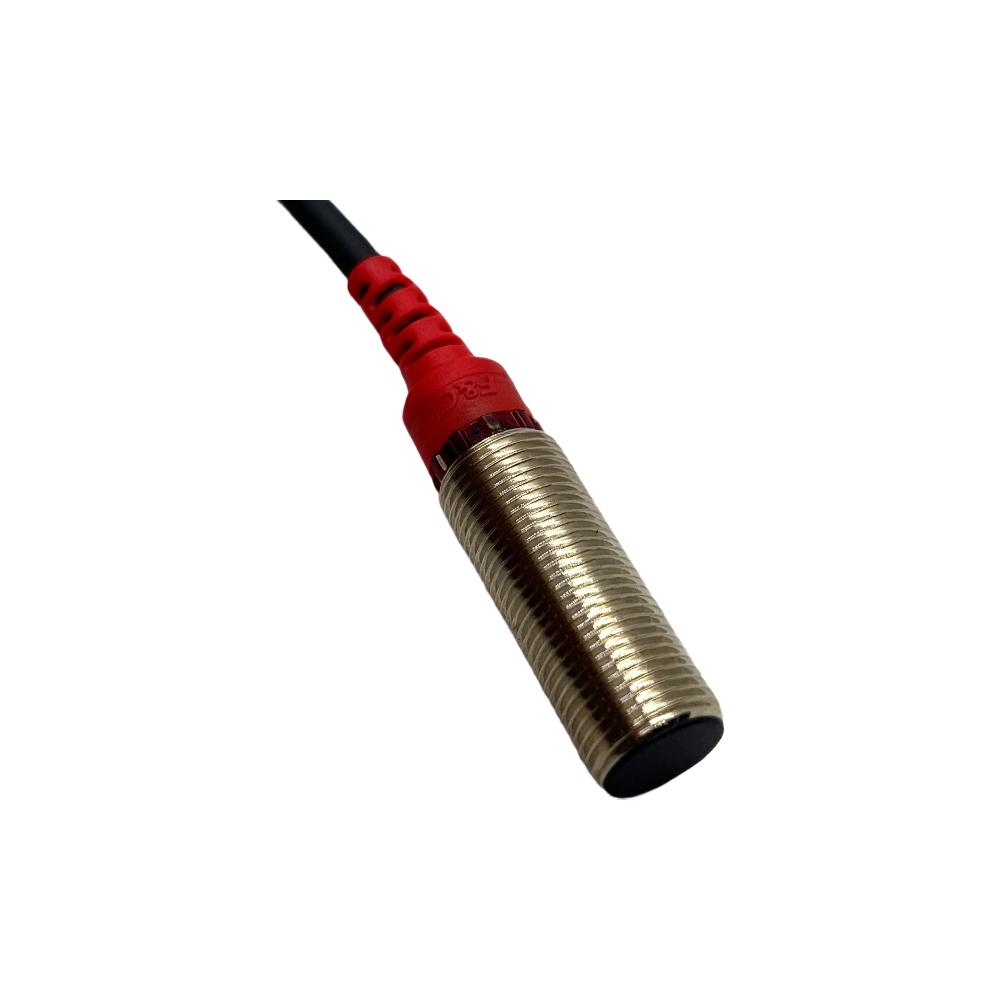

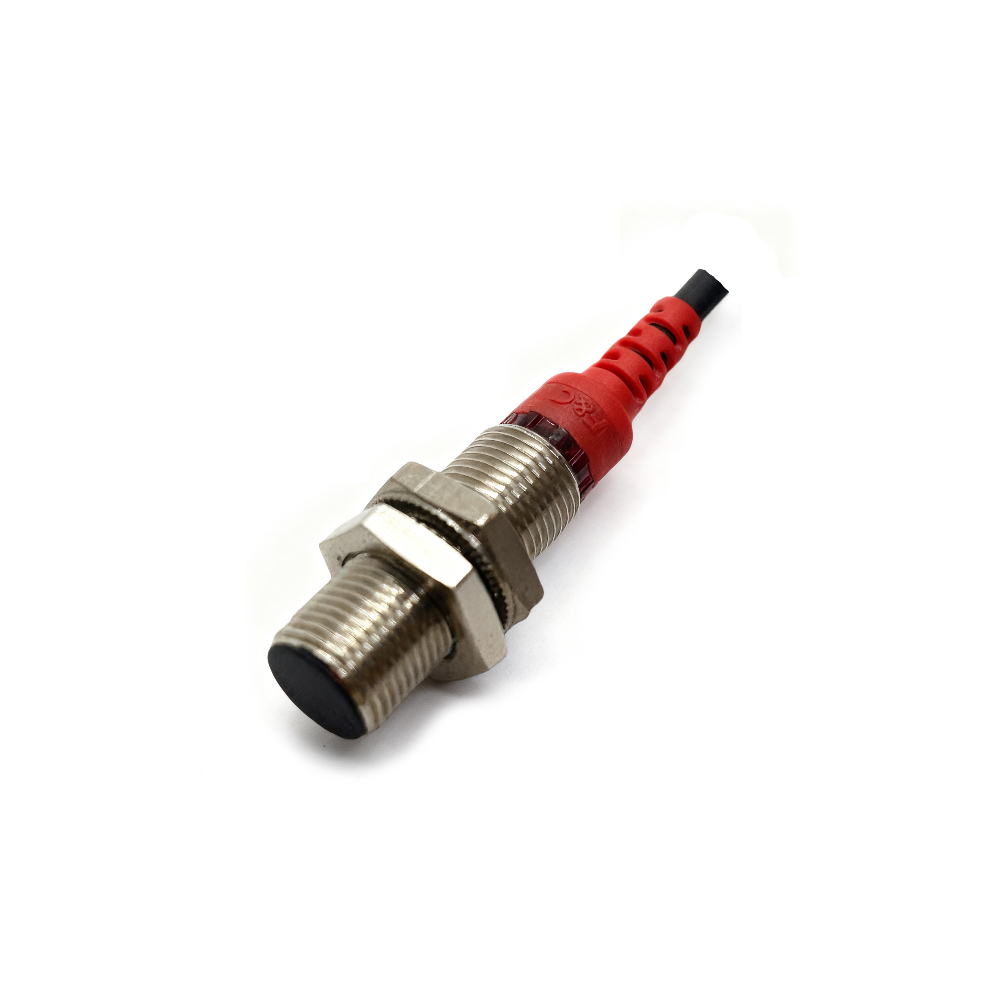

The FSCM1202-N2M12 proximity sensor is engineered for industrial environments where exact positioning and rapid target detection are critical. Featuring a rigid, cool-to-the-touch nickel-plated copper housing paired with a dense PBT sensing face, the physical construction provides immediate assurance of its mechanical integrity. Weighing exactly 63.2g, the unit feels substantial in hand, reflecting the durable nature of the materials used. This combination offers excellent resistance to physical impact and corrosive elements commonly found in manufacturing facilities. Operationally, the unit delivers a rapid 1KHz response frequency alongside a highly stable repeat accuracy of ≤0.5%. For facility managers and control system engineers, this translates to flawless target detection even on rapidly moving automated production lines, significantly reducing the risk of false triggers or missed counts that could disrupt operational flow.

Industrial-Grade Durability & Electrical Safeguards

Operating reliably in harsh factory conditions requires more than just a sturdy exterior. This sensor achieves an IP67 protection grade, meaning it is thoroughly sealed against dust ingress and can withstand temporary submersion in water or continuous exposure to industrial cutting fluids. Furthermore, it maintains consistent performance across a wide ambient temperature range from -25℃ to 70℃, ensuring no frost or ice compromises its functionality during extreme seasonal shifts. To protect your broader control infrastructure, the device integrates multiple electrical safety mechanisms:

• Reverse Polarity Protection: Prevents internal circuitry damage if the power terminals are accidentally wired incorrectly during rapid field installations or maintenance routines.
• Short Circuit & Thermal Protection: Automatically safeguards the internal components against sudden current surges or abnormal load conditions, ensuring the sensor survives unexpected electrical faults without requiring immediate replacement.
• Voltage & Insulation Stability: Rigorously tested to withstand 1000VAC (50～60Hz for 1 minute) with an insulation resistance of ≥20MΩ, securely isolating the power terminal from the metallic housing for maximum operational safety.

Seamless Integration & Material Adaptability

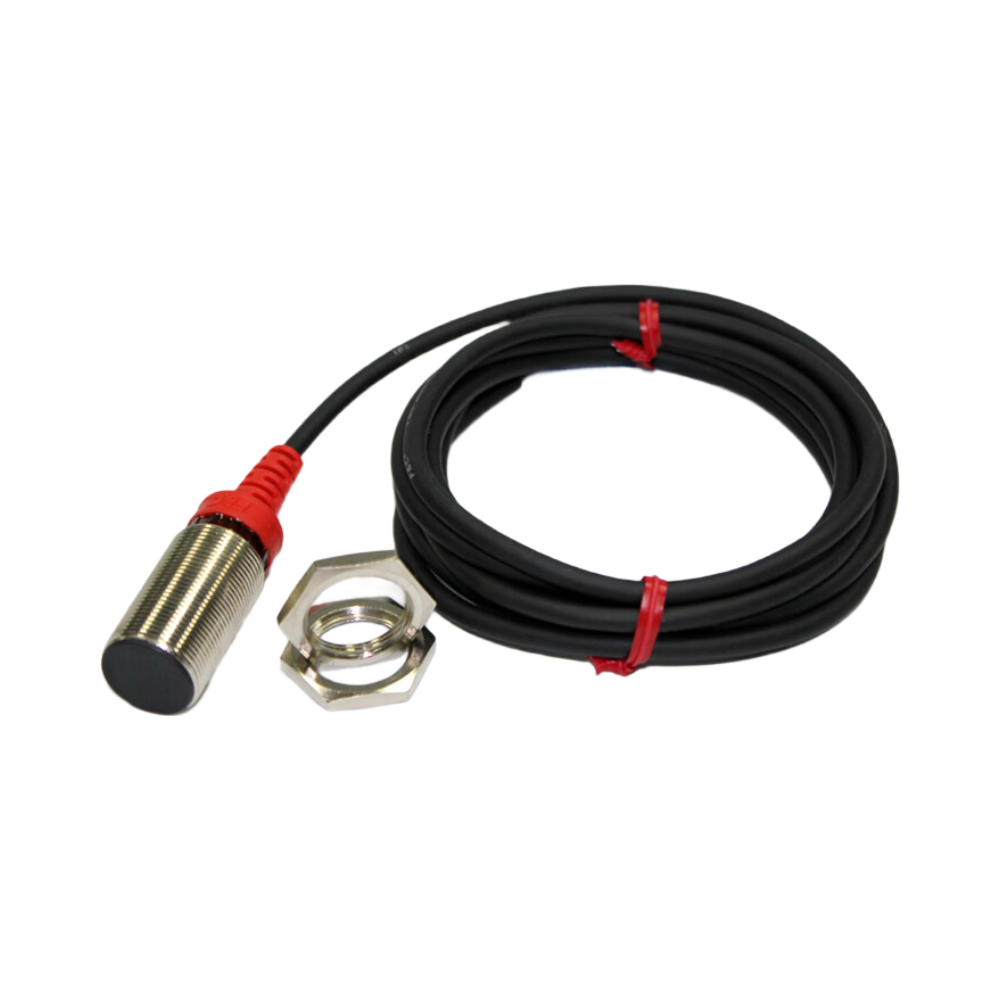

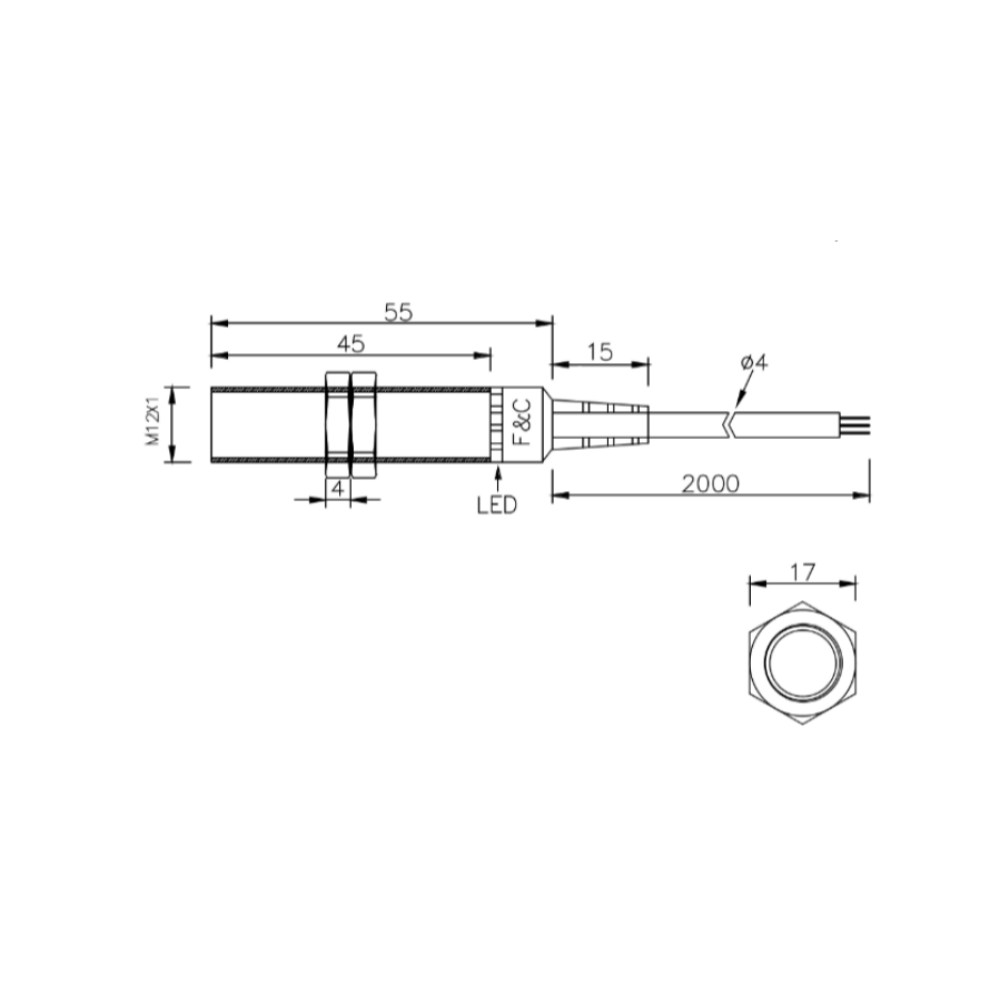

Designed with a standard M12*1mm thread and a compact 55mm overall dimension, this shielded sensor supports flush mounting directly into metal panels or machine beds without signal interference. The precision-machined 45mm thread length ensures smooth, binding-free installation into mounting brackets, capable of handling a maximum tightening torque of 10Nm. The inclusion of a 2-meter, 3-core flexible cable (Φ4.0) allows for immediate and adaptable routing within tight machine enclosures, connecting seamlessly to mainstream PLCs and industrial control units.

The sensor's electromagnetic field adapts predictably to various target materials, providing a standard sensing distance of 2mm for iron, with specific correction factors for other metals. When detecting stainless steel, the sensing distance adjusts to 85% of the standard range. For brass, it is 50%; aluminum is 45%; and copper is 40%. This predictable attenuation allows engineers to calibrate their machinery precisely, making the sensor highly suitable for diverse applications including CNC machining centers, automated packaging machinery, robotic assembly arms, and complex logistics sorting systems where rapid 1KHz detection prevents jams and maintains high throughput.

Strict Quality Control & CE Certification

Consistency is paramount when sourcing components for large-scale industrial integration. Every FSCM1202-N2M12 unit undergoes rigorous testing protocols before leaving the production facility. These evaluations include vibration resistance testing (10~55Hz, double amplitude 1.5mm for 2 hours on the X, Y, and Z axes) to ensure internal components remain securely anchored under continuous mechanical stress. Additionally, temperature drift is strictly controlled to within ±15% of the sensing distance when operating below 25℃, providing stable detection thresholds regardless of environmental fluctuations.

The product holds full CE certification, verifying its compliance with international health, safety, and environmental protection standards. By adhering to these stringent quality assurance processes, the sensor guarantees uniform reliability across large deployment volumes, minimizing maintenance overhead and ensuring that every new installation performs exactly to specification out of the box.
