SJTR-S50DN2 R2M Through-beam Photoelectric Sensor

Comprehensive Product Details & Application Value

Ultra-Compact Architecture & Precision Sensing

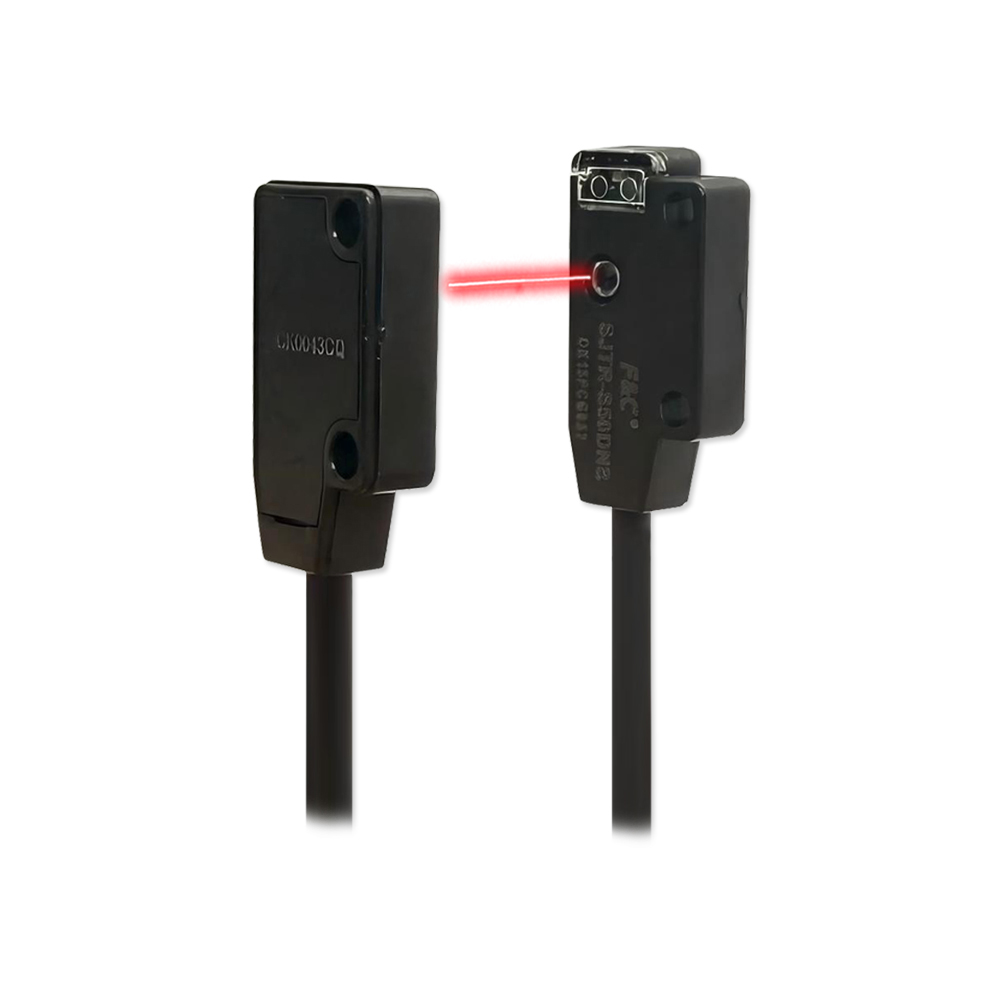

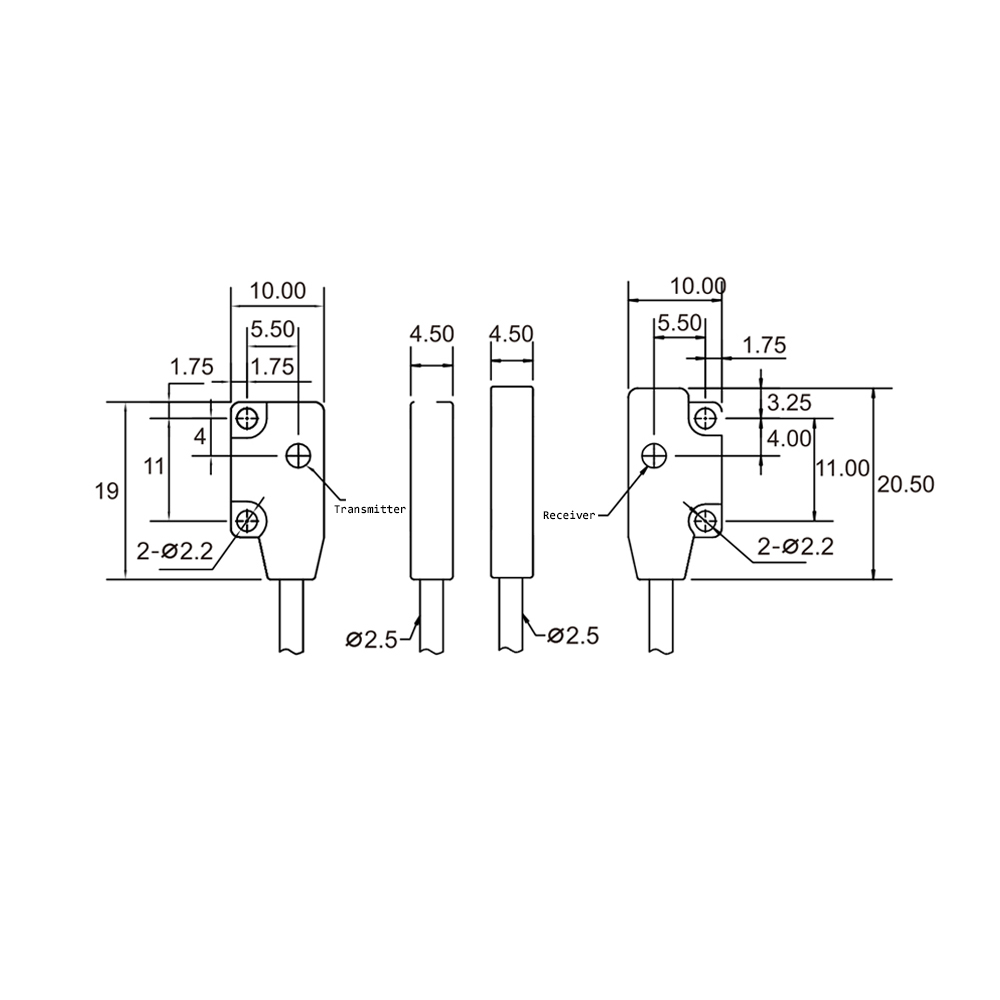

When engineering automated production lines, physical space is often the most critical constraint. The SJTR-S50DN2 R2M Through-beam Photoelectric Sensor addresses this challenge directly with its highly optimized, ultra-thin structural design. Measuring a mere 19 by 10 by 4.5 millimeters, this sensor slides effortlessly into the tightest mounting brackets and confined machine cavities, significantly reducing the spatial footprint required for detection equipment. The physical housing, crafted from a specialized blend of PBT, PC, and PVC, offers a firm, rigid tactile feel that resists mechanical wear while maintaining a remarkably lightweight profile.

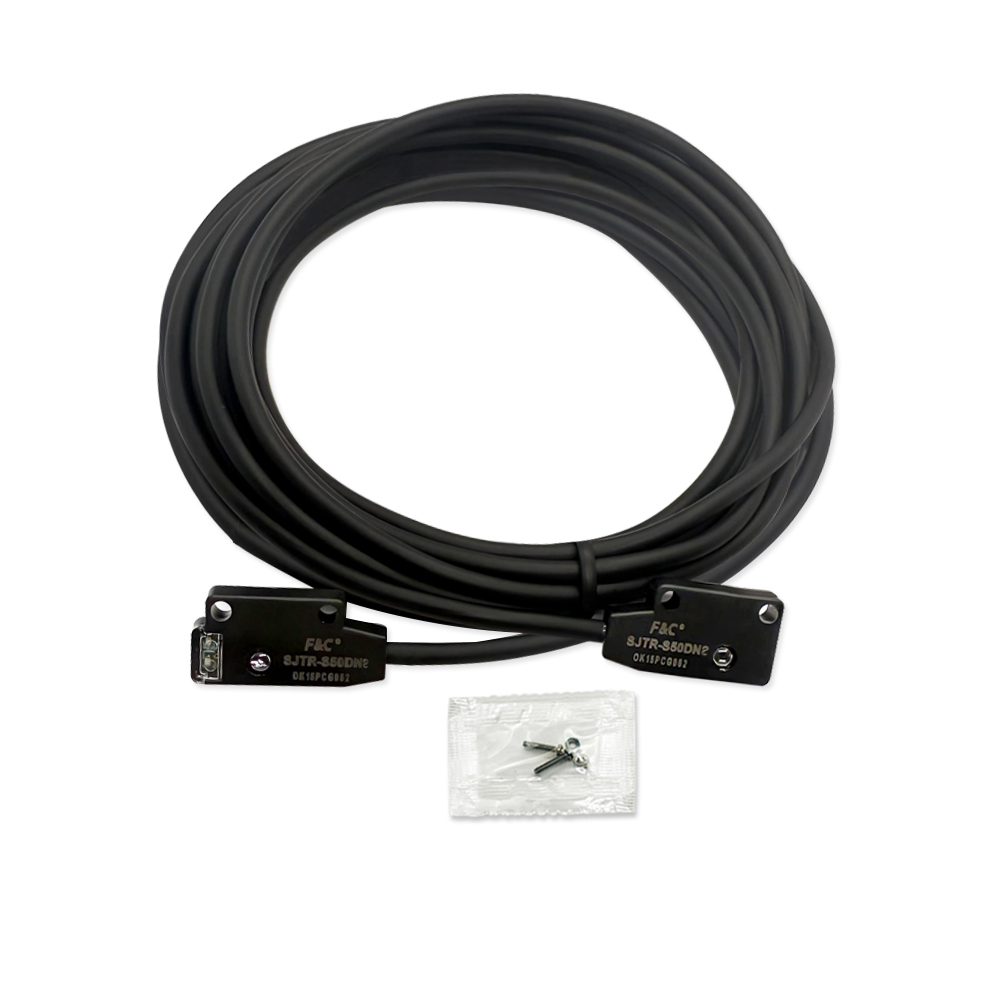

Beyond its minimal physical footprint, the core detection performance is engineered for absolute accuracy. Utilizing a highly focused through-beam mechanism, it achieves a reliable sensing distance of 500 mm. This allows the emitter and receiver to maintain a strong, unbroken optical link even across wide conveyor sections. The sensor excels at identifying microscopic objects passing through the beam, ensuring that compact assembly lines maintain strict quality control without missing a single component. With a rapid response time of just 2 ms, the NPN Normally Closed (NC) output triggers instantly, providing a crisp, immediate electrical signal to your programmable logic controllers (PLCs) and preventing any operational lag in high-speed sorting tasks. Furthermore, the integrated 2-meter straight-out cable features a smooth, flexible PVC jacket that routes cleanly through complex cable carriers and robotic arms. This generous length eliminates the need for immediate extension cords, reducing connection points where signal loss or mechanical failure might otherwise occur.

Industrial-Grade Reliability in Harsh Environments

Manufacturing environments expose sensitive equipment to constant stress, ranging from airborne dust particles to unexpected moisture and temperature fluctuations. To guarantee uninterrupted operation, this photoelectric sensor is fortified with an IP66 protection rating. The tightly sealed enclosure prevents the ingress of harmful particulates and withstands powerful water jets, making it highly suitable for facilities that require regular washdowns or operate in dusty conditions.

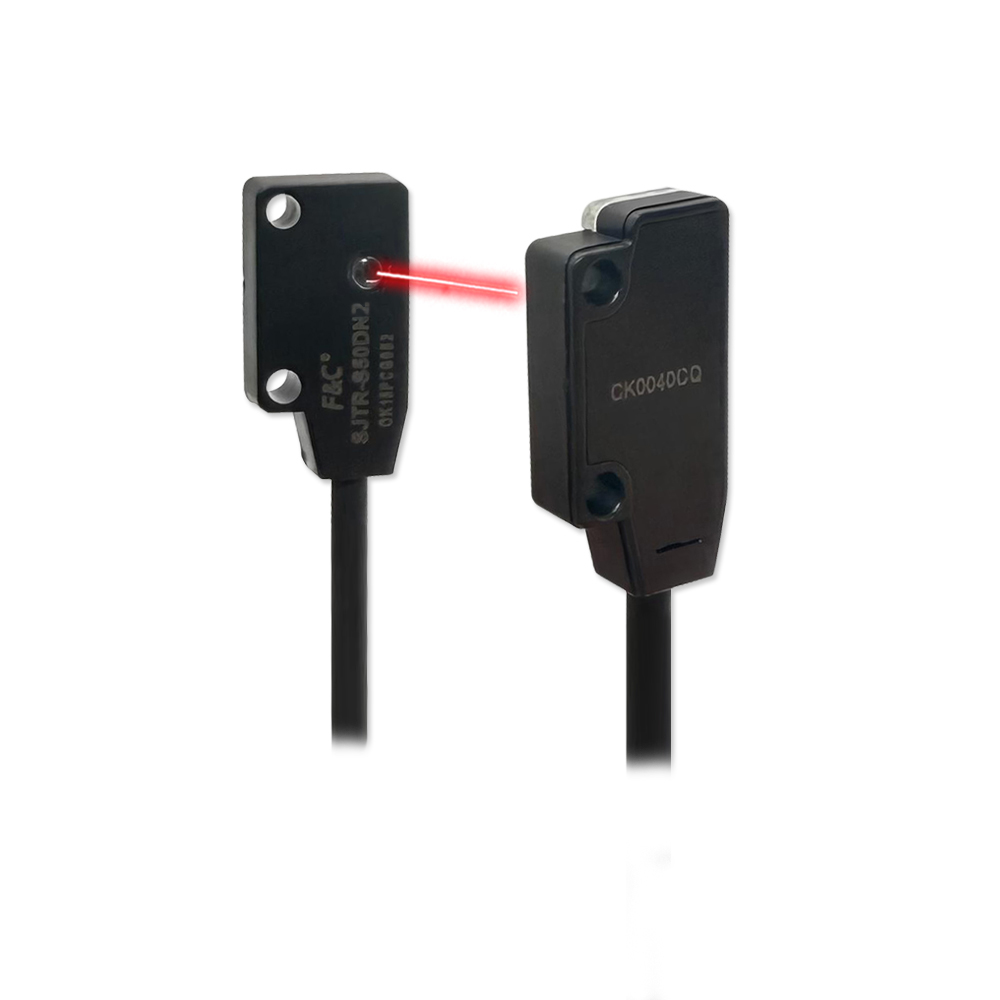

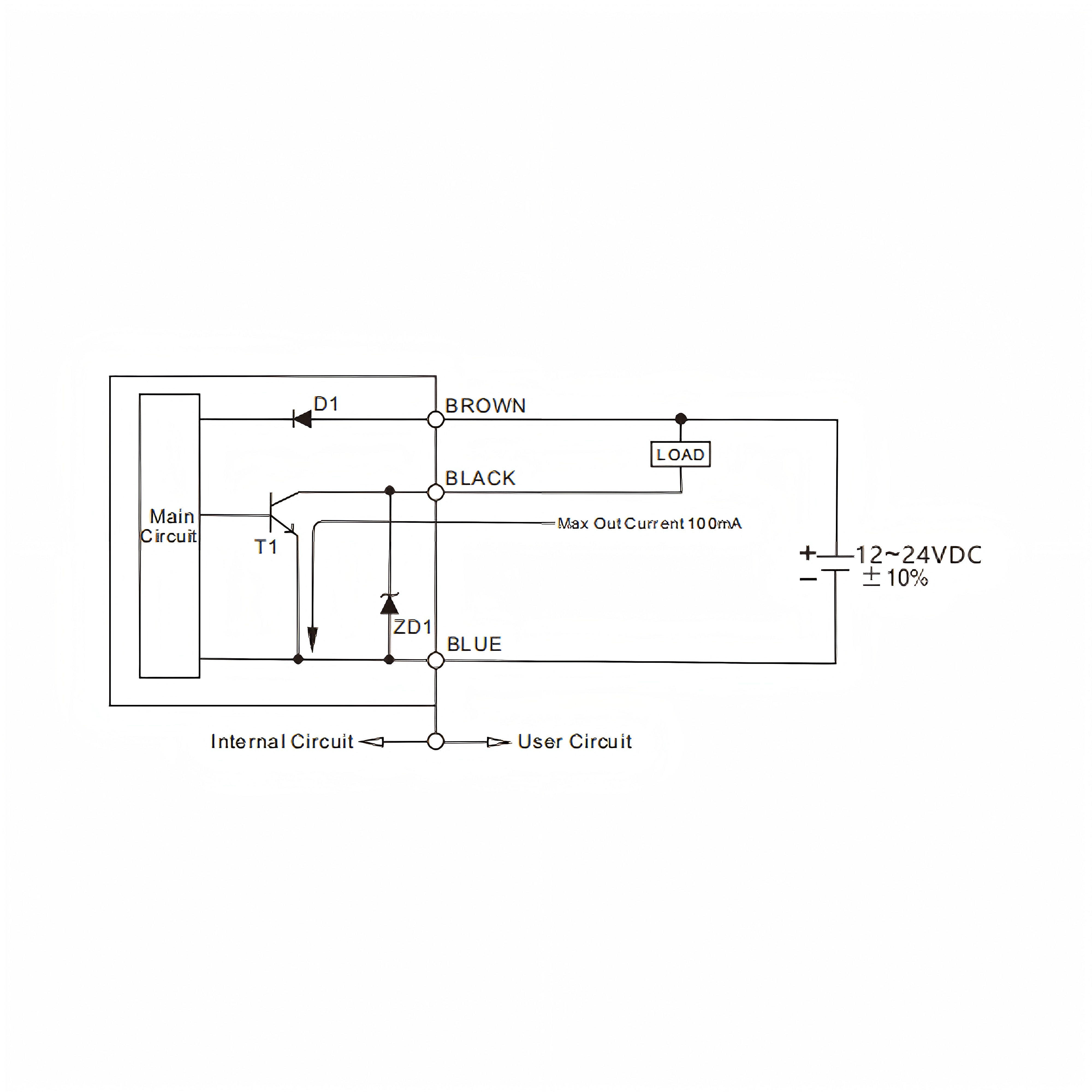

Electrically, the unit is heavily shielded against common installation and operational errors. It incorporates built-in reverse polarity protection and short-circuit safeguards. If a wiring mistake occurs during a rapid line changeover, the internal circuitry remains completely unharmed, saving replacement costs and minimizing diagnostic time. Operating efficiently on a standard 12 to 24 VDC (±10%) power supply, it integrates easily into existing industrial power grids, accommodating minor voltage fluctuations without dropping the detection signal. The sensor performs flawlessly across an ambient temperature range of -10 to 50 degrees Celsius and handles ambient humidity levels from 35% to 85% RH. Whether installed in a chilly warehouse or near heat-generating machinery, the durable internal components deliver consistent load currents up to 100 mA without thermal degradation or signal drift.

Versatile Deployment Across Automated Lines

The adaptable nature of the SJTR-S50DN2 R2M makes it an invaluable asset across multiple demanding sectors. Its precise object detection and miniature form factor solve complex positioning problems in various automated workflows. When an object breaks the invisible optical path, the instantaneous switch provides a silent, purely electronic confirmation, avoiding the mechanical wear and audible clicking associated with traditional limit switches. Key application areas include:

• Consumer Electronics (3C) Manufacturing: In smartphone and tablet assembly, the sensor verifies the presence of tiny screws, microchips, and delicate ribbon cables without physical contact, eliminating the risk of damaging fragile components.
• Semiconductor Fabrication: The cleanroom-compatible housing and precise optical beam monitor wafer carriers and lead frames as they move through etching and inspection stations, ensuring exact alignment and preventing costly collisions.
• Automotive Parts Assembly: Deployed in robotic welding and stamping cells, the sensor detects the arrival of metal brackets and fasteners, resisting the vibrations and ambient dust typical of heavy manufacturing floors.
• Packaging and Logistics: Integrated into tight spaces along sorting conveyors, it accurately counts passing items and triggers diverter gates with zero hesitation, streamlining the final packaging phase and improving overall throughput.

Certified Quality & Comprehensive Procurement Support

Securing reliable components is critical for maintaining production schedules and protecting your operational investments. This through-beam sensor is backed by rigorous quality control protocols and holds multiple national-level safety certifications. The patented internal design guarantees that the sensor maintains its optical alignment and electrical stability even after millions of switching cycles in high-frequency applications, ensuring a long service life and predictable maintenance schedules.

To support your engineering and procurement teams, we offer a comprehensive suite of technical services designed to eliminate purchasing risks. You can request physical samples to conduct hands-on evaluations within your specific machine environment. We provide free demonstration units (Demos) to help your technicians verify the 500 mm sensing distance and the flexibility of the 2m straight-out cable before committing to a larger order. Coupled with accelerated delivery schedules and dedicated after-sales technical support, our service framework is structured around your operational needs. By offering detailed technical documentation, wiring diagrams, and responsive engineering consultations, we empower your team to deploy these sensors with absolute confidence. The combination of certified longevity and proactive supplier support creates a solid foundation for your long-term manufacturing success.
