Ring Proximity Sensor FSNA12-N

Comprehensive Engineering & Application Guide for FSNA12-N

Core Performance & Environmental Adaptability

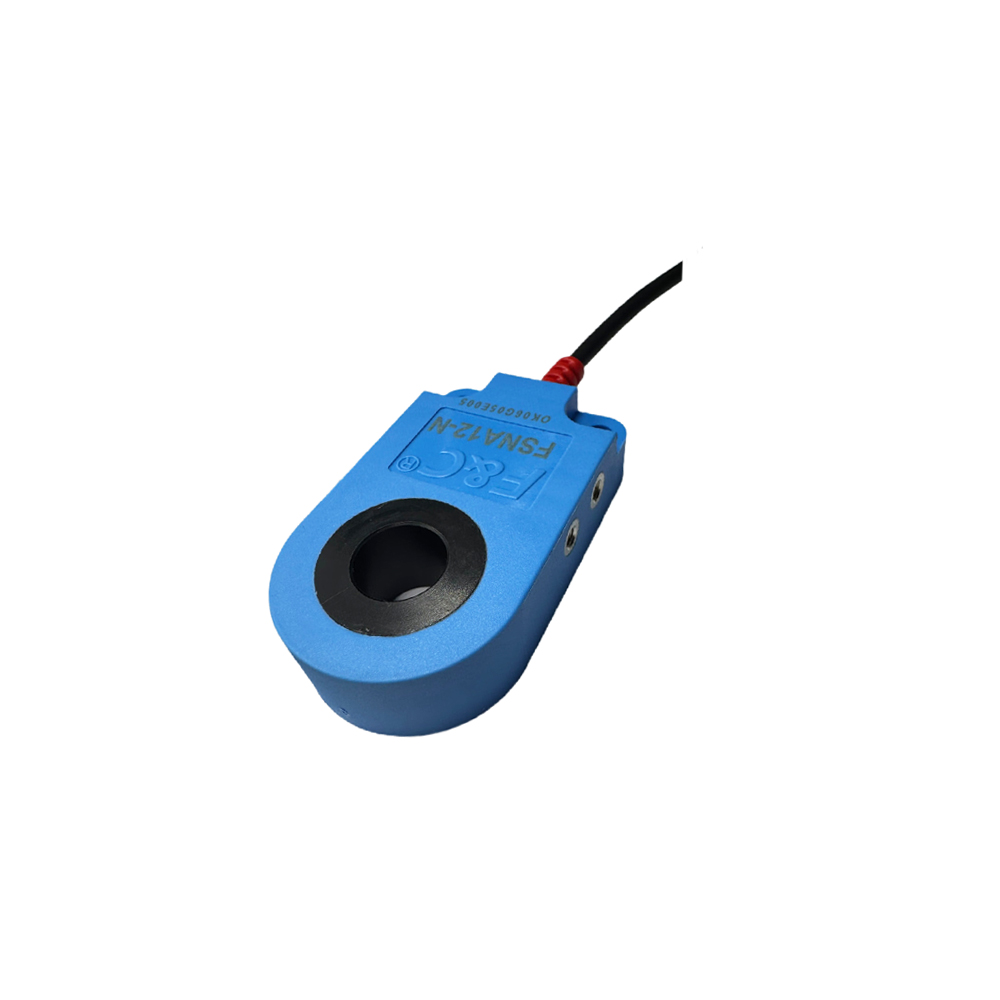

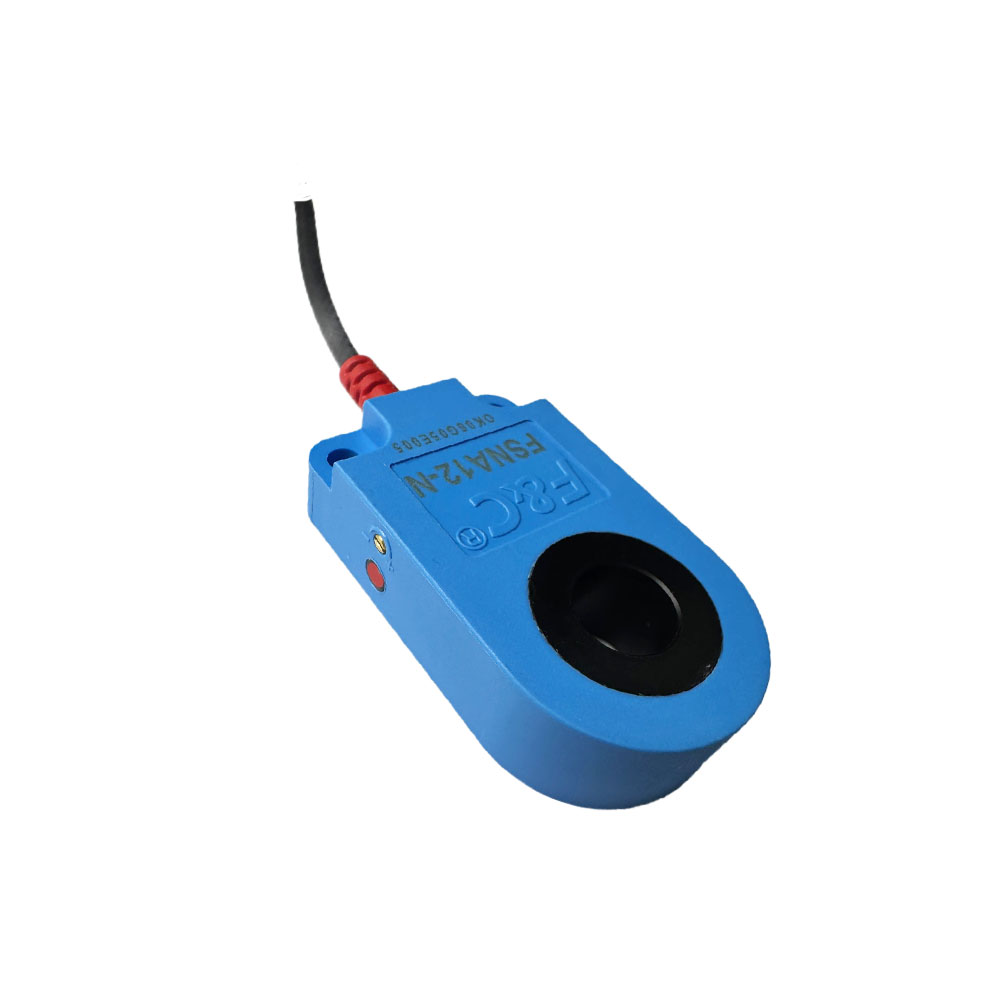

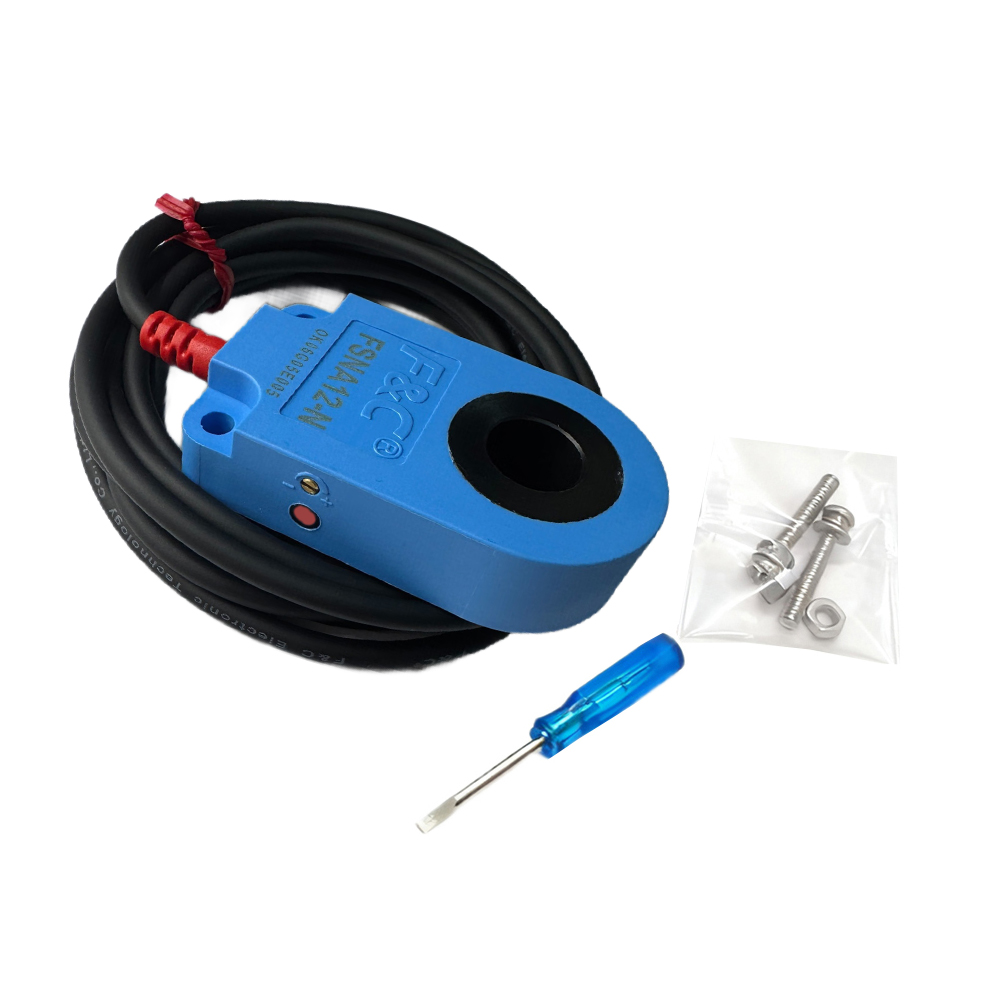

The FSNA12-N Ring Proximity Sensor is engineered for demanding industrial environments where precision and structural durability are non-negotiable. Encased in a rugged ABS and PBT polymer housing, the sensor offers exceptional resistance to mechanical impact and chemical exposure, ensuring consistent operation even in harsh manufacturing facilities. The smooth, dense texture of the matte-finished housing provides an immediate sense of industrial-grade integrity. With an IP66 protection rating, the internal circuitry remains fully shielded against heavy dust ingress and powerful water jets, making it highly reliable for operations involving cooling fluids, oil mists, or frequent washdowns. The sensor delivers a rapid 1KHz sensing frequency, capturing fast-moving metallic objects with zero lag or signal degradation. Additionally, the integrated Φ4.0 3-core 2-meter flexible cable features a specialized highly pliable jacket, designed specifically to withstand continuous flexing and routing through tight machine conduits without compromising the internal copper conductors.

Typical Application Scenarios

Designed primarily for automated production lines, this ring sensor excels in detecting small metallic components passing continuously through its 12mm channel. In the realm of smart manufacturing and precision assembly, it provides accurate counting and monitoring of metal wires, screws, and fasteners at high speeds. When a continuous metal wire passes through the sensing field, the device detects fluctuations in the electromagnetic field with absolute precision, unaffected by ambient environmental factors.

• Packaging Machinery: Verifies the presence of metallic seals or clips on continuous feed lines, preventing missed packaging steps and ensuring product integrity.
• Plastic Injection Molding: Acts as a critical safeguard by detecting unwanted metal fragments mixed within raw plastic pellets before they enter the processing barrel, thereby protecting expensive molds from severe damage.
• Wire Drawing Operations: Monitors the continuous feed of standard φ3.2×2.5 metal wires, providing immediate feedback to the central control system if a break or material jam occurs.

Installation Dimensions & Wiring Guide

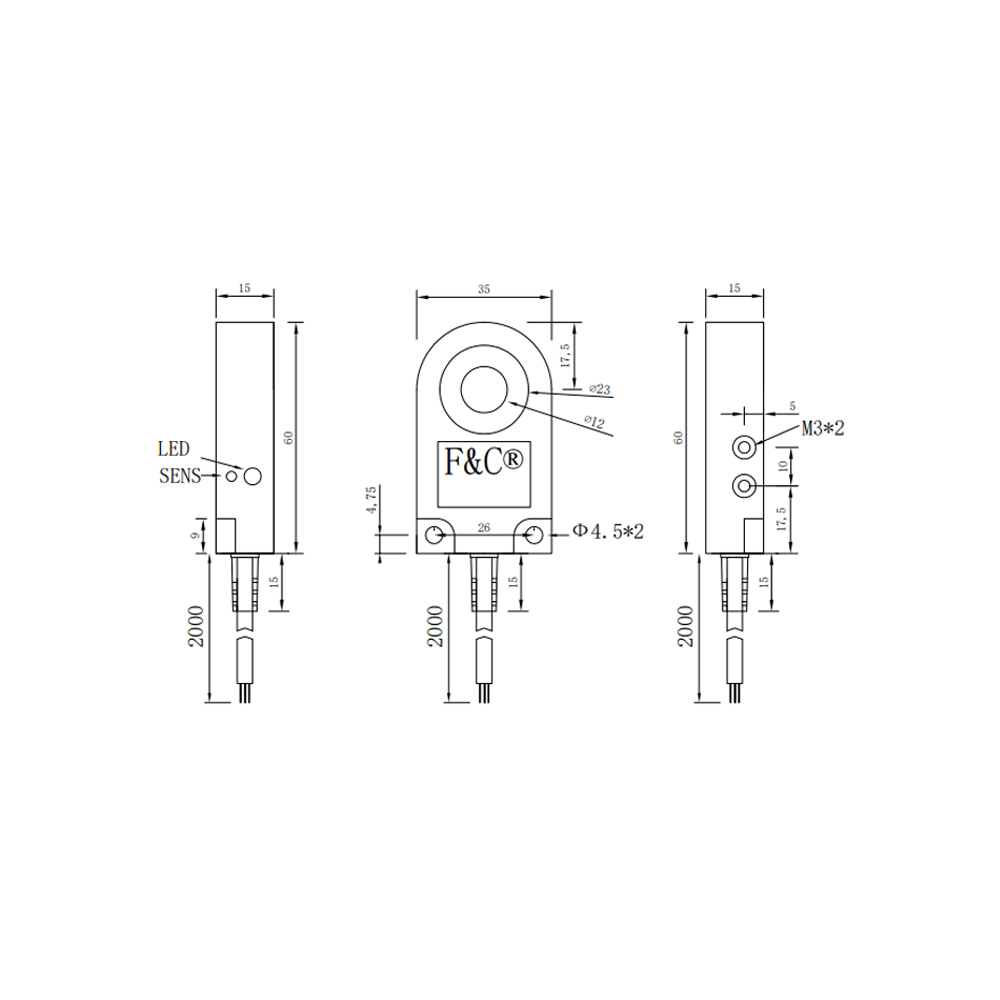

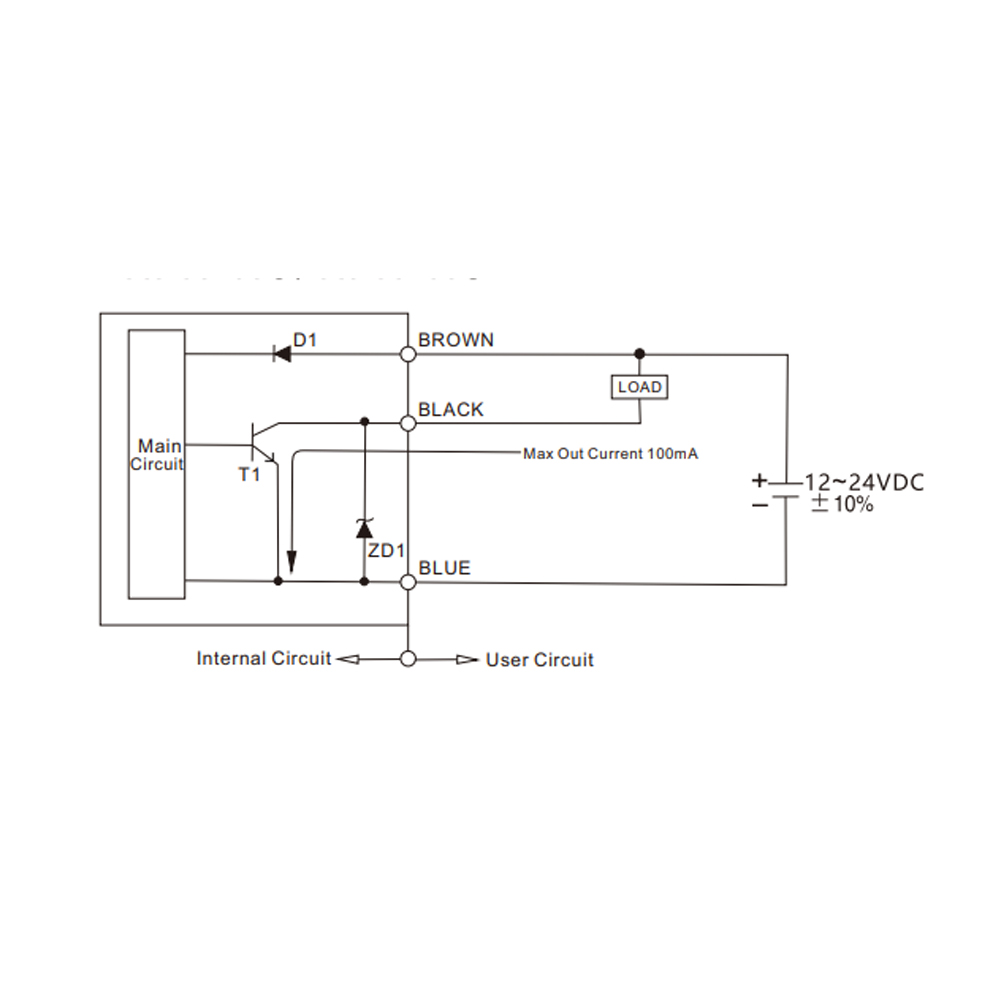

Integrating the FSNA12-N into existing machinery is a straightforward process, supported by its compact 35×60×15mm footprint. The non-shielded mounting design allows for flexible placement across various structural brackets without complex spatial requirements. The body features precisely molded mounting points that ensure a flush, secure fit against standard aluminum extrusion profiles, minimizing vibration during operation. For electrical integration, the sensor utilizes a standard NPN Normally Open (NPN.NO) output configuration, which interfaces smoothly with programmable logic controllers (PLCs) and standard relay systems. Field technicians will appreciate the direct lead-out connection type, which simplifies the wiring process and reduces the potential for connection faults. The built-in reverse polarity protection and output short-circuit protection provide an essential layer of safety during the commissioning phase, preventing accidental damage caused by miswiring. Clear wire color-coding ensures that installation teams can complete setup and calibration swiftly.

3D Models & CAD Design Support

To facilitate seamless integration during the initial equipment design phase, comprehensive 3D models and 2D CAD engineering drawings are readily available for the FSNA12-N. Mechanical engineers and system integrators can download these files in multiple mainstream formats, including STEP, IGES, and DXF. This ensures immediate compatibility with industry-standard design software such as SolidWorks, AutoCAD, and Creo. By incorporating the exact geometric data and mounting hole locations into virtual assemblies, design teams can accurately simulate spatial constraints, run collision detection algorithms, plan optimal cable routing, and verify mechanical clearances long before physical prototyping begins. This proactive approach significantly reduces design iterations, prevents costly structural modifications on the assembly floor, and accelerates the overall research and development cycle for new automated machinery.

Technical Documentation & Procurement Services

Ensuring compliance and operational reliability is paramount for enterprise sourcing. The FSNA12-N is backed by a complete suite of technical documentation and dedicated support channels, designed to streamline the evaluation and integration process.

• Comprehensive Documentation: Access detailed operational manuals, comprehensive selection guides, and official CE certification documents, all easily downloadable for compliance archiving and strict regulatory reviews.
• Pre-Sales Engineering Support: Engage with technical specialists for professional selection guidance to verify that the sensor's 12~24VDC operating voltage and <10% hysteresis align perfectly with specific application parameters.
• Field Validation Programs: To mitigate integration risks and validate performance under actual working conditions, sample unit evaluations and on-site testing demonstrations can be arranged.

By thoroughly testing the sensor's 100mA load capacity and <1.5VDC residual voltage in their own facilities, technical teams can confirm the device's accuracy and durability firsthand, ensuring a confident and secure investment for large-scale automation projects.
