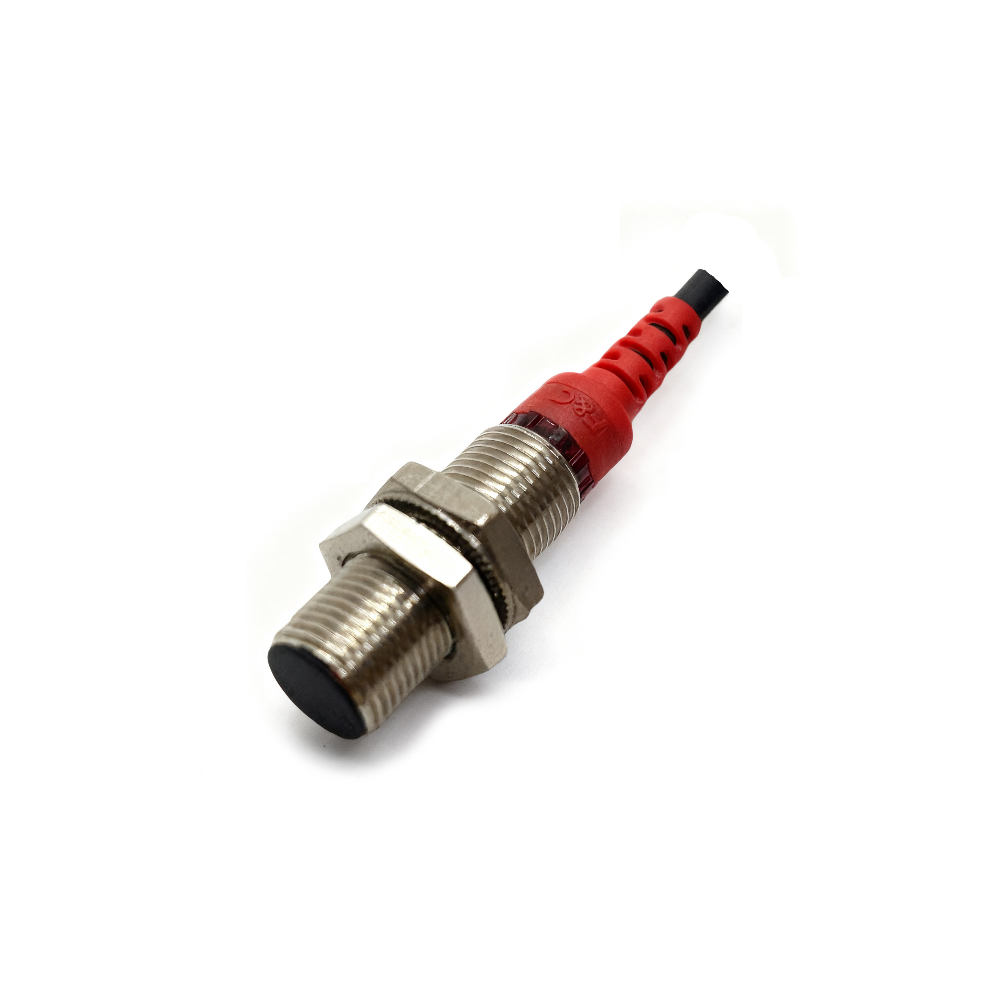

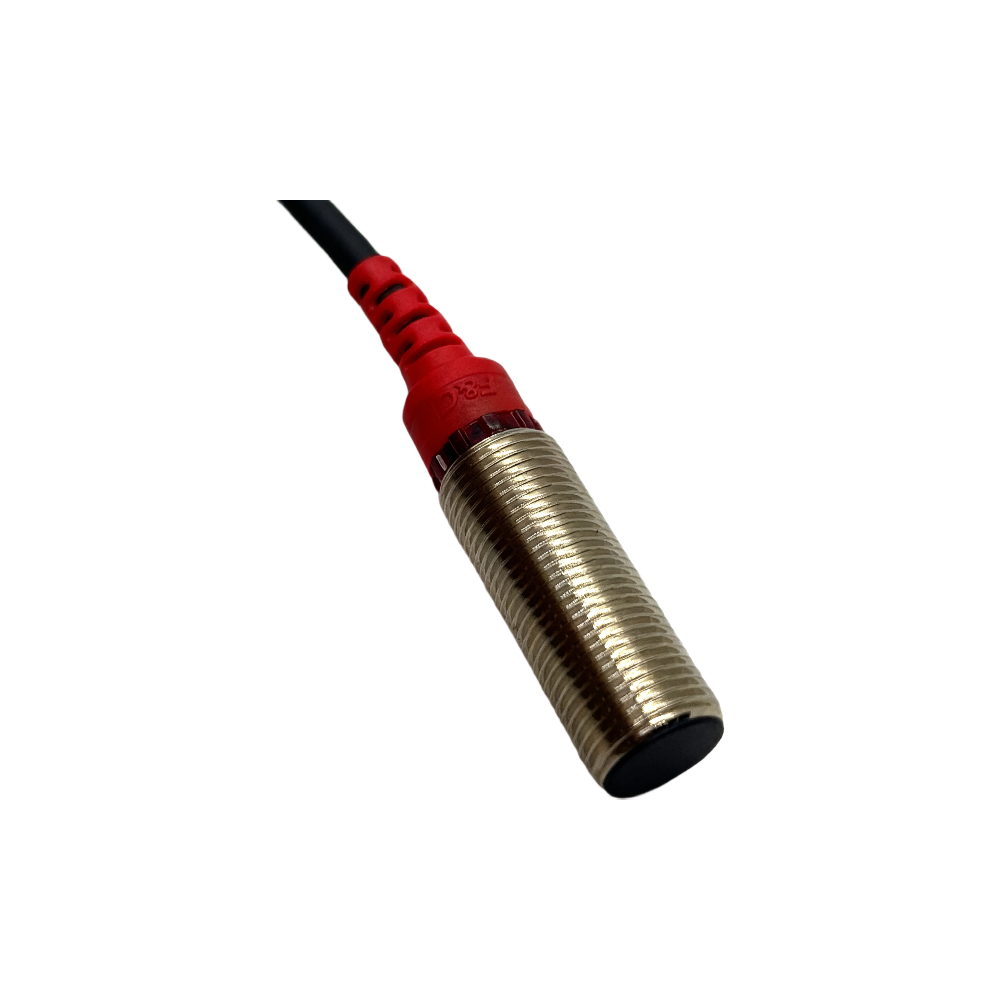

High Repeat Accuracy Proximity Sensor FSCM1202-P

Comprehensive Product Overview & Core Advantages

When precision is the defining factor in automated production lines, the FSCM1202-P High Repeat Accuracy Proximity Sensor delivers exact, unvarying position detection. Engineered specifically for demanding industrial environments, this inductive sensor identifies metallic objects with exceptional consistency. By utilizing a shielded mounting design and a standard M12 threaded cylindrical body, it integrates smoothly into existing mechanical frameworks. Operators and engineers rely on this component to eliminate positional errors, ensuring that every movement, count, and limit check occurs at the exact intended microsecond. The tactile feel of the precisely machined threads and the secure connection provided by the pre-wired flexible cable reflect a design focused on long-term operational stability.

Pinpoint Accuracy for Complex Automation

At the core of the FSCM1202-P is its remarkable repeat accuracy of ≤±0.5% of the detection distance. In high-velocity manufacturing settings, even a fraction of a millimeter of deviation can lead to material waste or equipment jamming. This sensor maintains a strict 2mm (±10%) detection envelope, providing a reliable signal every time a target object passes its face. Such exactitude is critical for applications involving CNC machining centers, articulated robotic arms, and high-volume packaging machinery. When integrated into logistics conveyor systems, the sensor registers passing items with a crisp, immediate response, allowing programmable logic controllers (PLCs) to execute automated sorting or counting tasks without hesitation or delay. For instance, in an automated bottling facility, the sensor detects metallic caps with absolute uniformity, ensuring the capping mechanism engages at the exact required depth. The rapid, invisible magnetic field generated by the sensor reacts instantly to the standard 12x12x1mm iron test object, translating physical proximity into a dependable electronic pulse.

Industrial-Grade Construction and Environmental Defense

Industrial facilities present harsh operational conditions, from airborne metallic dust to constant mechanical vibration. To counter these challenges, the sensor features a heavy-duty housing crafted from nickel-plated copper, offering a cool, solid metallic heft that resists physical impact and chemical corrosion. The sensing face is constructed from Polybutylene Terephthalate (PBT), a thermoplastic polymer known for its structural integrity and resistance to thermal stress. Rated at IP67, the enclosure is completely sealed against dust ingress and can withstand temporary immersion in water or exposure to cutting fluids. Furthermore, the device is tested to endure vibrations ranging from 10 to 55 Hz with a double amplitude of 1.5 mm, ensuring the internal circuitry remains secure and fully functional even when mounted directly onto heavily vibrating stamping presses or motorized tracks. The physical design, weighing exactly 63.2 grams, provides a reassuring density that speaks to its durable internal potting. When tightening the mounting nuts to the maximum torque of 10Nm, technicians can feel the strong bite of the threads, securing the sensor firmly in place.

Electrical Reliability and Safe Integration

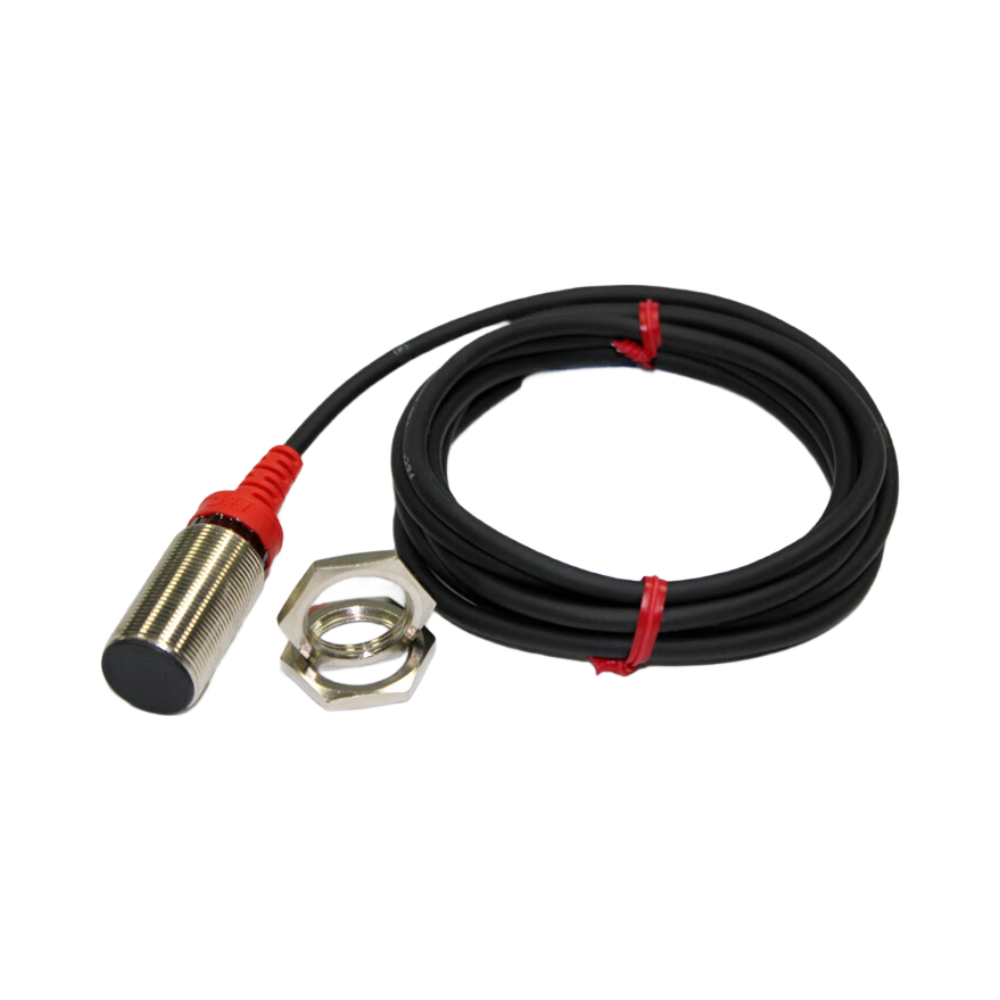

Safeguarding complex control systems requires dependable electrical characteristics. The FSCM1202-P operates on a standard 12 to 24VDC supply and features built-in reverse polarity protection, preventing catastrophic failures during installation or wiring modifications. It boasts a dielectric withstand voltage of 1000VAC, providing a strong insulating barrier between the charging circuit and the external metal housing. Outputting via a PNP Normally Open (NO) configuration, it communicates directly with most modern industrial controllers. The direct outlet connection utilizes a 2-meter, 3-core flexible cable with a 4.0mm diameter, offering ample length and pliability for routing through tight machine conduits or articulated cable carriers without risking wire fatigue. The low consumption current of under 10mA ensures energy efficiency across large-scale deployments where hundreds of sensors might be active simultaneously. Meanwhile, the 100mA load current capacity is more than sufficient to drive standard PLC inputs or small interface relays directly.

Supply Chain Consistency and Long-Term Value

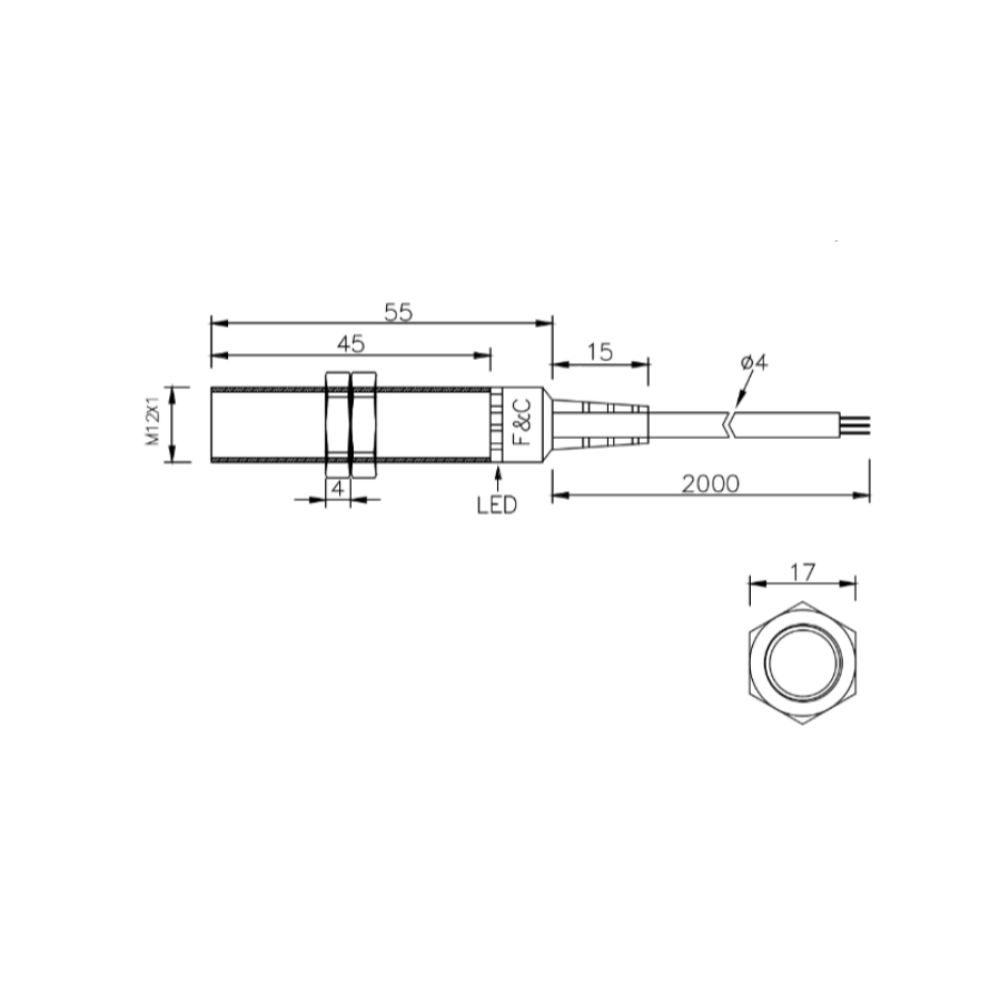

For procurement teams and facility managers, standardizing components is a vital strategy for minimizing downtime. The FSCM1202-P offers a universal M12x1mm thread and a compact overall length of 55mm, making it an ideal drop-in replacement for legacy sensors. Sourced through a highly controlled manufacturing process, each unit delivers identical performance characteristics, ensuring that a sensor installed today will match the precise detection threshold of a unit installed a year from now.

• Standardized Replacements: The universal M12 form factor ensures immediate compatibility with existing mounting brackets, reducing the need for custom fabrication.
• Inventory Optimization: A consistent 2mm detection range and PNP NO output cover a vast majority of standard limit-detection requirements across the factory floor.
• Certified Safety: Backed by CE certification, this component meets stringent international safety and performance directives.
• Reduced Maintenance: High durability significantly lowers overall maintenance expenditures and prevents unexpected line stoppages, keeping production schedules firmly on track.
