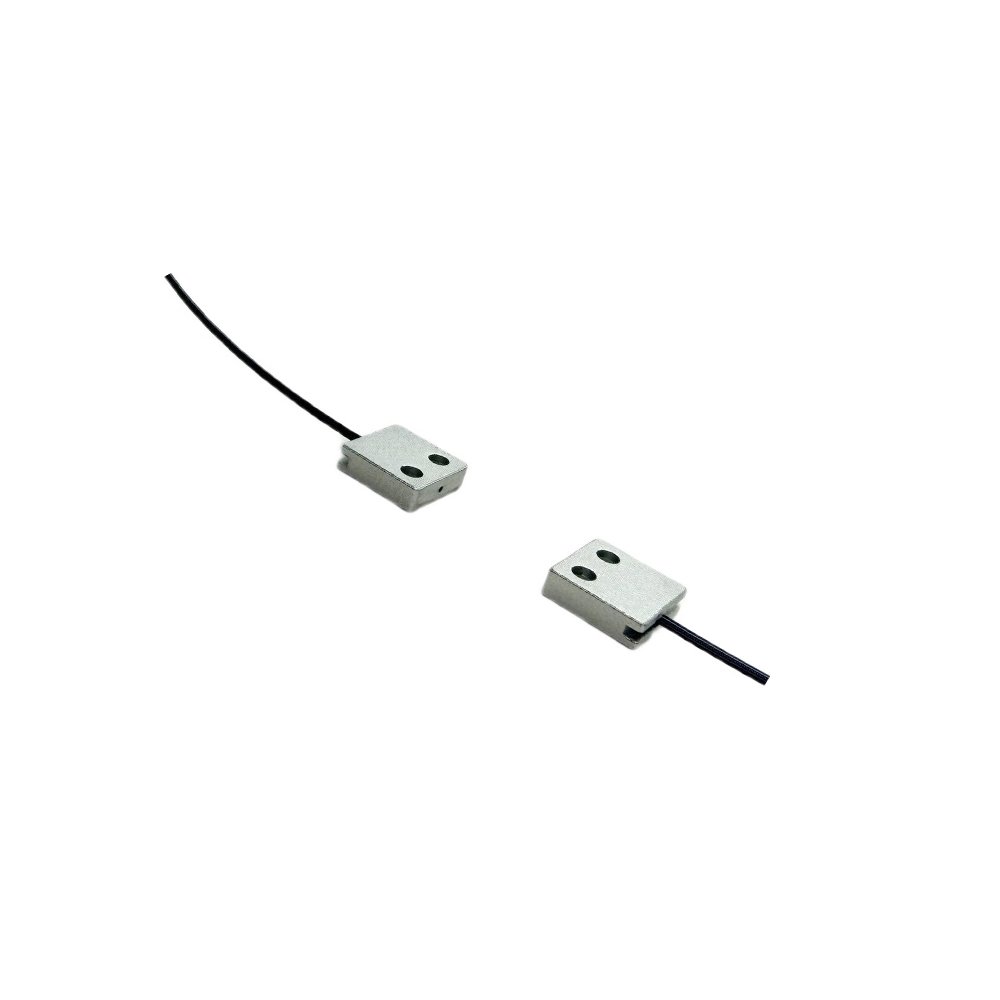

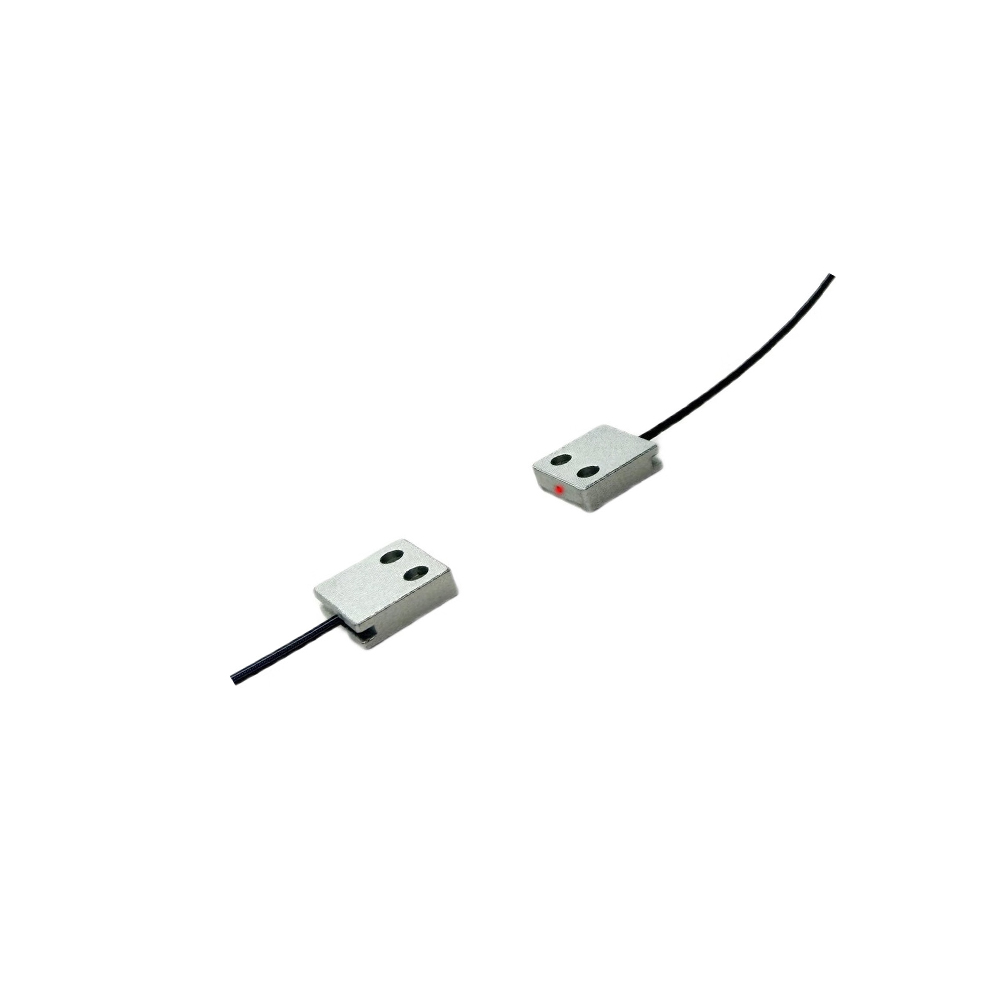

FFTS-51TZ 1M Mounting bracket through-beam fiber optic cable

Comprehensive Technical Overview: FFTS-51TZ 1M Fiber Optic Cable

The FFTS-51TZ 1M mounting bracket through-beam fiber optic cable is engineered to deliver precise object detection in highly constrained mechanical environments. By bridging the gap between severe spatial limitations and the demand for unerring sensor accuracy, this component supports continuous, high-speed automated production. Its structural design prioritizes rapid deployment, long-term environmental resilience, and immediate integration into existing control architectures, providing procurement teams and facility engineers with a dependable sensing solution.

Integrated Mounting Bracket & Routing Flexibility

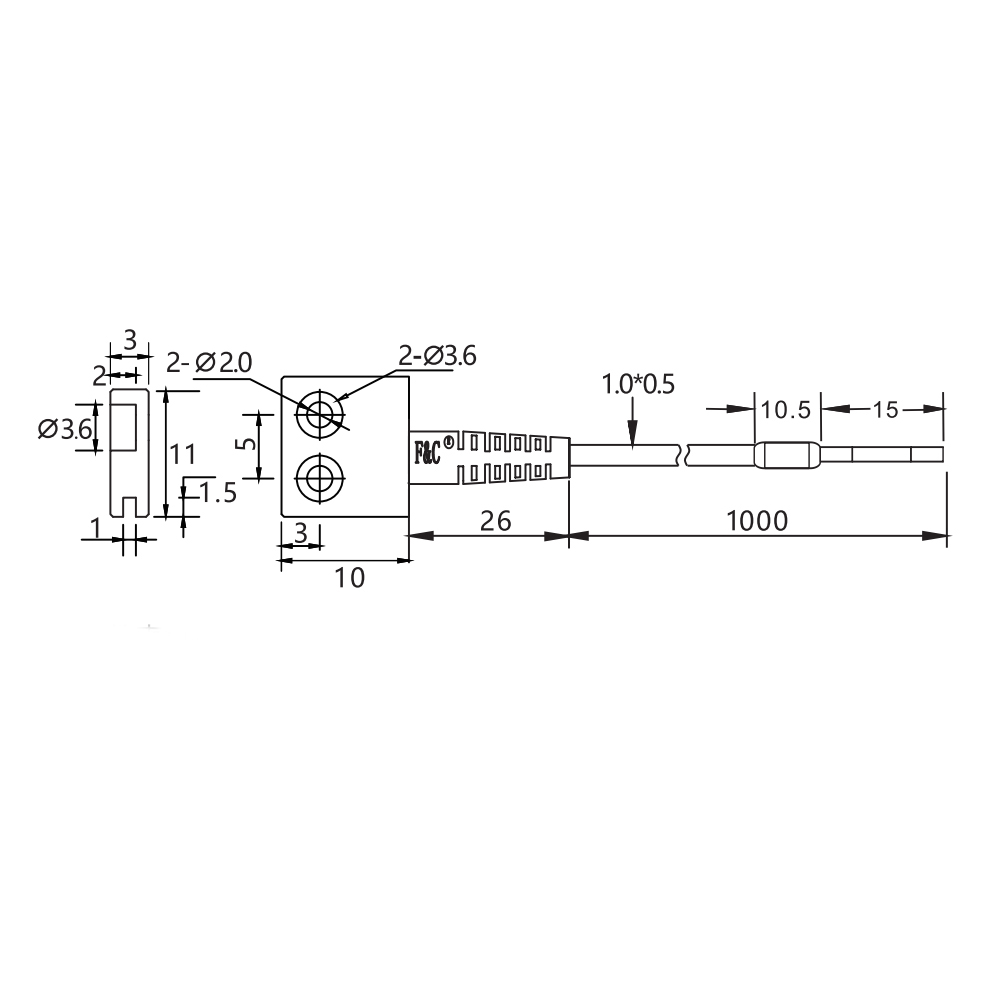

Industrial machinery frequently presents severe spatial limitations, requiring sensing components that adapt without compromising structural integrity. Designed with external dimensions of just 10×10×3 mm, the integrated mounting bracket allows engineers to deploy the sensor securely within cramped mechanical assemblies. The physical construction includes a highly flexible fiber cable featuring an R10 bending radius. When handling the cable, technicians experience a pliable yet resilient exterior jacket that permits free cutting to exact lengths. This structural flexibility ensures the cable routes easily through intricate mechanical pathways, around sharp corners, and inside robotic arms without the need for additional protective conduit tubes. The tactile feedback during installation confirms its physical durability, reducing setup time and preventing micro-fractures in the Φ0.5 core and Φ1.0 outer jacket.

Precision Through-Beam Detection Performance

In fast-paced automated production lines, the margin for error is virtually non-existent. The through-beam optical path design of this fiber optic cable guarantees absolute accuracy in object detection. Operating with a standard sensing distance of 140mm and an extended range of up to 150mm, it creates a focused, uninterrupted light barrier. This configuration proves exceptionally effective for identifying minute components passing at high velocities. The front-exit light mechanism ensures a concentrated beam, eliminating false triggers or missed detections caused by ambient light interference or reflective background surfaces. Plant managers rely on this consistent optical performance to maintain continuous workflow in sorting, counting, and positioning tasks, directly translating to improved throughput and reduced operational downtime.

Industrial-Grade Material and Thermal Tolerance

The physical environment of manufacturing facilities exposes equipment to fluctuating temperatures, constant vibrations, and mechanical stress. The sensing head of the FFTS-51TZ is machined from aluminum silver, providing a cool, metallic rigidity that resists physical impacts and prolonged exposure to industrial wear. Weighing a mere 3.63 grams, the ultra-lightweight profile minimizes inertial load when mounted on moving parts. Furthermore, the unit is rated for a broad functional temperature range of -20°C to +70°C. Whether deployed in cold storage packaging facilities or near heat-generating processing equipment, the optical transmission remains stable. Rigorous optical attenuation testing and industrial lifecycle validation ensure this cable meets strict RoHS environmental and safety compliance standards, offering a reliable, long-term component solution.

Universal Device Compatibility

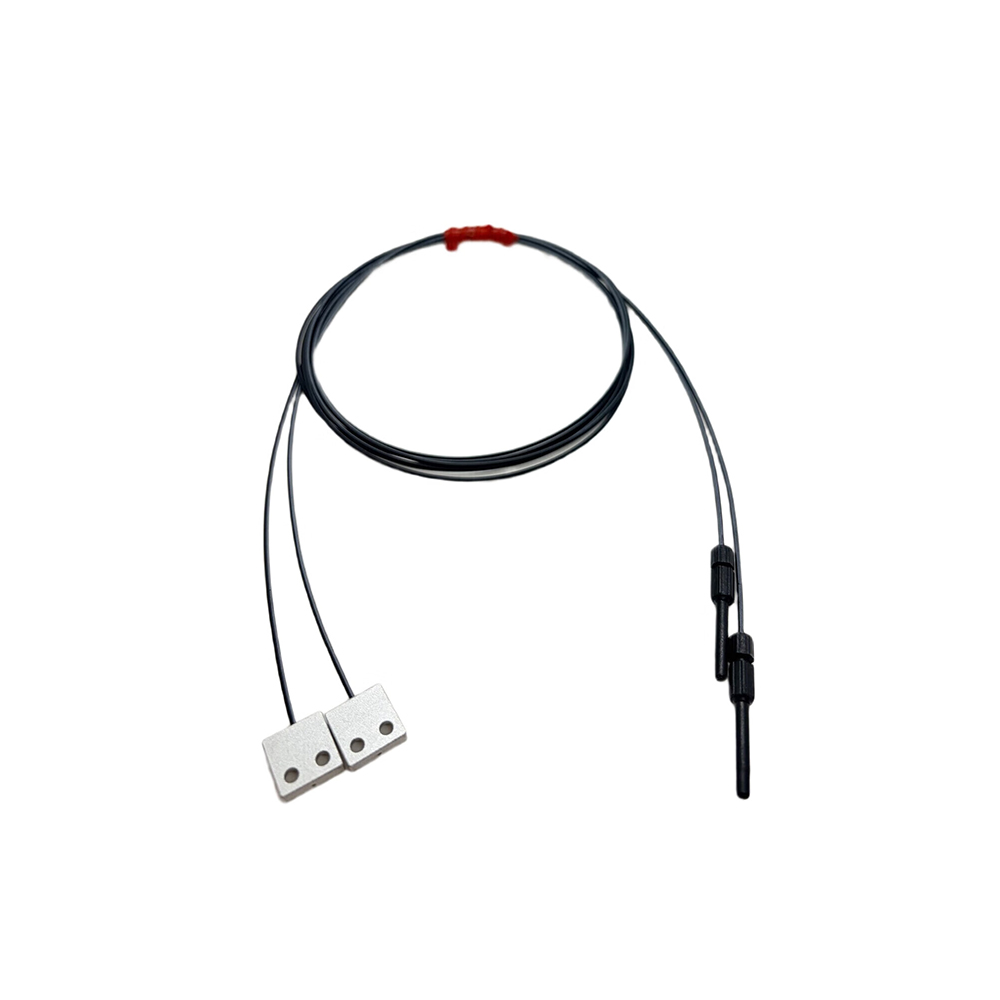

Integrating new sensing components into existing automation architectures must be a straightforward process to minimize facility downtime. To facilitate this, the cable is equipped with a standard plastic tail connector. This standardized interface guarantees immediate compatibility with a vast array of mainstream fiber amplifiers and automated control systems currently active in the market. Maintenance teams can execute swift replacements or system upgrades without the need for proprietary adapters or complex rewiring procedures. The secure fit of the plastic connector provides a reassuring mechanical click upon insertion, ensuring the optical alignment is locked firmly in place and protected against operational vibrations.

Optimized for Advanced Manufacturing Scenarios

The specific engineering attributes of this through-beam fiber optic cable make it an indispensable asset across several demanding industrial sectors:

• Semiconductor Manufacturing: The extremely compact 10×10×3 mm mounting head allows for precise wafer detection in vacuum chambers and processing equipment where space is exceptionally limited.
• 3C Electronics Assembly: The reliable 150mm detection range ensures accurate positioning of microchips, delicate circuit boards, and tiny screws on fast-moving assembly conveyors.
• Packaging Machinery: The rigid aluminum head and flexible R10 cable withstand the repetitive motions and vibrations inherent in high-speed packaging, ensuring accurate counting and alignment of materials.
• Robotic End-Effectors: The 3.63g lightweight profile adds negligible mass to robotic arms, preserving the dynamic accuracy, rapid movement speed, and motor lifespan of automated picking and placing operations.
