FFTC9-410 Coaxial through-beam fiber optic cable

FFTC9-410 Coaxial Through-Beam Fiber Optic Cable: Performance & Application Guide

Precision Detection in Confined Manufacturing Environments

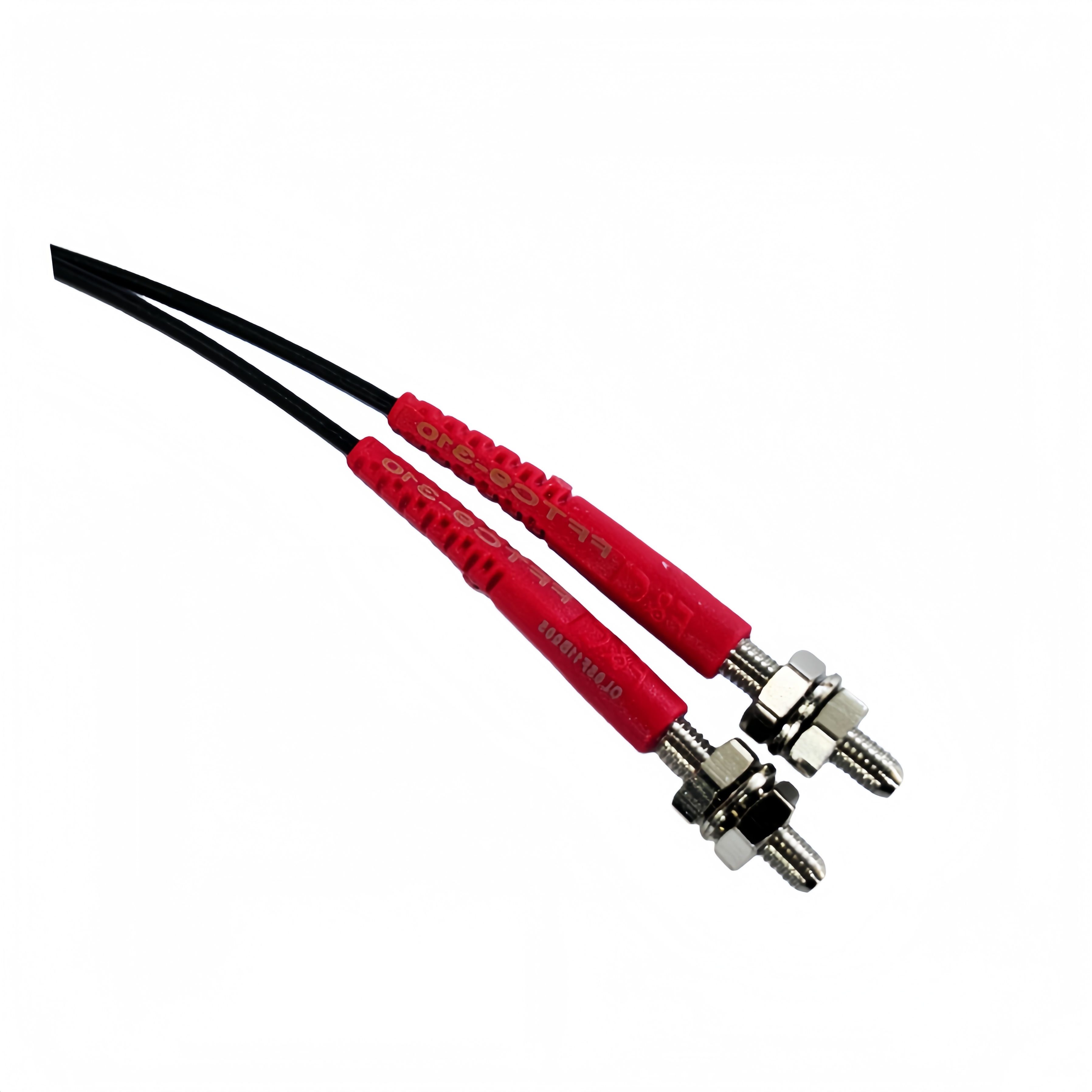

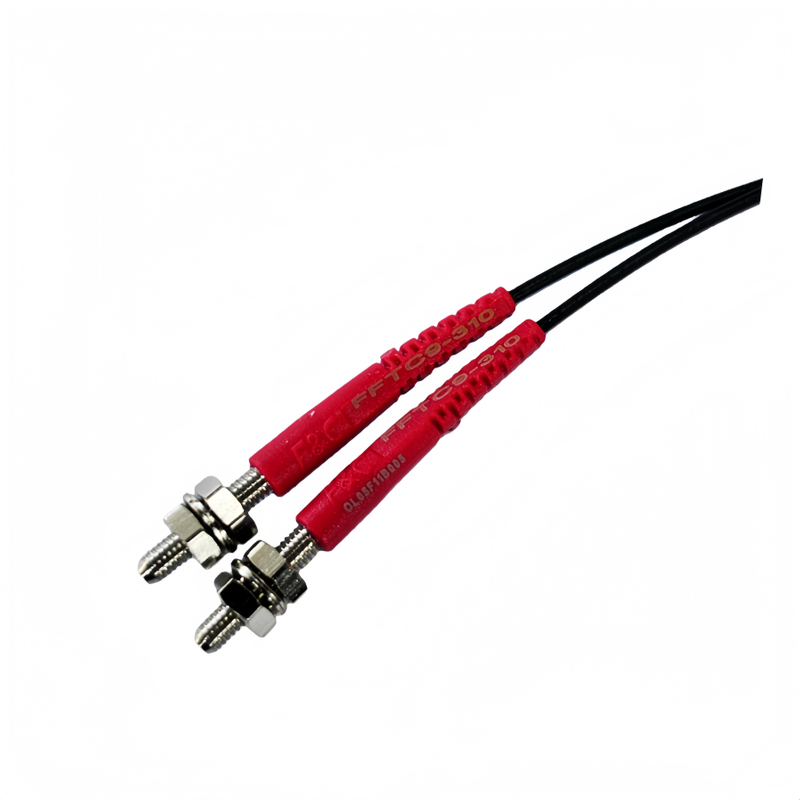

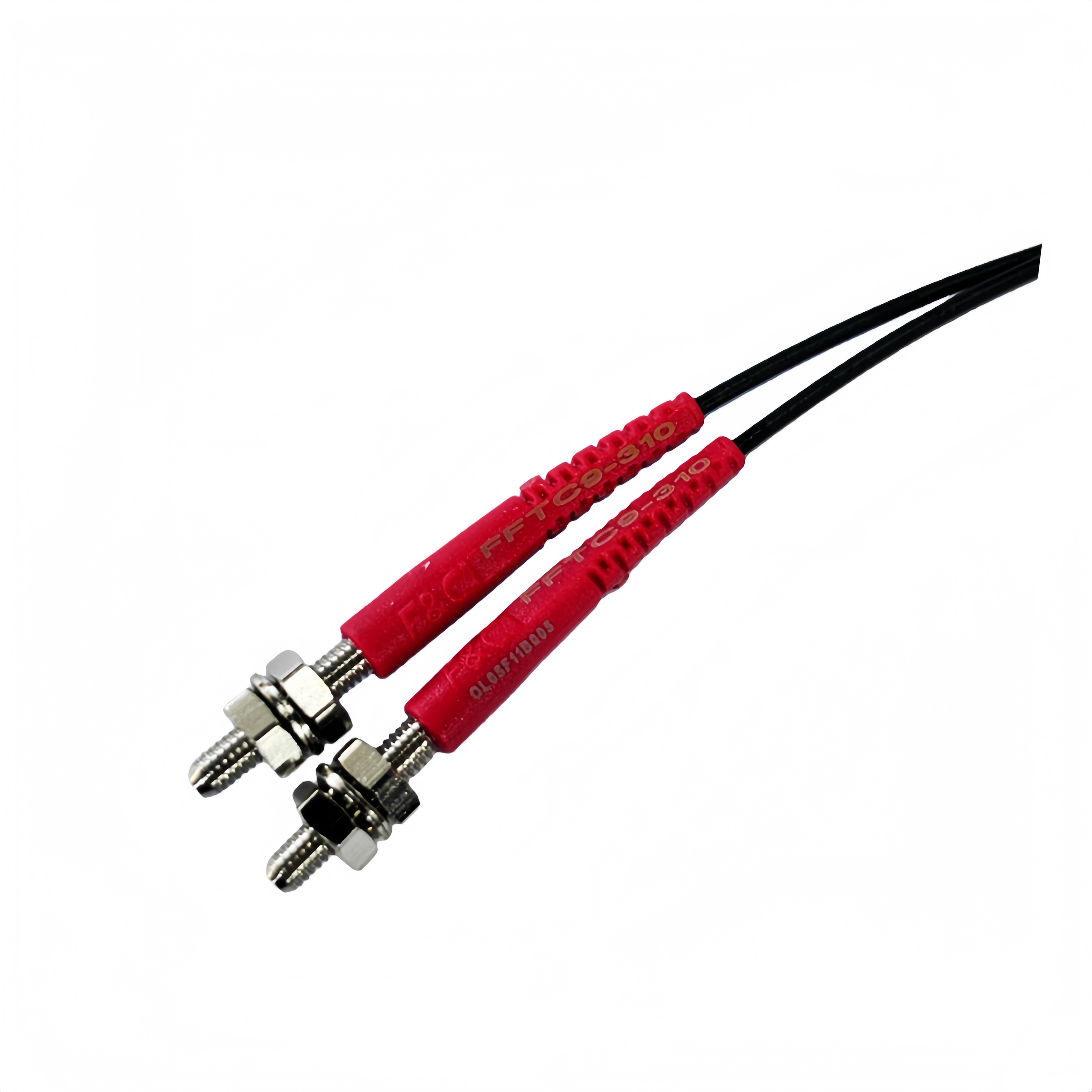

Engineered for smart manufacturing, packaging, and plastic machinery, the FFTC9-410 addresses the persistent challenge of mounting sensors in severely restricted spaces. This unit features an M4 threaded stainless steel head, allowing for secure, low-profile mounting in tight mechanical zones. The coaxial through-beam design ensures a highly concentrated light path, translating to exceptional accuracy when identifying minute objects or subtle edge transitions on fast-moving production lines. In packaging machinery, where transparent or highly reflective films often confuse standard sensors, the concentrated coaxial beam provides decisive contrast. For plastic injection molding, the sensor accurately confirms part ejection, preventing catastrophic tool damage. With a baseline sensing distance of 500mm that extends up to an impressive 600mm in long-range mode, this unit provides operators with flexible positioning options without sacrificing detection stability. You can physically feel the rigid, precise threading of the M4 head, which locks firmly into machinery brackets, eliminating vibration-induced misalignment during heavy mechanical cycles.

Material Resilience for Harsh Operating Conditions

Industrial environments expose components to fluctuating temperatures, mechanical stress, and airborne contaminants. The FFTC9-410 is constructed to withstand these demanding variables. The sensor head is machined from premium stainless steel, offering a cool, smooth metallic finish that resists corrosion and physical impact. Connected to this is a specialized high-toughness fiber cable featuring a Φ1.3 outer diameter with a Φ0.25*9 core structure. When handling the cable, you will notice the distinct rigidity of the stainless steel head contrasting with the pliable, smooth texture of the fiber jacket. This tactile difference highlights the specialized engineering: durable where it mounts, flexible where it routes. It operates flawlessly across a broad thermal span from -20°C to +70°C. Whether deployed in freezing storage facilities or near heat-generating plastic molding presses, the structural integrity of the fiber prevents signal degradation. Furthermore, the resilient outer jacket eliminates the need for an additional conduit tube, reducing overall bulk and minimizing the acoustic rattle often associated with vibrating machinery.

Streamlined Routing and Mechanical Integration

Complex machinery often requires intricate wiring paths. The FFTC9-410 excels in physical adaptability, offering several mechanical advantages for system builders:

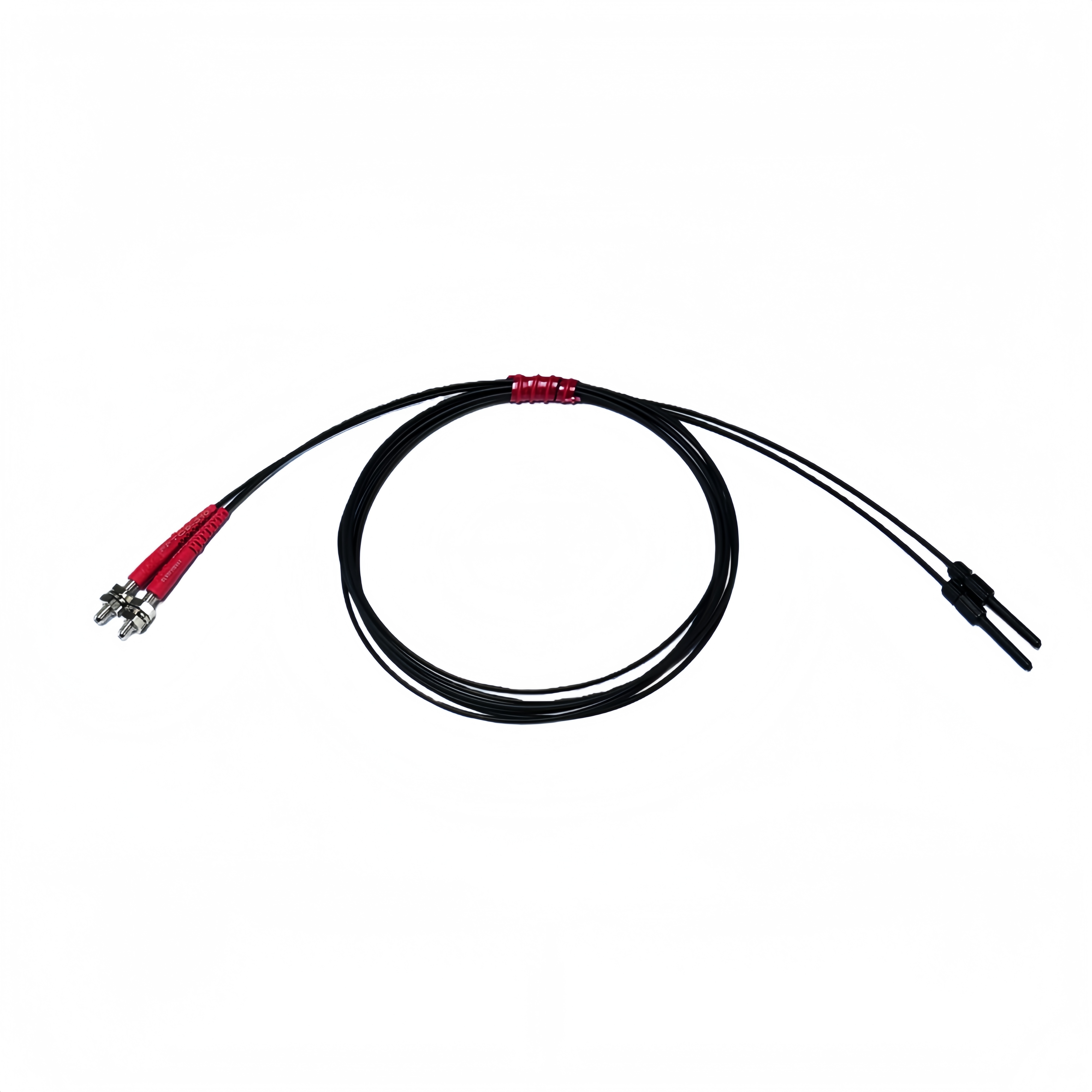

• Ultra-Tight Bending Radius (R5): Allows the 1-meter cable to navigate sharp corners, pivot points, and densely packed control cabinets without stressing the internal optical fibers or causing micro-bends that scatter light.
• Customizable Length: The cable is fully cuttable. Installation teams can trim it to the exact required dimension with a standard fiber cutter, leaving a clean, organized setup without coiled excess wire.
• Featherweight Construction: Weighing a mere 5.97g, the lightweight nature prevents drag or mechanical fatigue on moving robotic arms and dynamic gantry systems.

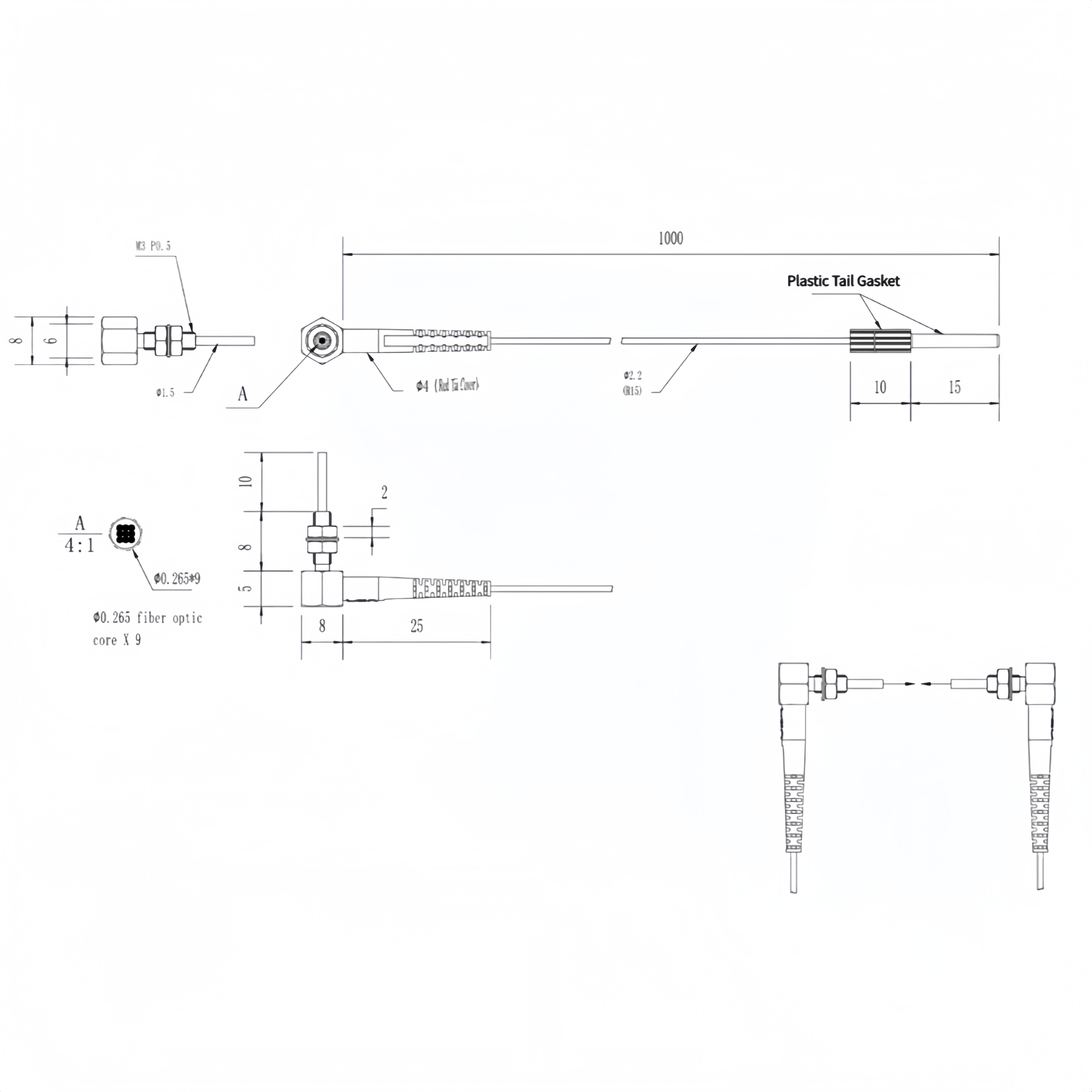

• Virtual Prototyping: Comprehensive CAD and 3D models are readily available for download. This enables mechanical engineers to simulate routing and mounting in a virtual environment, ensuring perfect spatial compatibility before physical deployment.

Electrical Characteristics and System Compatibility

Reliable data acquisition starts with stable electrical characteristics. While the fiber optic cable itself acts as the passive light guide, its internal geometry directly influences the electrical efficiency of the connected amplifier. By maximizing light throughput via the precise front exit orientation and the multi-core (Φ0.25*9) structure, it allows the paired amplifier to operate at lower power settings while still achieving the full 600mm detection range. This translates to lower power consumption and reduced heat generation within the control panel. We provide comprehensive testing documentation, including standard reference object specifications, to help engineers calibrate their systems accurately. The low leakage and consistent signal-to-noise ratio ensure that the sensor integrates flawlessly with programmable logic controllers (PLCs) and high-speed counting modules. This precise signal fidelity prevents false triggers caused by ambient light interference, maintaining continuous operational flow even in brightly lit factory environments.

Procurement Support and Engineering Services

Transitioning to a new sensor component requires confidence in both the physical product and the ongoing technical support. To minimize integration risks and trial costs, we offer a comprehensive suite of engineering services. Procurement teams and system integrators can request complimentary demo test units, allowing for hands-on evaluation of the M4 threading, the R5 bending flexibility, and the 600mm range within their actual production environment. Additionally, we provide detailed cross-reference and replacement selection services. If you are upgrading from legacy systems or seeking alternatives to current supply chain bottlenecks, our technical team will map the FFTC9-410 against your existing specifications to guarantee a precise drop-in replacement. We also supply detailed documentation on standard reference objects and testing protocols, ensuring your quality assurance teams have the data they need. Backed by authoritative industry certifications, this fiber optic cable represents a secure, reliable, and compliant component for scaling global manufacturing operations.
