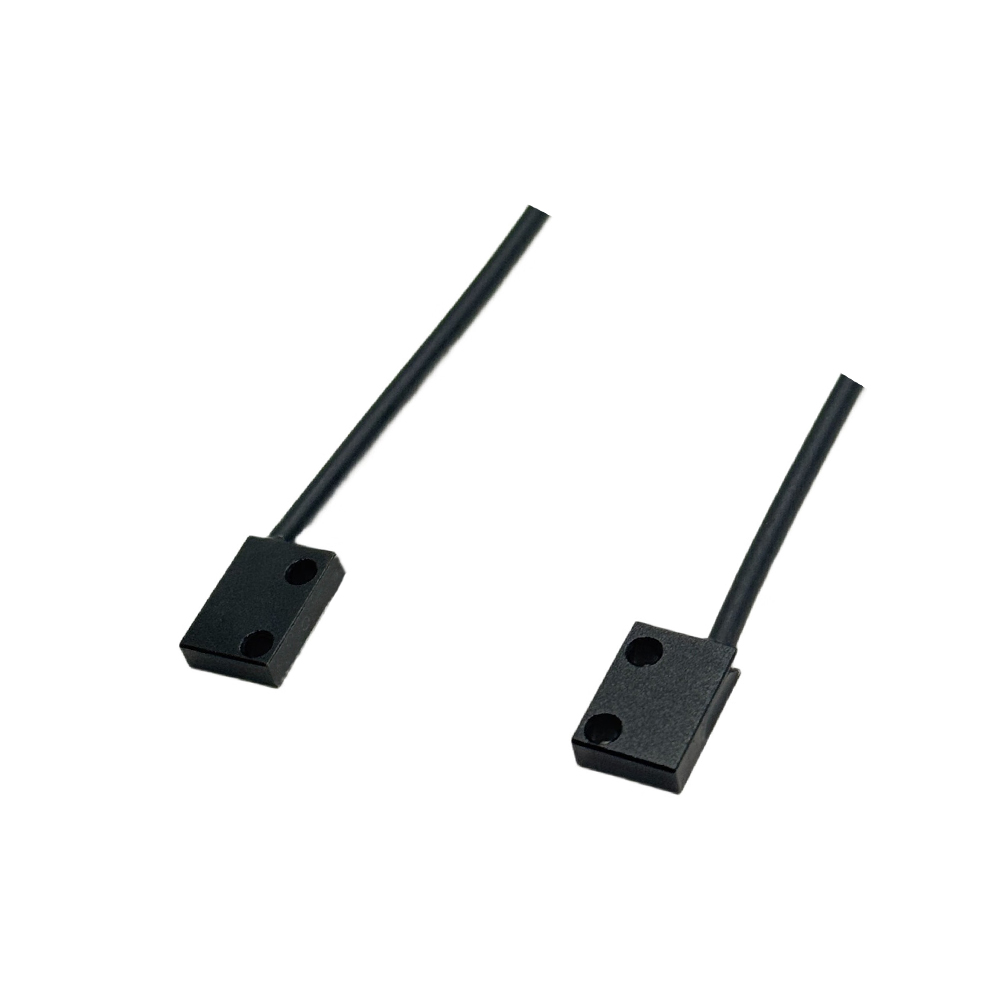

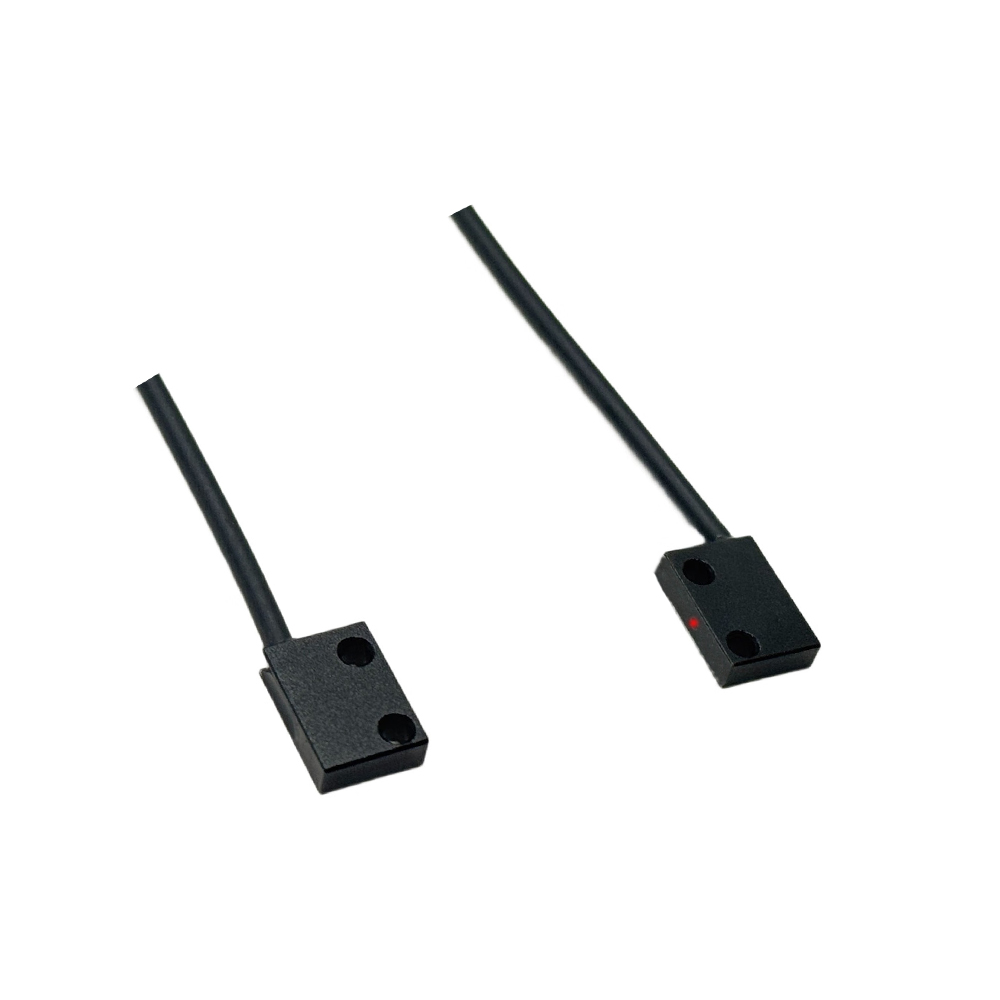

FFT-Z8E 2M Mounting bracket through-beam fiber optic cable

Comprehensive Product Overview & Engineering Details

The FFT-Z8E 2M mounting bracket through-beam fiber optic cable is engineered to resolve complex spatial and environmental challenges in modern automation. By combining a highly durable aluminum housing with adaptable fiber routing, this sensing solution provides reliable object detection in areas where traditional photoelectric sensors simply cannot fit. The following details outline the core operational advantages and integration benefits for engineering teams seeking uncompromising precision.

Precision Detection Performance & Optical Stability

Engineered for critical industrial automation tasks, the FFT-Z8E delivers exceptional reliability when identifying micro-objects. Operating on a through-beam mechanism, this unit guarantees a highly focused optical path that minimizes false triggers caused by ambient light interference or environmental dust accumulation. The standard sensing distance of 500mm provides ample operational range for most machinery, while the extended long-range capability reaches up to 600mm for larger automated cells. By utilizing a side-exit light configuration, the sensor head can be positioned entirely flat against mounting surfaces, maintaining a strictly controlled optical axis. This precision ensures that even the most subtle variations in a target object's position are registered instantly, making it an indispensable component for high-speed sorting and verification systems where absolute accuracy is paramount.

Material Composition & Environmental Durability

The physical construction of this fiber optic assembly is tailored specifically for harsh operational environments. The fiber head is machined from premium black aluminum, offering a distinctively cool, rigid tactile feel that immediately signifies its structural integrity. This matte black finish not only prevents unwanted optical reflections but also provides superior resistance to mechanical impacts and vibrations commonly found in heavy machinery. The fiber cable itself features a robust Φ2.2mm outer diameter protecting a precise Φ1mm core. When handling the cable, technicians will notice its smooth, friction-resistant outer jacket, which is specifically formulated to withstand continuous flexing. Rated for a tight R25 bending radius, the cable navigates complex machine routing without stressing the internal optical fibers. Furthermore, the entire assembly maintains peak operational stability across a demanding temperature range of -20°C to +70°C, ensuring consistent performance in both freezing storage facilities and heat-intensive processing plants.

Spatial Compatibility & Installation Flexibility

Space constraints are a constant challenge in modern equipment design, and the FFT-Z8E addresses this directly with its ultra-compact 12 × 8.5 × 3 mm external dimensions. The dedicated mounting bracket integrates flawlessly into tight enclosures, allowing engineers to secure the sensor head flush against machinery walls. Key installation benefits include:

• Side-Exit Optics: Eliminates the need for deep clearance behind the sensor, saving valuable millimeters in compact assemblies and robotic end-effectors.

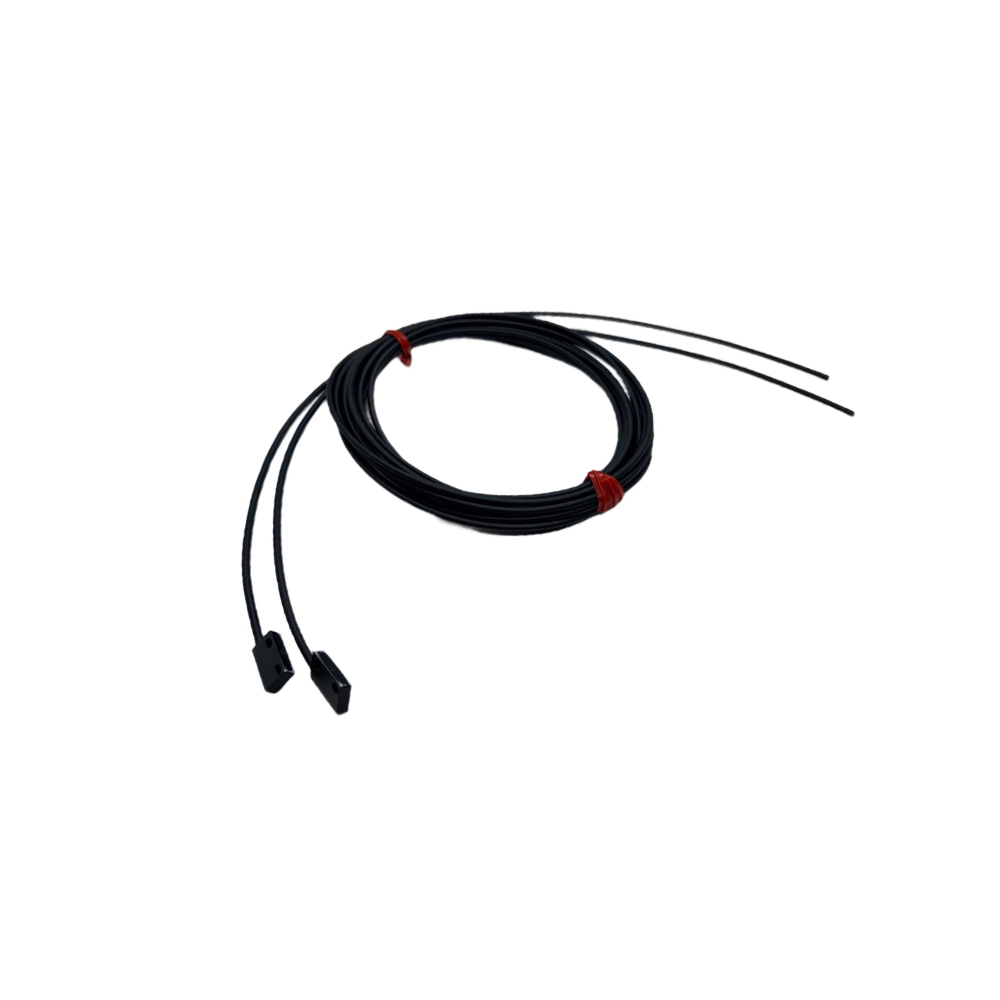

• Customizable Cable Length: The generous 2-meter cable is fully cuttable. Installers can trim the fiber to the exact length required using standard fiber cutters.
• Clutter-Free Routing: By allowing exact-length trimming, the design ensures a clean, organized control panel free of excess looped wire, simplifying subsequent maintenance routines.

Electrical Characteristics & System Integration

Seamless integration into existing control architectures is a critical requirement for any sensing component. The FFT-Z8E is designed to interface effortlessly with standard industrial programmable logic controllers (PLCs) and distributed control systems. It exhibits highly stable electrical characteristics, characterized by exceptionally low leakage current and minimal power consumption during continuous operation. The reduced residual voltage ensures crisp, unambiguous signal transitions, preventing logic errors in high-speed counting or positioning applications. By maintaining these strict electrical parameters, the sensor protects sensitive downstream input modules from voltage spikes and signal degradation. This predictable electrical behavior translates to a more reliable automation network, reducing unexpected downtime and streamlining the commissioning process for system integrators.

Industrial Applications & Deployment Scenarios

The unique combination of a miniature footprint, side-exit optics, and rugged aluminum construction makes this fiber optic cable highly sought after across several demanding sectors. It delivers the unyielding reliability required for continuous, round-the-clock production cycles in various scenarios:

• Smart Manufacturing Assembly: Deployed within robotic assembly cells to verify micro-component placement before automated fastening occurs, ensuring zero-defect production.
• High-Speed Packaging Machinery: Utilized to detect transparent films, monitor web tension, or verify the precise alignment of complex folded cartons in continuous motion environments.
• Plastics Processing Equipment: Relies on the sensor's thermal stability to monitor the safe ejection of molded parts near warm tooling areas without optical degradation.
• Pharmaceutical Processing: Navigates the confined, strictly regulated spaces of filling and capping machines, where the cuttable cable allows for ultra-clean, sanitary routing.

Quality Assurance & Engineering Resources

Procurement and engineering teams require more than just physical hardware; they need comprehensive support to validate their designs. The FFT-Z8E is backed by extensive technical resources to accelerate the prototyping phase and guarantee long-term operational success:

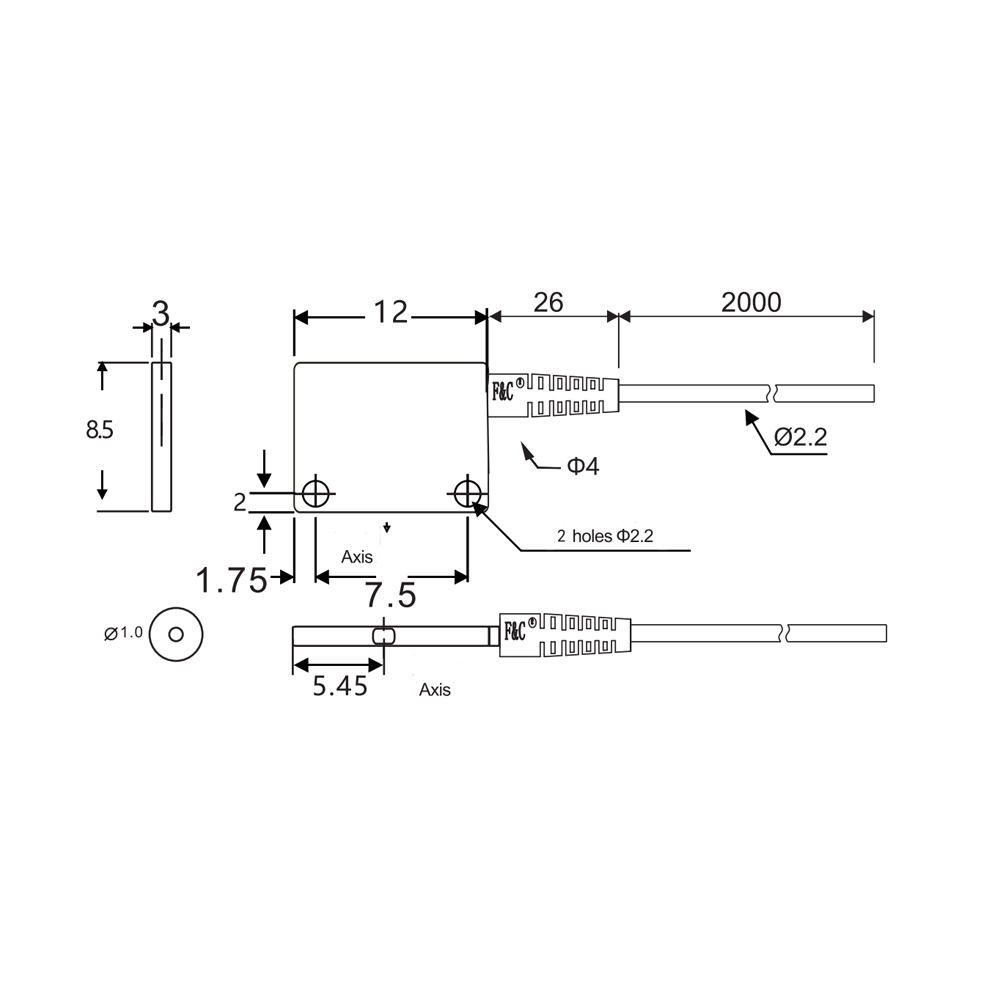

1. Design Integration Files: Full-scale CAD drawings, highly accurate 3D step models, and exhaustive data sheets are available, enabling mechanical engineers to virtually simulate the sensor's placement before physical assembly begins.
2. Physical Validation Support: Demo testing units and sample applications are readily available to confirm real-world performance against specific target materials and environmental conditions.
3. Industrial Certification: Every unit undergoes stringent industrial-grade quality control testing to verify its optical transmission efficiency and structural tolerances. This rigorous certification process ensures absolute batch-to-batch consistency.

By providing these comprehensive resources, we give large-scale equipment manufacturers the absolute confidence that the thousandth sensor installed will perform identically to the first, safeguarding the integrity of the entire production line.
