FFRW-420TZ Coaxial right-angle fiber optic cable

Product Overview & Engineering Advantages

Installation Flexibility & Spatial Adaptability

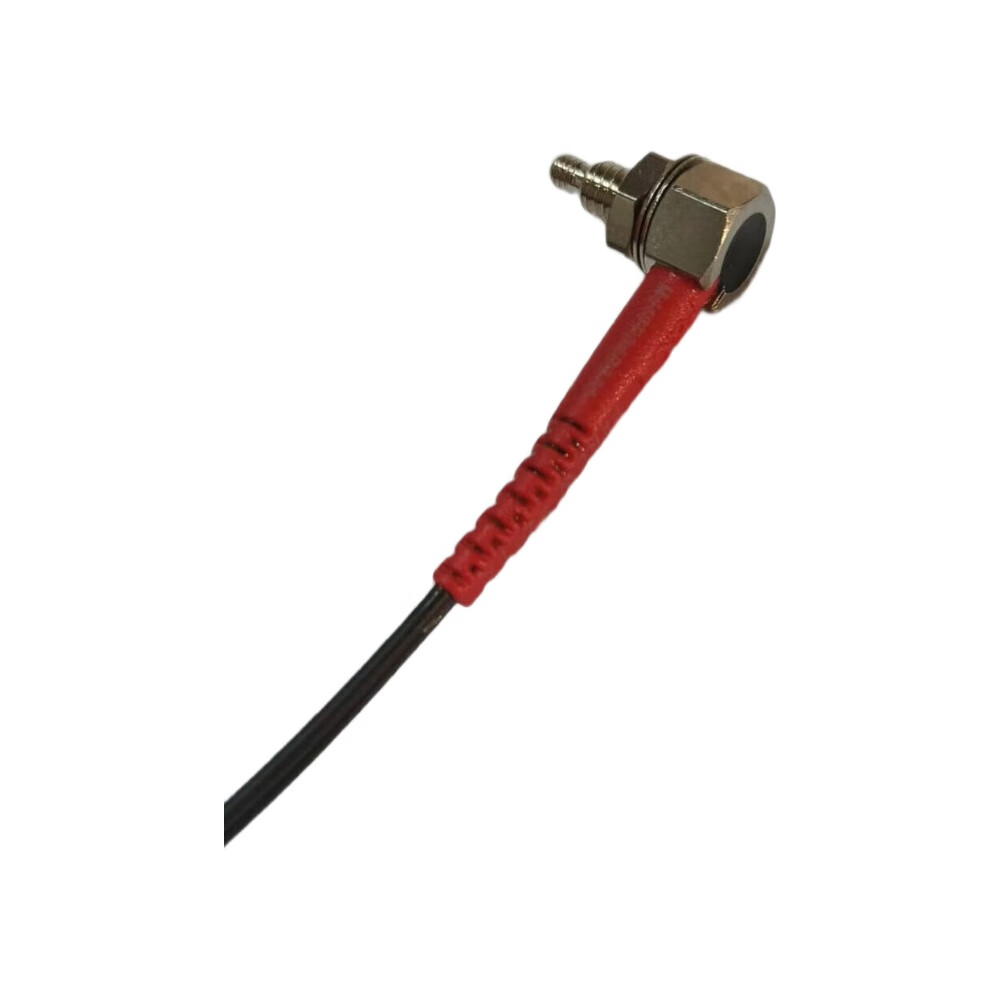

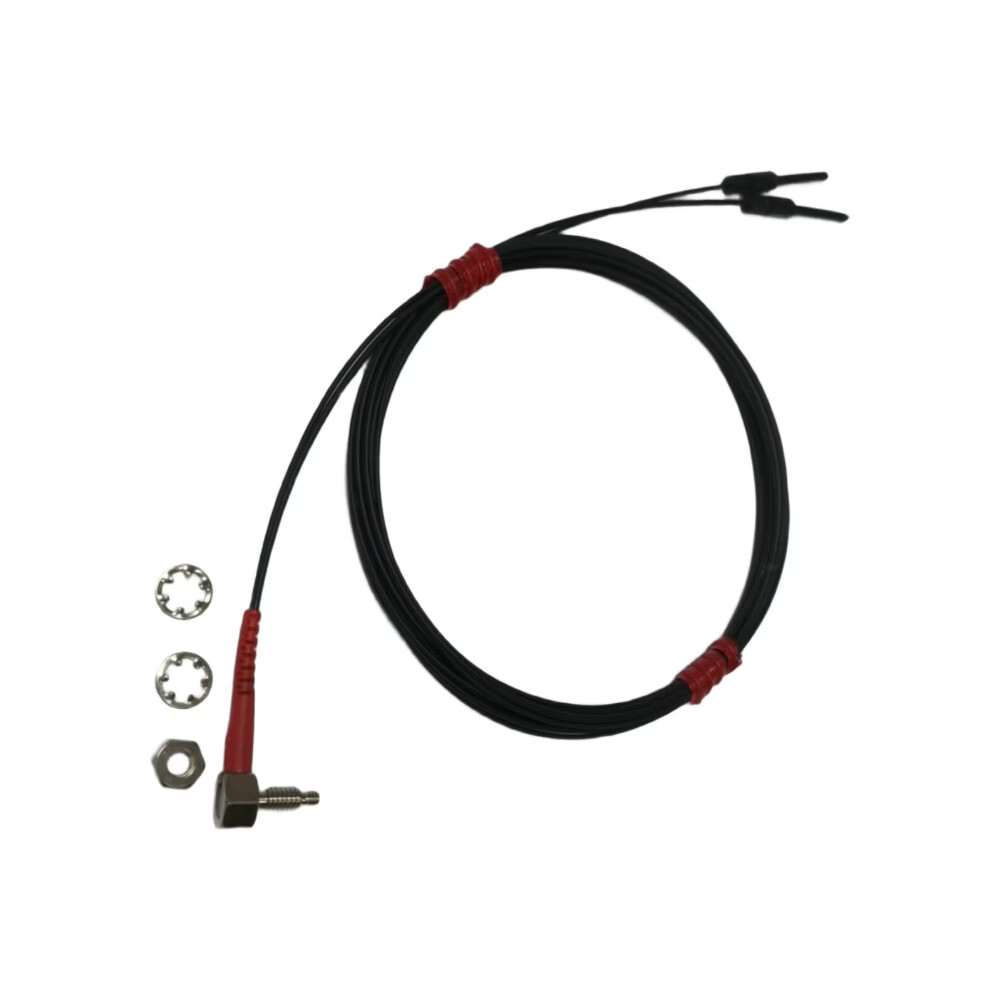

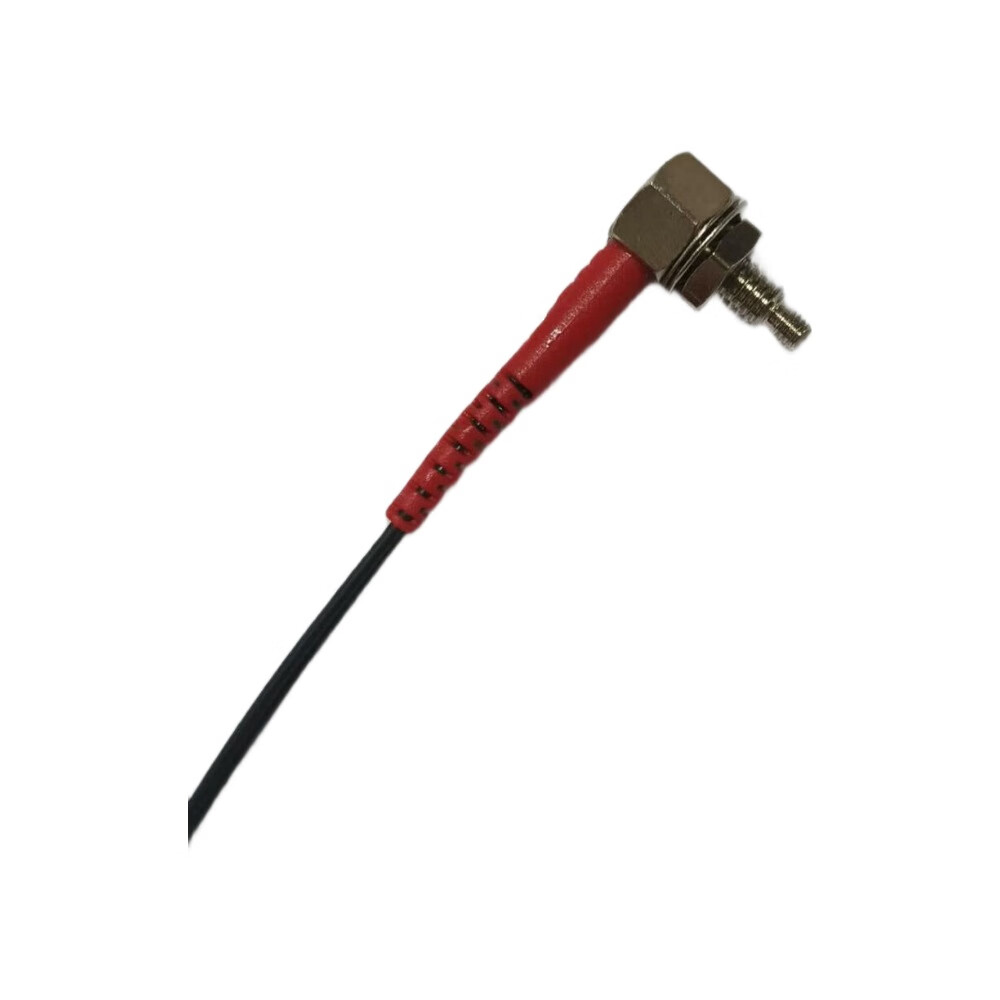

When integrating sensors into highly confined industrial machinery, spatial constraints often dictate component selection. The FFRW-420TZ addresses this structural challenge through its exceptional installation flexibility. Engineered with an ultra-tight R2 bending radius, the fiber optic cable can be routed through complex, narrow machine chassis without risking signal attenuation or physical damage to the core. This is further enhanced by the two-meter cuttable cable length, allowing engineers to tailor the exact dimensions required for their specific routing paths, minimizing excess clutter. The specialized right-angle light exit configuration ensures that the sensor head can be mounted flush against mounting brackets or tight corners, perfectly adapting to intricate industrial setups where traditional straight-exit sensors would protrude and interfere with moving mechanical parts. The tactile feel of the smooth, flexible outer jacket ensures easy handling during complex wiring tasks.

High-Precision Detection Capabilities

Precision is the cornerstone of reliable industrial automation, and this coaxial fiber optic cable delivers exceptional optical performance for critical detection tasks. Utilizing advanced coaxial diffuse reflective technology, the FFRW-420TZ ensures that the emitting and receiving fibers are perfectly aligned along the same optical axis. This structural design eliminates the blind spots often associated with standard parallel fiber arrangements, enabling the highly accurate identification of micro-components, fine threads, or miniature targets. The sensor provides a highly stable sensing distance of 130mm, which can be extended up to 140mm in long-range mode. This extended reach allows the sensing head to be mounted at a safe distance from moving targets, protecting the lens from accidental collisions while maintaining pinpoint accuracy. The concentrated light beam guarantees reliable operation even when detecting targets with complex geometries or varying surface reflectivities.

Material Durability & Environmental Resilience

Industrial environments are inherently unforgiving, demanding components that can withstand constant mechanical stress and temperature fluctuations. The sensing head of the FFRW-420TZ is meticulously machined from premium materials to ensure longevity:

• Stainless Steel Construction: Provides a robust, corrosion-resistant housing that protects the delicate optical core. The precise M4 threading feels substantial and secure during installation, ensuring a vibration-proof mount.
• Wide Temperature Tolerance: Rated for continuous operation across a broad thermal range from -20°C to +70°C, maintaining optical integrity in freezing storage facilities or near heat-generating manufacturing processes.
• Contaminant Protection: The durable Φ2.2 outer jacket protects the Φ1 core from ambient factory dust and moisture, eliminating the need for an additional conduit tube and streamlining the overall installation footprint.

Core Application Scenarios

The unique combination of spatial adaptability and optical precision makes this coaxial fiber optic cable an indispensable component across various advanced automation sectors:

• Smart Manufacturing: Excels at verifying the presence of microscopic circuit board components or guiding robotic arms with sub-millimeter accuracy in electronics assembly lines.
• Packaging Machinery: Heavily relied upon to detect transparent films, verify label placement, or monitor high-speed sorting lanes where mounting space is severely restricted.
• Plastics Machinery: Reliably detects molded parts being ejected from tight mold cavities, remaining completely unaffected by the ambient heat or mechanical vibrations inherent to the injection process.

Technical Resources & Engineering Support

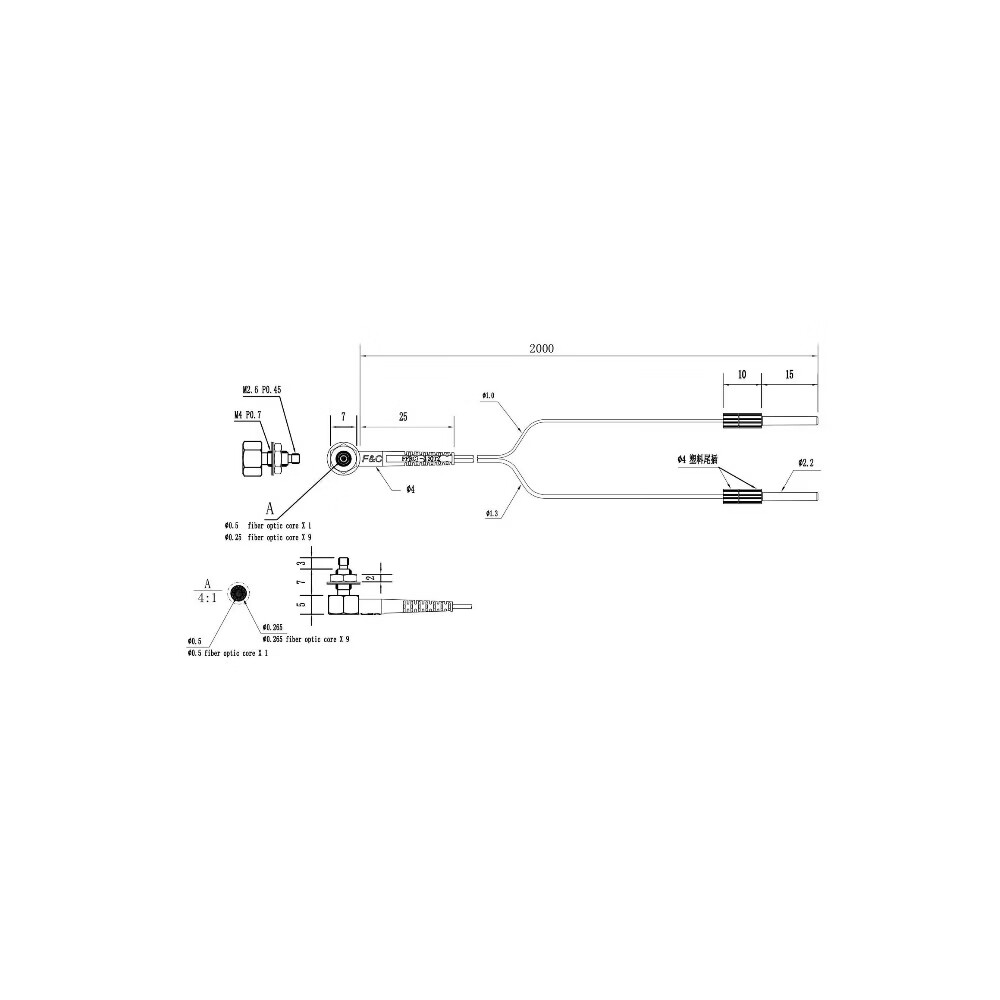

Selecting the right sensing component requires more than just reading a specification sheet; it demands comprehensive engineering resources to ensure seamless integration. To significantly reduce the evaluation and design-in phase, we provide an extensive suite of technical materials for the FFRW-420TZ. Mechanical engineers can access precise 3D CAD models to simulate mounting clearances and cable routing within their digital twin environments before physical prototyping begins. Detailed technical datasheets offer in-depth optical response curves, electrical characteristics, and installation guidelines. Furthermore, we offer sample demonstration and testing services, allowing your engineering team to validate the sensor's performance against your specific target materials and environmental conditions. This proactive approach to technical support drastically lowers integration risks, accelerates project timelines, and ensures that the chosen solution perfectly aligns with your system requirements.

Customization & Lifecycle Services

We recognize that standard off-the-shelf components may not always fulfill the highly specialized demands of proprietary industrial equipment. Therefore, we offer professional customization services for the FFRW-420TZ platform, ranging from modified cable lengths and specific jacket materials to tailored optical focal points designed for unique target characteristics. In addition to custom development, our engineering team provides rapid cross-reference services to identify seamless drop-in replacements for obsolete or hard-to-source competitor models. This ensures that your production lines remain operational without the need for costly mechanical redesigns or software reprogramming. By partnering with us, procurement teams secure a stable, long-term supply chain fortified by flexible manufacturing capabilities and dedicated lifecycle support, ultimately safeguarding your operational continuity and return on investment.
