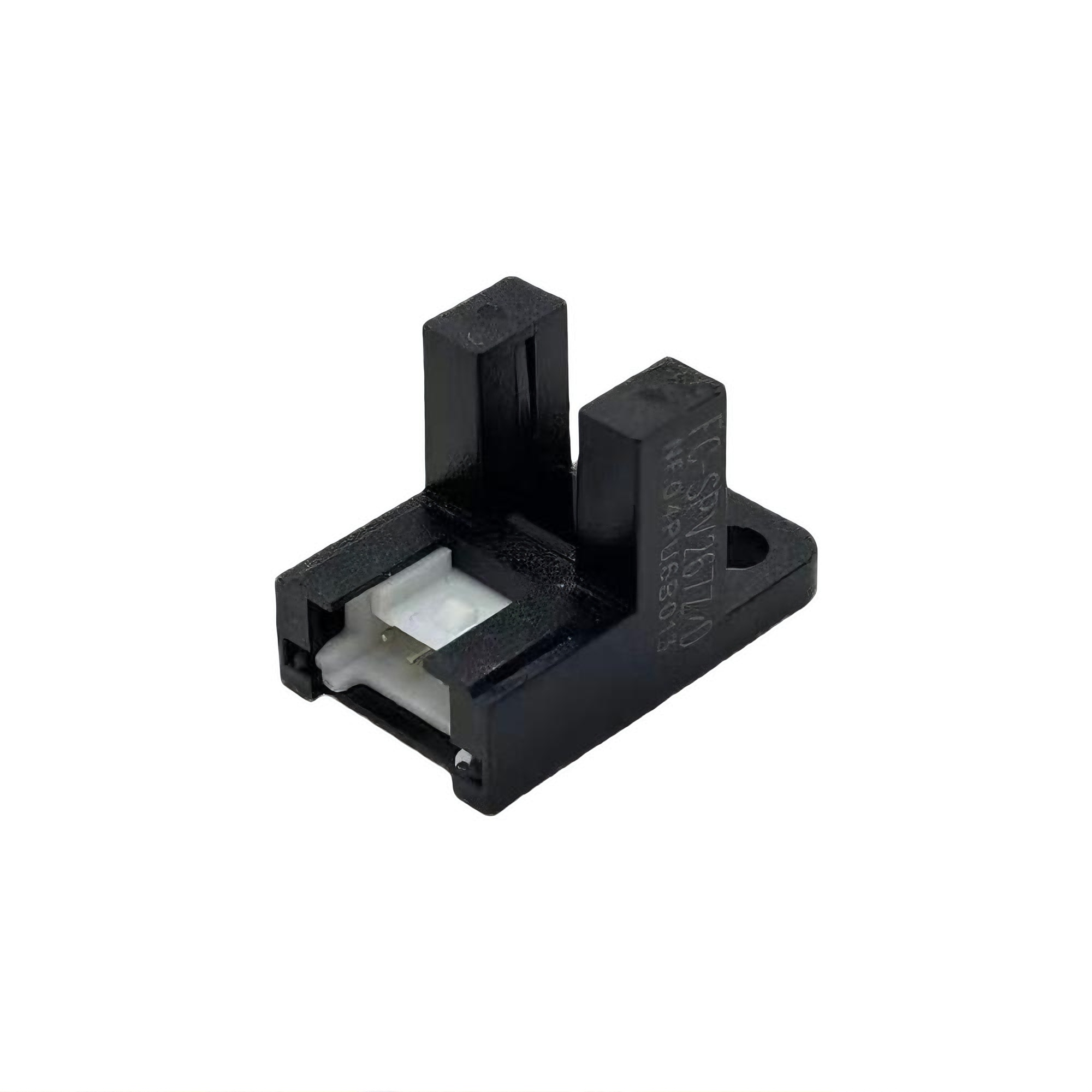

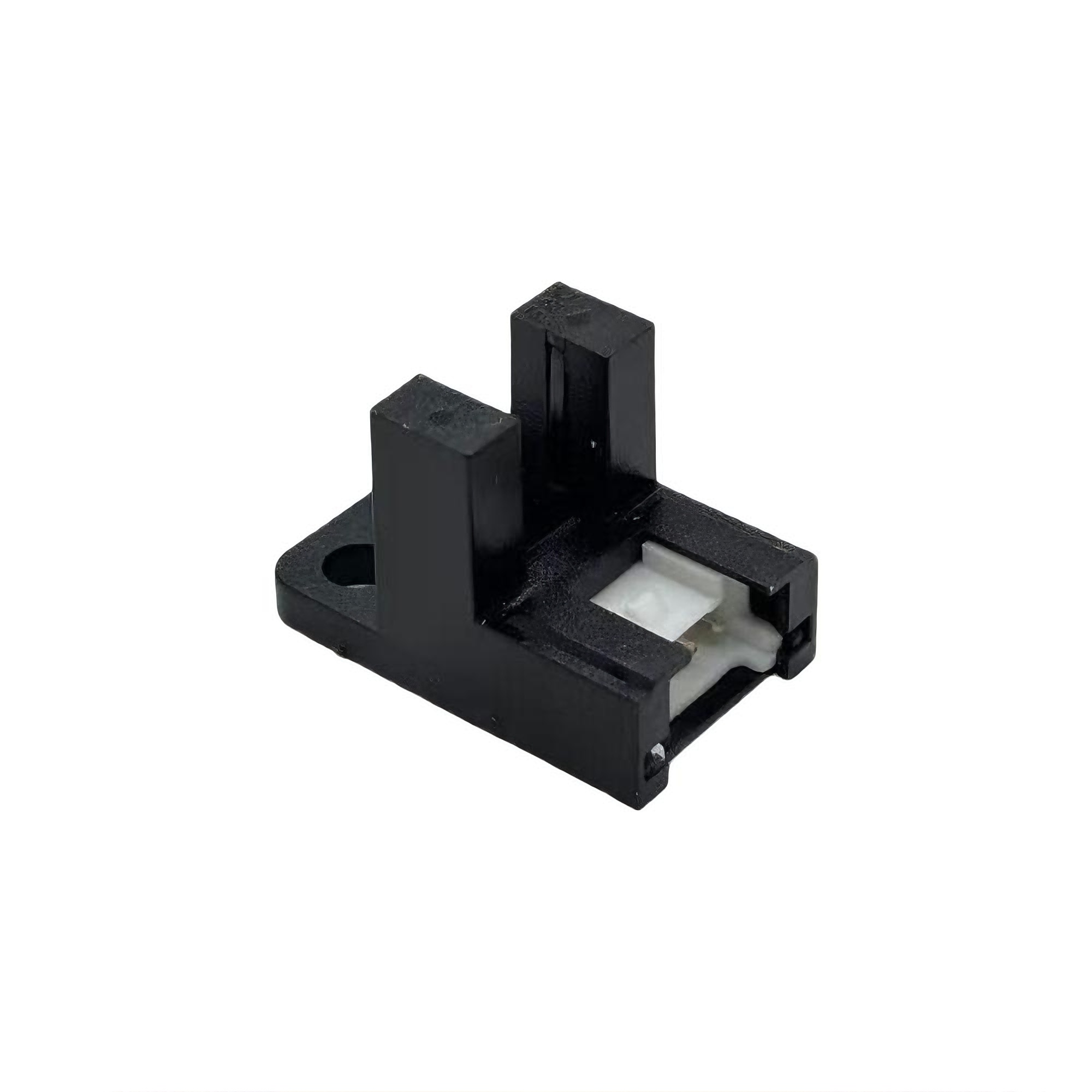

FC-SPV267Z/D Through-beam Photoelectric Sensor

The FC-SPV267Z/D Through-beam Photoelectric Sensor is engineered to deliver exceptional accuracy and reliability, specifically structured for integration into demanding industrial environments where precision is non-negotiable.

Comprehensive Operational Capabilities

Precision Detection for High-Frequency Automation

When a conveyor belt moves at several meters per second, a standard detection device might miss a critical gap between fast-moving products. The FC-SPV267Z/D eliminates this latency with a near-instantaneous 0.2ms reaction speed, capturing micro-gaps and sending immediate signals to the programmable logic controller. The 6mm sensing distance is deliberately engineered for close-range, highly focused target acquisition, eliminating the risk of accidental triggers from reflective metal surfaces in the background. This highly concentrated optical beam ensures that machine operators experience fewer false positives, directly enhancing the overall yield, consistency, and efficiency of continuous-feed manufacturing cycles.

Compact Architecture and Adaptable Wiring

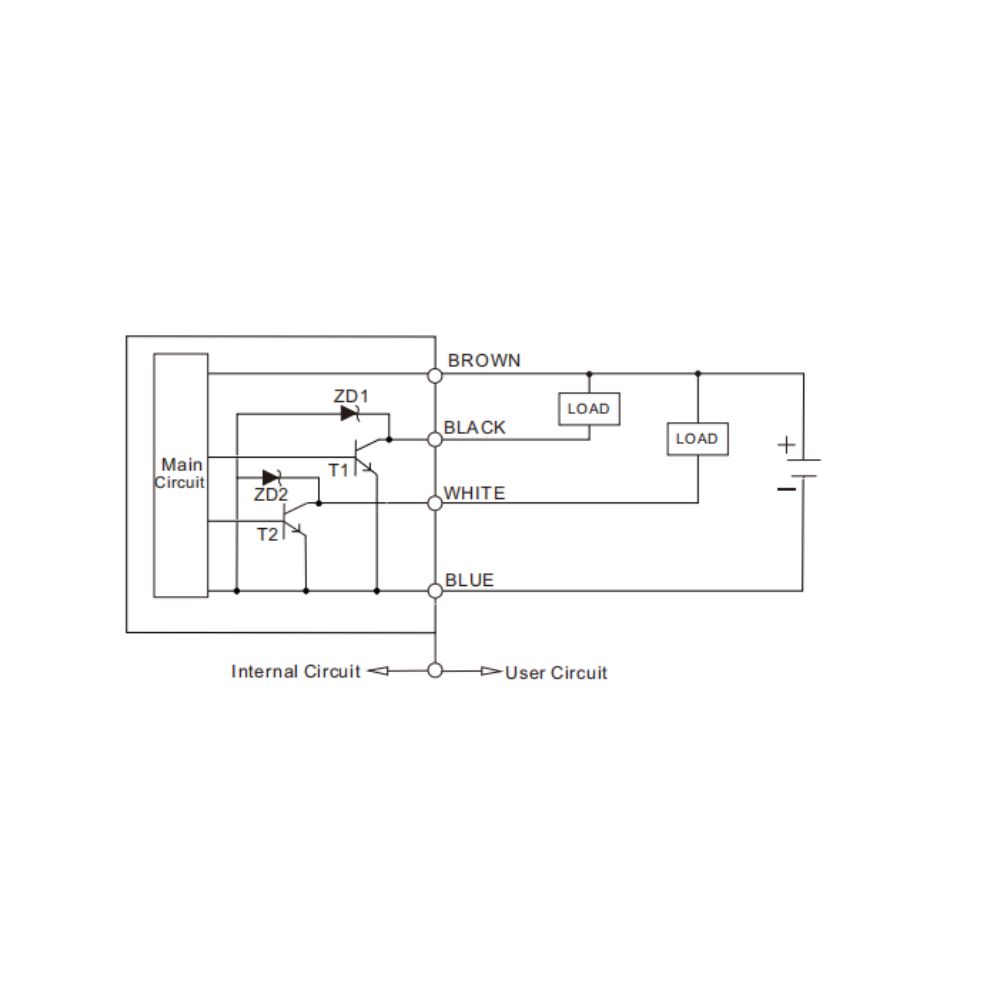

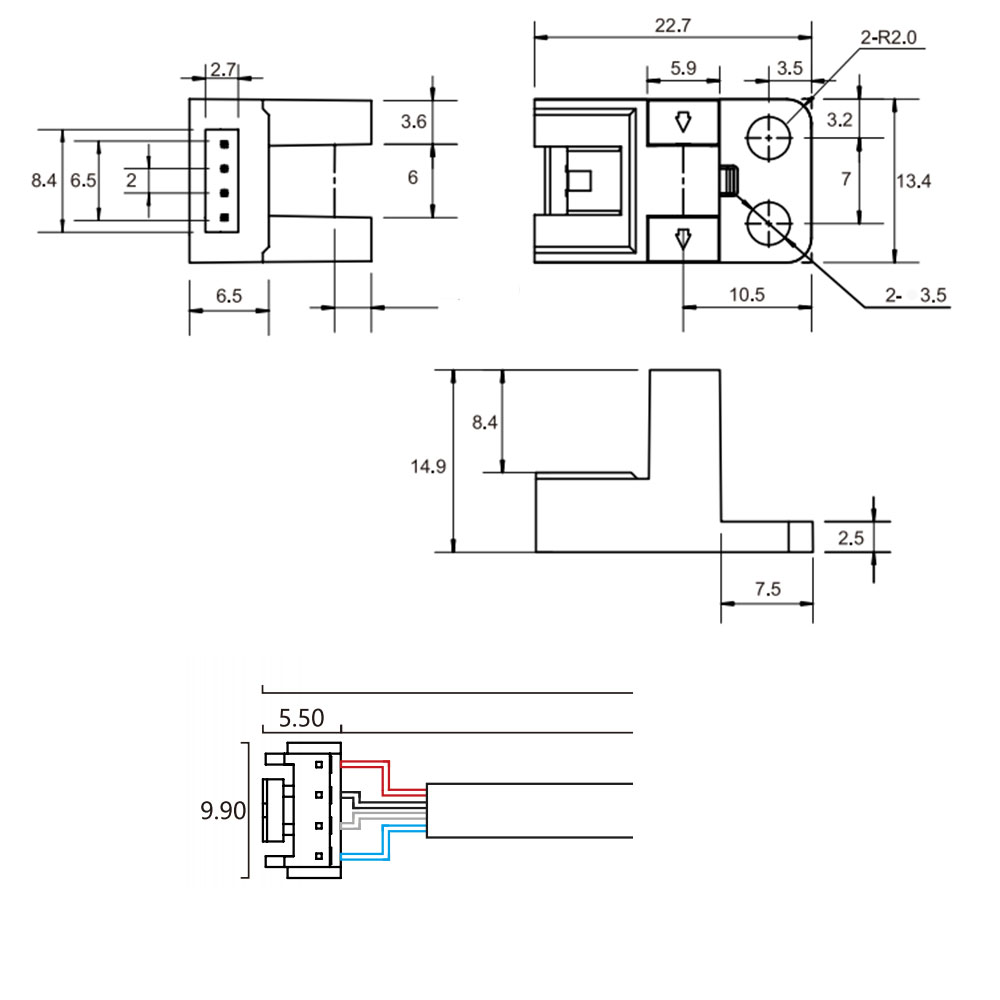

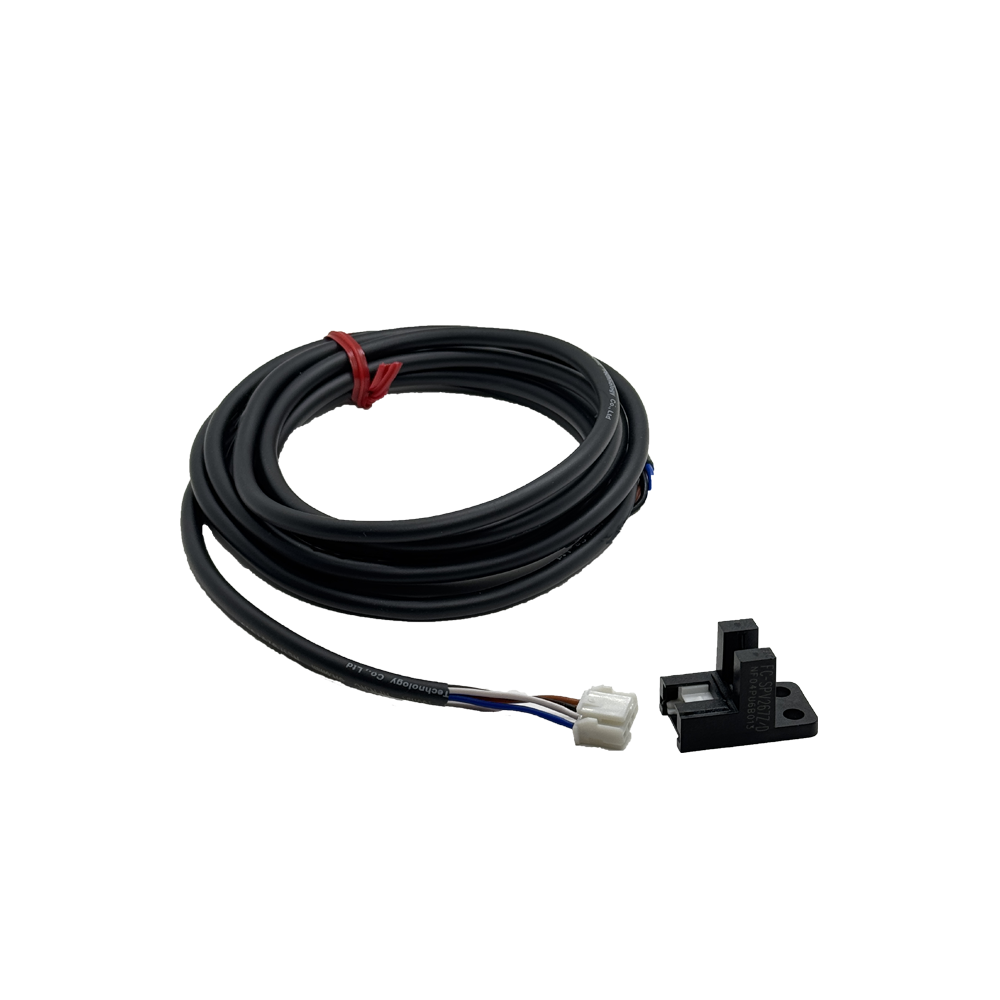

Physical space remains a premium resource in modern machine design. The ultra-compact dimensions of 13.4 by 14.9 by 22.7 millimeters make this device exceptionally unobtrusive. It slides easily into narrow mounting brackets or tight machine enclosures where larger units would interfere with moving mechanical parts. The exterior polycarbonate (PC) enclosure provides a smooth, rigid tactile finish that effectively resists daily mechanical impacts while protecting the sensitive internal optics. During installation, the 4-pin quick-disconnect interface yields a distinct, firm physical click, assuring the technician that the connection is securely locked. This cable-free connector design prevents wire tangling and simplifies future replacements. Additionally, the adjustable NPN output featuring both Normally Open (NO) and Normally Closed (NC) modes allows electrical engineers to standardize on a single sensor model, dramatically reducing the number of distinct spare parts a facility must keep in inventory.

Resilience in Demanding Industrial Environments

Industrial factory floors are unpredictable, presenting a continuous array of electrical anomalies and environmental stressors. This sensor is fortified with dual-layer electrical safeguards, specifically integrating reverse polarity and short-circuit protection circuits. If a maintenance technician accidentally crosses the wiring during a rapid shift changeover, the internal circuit board instinctively blocks the surge, shielding the hardware from catastrophic electrical failure. Externally, the IP54-rated shell serves as a dependable barrier against light dust accumulation and the occasional splashing water commonly found in machining centers or food packaging zones. Rigorous environmental stress testing confirms that the unit maintains stable operation across a broad ambient temperature span, functioning perfectly from a chilling -10 degrees up to a warm 50 degrees Celsius, alongside relative humidity levels reaching 85%. This strict adherence to international safety and environmental standards guarantees predictable, long-lasting performance.

Targeted Industry Implementations

• Packaging Machinery: Accurately registers the presence of transparent thin films, cardboards, or rapid box transitions. This immediate detection prevents material jams, minimizes machine downtime, and keeps the packaging process flowing continuously.
• Electronic Semiconductor Manufacturing: Detects delicate silicon wafers and miniature electronic components without any physical contact. The precise beam maintains strict cleanliness protocols and prevents mechanical damage to fragile parts.
• Logistics and Automated Sorting Lines: Triggers pneumatic diverters and motorized conveyors with split-second timing. It ensures packages of varying sizes are routed correctly, regardless of the high throughput speeds typical in modern distribution centers.
• Robotic Positioning Systems: Acts as a highly reliable limit or home position switch for articulated robotic arms. It provides the necessary optical feedback for precise mechanical movements within confined, highly automated work cells.

Dedicated Procurement and Engineering Support

Procuring reliable automation components requires more than merely acquiring hardware; it demands a dependable, long-term supply chain partnership. We maintain consistent, large-scale production capacities designed to meet demanding procurement schedules, ensuring your assembly lines never experience unexpected halts due to component shortages. Our dedicated technical engineering team remains available to assist procurement managers and facility engineers with initial sensor selection, complex integration troubleshooting, and ongoing technical inquiries. By partnering with a supplier that deeply understands the daily intricacies of industrial automation, enterprises can effectively consolidate their vendor lists. This comprehensive support structure significantly reduces long-term maintenance expenditures and allows facilities to confidently scale their operations, knowing that expert guidance and stable inventory are always readily accessible.
