| Type | Through-beam Photoelectric Sensor |
| Sensing Distance | 6 mm |

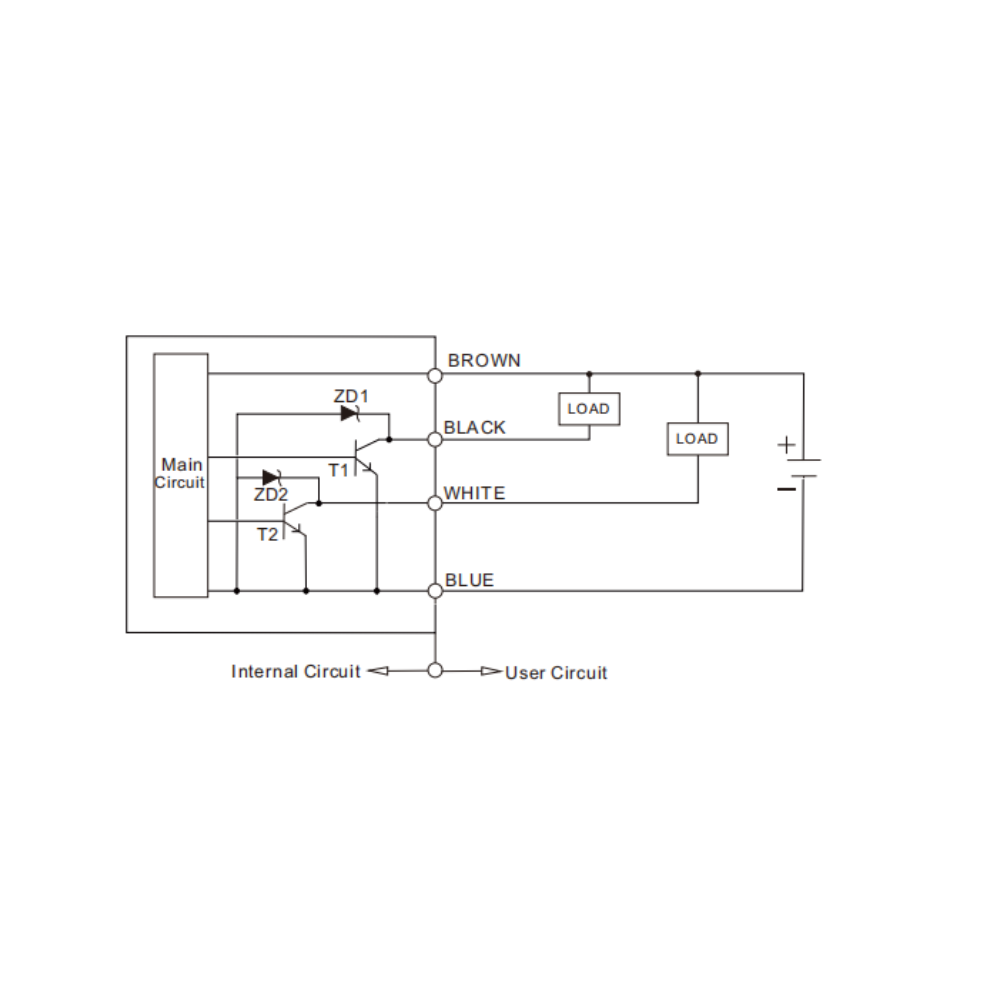

| Output Mode | NPN, NO/NC (adjustable) |
| Connection | 4-pin connector (no cable) |

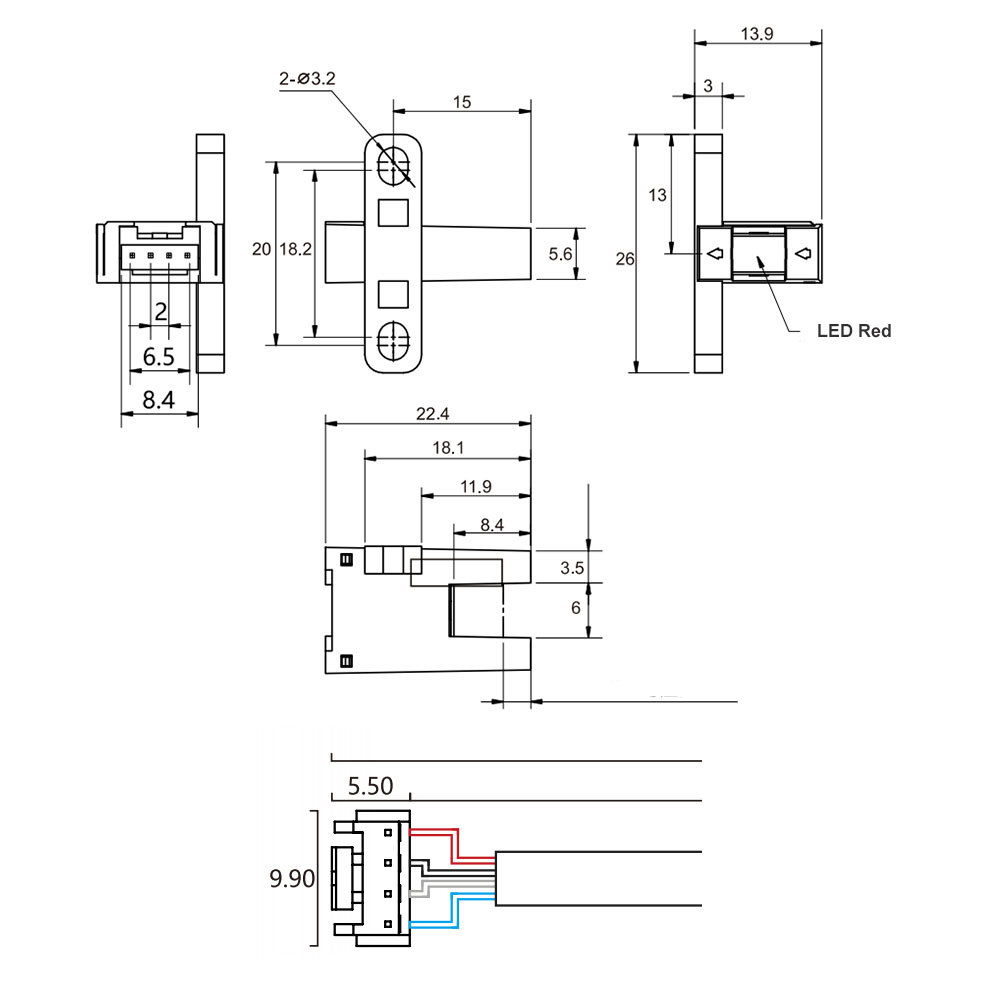

| Mechanical | Housing: PC, IP54, Size 13.9×22.4×26mm |
| Operating Voltage | 5~24 VDC ±10% |
| Response Time | 0.2 ms |
| Load Current | 100 mA |
| Protection | Reverse polarity & short-circuit protection |
| Ambient Conditions | -10~50℃, 35~85%RH, IP54 |
FC-SPV263Z/D
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Specification |
|---|---|
Type | Through-beam Photoelectric Sensor |
Sensing Distance | 6 mm |
Output Mode | NPN, NO/NC (adjustable) |
Connection | 4-pin connector (no cable) |
Mechanical | Housing: PC, IP54, Size 13.9×22.4×26mm |
Operating Voltage | 5~24 VDC ±10% |
Response Time | 0.2 ms |
Load Current | 100 mA |
Protection | Reverse polarity & short-circuit protection |
Ambient Conditions | -10~50℃, 35~85%RH, IP54 |
