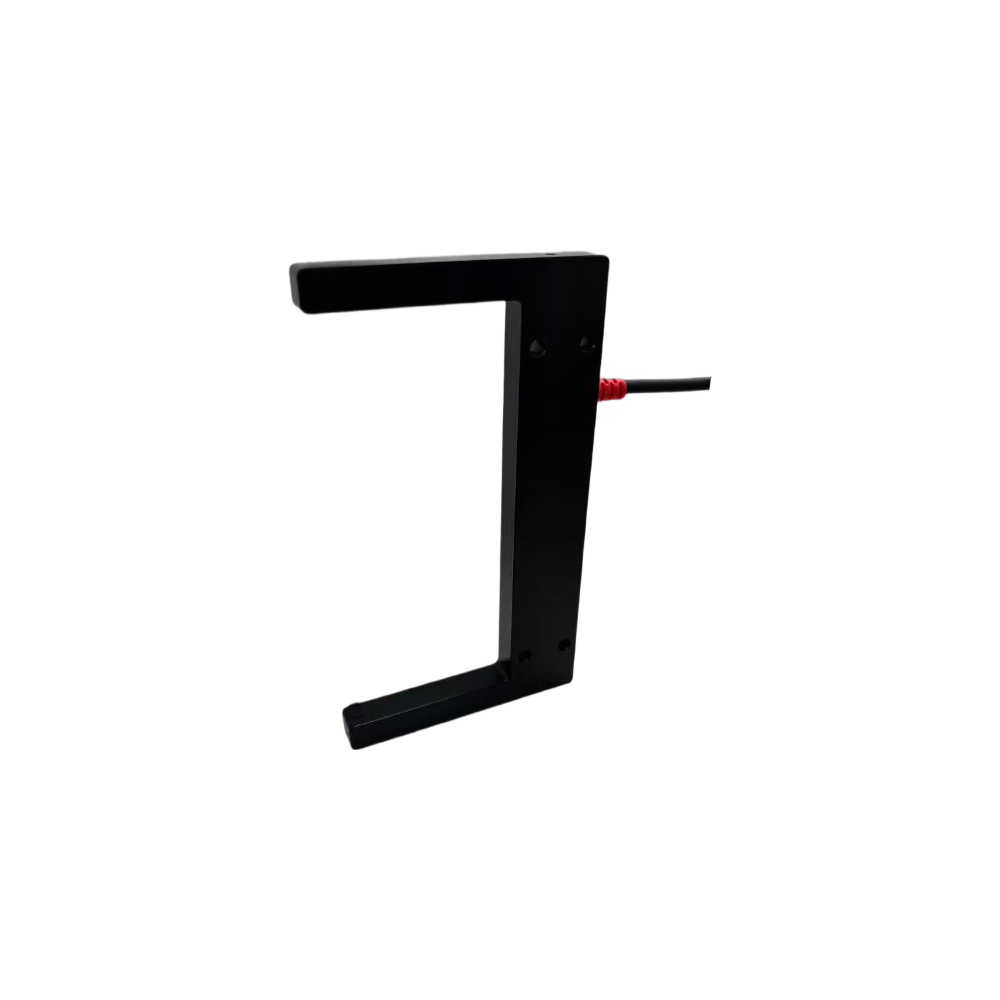

| Type | Slot-type Photoelectric Sensor |
| Sensing Distance | 120 mm |

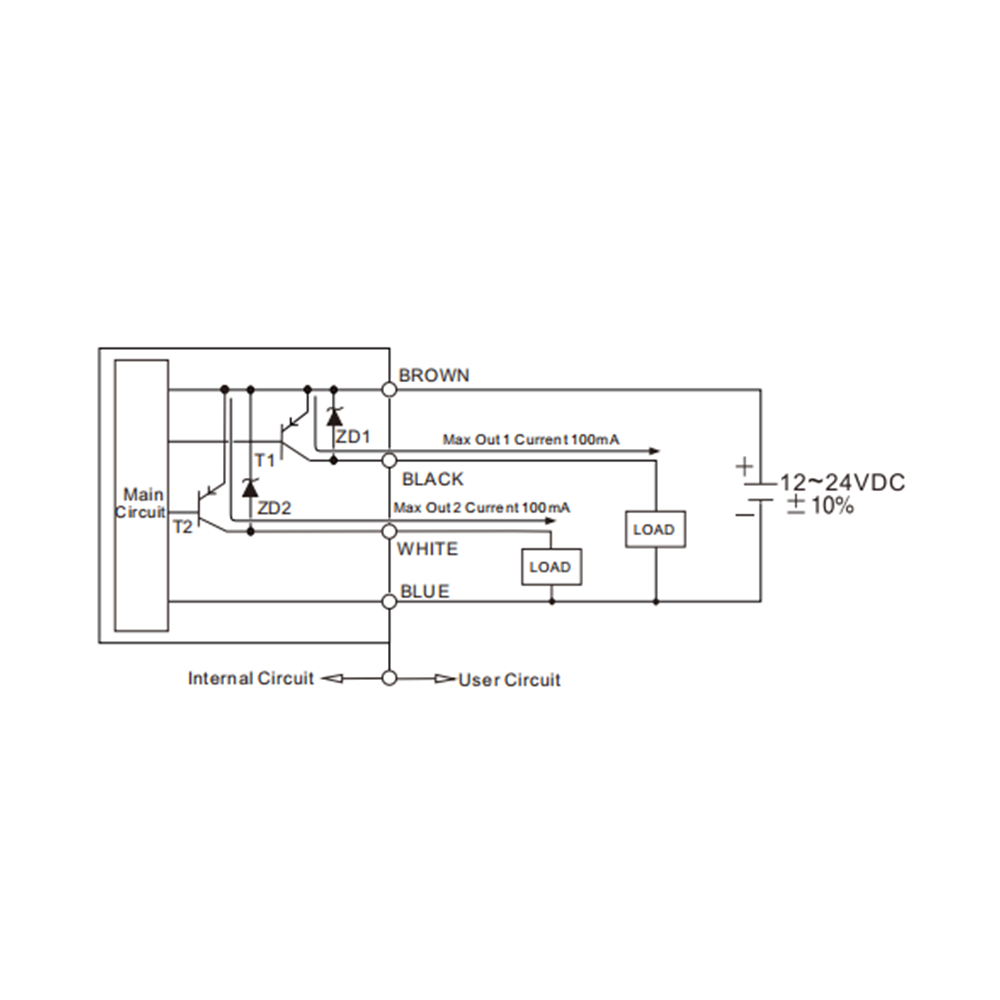

| Output Mode | PNP.NO.NC |
| Connection | M8 connector + 2m 4-core female cable |

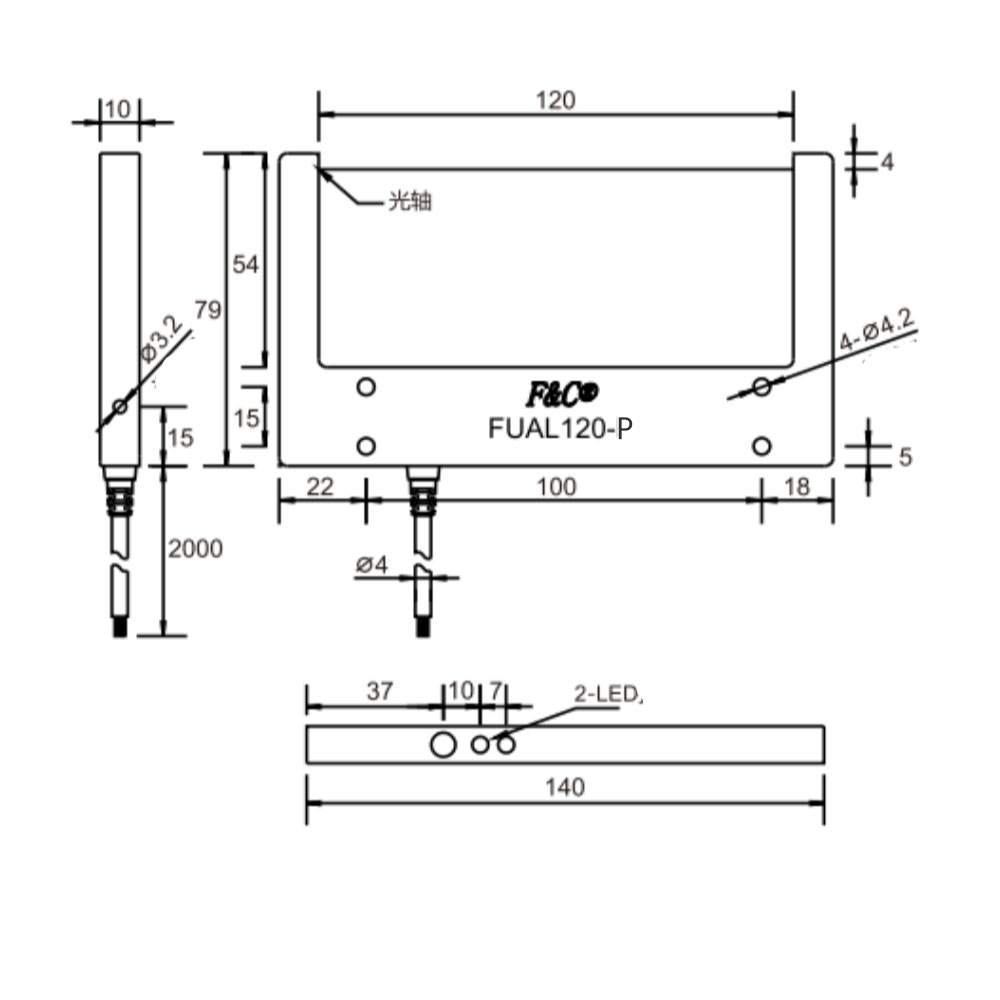

| Mechanical | Housing: AL, IP65, Size 79×140×10mm |
| Operating Voltage | 12~24 VDC ±10% |
| Response Time | 2 ms |
| Load Current | 100 mA |
| Protection | Reverse polarity & short-circuit protection |
| Ambient Conditions | -10~50℃, 35~85%RH, IP65 |
FUAL120-N KT
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Specification |
|---|---|
Type | Slot-type Photoelectric Sensor |
Sensing Distance | 120 mm |
Output Mode | PNP.NO.NC |
Connection | M8 connector + 2m 4-core female cable |
Mechanical | Housing: AL, IP65, Size 79×140×10mm |
Operating Voltage | 12~24 VDC ±10% |
Response Time | 2 ms |
Load Current | 100 mA |
Protection | Reverse polarity & short-circuit protection |
Ambient Conditions | -10~50℃, 35~85%RH, IP65 |
