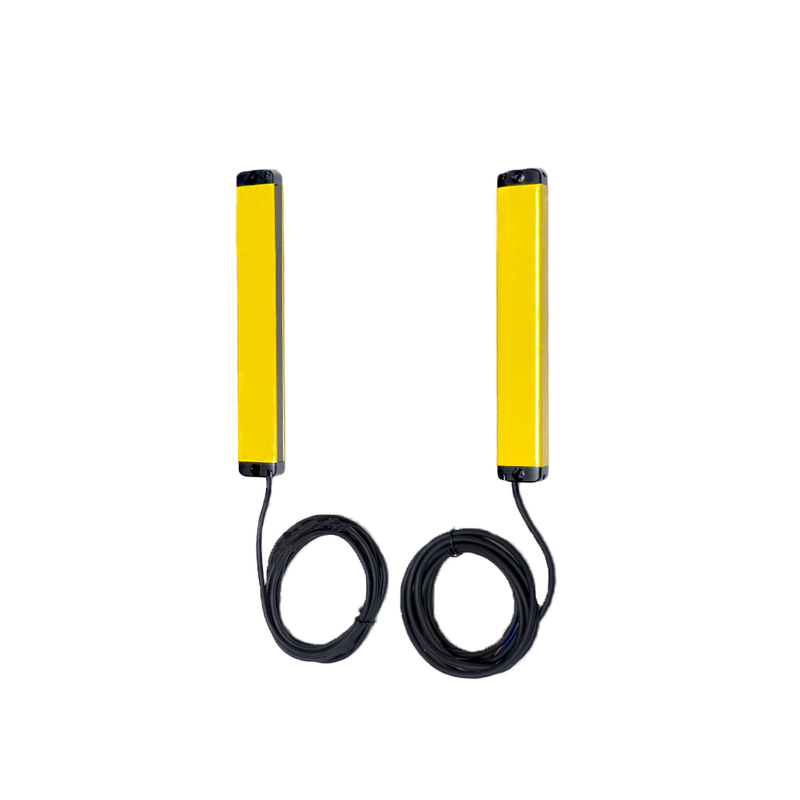

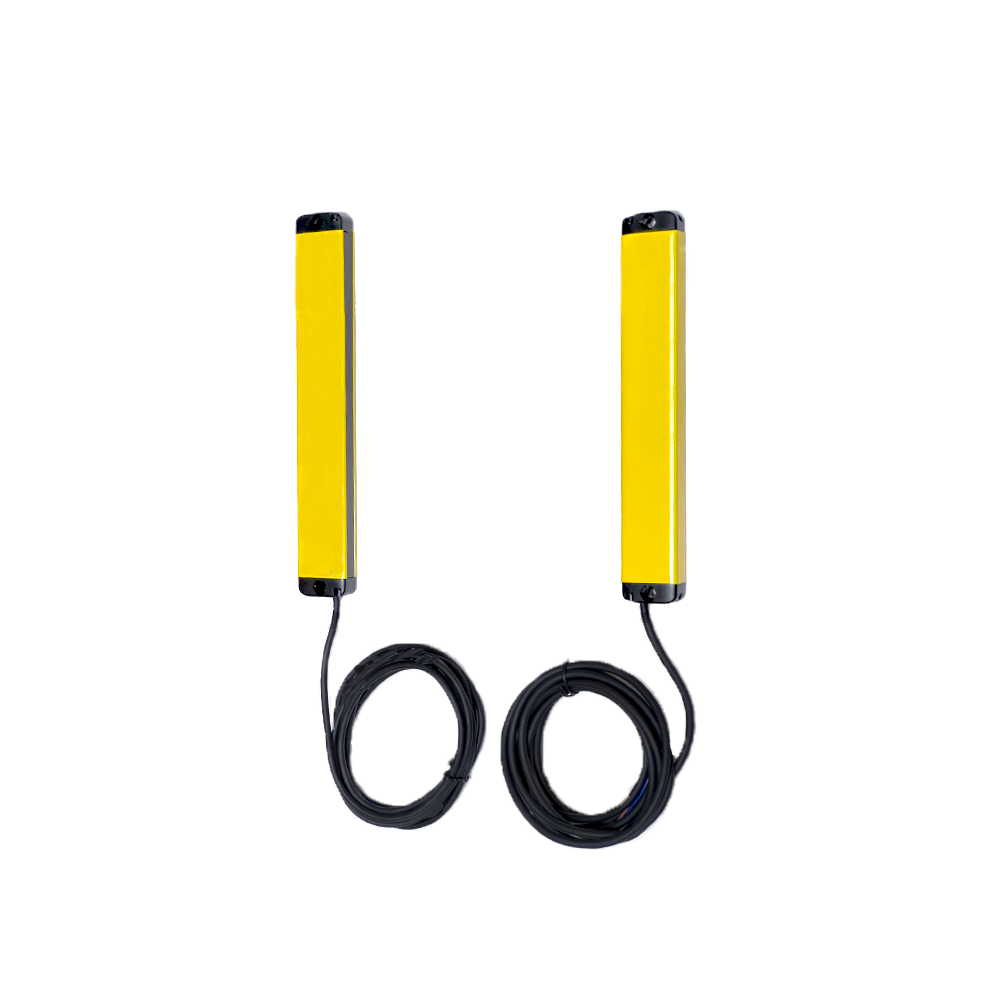

FGSM20-08NSC Ultra-slim FGSM light curtain

Detection method

Side shooting

Detection distance

1500mm

Working voltage

12~24VDC ±10%

Current consumption

<40mA

Leakage current

<0.01mA (no load)

Residual voltage

<0.43V

Load current

100mA

Protection circuit

Reverse polarity protection, output short circuit protection

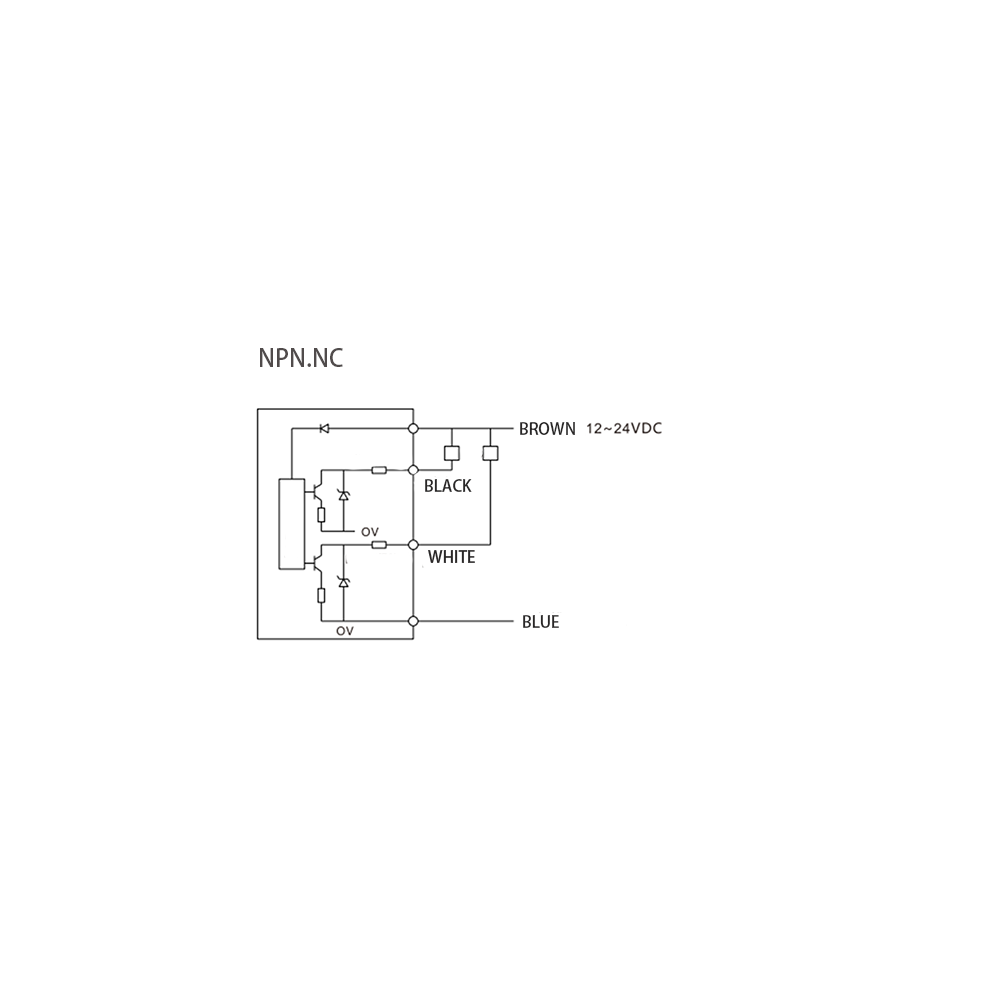

Output mode

NPN N.C.

Light source

850nm infrared modulated light

Indicator light

Green: output ON / Red: output OFF

Adjustment range

Non-adjustable

Repeatability accuracy

<2% of detection distance

Reaction time

20ms

Standard test object

φ25.0mm non-transparent object

Minimum detectable object

φ25.0mm non-transparent object

Insulation resistance

>100MΩ

Protection rating

IP54

Connection method

Pre-wired cable

Cable specification

4.0mm 2-core 2M + 4.0mm 4-core 2M flexible cable

Dimensions

190 × 29 × 14mm

Number of optical axes

8

Optical axis spacing

20mm

Detection length

140mm

Total light curtain length

190mm

Housing material

Aluminum alloy

Flat mirror material

ABS engineering plastic

Weight

235g

Ambient temperature

-10~55°C (no frost/ice)

Impact withstand voltage

1000VDC 50-60Hz for 1 minute (between charging part and housing)

Storage temperature

-20~60°C (no frost/ice)

Ambient illuminance

≤10,000 Lux (incident angle ≤5°)

Environmental humidity

35~85% RH

Vibration resistance

No

Installation bracket

No

Certification

CE-LVD / RoHS / CE-EMC
