| Parameter | Value |
|---|---|
| Detection method | Side shooting |
| Detection distance | 1500mm |
| Working voltage | 12~24VDC ±10% |
| Current consumption | <40mA |
| Residual voltage | <0.43V |
| Load current | 100mA |
| Protection circuit | Reverse polarity protection, output short circuit protection |

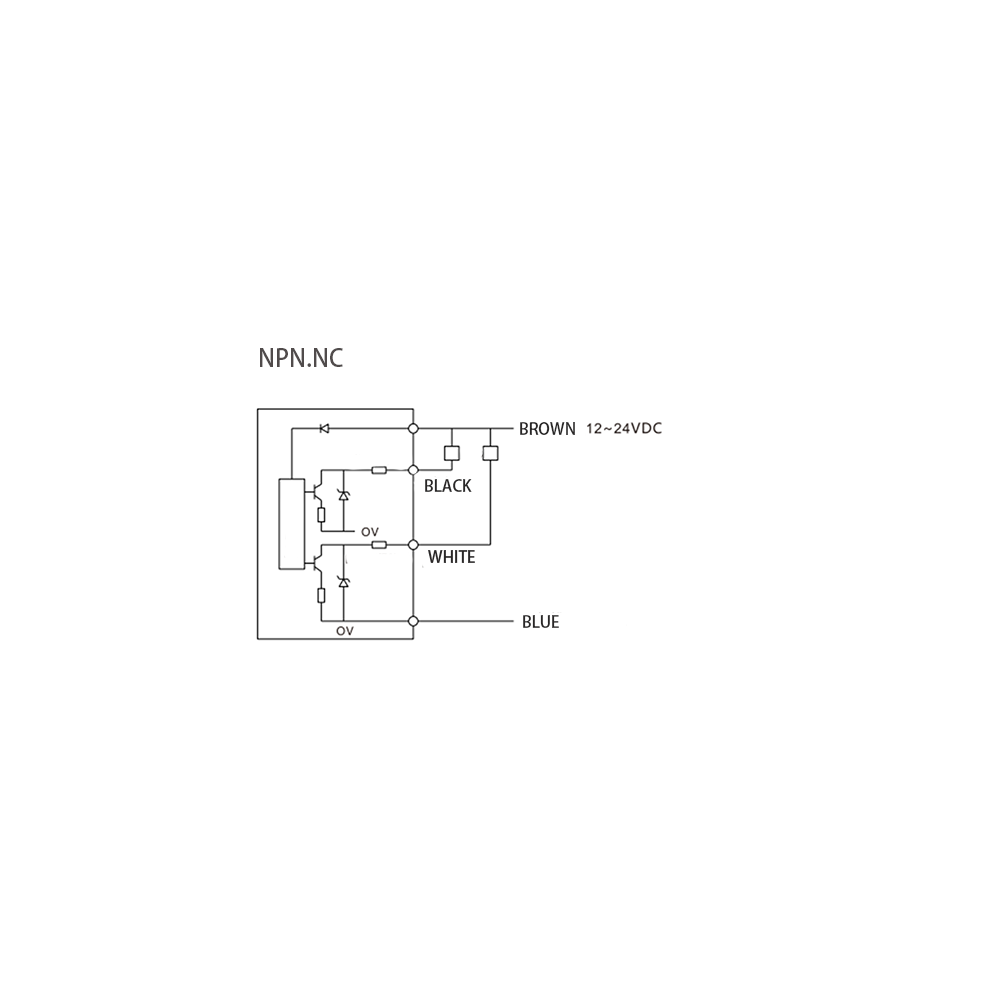

| Output mode | NPN N.C. |
| Light source | 850nm infrared modulated light |
| Indicator | Green: output ON / Red: output OFF |
| Adjustment range | Non-adjustable |
| Repeatability accuracy | <2% of detection distance |
| Reaction time | 20ms |
| Standard test object | φ15.0mm non-transparent object |
| Minimum detectable object | φ15.0mm non-transparent object |
| Insulation resistance | >100MΩ |
| Protection rating | IP54 |
| Connection method | Pre-wired cable |
| Cable specification | 4.0mm 2-core 2M + 4.0mm 4-core 2M flexible cable |

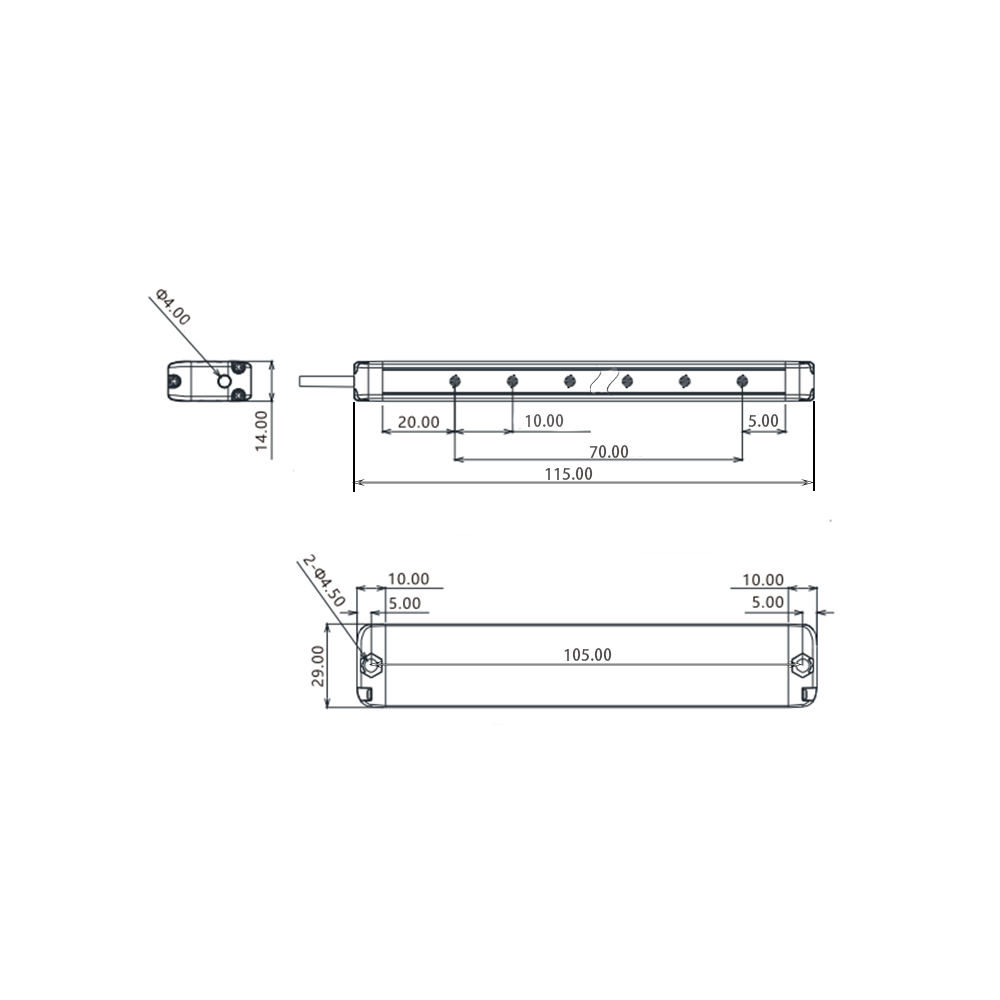

| Dimensions | 115 × 29 × 14mm |
| Number of optical axes | 8 |
| Optical axis spacing | 10mm |
| Detection length | 70mm |
| Total light curtain length | 115mm |
| Housing material | Aluminum alloy |
| Flat mirror material | ABS engineering plastic |
| Weight | 171.8g |
| Ambient temperature | -10~55°C (no frost/ice) |
| Storage temperature | -20~60°C (no frost/ice) |
| Ambient illuminance | ≤10,000 Lux (incident angle ≤5°) |
| Environmental humidity | 35~85% RH |
| Certification | CE-LVD / RoHS / CE-EMC |

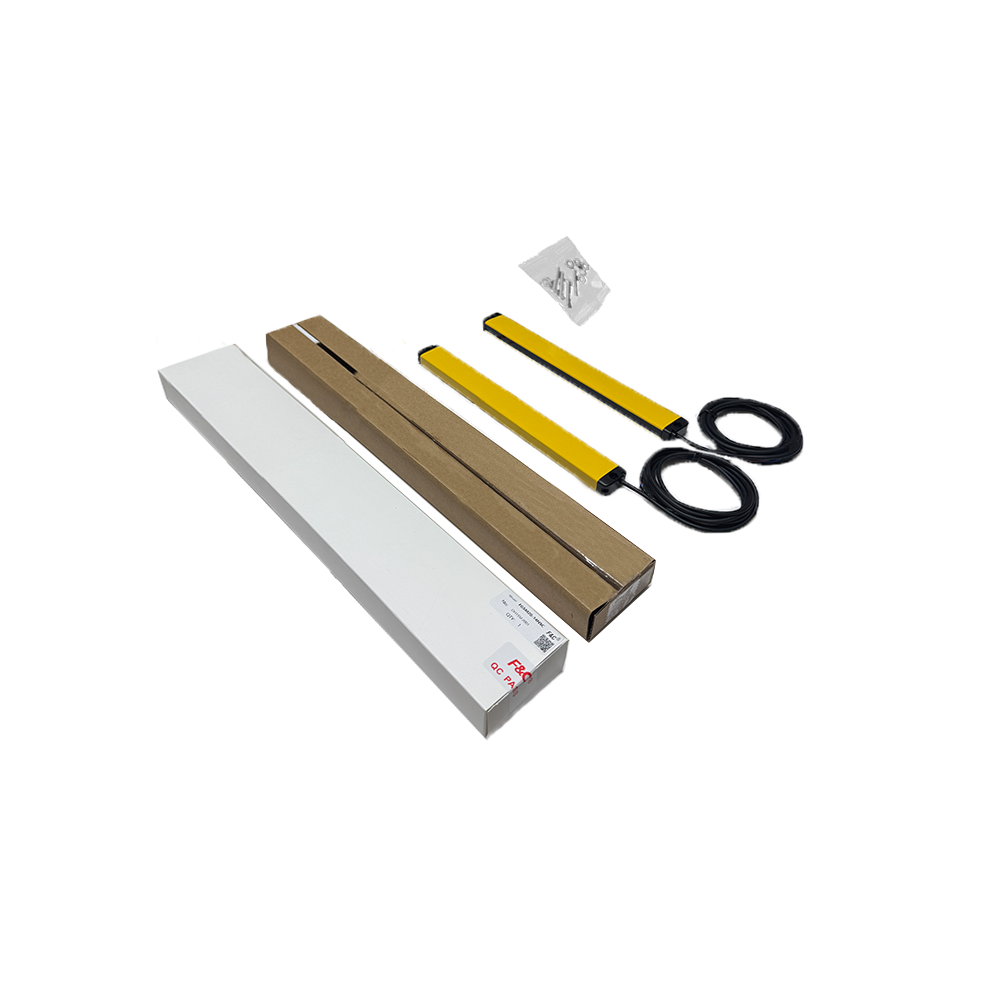

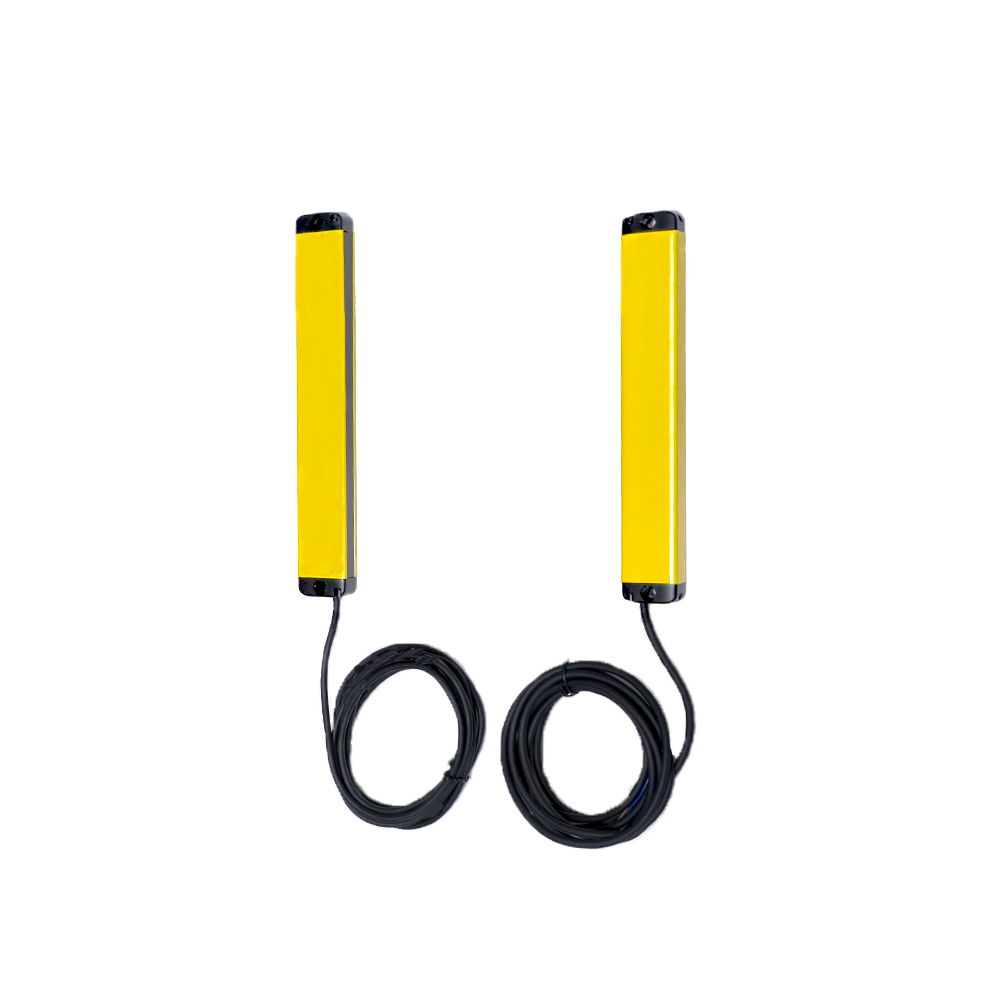

FGSM10-08NSC
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Detection method | Side shooting |
Detection distance | 1500mm |
Working voltage | 12~24VDC ±10% |
Current consumption | <40mA |
Residual voltage | <0.43V |
Load current | 100mA |
Protection circuit | Reverse polarity protection, output short circuit protection |
Output mode | NPN N.C. |
Light source | 850nm infrared modulated light |
Indicator | Green: output ON / Red: output OFF |
Adjustment range | Non-adjustable |
Repeatability accuracy | <2% of detection distance |
Reaction time | 20ms |
Standard test object | φ15.0mm non-transparent object |
Minimum detectable object | φ15.0mm non-transparent object |
Insulation resistance | >100MΩ |
Protection rating | IP54 |
Connection method | Pre-wired cable |
Cable specification | 4.0mm 2-core 2M + 4.0mm 4-core 2M flexible cable |
Dimensions | 115 × 29 × 14mm |
Number of optical axes | 8 |
Optical axis spacing | 10mm |
Detection length | 70mm |
Total light curtain length | 115mm |
Housing material | Aluminum alloy |
Flat mirror material | ABS engineering plastic |
Weight | 171.8g |
Ambient temperature | -10~55°C (no frost/ice) |
Storage temperature | -20~60°C (no frost/ice) |
Ambient illuminance | ≤10,000 Lux (incident angle ≤5°) |
Environmental humidity | 35~85% RH |
Certification | CE-LVD / RoHS / CE-EMC |
