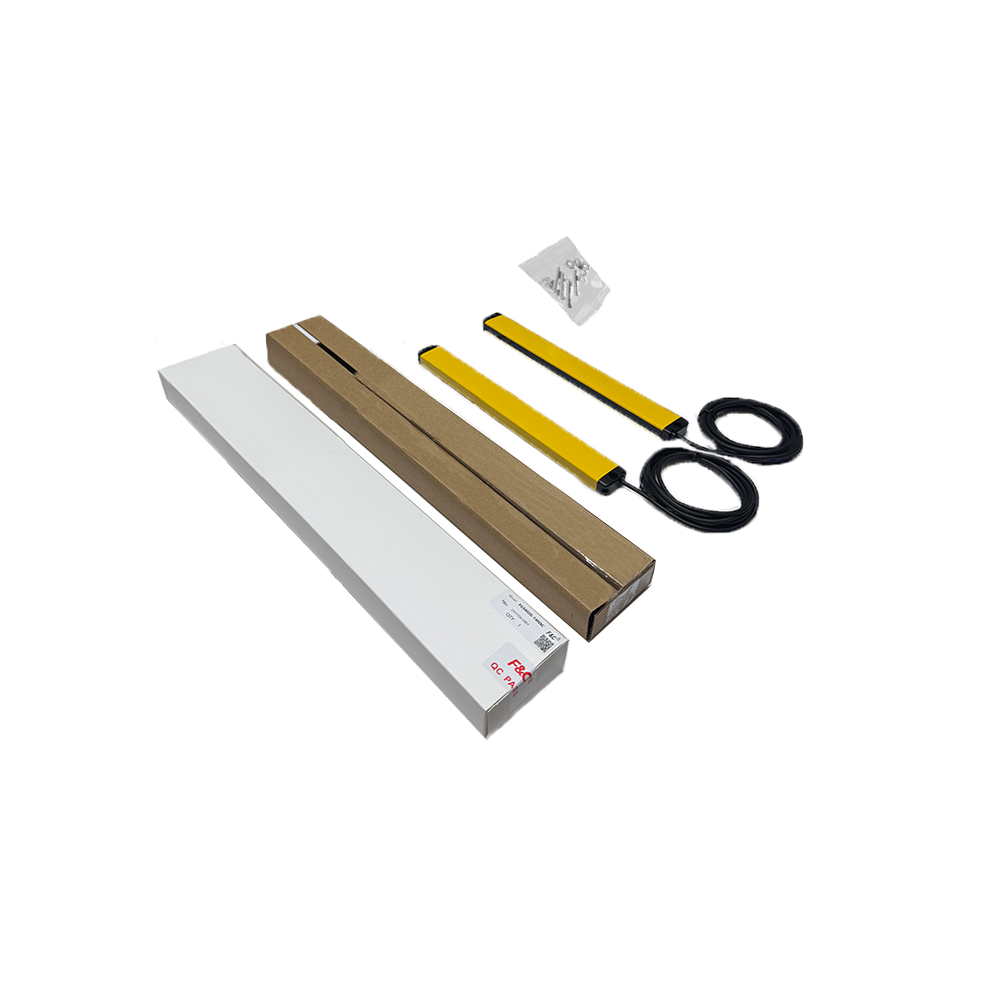

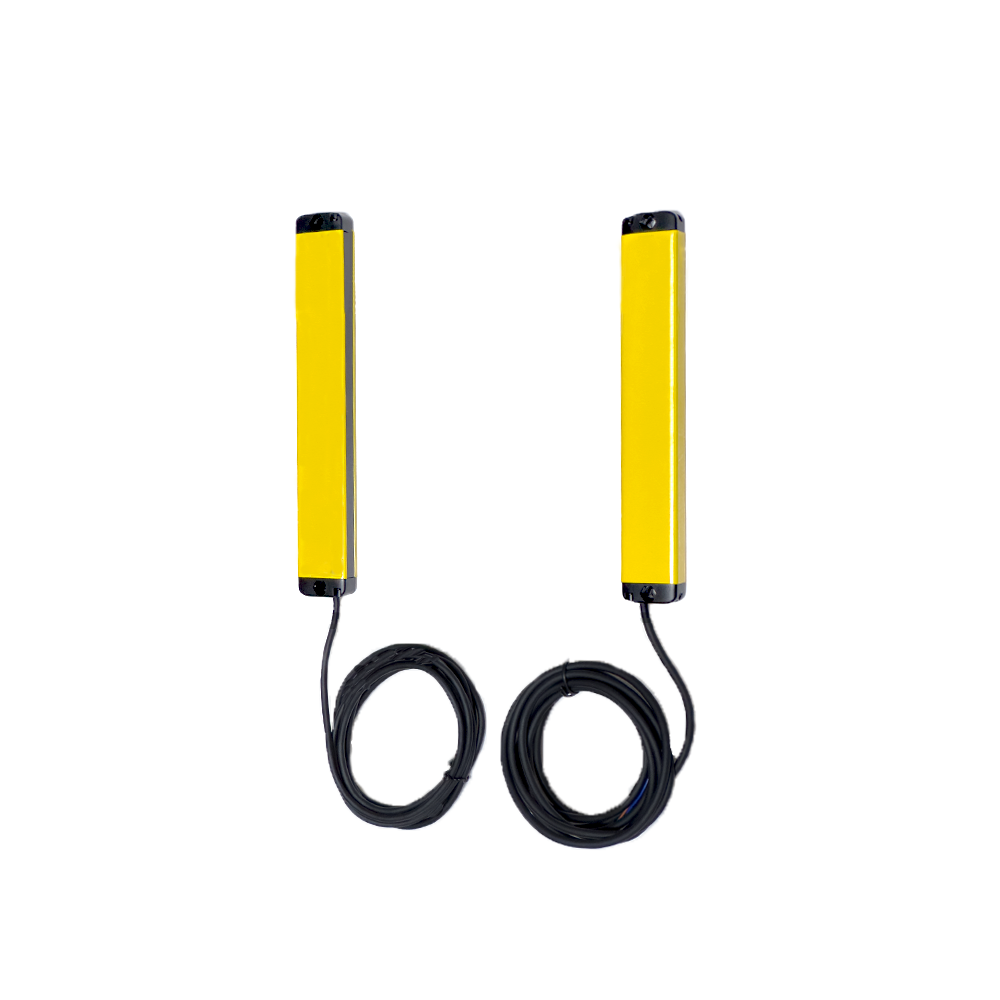

FGSM10-10NSC Ultra-slim FGSM light curtain

Detection method

Side shooting

Detection distance

1500mm

Working voltage

12~24VDC ±10%

Current consumption

<40mA

Leakage current

<0.01mA (no load)

Residual voltage

<0.43V

Load current

100mA

Protection circuit

Reverse polarity protection, output short circuit protection

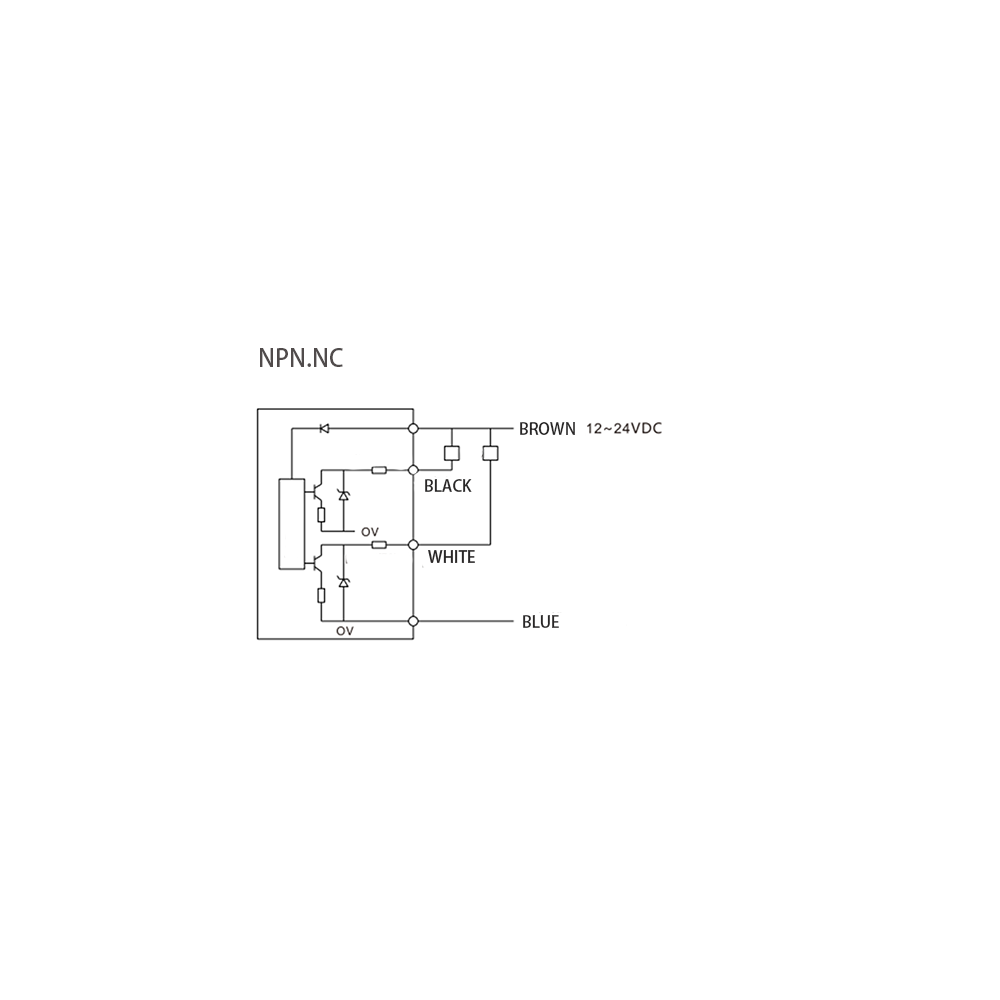

Output mode

NPN N.C.

Light source

850nm infrared modulated light

Indicator light

Green: output ON / Red: output OFF

Adjustment range

Non-adjustable

Repeatability accuracy

<2% of detection distance

Reaction time

20ms

Standard test object

φ15.0mm non-transparent object

Minimum detectable object

φ15.0mm non-transparent object

Insulation resistance

>100MΩ

Protection rating

IP54

Connection method

Pre-wired cable

Cable specification

4.0mm 2-core 2M + 4.0mm 4-core 2M flexible cable

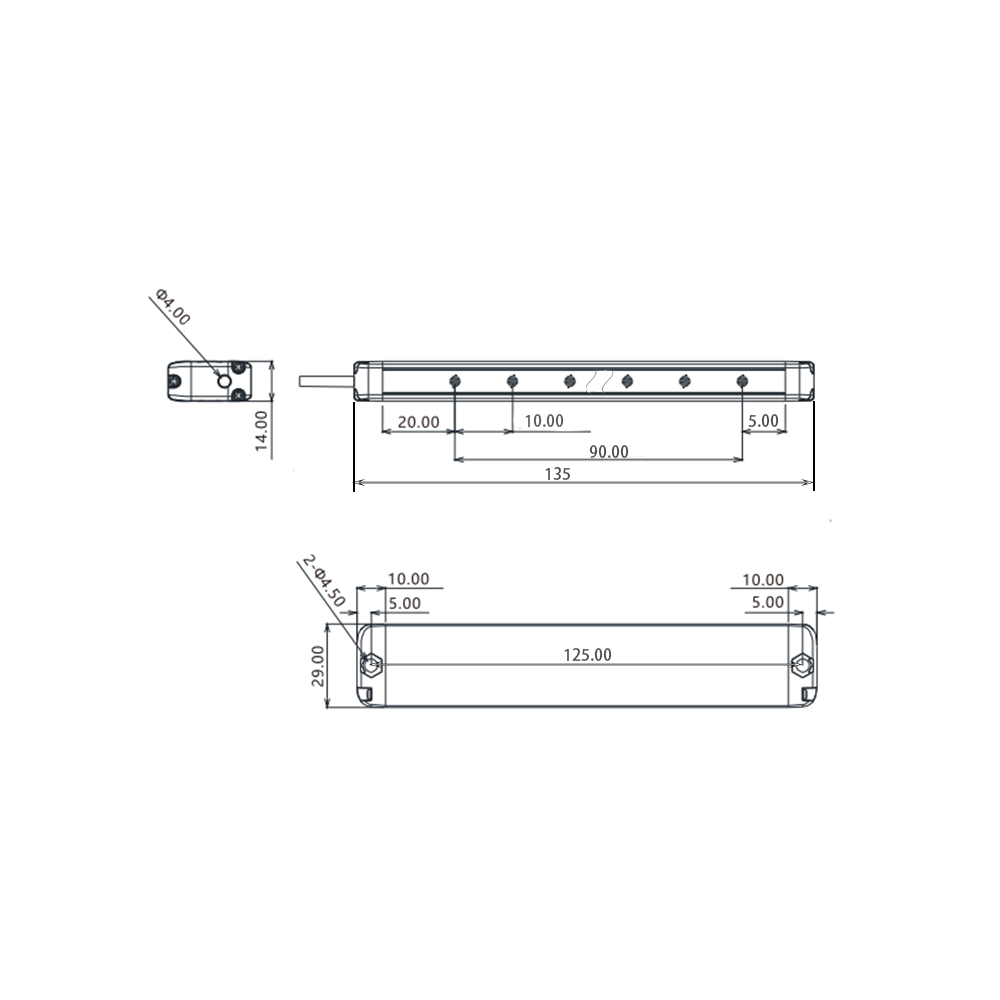

Dimensions

135 × 29 × 14mm

Number of optical axes

10

Optical axis spacing

10mm

Detection length

90mm

Total light curtain length

135mm

Housing material

Aluminum alloy

Flat mirror material

ABS engineering plastic

Weight

187.6g

Ambient temperature

-10~55°C (no frost/ice)

Impact withstand voltage

1000VDC 50-60Hz for 1 minute (between charging part and housing)

Storage temperature

-20~60°C (no frost/ice)

Ambient illuminance

≤10,000 Lux (incident angle ≤5°)

Environmental humidity

35~85% RH

Vibration resistance

No

Installation bracket

No

Certification

CE-LVD / RoHS / CE-EMC
