| Parameter | Value |
|---|---|
| Fiber head diameter | Φ1.5 |
| Fiber cable outer/core | Φ1.0 / Φ0.25*4 |
| Cable length | 1M |
| Conduit tube | Not required |
| Sensing distance | 150MM (LONG: 180MM) |
| Fiber type | Coaxial, through-beam |
| Head material | Stainless steel |
| Bending radius | R5 |
| Light exit | Front exit |
| Cuttable | Yes |
| Weight | 2.55g |
| Temp. range | -20°C ~ +70°C |

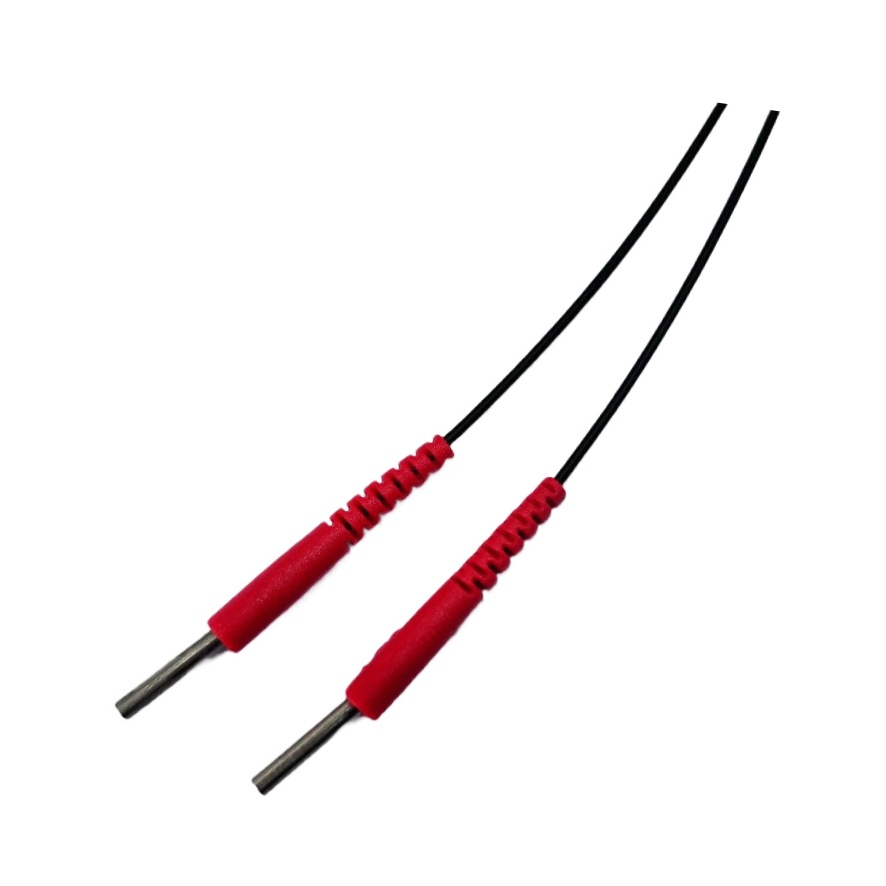

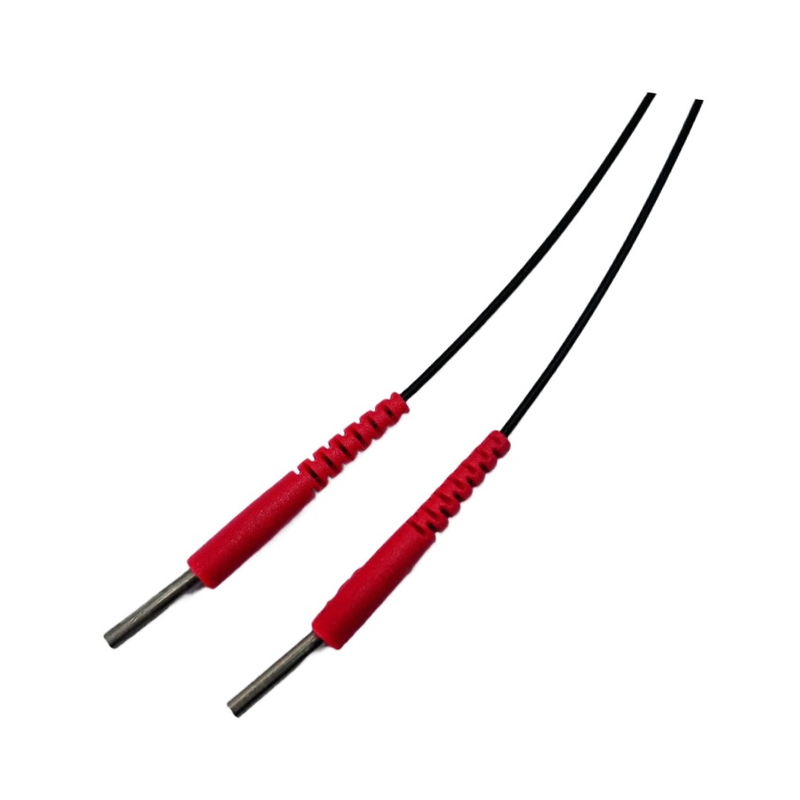

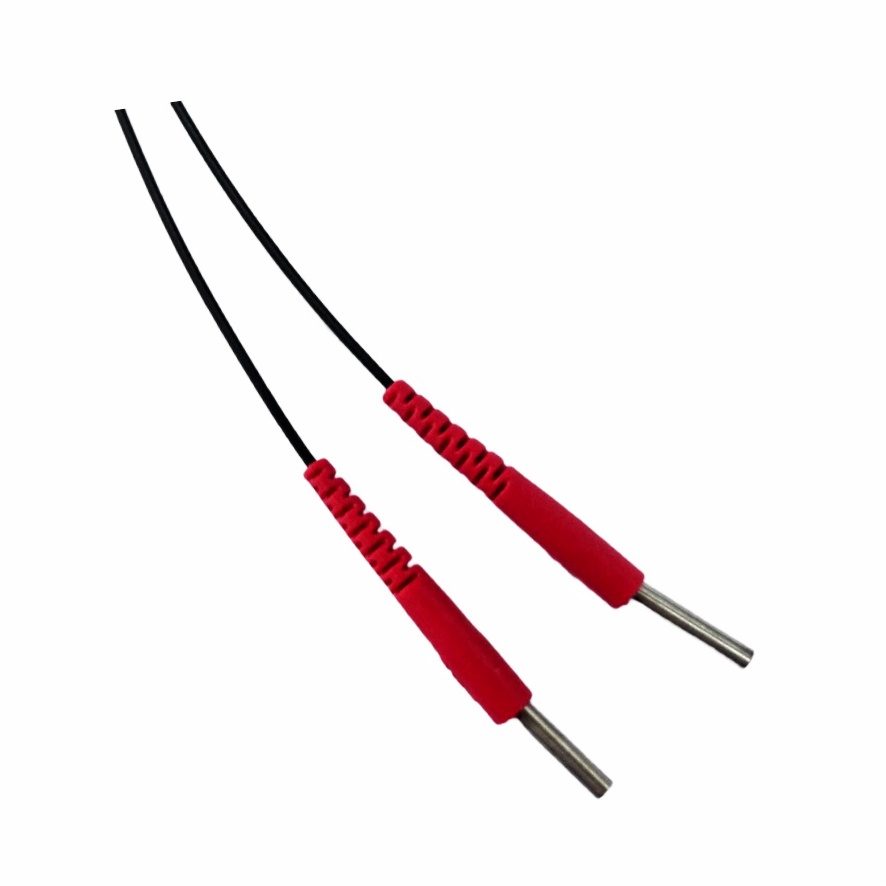

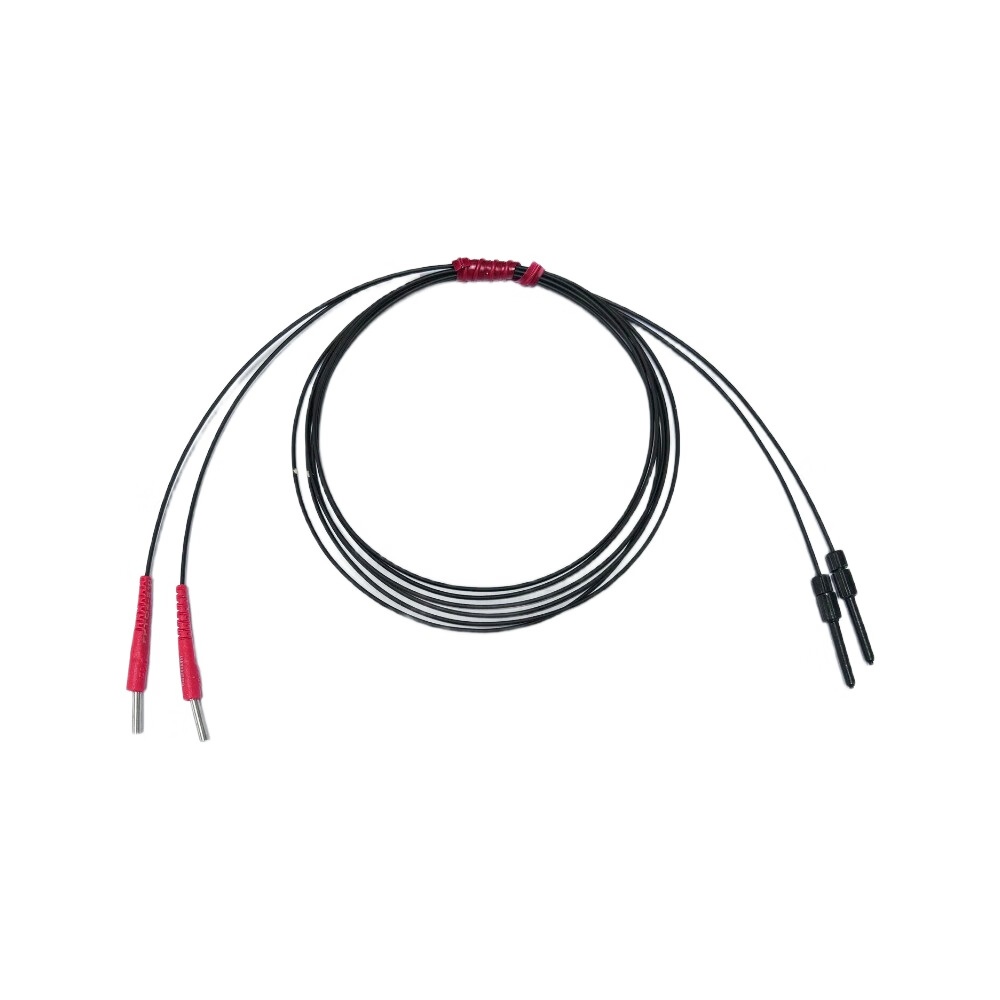

FFTE4-1510
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Fiber head diameter | Φ1.5 |
Fiber cable outer/core | Φ1.0 / Φ0.25*4 |
Cable length | 1M |
Conduit tube | Not required |
Sensing distance | 150MM (LONG: 180MM) |
Fiber type | Coaxial, through-beam |
Head material | Stainless steel |
Bending radius | R5 |
Light exit | Front exit |
Cuttable | Yes |
Weight | 2.55g |
Temp. range | -20°C ~ +70°C |
