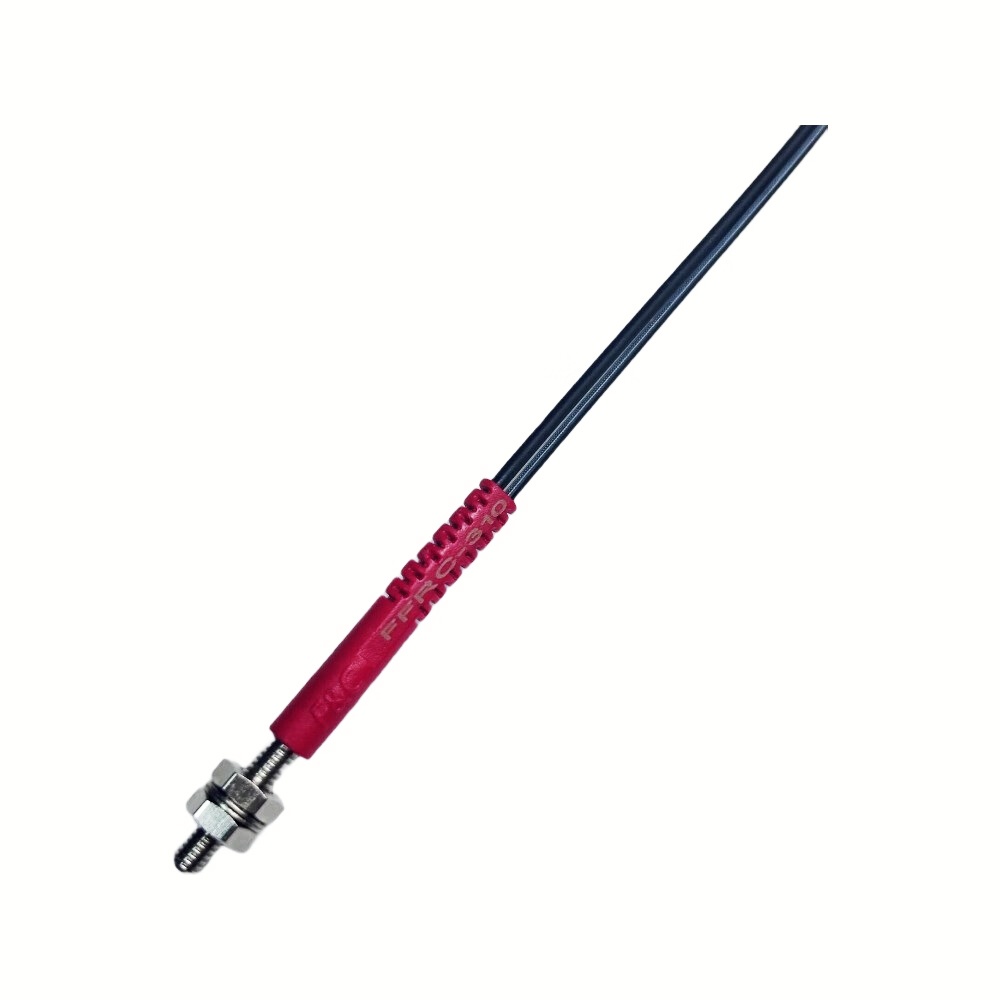

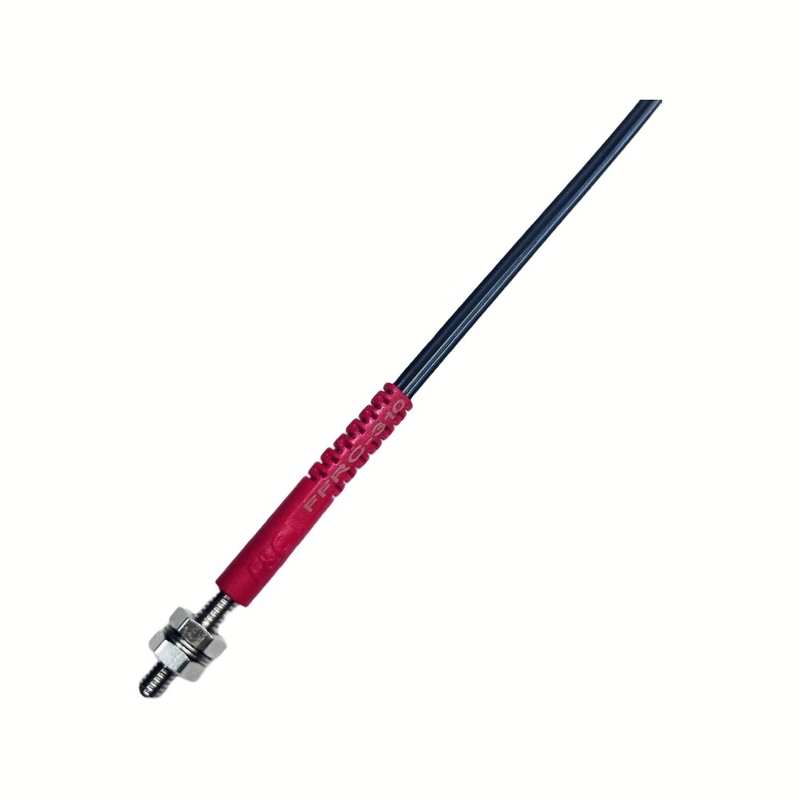

FFRC4-310 Coaxial diffuse reflection optical fiber

Engineering Capabilities and Application Advantages of the FFRC4-310 Optical Fiber

Precision Detection Performance in Complex Environments

The FFRC4-310 coaxial diffuse reflection optical fiber is engineered to deliver flawless sensing accuracy in demanding industrial setups. Unlike standard sensors that struggle with proximity, this unit eliminates close-range blind spots entirely. By utilizing advanced background suppression technology, the sensor isolates the target object from surrounding interference, ensuring that even the most minute components are recognized with absolute certainty. The coaxial light transmission method allows the emitted and received light to share the same optical axis, which significantly enhances the detection of highly reflective or irregularly shaped micro-objects. When integrated into high-speed sorting or inspection lines, this sensing mechanism minimizes false triggers and missed detections, directly improving overall operational throughput and reducing the need for manual secondary checks. The advanced optical configuration ensures that variations in target color or surface texture have minimal impact on detection reliability, providing a stable signal output across diverse production batches.

Micro-Design for Superior Spatial Adaptability

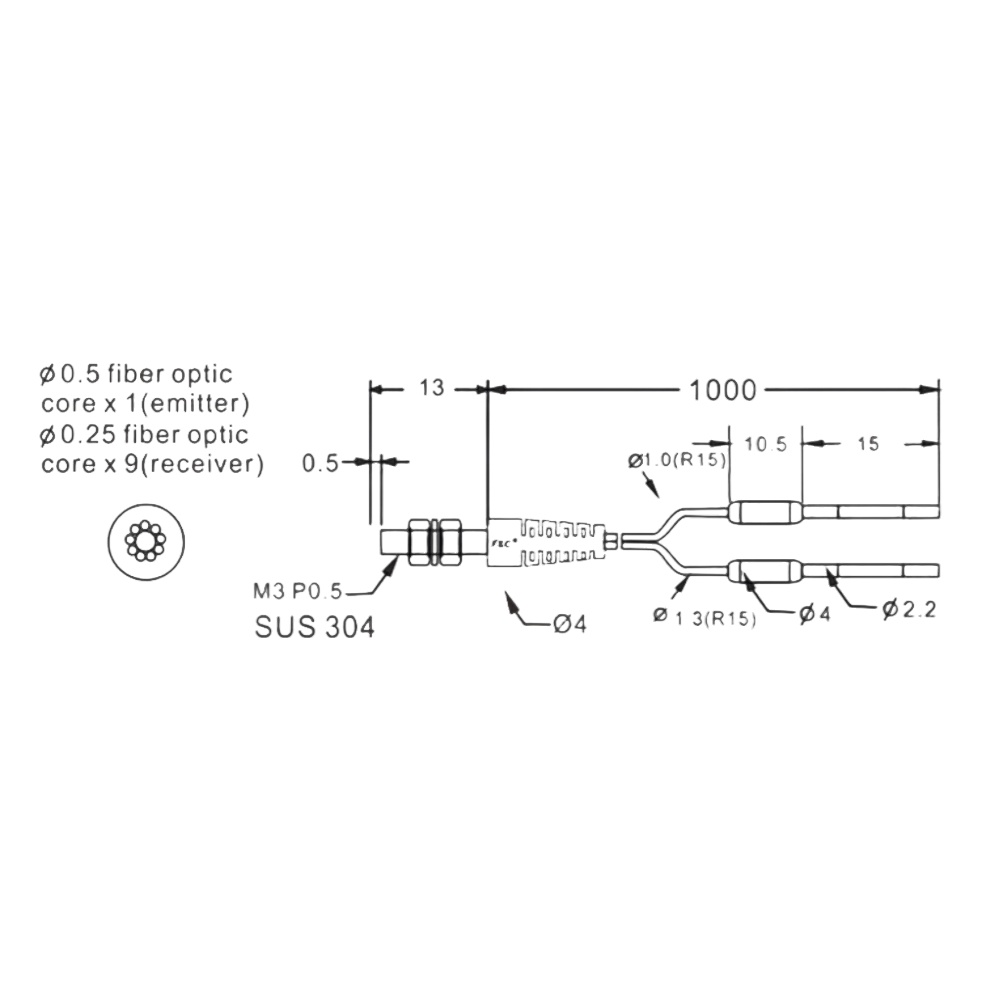

Modern manufacturing equipment is becoming increasingly compact, demanding sensing components that can fit into severely restricted spaces without compromising performance. This optical fiber addresses spatial constraints through its meticulously crafted M3 micro-probe. The remarkably small footprint of the threaded metallic head allows for flush mounting in densely packed machinery. Complementing the compact head is the exceptional R5 bending radius of the fiber cable. This extreme flexibility means the cable can be routed around sharp corners, through narrow conduits, and alongside moving mechanical arms without experiencing signal attenuation or physical degradation. Engineers can confidently design intricate machine layouts, knowing the sensing lines will adapt perfectly to complex internal geometries, thereby saving valuable equipment real estate and simplifying the mechanical design process. This micro-design philosophy ensures that upgrading existing machinery with advanced sensing capabilities does not require extensive structural modifications, drastically reducing downtime during equipment retrofits.

Material Durability and Thermal Stability

Industrial environments routinely subject equipment to mechanical stress, temperature fluctuations, and abrasive airborne particles. To guarantee long-term reliability, the FFRC4-310 incorporates carefully selected materials optimized for continuous operation:

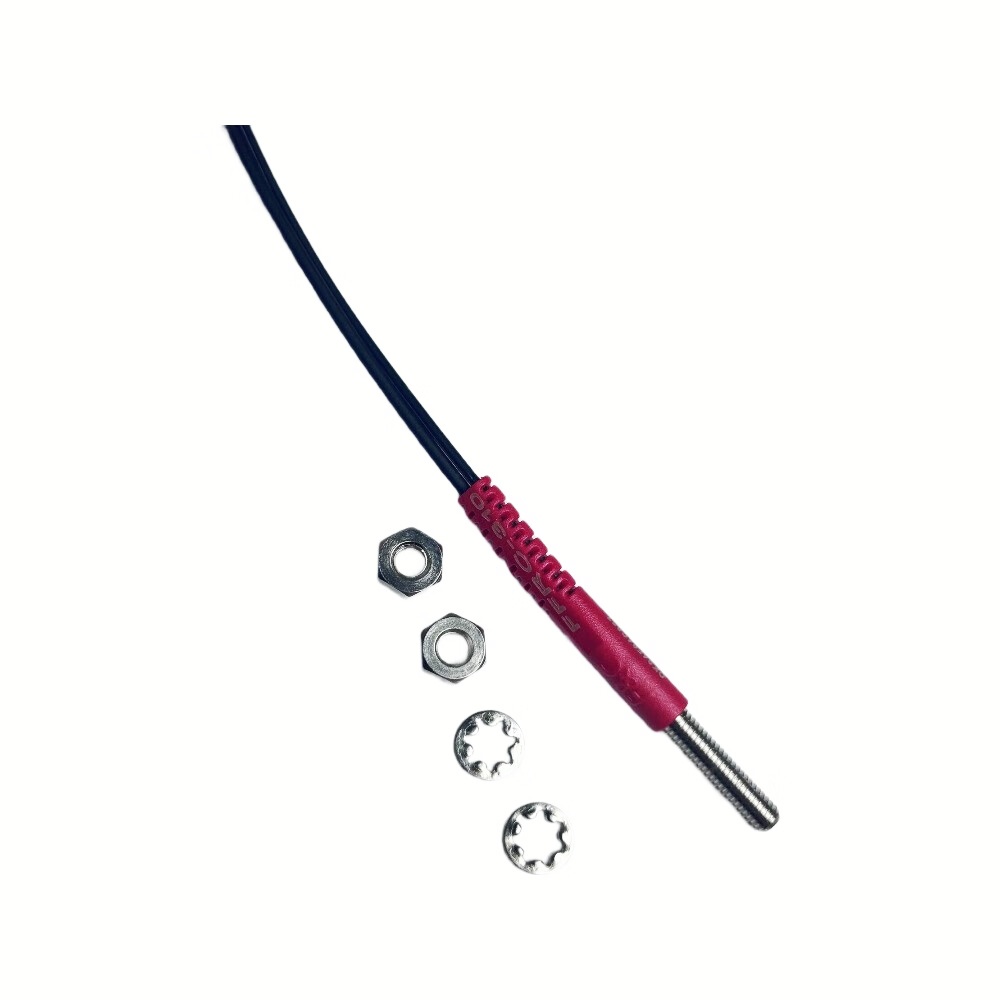

• Heavy-Duty Probe Construction: Manufactured from premium-grade stainless steel, the M3 head provides exceptional resistance to physical impacts and industrial solvents, protecting the sensitive optical lenses housed within.
• Resilient Fiber Core: The internal coaxial fiber is crafted from specialized polymers designed to maintain optimal light transmission even under continuous mechanical flexing and vibration.
• Broad Thermal Tolerance: The entire assembly is rated for stable operation across a wide thermal spectrum, functioning flawlessly from freezing environments as low as -20°C up to intensely heated zones reaching 70°C.

Installation Flexibility and On-Site Customization

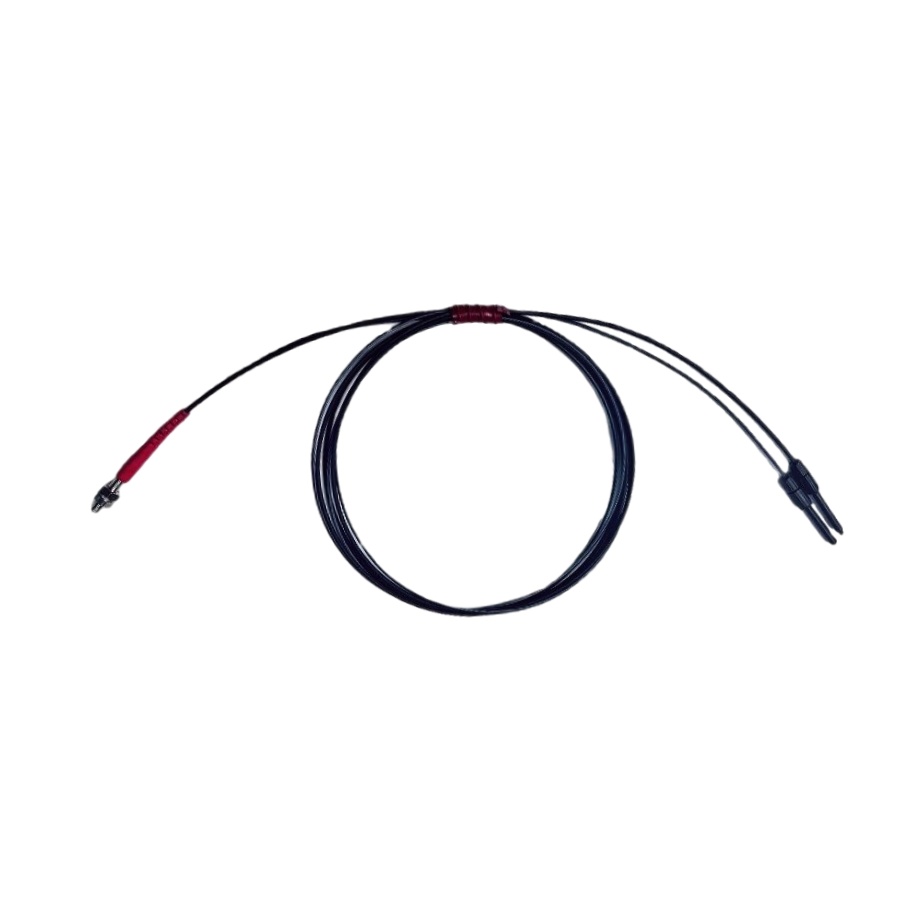

Streamlining the assembly and maintenance of industrial machinery requires components that are easy to handle and adapt on the factory floor. Supplied with a standard one-meter cable length, this diffuse reflective fiber offers ample reach for most standard equipment configurations. More importantly, the cable features a fully cuttable design. Technicians can easily trim the fiber to the exact length required for a specific machine layout using standard fiber cutting tools. This on-site customization eliminates the clutter of excess coiled wires, reducing the risk of snagging or accidental disconnection in dynamic environments. The clean, precise cuts maintain the integrity of the light transmission, ensuring that customized lengths perform identically to factory-finished cables. The inclusion of a durable plastic tail connector further simplifies the integration into standard amplifiers, making the setup process highly efficient and remarkably straightforward.

Widespread Industrial Applications

The unique combination of micro-object detection, extreme flexibility, and resilient construction makes this coaxial fiber an indispensable tool across multiple advanced manufacturing sectors:

• 3C Electronics Manufacturing: Excels at verifying the presence of microscopic screws, connectors, and circuit board components during high-speed assembly.
• Semiconductor Fabrication: Relied upon for its clean operation and precise sensing to monitor wafer positions without physical contact, safeguarding delicate materials.
• Precision Assembly Lines: Acts as a critical checkpoint, confirming that parts are correctly aligned before automated pressing or soldering stages commence.
• Automated Packaging Systems: Ensures accurate counting and positioning of small consumer goods, preventing packaging errors and material waste in high-volume operations.

Quality Assurance and Dedicated Procurement Support

Securing reliable components is critical for maintaining uninterrupted production schedules. This optical fiber is backed by a rigorous quality control framework, holding multiple design patents and national-level safety certifications. Every single unit undergoes exhaustive factory testing—including thermal cycling, bend resistance trials, and optical precision calibration—to guarantee absolute consistency across large-scale deployments. For enterprise procurement teams, we offer a comprehensive support structure designed to eliminate integration risks. Engineering teams can request evaluation samples and arrange for on-site demonstration testing to validate the sensor's performance within their specific operational environment. Coupled with a highly optimized supply chain that ensures rapid delivery of bulk orders, our service model is entirely focused on reducing technical friction and accelerating your project timelines from initial prototyping to full-scale manufacturing.
