| Parameter | Value |
|---|---|

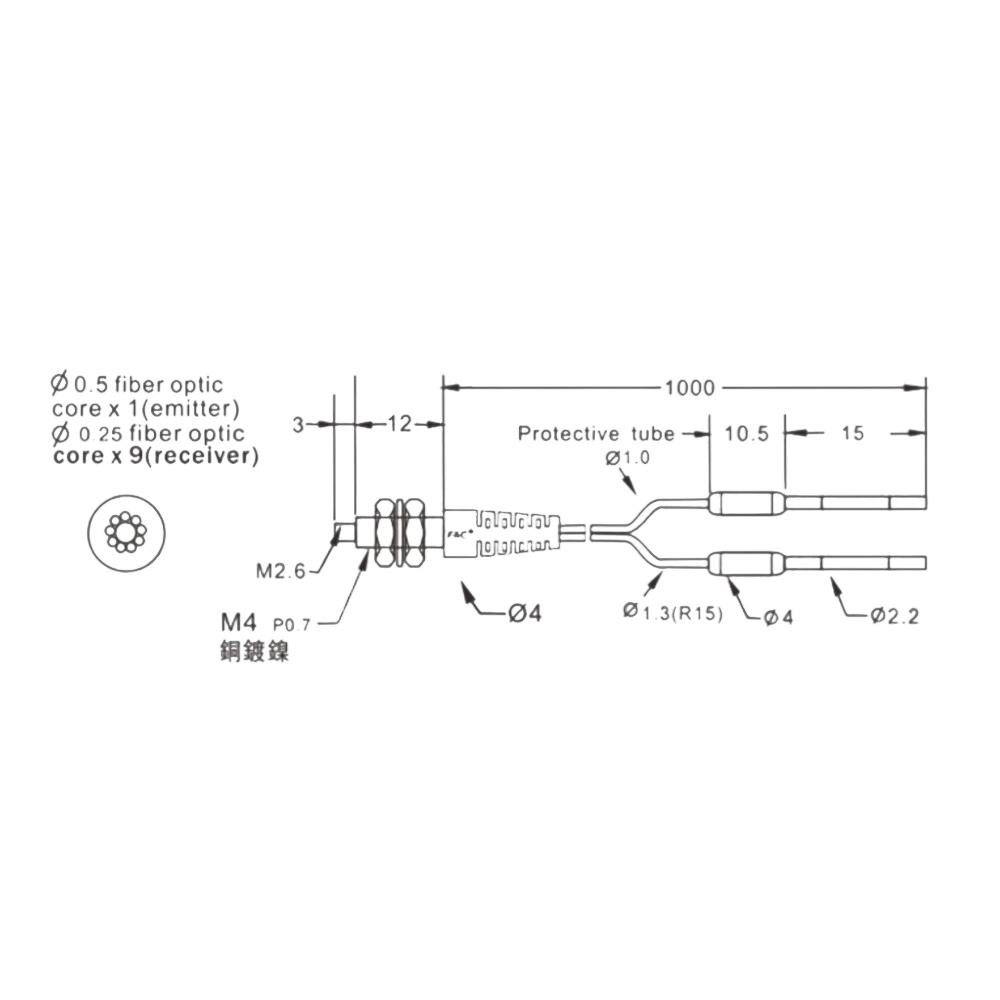

| Fiber head diameter | M4 |
| Fiber cable outer/core | Φ1.0+Φ1.3 / Φ0.5*1+Φ0.25*9 |
| Cable length | 1M |
| Conduit tube | Φ1.5 × 20mm (required) |
| Sensing distance | 80MM (LONG: 85MM) |
| Fiber type | Coaxial, diffuse reflective |
| Head material | Stainless steel |
| Bending radius | R15 |
| Light exit | Front exit |
| Cuttable | Yes |
| Weight | 4.69g |
| Temp. range | -20°C ~ +70°C |

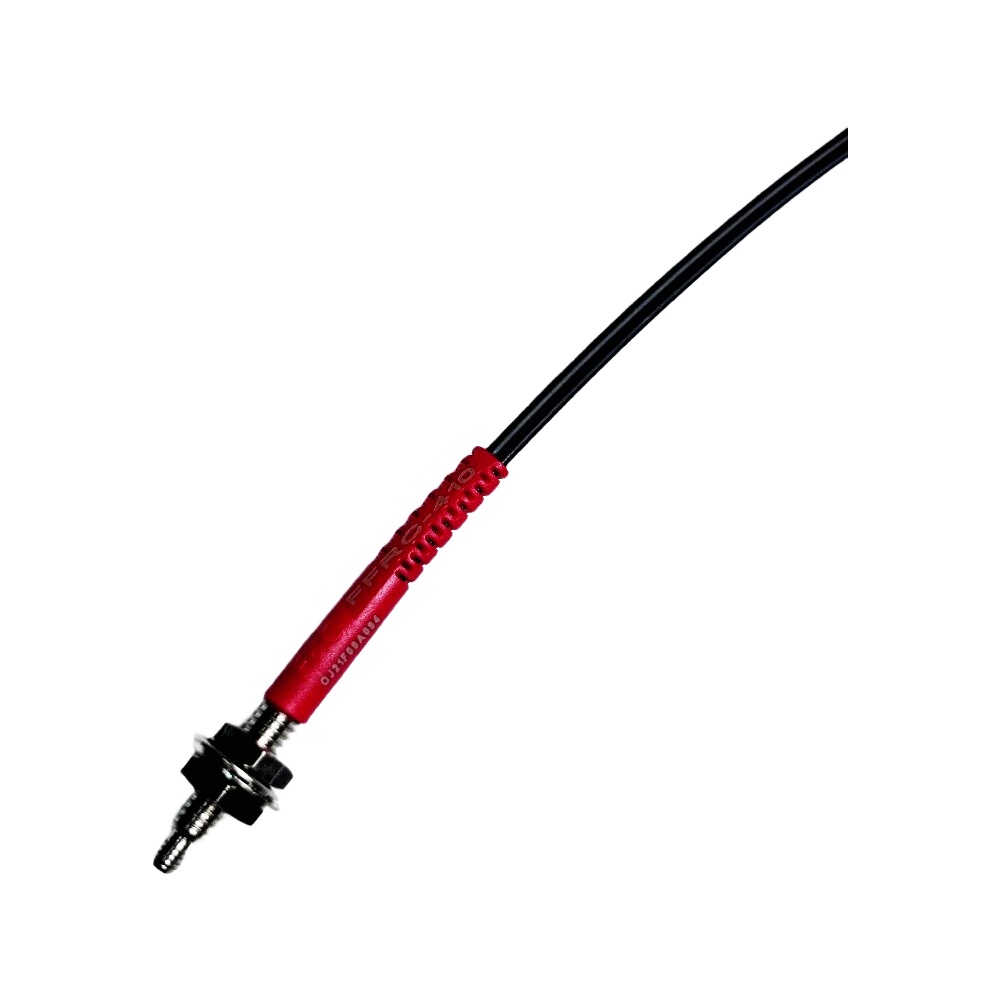

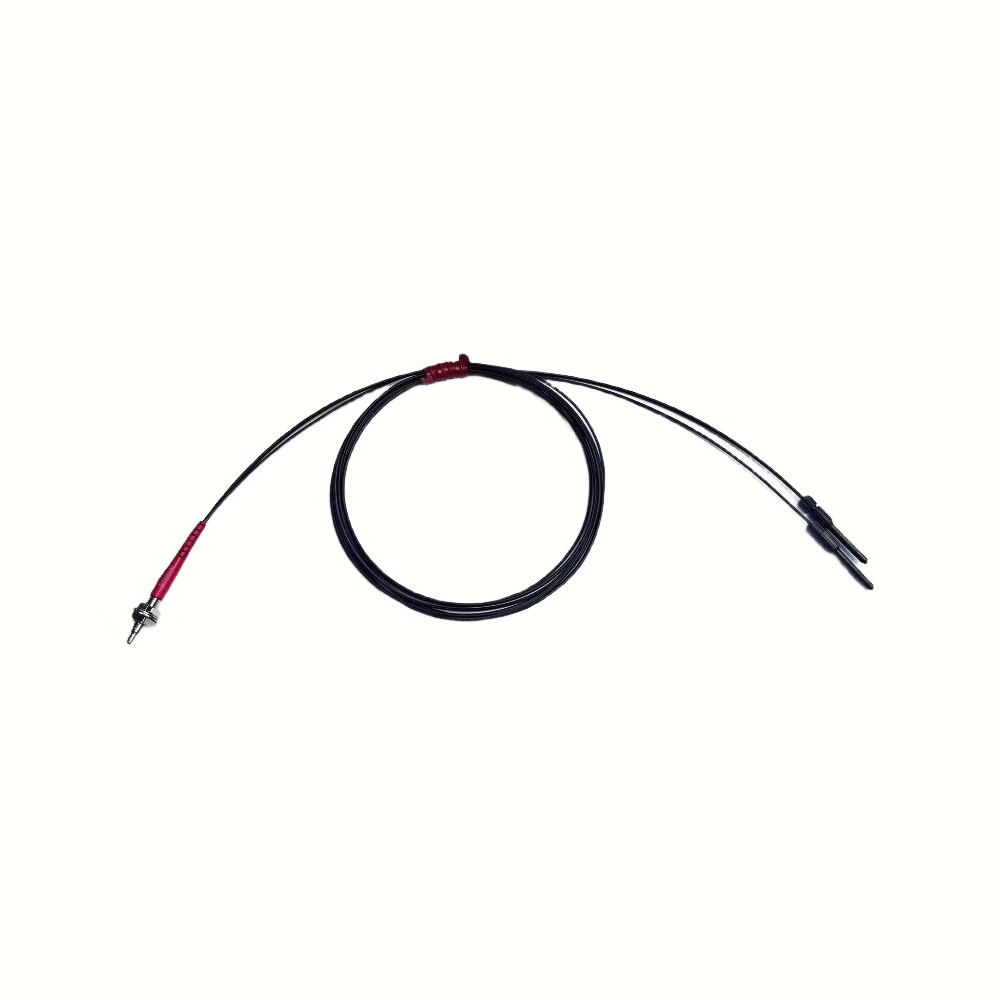

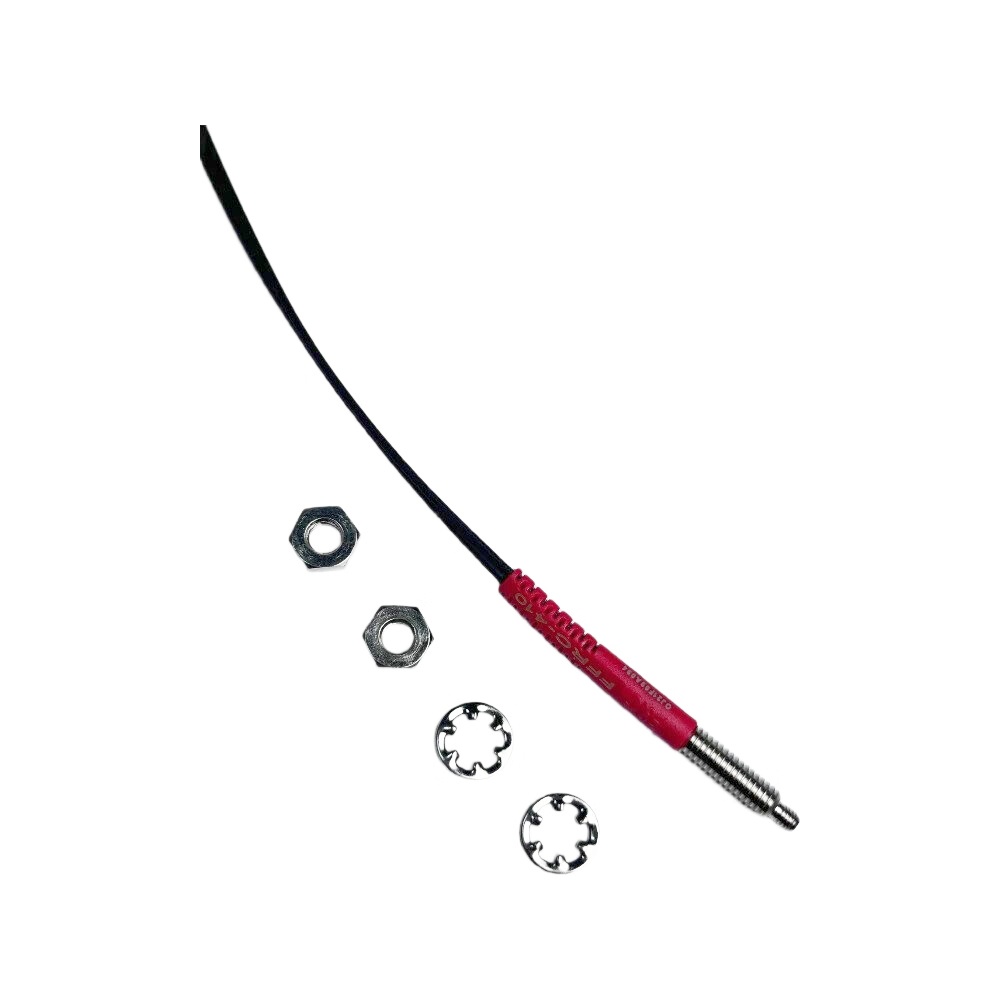

FFRC-410-S
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Fiber head diameter | M4 |
Fiber cable outer/core | Φ1.0+Φ1.3 / Φ0.5*1+Φ0.25*9 |
Cable length | 1M |
Conduit tube | Φ1.5 × 20mm (required) |
Sensing distance | 80MM (LONG: 85MM) |
Fiber type | Coaxial, diffuse reflective |
Head material | Stainless steel |
Bending radius | R15 |
Light exit | Front exit |
Cuttable | Yes |
Weight | 4.69g |
Temp. range | -20°C ~ +70°C |
