FFRC-310 Coaxial diffuse reflection optical fiber

Operational Capabilities & Technical Value

Precision Sensing in Demanding Environments

The FFRC-310 Coaxial diffuse reflection optical fiber is engineered to resolve complex non-contact detection challenges within modern industrial automation. By leveraging an advanced optical axis configuration—featuring two φ0.25mm transmitting fibers and one φ0.5mm receiving fiber—this unit achieves extraordinary precision. It consistently identifies objects as minute as φ0.25mm without any sensing blind zone. When paired with the FF-403 amplifier, it delivers a reliable sensing distance spanning from 0mm to 100mm, accommodating subtle shifts in target positioning. Industrial integrators dealing with rapid production lines will appreciate the immediate response times and absolute accuracy. Furthermore, this component operates flawlessly across a demanding temperature spectrum from -40°C to +60°C, remaining completely functional without freezing or ice accumulation. This thermal resilience ensures continuous operation in unconditioned warehouses, heavy machining facilities, and specialized testing chambers where environmental stability cannot be guaranteed.

Material Integrity and Tactile Craftsmanship

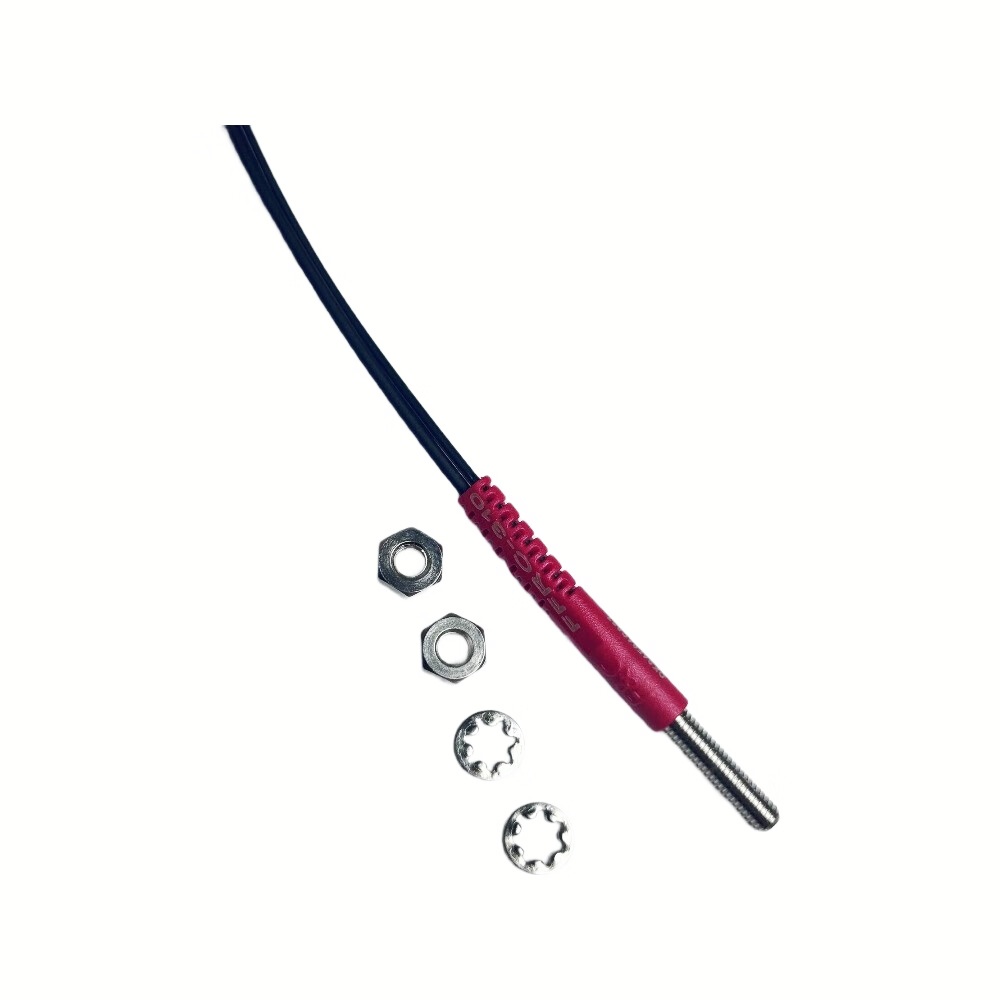

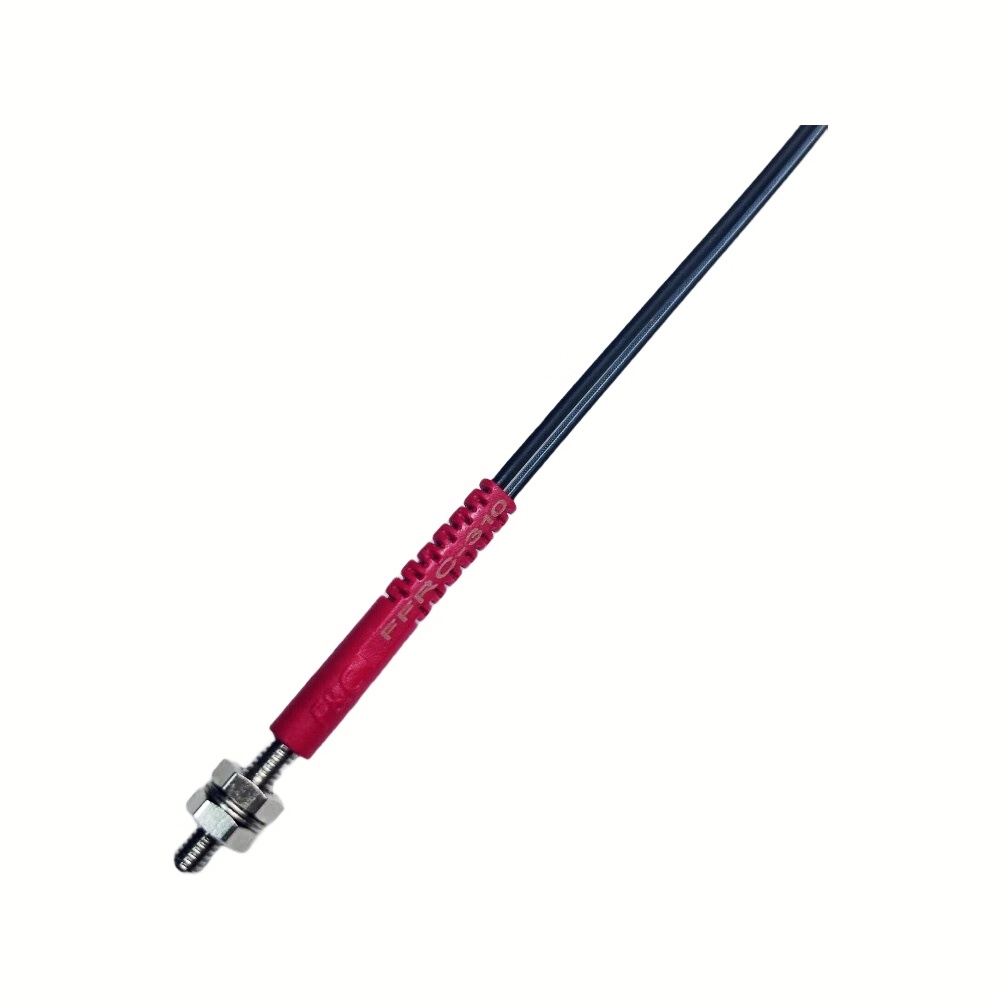

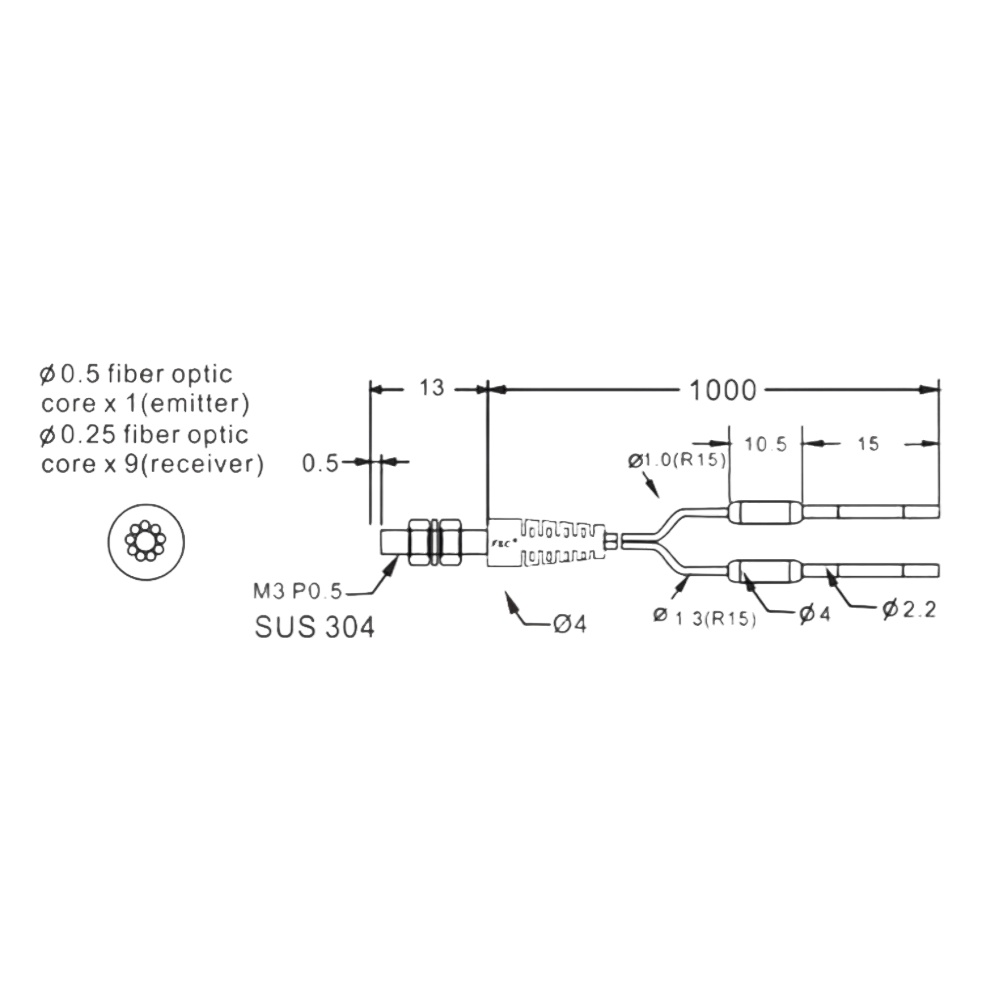

Physical durability is immediately apparent upon handling the FFRC-310. The outer housing is constructed from a precise blend of SUS (stainless steel) and PVC, yielding an exact weight of approximately 39g. Running a hand along the 1000mm cable reveals the smooth, flexible nature of the PVC jacket, which actively resists abrasion while maintaining a tight minimum bending radius of R10 and R15. The cold, rigid touch of the stainless steel cylindrical head (measuring φ3*13mm) provides tactile confirmation of its structural integrity. This all-metal encapsulation protects the delicate internal optics from accidental collisions, vibration, and mechanical stress typical of active machinery. By utilizing imported low-attenuation optical fibers, the design minimizes signal loss over extended distances. The cylindrical form factor is deliberately chosen to facilitate rapid integration into existing mounting brackets, reducing downtime during initial setup or routine maintenance cycles.

Tailored Manufacturing and OEM Flexibility

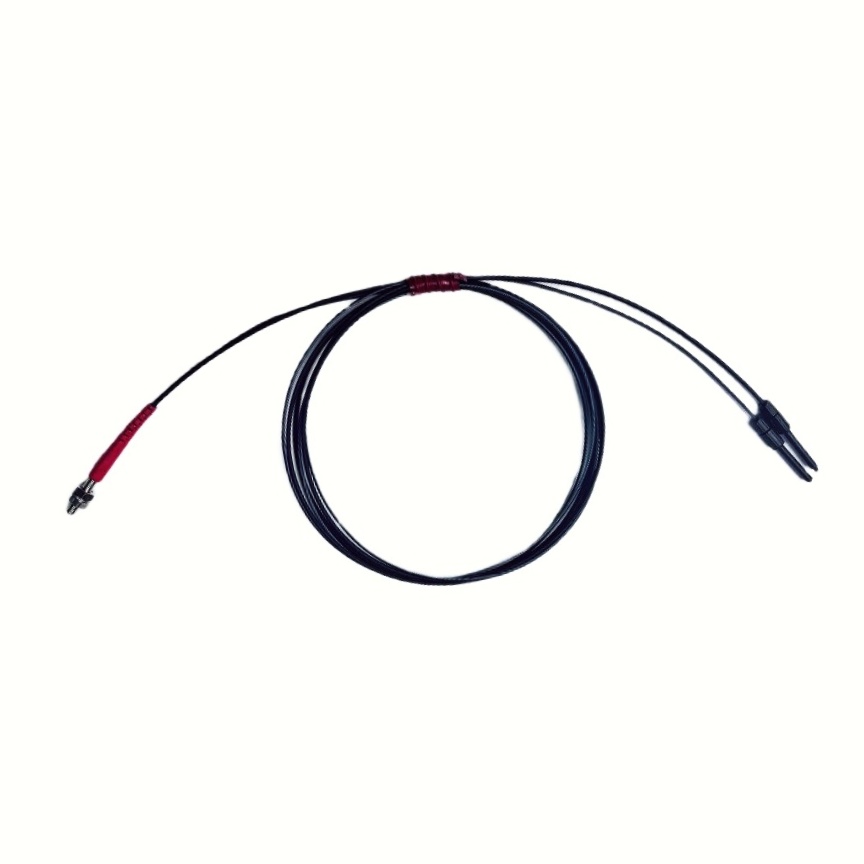

Recognizing that no two production facilities share identical spatial constraints, we offer extensive customization options for volume purchasers. While the standard fiber optic cable length is strictly maintained at 1000mm with a tight ±2% tolerance, the material allows for free cutting and modification to suit specific routing requirements.

• Flexible Specifications: Cable lengths can be custom-manufactured to precise millimeter requirements, eliminating excess loops that might snag on moving machinery.
• Dedicated OEM Services: We provide comprehensive original equipment manufacturing services, adapting the housing dimensions or cable properties to match proprietary assembly line specifications.
• Evaluation Support: To ensure complete compatibility before large-scale implementation, complimentary sample units are available for rigorous on-site testing.
• Predictable Lead Times: Once specifications are finalized, our streamlined production process guarantees a stable delivery cycle of 7 to 14 business days, safeguarding your project timelines against unexpected delays.

Global Compliance and Secure Logistics

Procurement specialists require absolute certainty regarding international regulatory standards. The FFRC-310 is rigorously tested and holds comprehensive certifications including ISO, SGS, REACH, RoHS, and UL. These credentials confirm the absence of hazardous substances and verify electrical safety, ensuring immediate market access and compliance for equipment destined for global export. To protect this precision instrument during transit, we implement an industrial-grade packaging protocol. Each unit is secured within a high-strength, crush-resistant carton and shielded by a waterproof cover, defending the optical components against moisture ingress and physical impact during handling. We coordinate with established global carriers to offer flexible logistics solutions—ranging from expedited courier services for urgent replacements to cost-effective air and sea freight for scheduled inventory replenishment—ensuring your components arrive in pristine condition, regardless of the destination.

Proven Reliability in Automated Systems

The true value of the FFRC-310 lies in its proven track record within high-stakes manufacturing environments. It is extensively deployed across various sectors of industrial automation, particularly where microscopic defect detection, component positioning, and rapid sorting are critical. Leading global manufacturers, including Siemens and Foxconn, rely on these exact specifications to maintain the integrity of their automated workflows. The sensor operates continuously with a silent, interference-free presence, and its ability to function without signal degradation reduces maintenance intervals and prevents costly line stoppages. Whether integrated into semiconductor fabrication equipment, automotive assembly robotics, or pharmaceutical packaging lines, the consistent optical performance and robust physical construction deliver measurable improvements in overall equipment effectiveness. By choosing this carefully engineered optical fiber, facilities invest in long-term operational stability and unparalleled detection accuracy.
