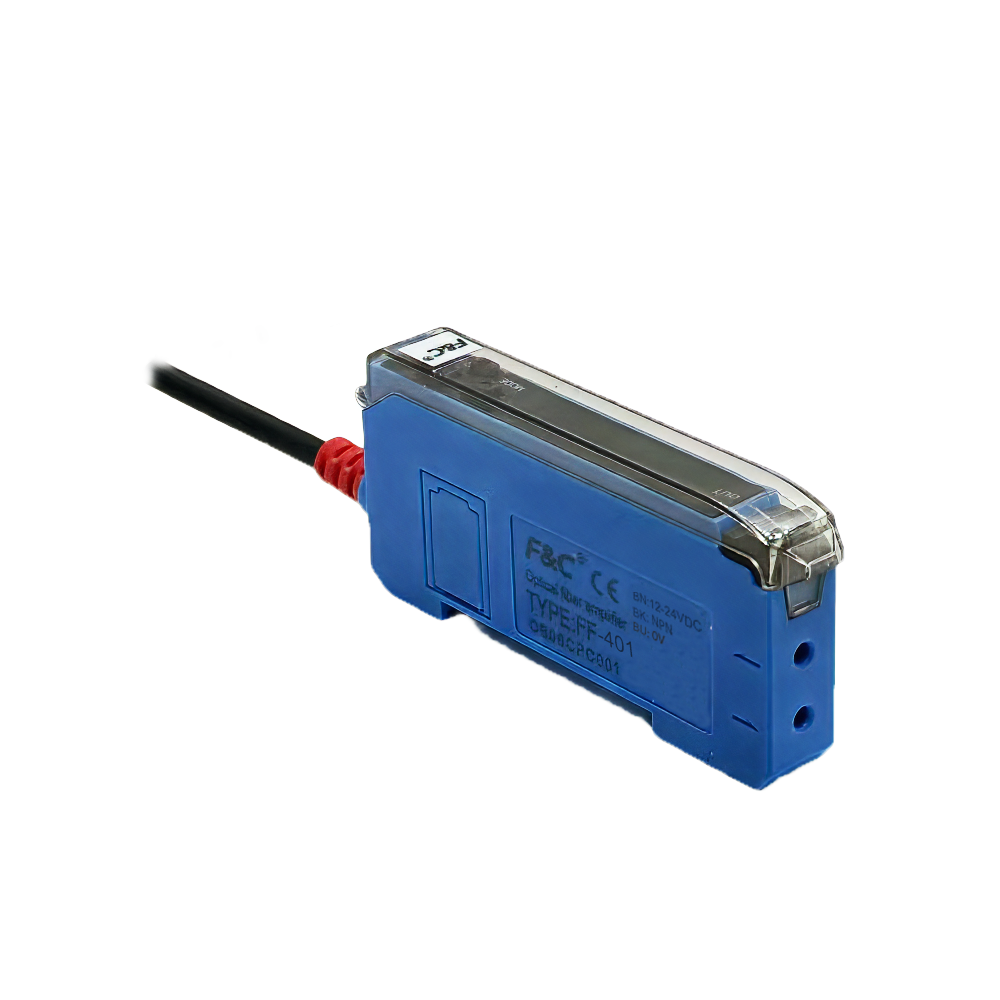

FF-401 High-speed digital display amplifier

Comprehensive Technical Overview of the FF-401 Digital Display Amplifier

Core Performance & Precision Detection

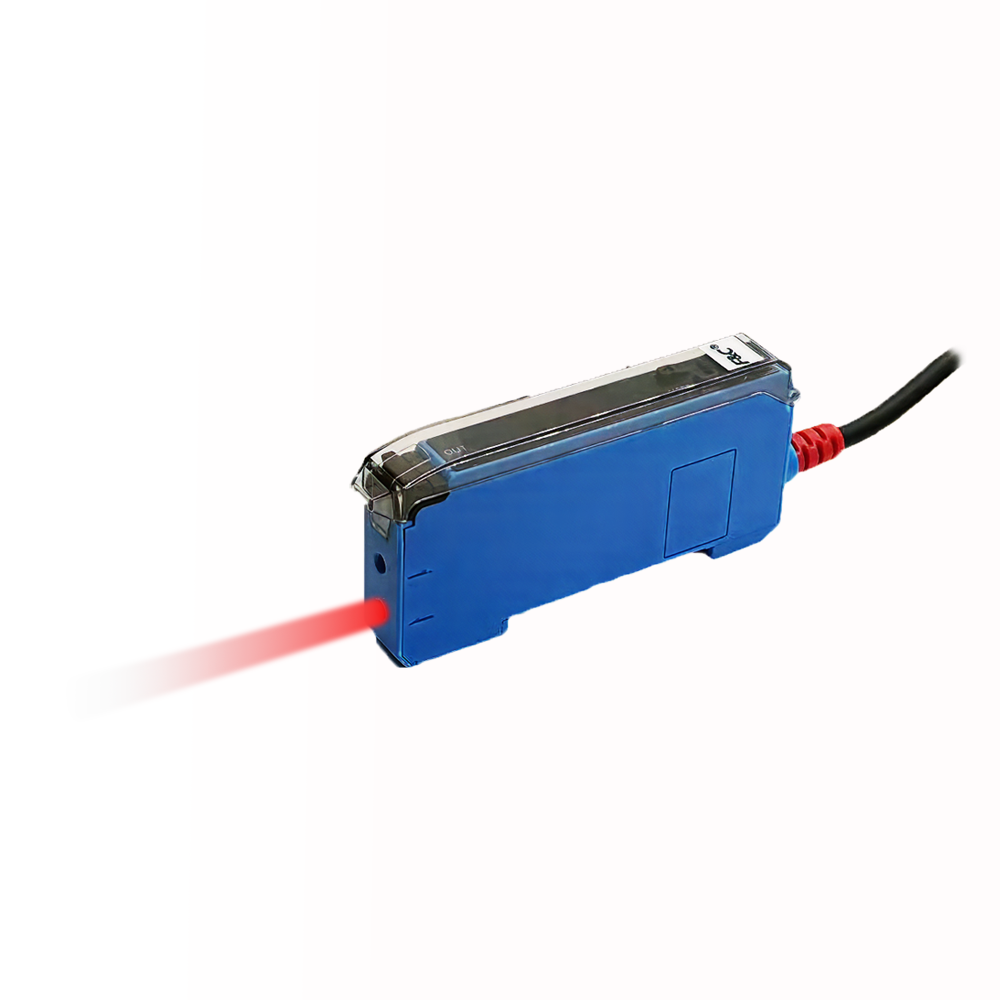

The FF-401 digital display amplifier is engineered to deliver exceptional precision in high-frequency detection environments. At the heart of its architecture is a selectable rapid response time, enabling instantaneous signal processing critical for fast-paced automated production lines. By offering selectable response times of 50us, 300us, 1ms, and 2ms, the device allows technicians to perfectly balance speed and stability based on specific application requirements. Industrial environments are often plagued by electromagnetic noise, which is why this amplifier incorporates advanced anti-interference technology. This ensures that the 630nm red modulated light source maintains a stable, uninterrupted signal even when surrounded by heavy machinery or variable lighting conditions. By mitigating false triggers and signal degradation, facilities can achieve higher throughput without compromising on detection accuracy. Furthermore, the integrated timer functions—adjustable from 1 to 9999ms across OFF, ON-D, OF-D, and SHOT modes—provide engineers with granular control over signal output timing, translating directly to reduced downtime and minimized material waste.

Intuitive Operation & Visual Feedback

Operational efficiency relies heavily on clear, immediate feedback. The FF-401 addresses this with a high-contrast display featuring 4-digit green and 4-digit red LEDs. The crisp luminance of these digits cuts through the dim, particulate-heavy air often found in manufacturing facilities, allowing operators to monitor real-time values and threshold settings from a distance without straining. The tactile interface includes a streamlined one-key teaching function. With a firm, responsive press of the membrane button, accompanied by a distinct mechanical yield, technicians can calibrate the sensor to specific targets in seconds, eliminating the need for convoluted manual adjustments. This straightforward setup process drastically reduces commissioning time during line changeovers. The combination of tactile controls and highly visible digital readouts ensures that on-site debugging is both intuitive and highly efficient, empowering floor operators to maintain optimal system performance.

Adaptability & Equipment Compatibility

Integration into diverse control architectures requires flexible output and connection strategies. Operating on a stable 12~24VDC (±10%) voltage, the FF-401 amplifier is designed to bridge communication gaps effortlessly across various machine builds, from legacy systems to modern automated controllers. Key compatibility features include:

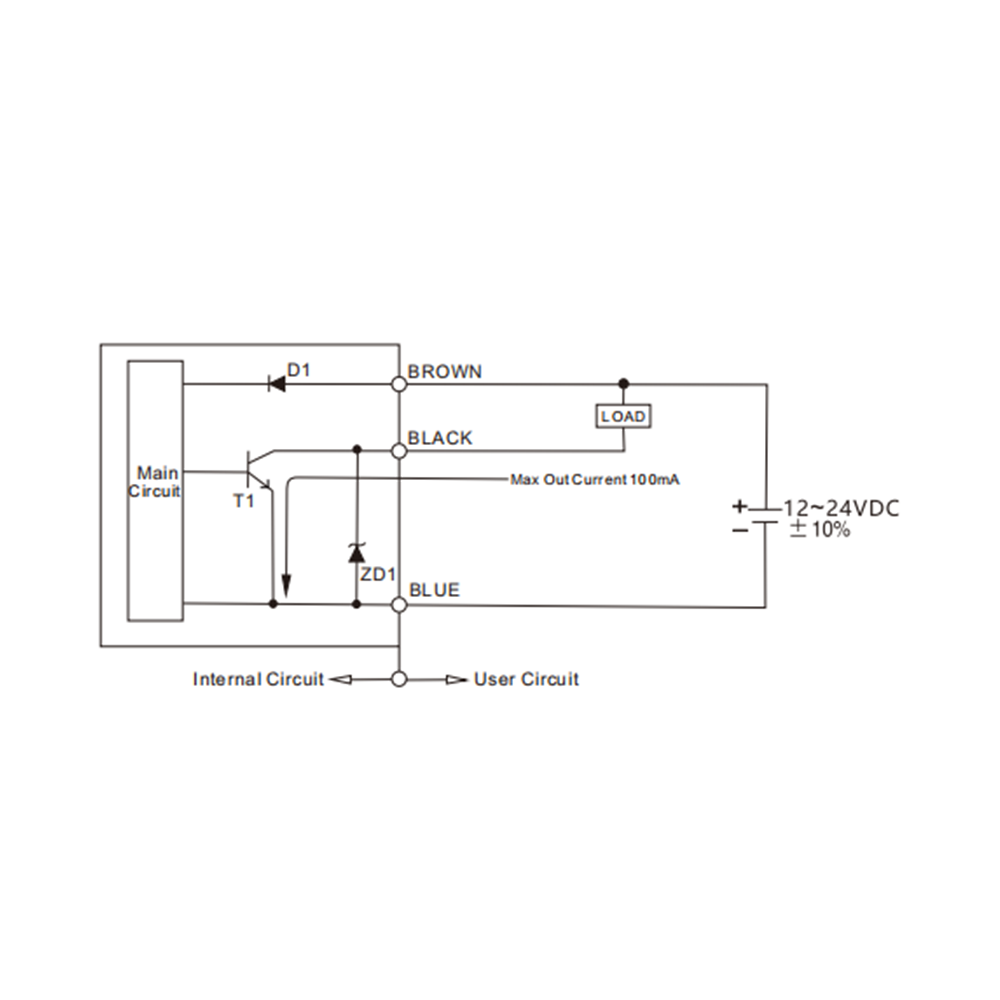

• Versatile Output Modes: Features an NPN configuration with adjustable Normally Open (N.O.) and Normally Closed (N.C.) states, making it adaptable to a wide array of programmable logic controllers (PLCs).

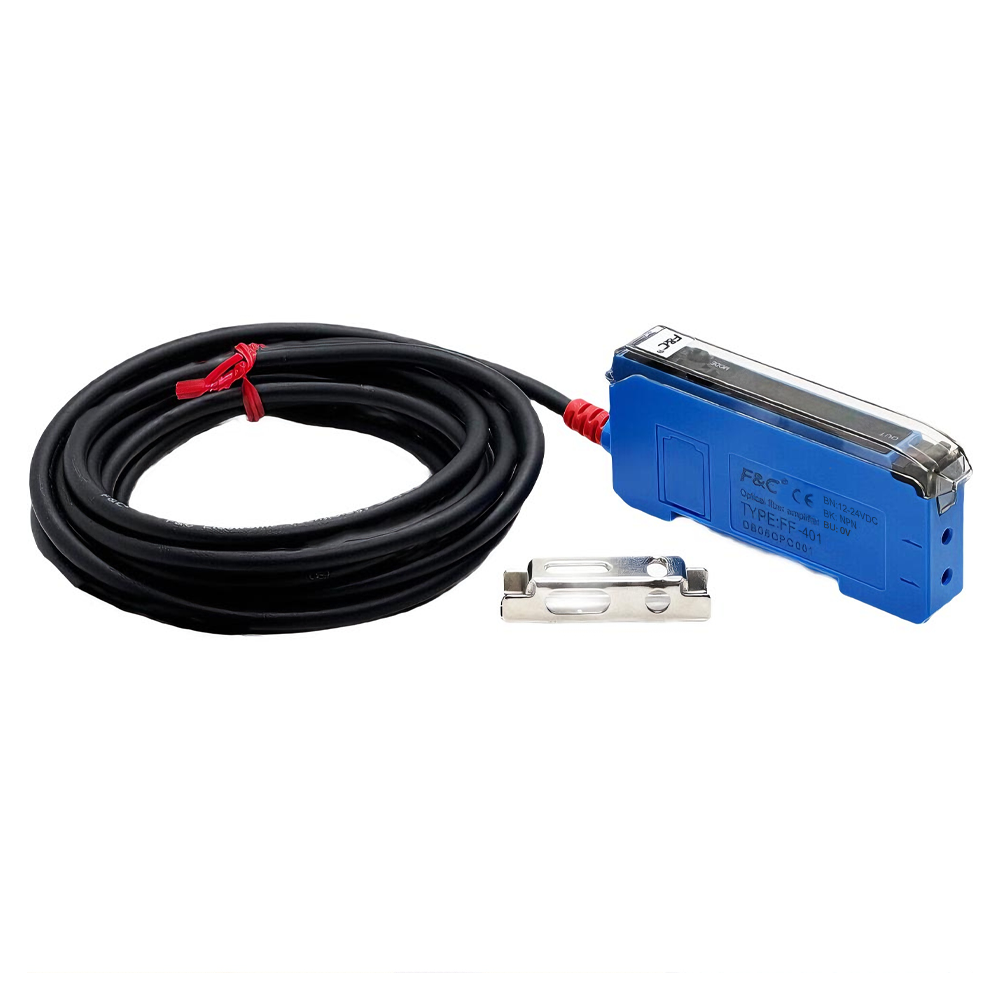

• Robust Physical Connections: Supplied with a durable, pre-wired 2-meter cable featuring a robust 4.0mm, 4-core construction that withstands continuous flexing through tight machine conduits and cable carriers.
• Modular Alternatives: Supports standard M8 connector options to accommodate modular machine designs, simplifying inventory management and streamlining electrical schematics for large-scale deployments.

Industrial Applications & Deployment

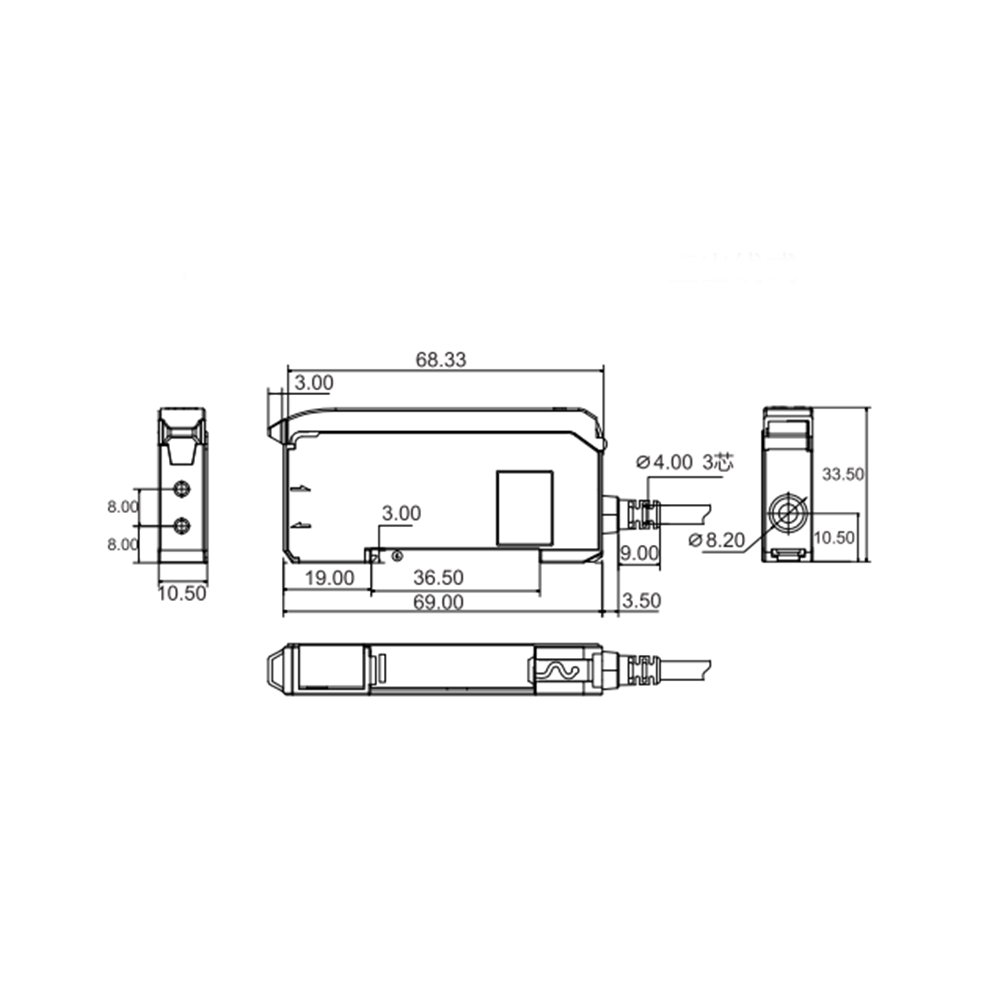

The compact footprint (69 × 33.5 × 10.5 mm) and ultra-lightweight profile (approximately 65g) of the FF-401 make it a vital component across numerous demanding sectors where spatial efficiency is paramount:

• Smart Manufacturing: Provides the precise part-presence detection required for automated assembly cells and complex conveyor routing systems.
• Packaging Machinery: Leverages rapid response times to ensure accurate registration and counting of fast-moving consumer goods, maintaining rhythm on high-speed lines.
• Plastic Machinery: Reliably monitors the ejection of molded parts, safeguarding expensive tooling from damage caused by stuck or misaligned components.
• Industrial Robots: Ideal for end-of-arm tooling where minimizing payload weight is critical for maintaining robotic arm speed, precision, and longevity.

Quality Control & Engineering Support

Reliability in harsh conditions is non-negotiable for continuous production environments. The FF-401 is constructed with a rugged housing that achieves an IP54 protection rating, effectively shielding the sensitive internal electronics from dust ingress and splashing water typical in active industrial zones. Certified to CE standards, it guarantees compliance with stringent international safety and performance criteria, facilitating smoother global export for machine builders. The amplifier maintains optimal functionality across a broad ambient temperature range of -10 to 50°C, preventing thermal drift during intensive, round-the-clock operations. To accelerate the design and specification phase, comprehensive technical documentation is readily available. Engineers have direct access to detailed CAD drawings, precise 3D models, complete circuit diagrams, and exhaustive specification sheets. This extensive support ecosystem ensures accurate digital prototyping, reduces design iterations, and accelerates the overall time-to-market for new automation equipment builds.
