SJTI-AL50N R2M Through-beam Photoelectric Sensor

In-Depth Product Analysis & Engineering Guide

Engineered for Constrained Industrial Spaces

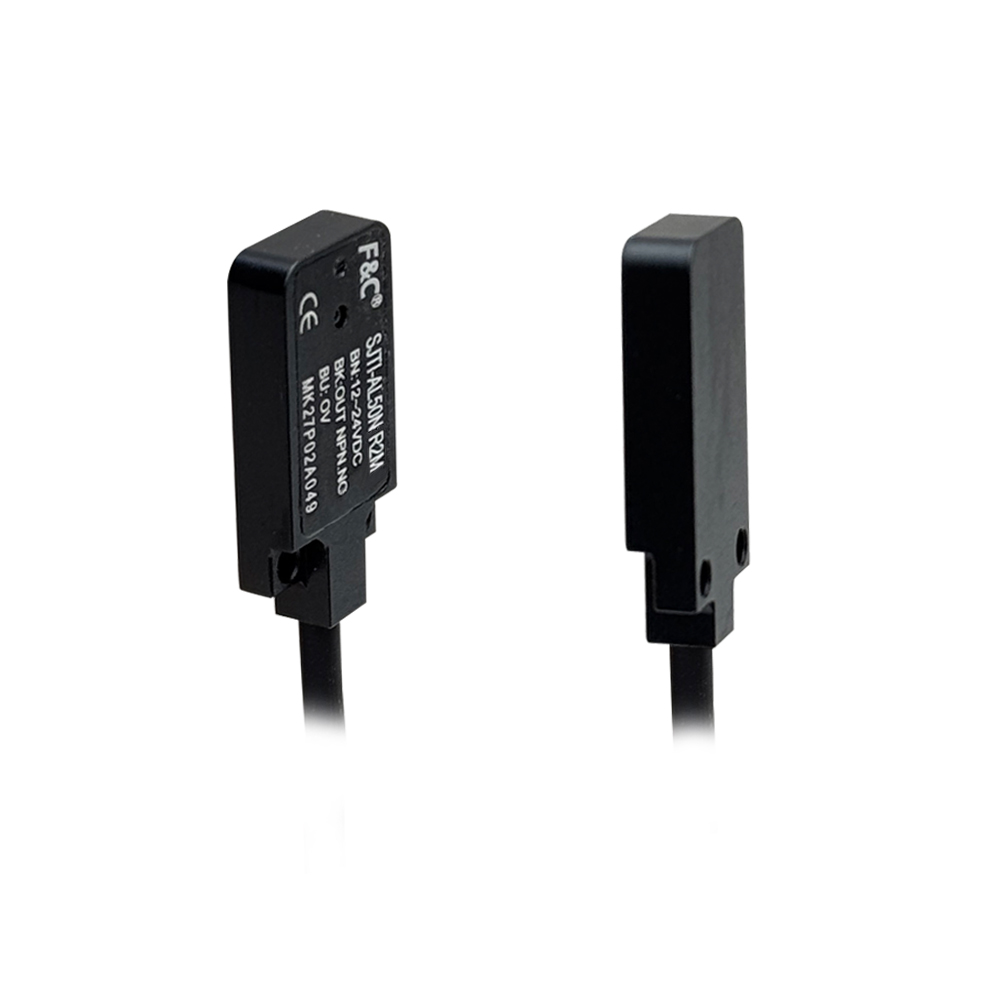

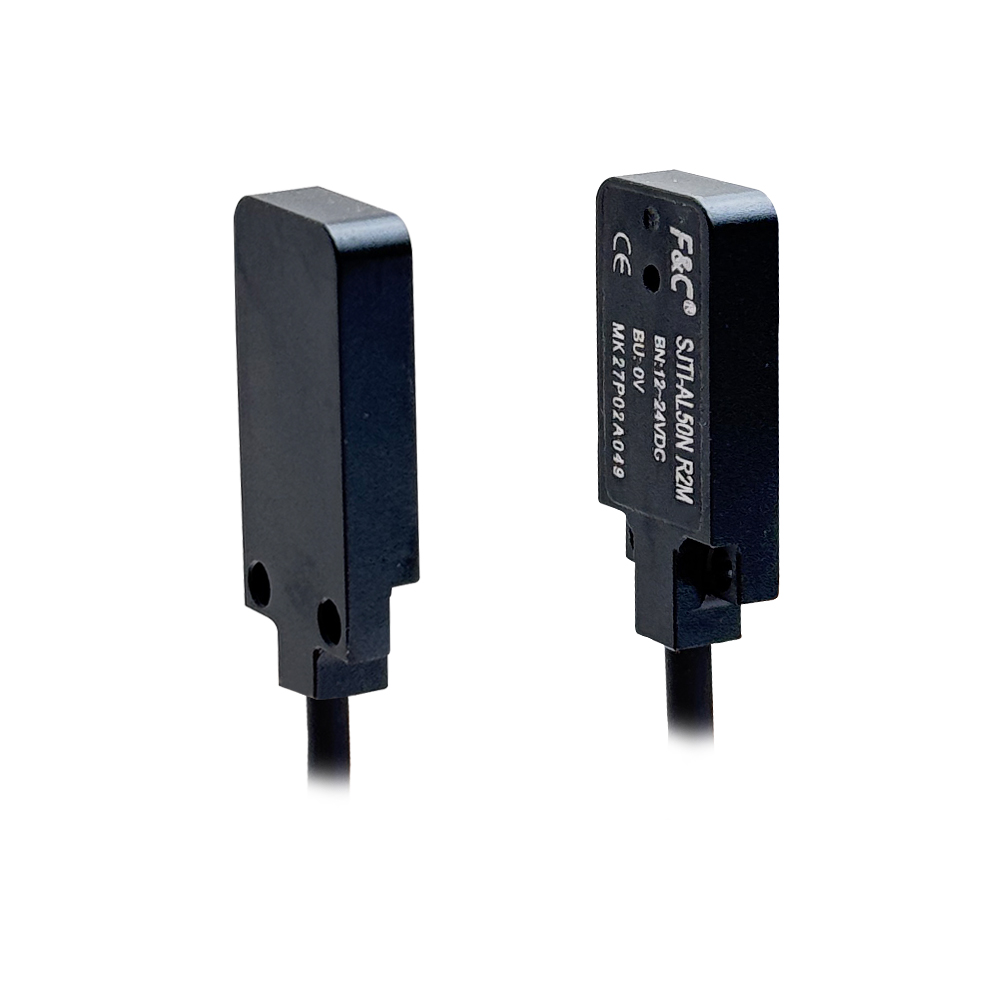

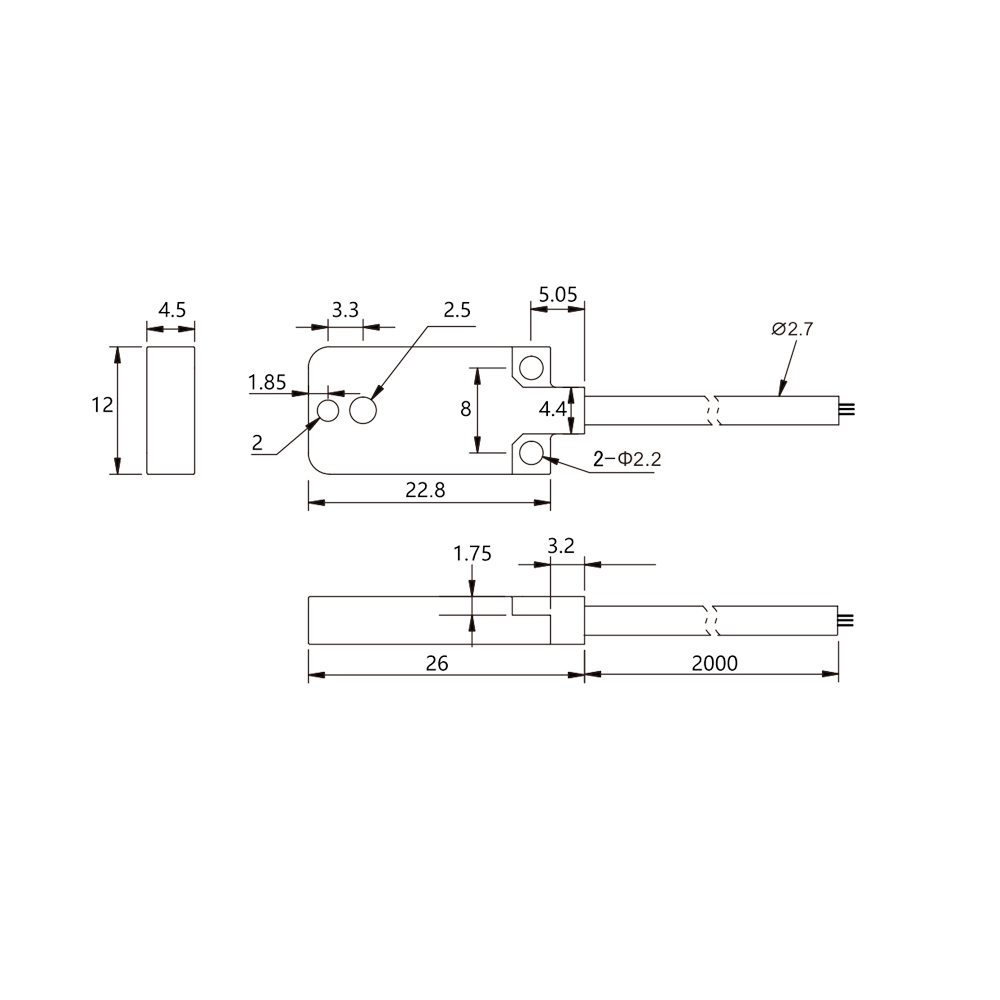

When handling the SJTI-AL50N R2M through-beam photoelectric sensor, the immediate physical impression is one of dense, industrial-grade durability. The cool, rigid touch of the extruded aluminum (AL) housing communicates immediate resilience, a stark contrast to standard plastic alternatives that often degrade under mechanical stress. Measuring an incredibly slim 26×12×4.5mm, this ultra-compact profile is specifically engineered to resolve the most demanding installation challenges within densely packed mechanical environments. Equipment designers frequently struggle with spatial limitations in modern automated machinery, where every millimeter is critical. By integrating this micro-sized sensor, engineers can embed precise detection capabilities directly into tight corners, robotic arms, or narrow conveyor guides without altering the broader machine footprint. The metallic enclosure not only provides structural integrity against physical impacts but also acts as an effective shield against ambient electromagnetic interference, ensuring consistent operation even when routed near high-voltage motor drives.

Rapid 2ms Response for Micro-Object Detection

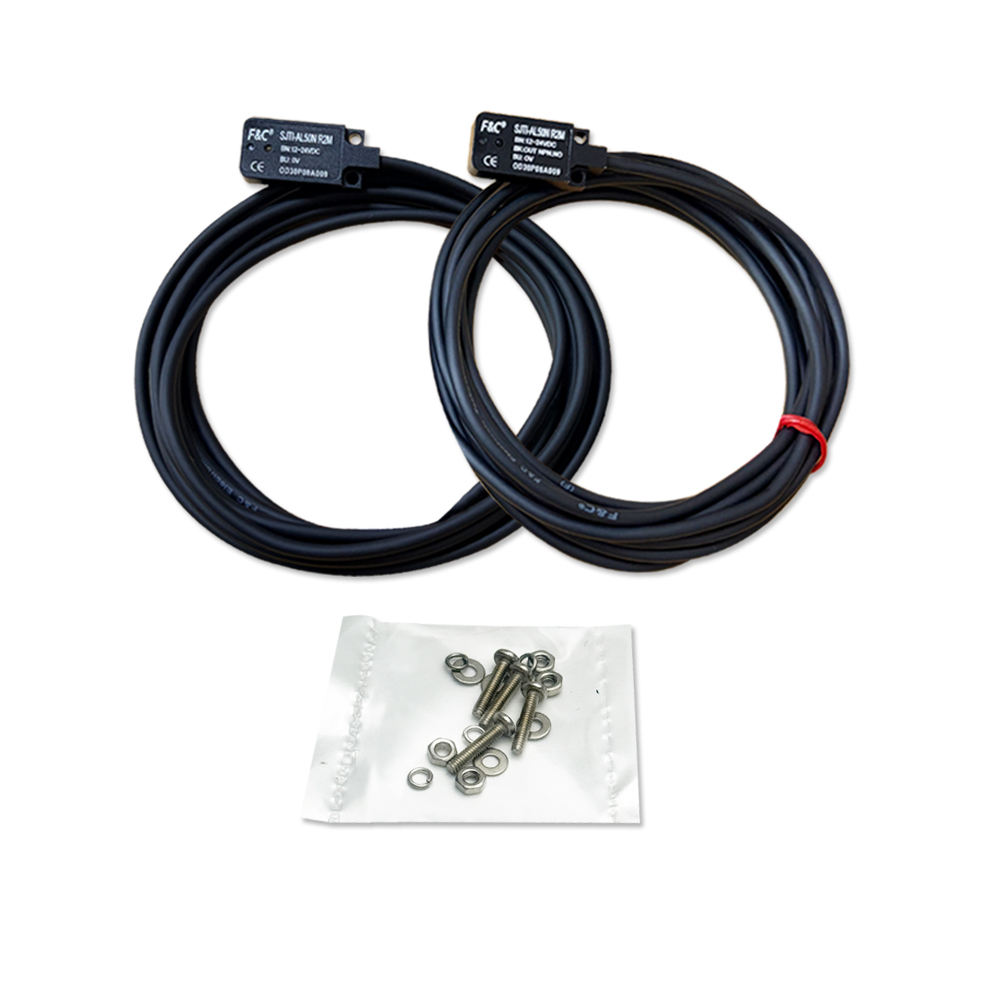

At the core of this photoelectric sensor is a finely tuned optical system designed to project a concentrated Ø1mm beam across a reliable 500 mm sensing distance. This focused emission is critical for identifying micro-components that standard wide-beam sensors might miss or misinterpret. Operating with a rapid 2 ms response time, the device captures fleeting movements on high-speed production lines, instantly transmitting NPN, Normally Open (NO) signals to the central logic controller. In fast-paced manufacturing, a delay of even a few milliseconds can result in misaligned parts, packaging errors, or material jams. This sensor eliminates that latency. The optical lens is crafted to resist dust accumulation, maintaining a clear line of sight across the emitter and receiver gap. Furthermore, the 2-meter straight-out cable offers immediate tactile flexibility, allowing installers to route the wiring smoothly through complex cable carriers without excessive strain or the need for immediate extension splices. This combination of optical precision and rapid electrical switching ensures that automated systems maintain peak throughput without sacrificing accuracy.

Comprehensive Circuit Protection and IP54 Reliability

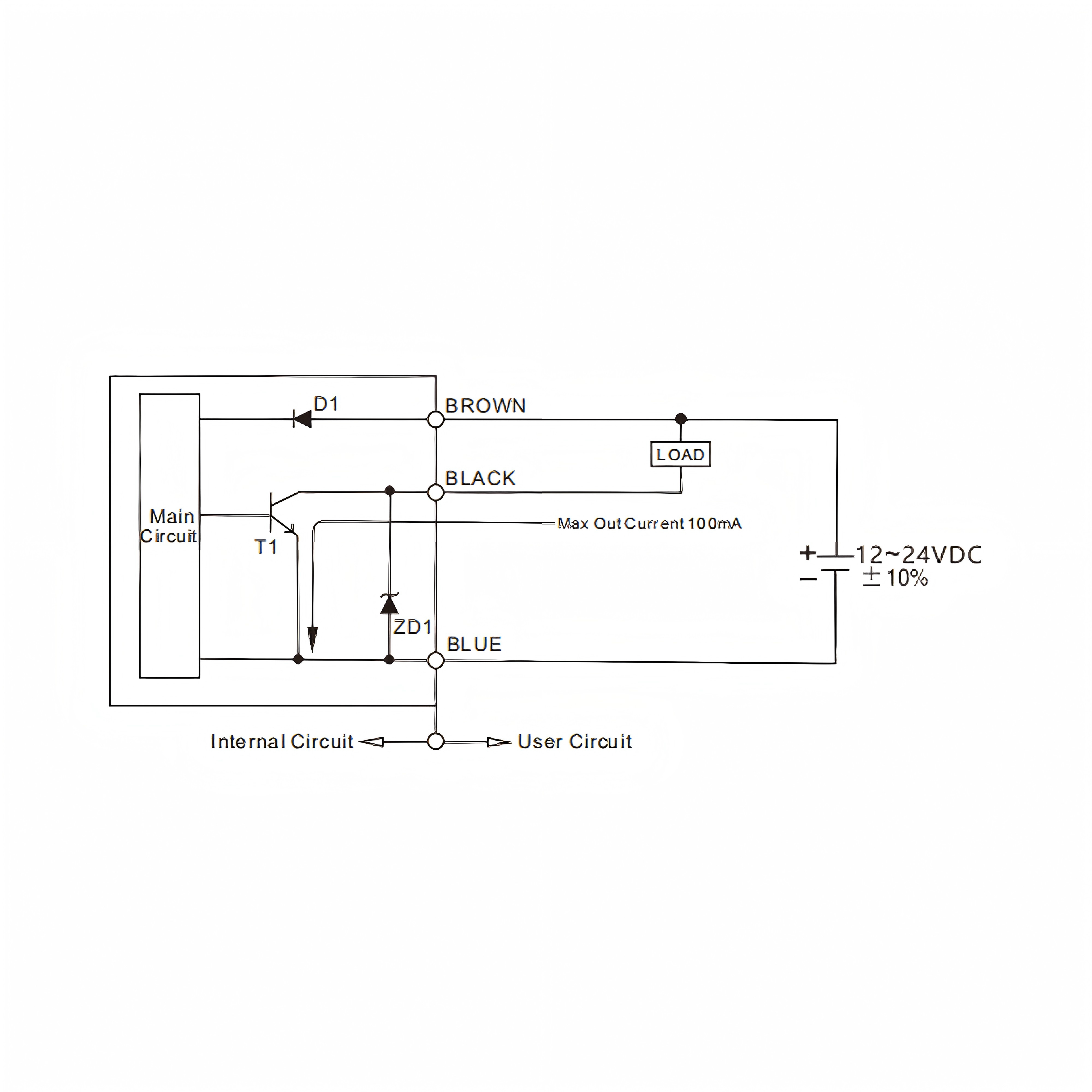

Industrial environments are inherently unpredictable, characterized by fluctuating temperatures, airborne particulates, and occasional wiring mishaps during rapid maintenance cycles. The SJTI-AL50N R2M is fortified against these exact variables. It features an IP54 protection rating, meaning the internal circuitry is securely sealed against dust ingress and splashing water from any direction. You can physically feel the tight tolerances in the housing joints, which prevent moisture from compromising the sensitive optical components. Electrically, the sensor operates on a versatile 12~24 VDC ±10% voltage range, accommodating the minor power dips and surges common in heavy machinery networks. More importantly, it integrates essential reverse polarity and short-circuit protection. If a technician accidentally crosses wires during a high-pressure line changeover, the internal safeguards prevent catastrophic failure of both the sensor and the connected programmable logic controller (PLC). Capable of functioning flawlessly in ambient conditions ranging from -10 to 50℃ and handling 35 to 85% relative humidity, this device ensures continuous operation in unconditioned factory floors, reducing unexpected downtime and minimizing replacement frequencies.

Optimizing Complex Automated Manufacturing Sectors

The distinct combination of a micro-sized aluminum footprint and high-speed optical precision makes this through-beam sensor an invaluable asset across multiple advanced manufacturing sectors. Its adaptable nature solves specific detection bottlenecks in various industries:

• 3C Electronics Assembly: In the production of smartphones and computers, where components are microscopic and space is severely limited, the Ø1mm beam accurately verifies the presence of tiny screws, microchips, and delicate ribbon cables before the next assembly stage proceeds.
• Semiconductor Fabrication: The clean, dust-resistant design and precise detection capabilities are ideal for monitoring wafer positioning and tracking delicate lead frames through automated inspection stations without physical contact.
• Packaging Machinery: On high-speed bottling or cartoning lines, the 2ms response time guarantees that fast-moving transparent films, labels, or small caps are detected instantly, preventing material waste and mechanical jams.
• Plastics and Injection Molding: The resilient aluminum housing withstands the vibrations and occasional impacts found near molding ejector pins, reliably confirming part ejection before the heavy steel mold closes again.

Accelerating Design with Comprehensive Technical Resources

Selecting the right sensor is only the first step in machine design; integrating it directly into a complex digital model is where true engineering efficiency lies. To support mechanical designers and system integrators, we provide a complete suite of technical resources for the SJTI-AL50N R2M. Detailed CAD files and 3D step models are readily available for download, allowing designers to virtually drop the sensor into their assemblies, verify clearances, and plan cable routing long before any physical metal is cut. Additionally, comprehensive specification sheets offer deep dives into optical curves, wiring diagrams, and load current characteristics (up to 100 mA). For projects requiring hands-on validation, physical sample testing services are offered. This allows procurement teams and engineering departments to physically evaluate the sensor's tactile build quality, verify the 500mm detection range in their specific lighting conditions, and confirm electrical compatibility with their proprietary control panels before committing to full-scale deployment.
