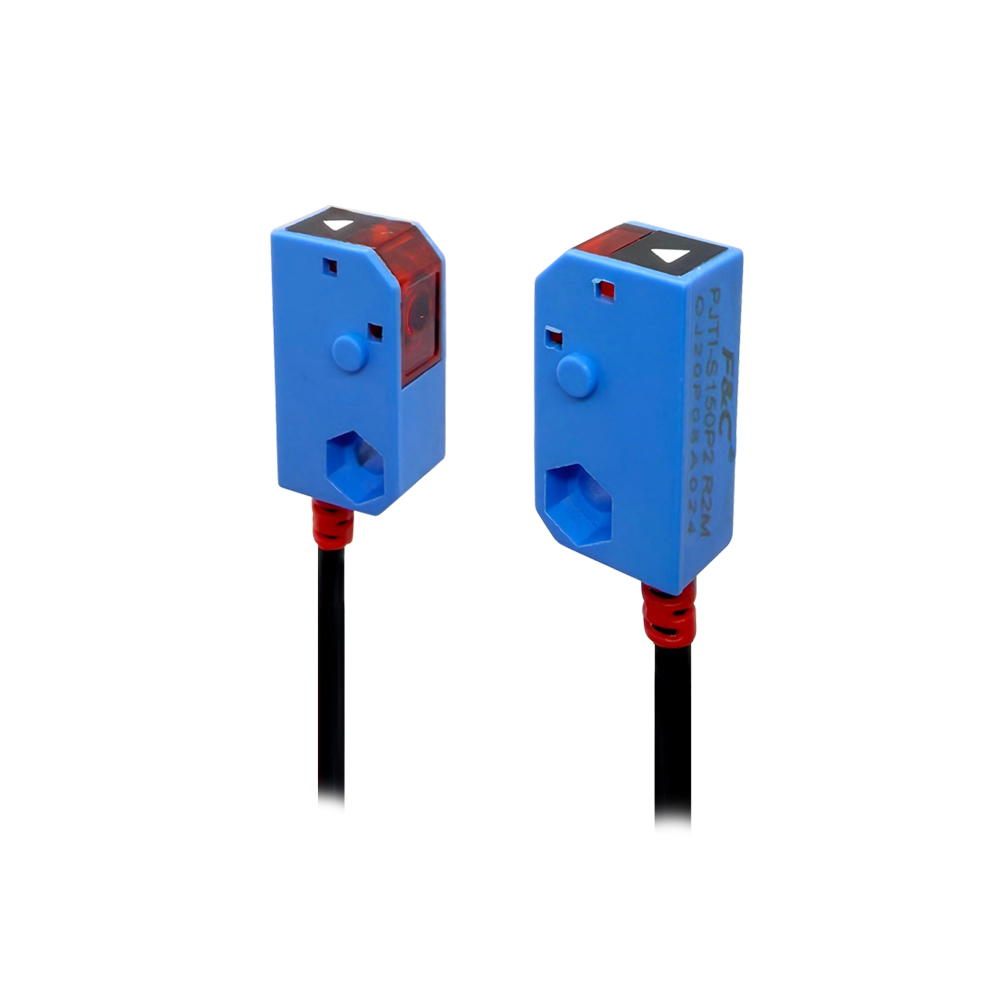

PJTI-S150P2 R2M Through-beam ultra-small photoelectric sensor

Comprehensive Product Details

The PJTI-S150P2 R2M through-beam photoelectric sensor represents a critical component for modern industrial automation, specifically engineered to address the dual challenges of spatial constraints and the need for absolute detection accuracy. As production lines become increasingly compact and operational speeds accelerate, the demand for sensing components that can reliably identify micro-objects without occupying excessive space is paramount. This sensor delivers a highly focused beam capable of traversing significant distances while maintaining a miniature footprint, ensuring that complex equipment operates efficiently and without interruption. The physical construction feels dense and structurally sound, providing immediate tactile assurance of its durability right out of the box. Procurement specialists and facility managers will appreciate the meticulous engineering that ensures long-term operational stability, reducing the frequency of maintenance interventions and replacement cycles.

Ultra-Compact Architecture & Environmental Resilience

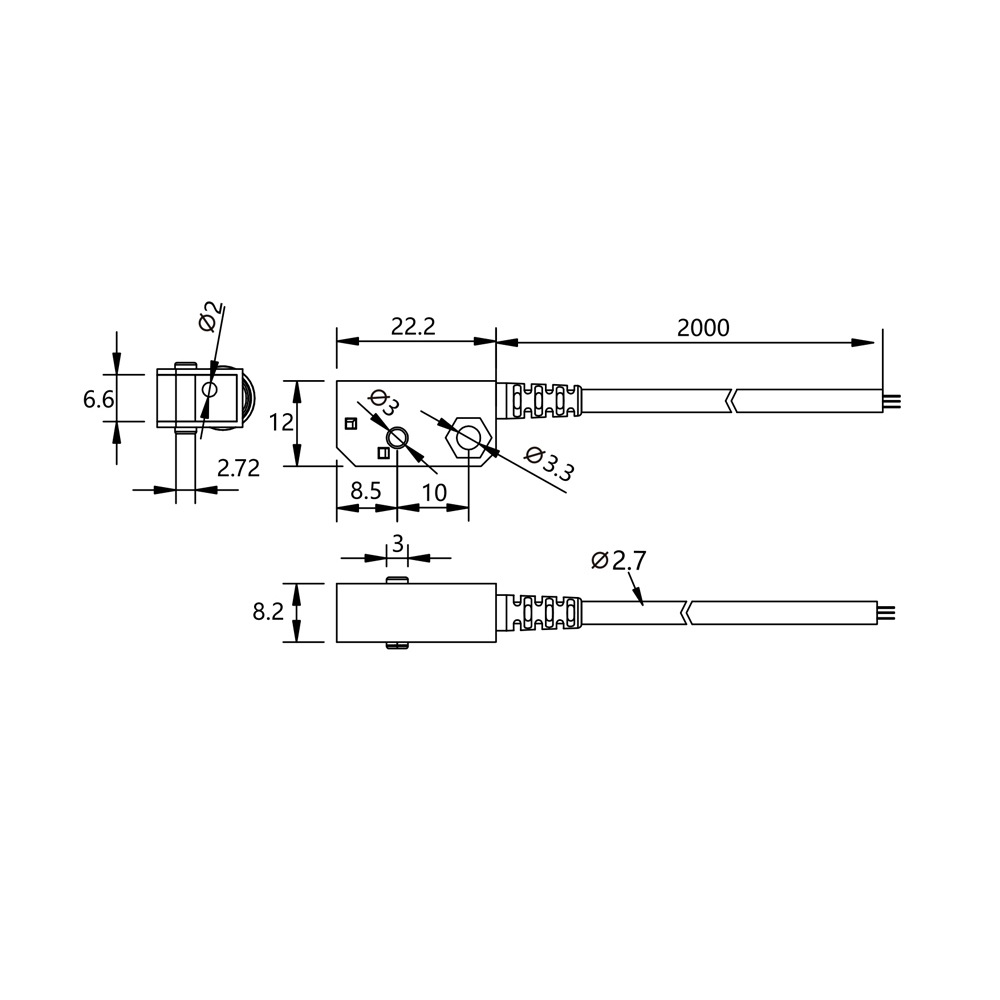

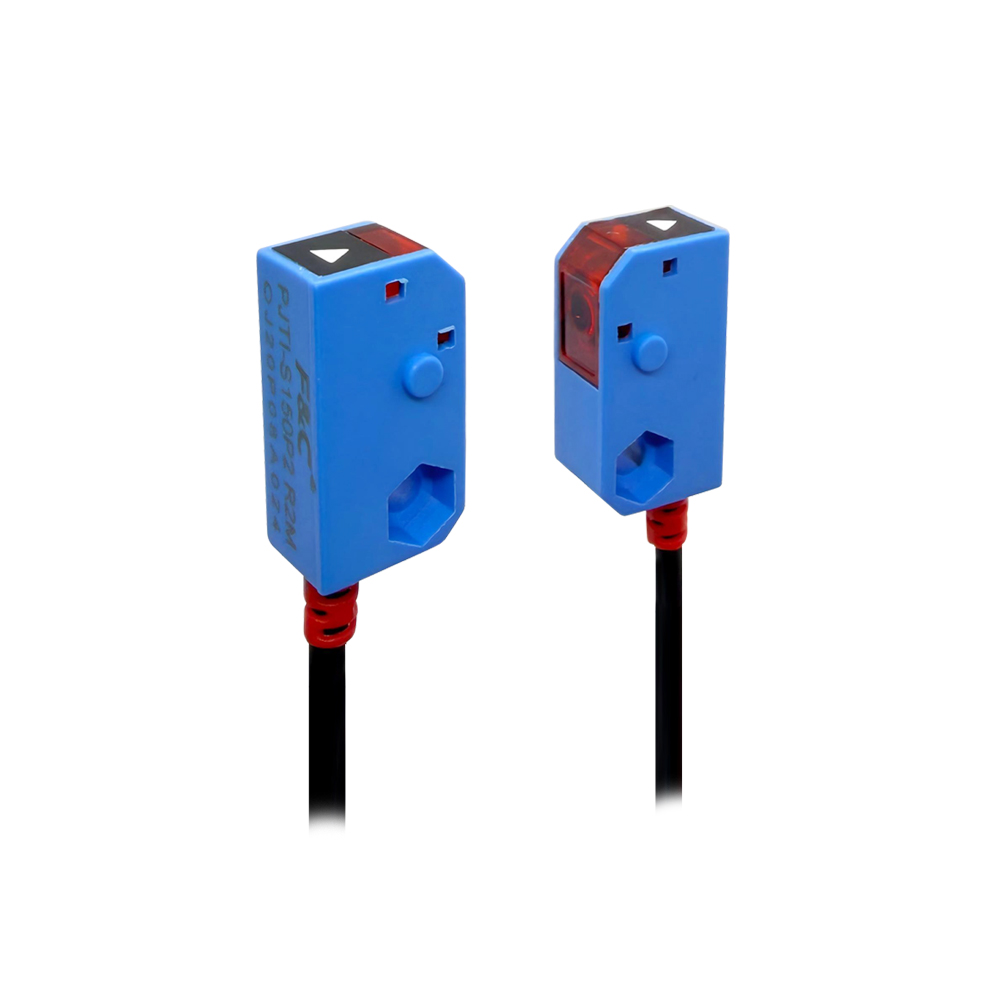

Measuring a mere 22.2 by 8.2 by 12 millimeters, the ultra-small physical profile of this photoelectric sensor is intentionally designed to resolve severe installation bottlenecks within tightly packed industrial machinery. Engineers frequently encounter situations where standard-sized sensors simply cannot fit into the required mounting brackets or between moving mechanical parts. This miniature design eliminates those spatial limitations entirely. The exterior housing is constructed from a specialized blend of Polybutylene Terephthalate (PBT) and Polyvinyl Chloride (PVC). Running your fingers along the casing reveals a smooth, hardened surface that resists chemical degradation and mechanical wear. Furthermore, the IP54 protection rating ensures that the internal optics and circuitry remain securely sealed against dust ingress and splashing water. Whether deployed in a chilled processing facility or a warm assembly plant, the device maintains consistent operational integrity across a demanding ambient temperature range of -10 to 50 degrees Celsius, accompanied by a humidity tolerance of 35 to 85 percent.

Long-Range Precision & Millisecond Responsiveness

At the core of its operational capability is a remarkable 1500-millimeter sensing distance, achieved through a highly synchronized through-beam configuration. By utilizing a distinct emitter and receiver setup, the sensor generates a concentrated 2-millimeter diameter optical beam (Beam Ø2) that cuts through the air with absolute clarity. This focused transmission is specifically calibrated for the precise identification of micro-objects, guaranteeing zero-miss detection even when the target items are exceptionally small or fast-moving. This level of precision ensures that quality control standards are met consistently, preventing defective or incomplete products from advancing further down the assembly line. In fast-paced manufacturing environments, detection speed is just as critical as accuracy. The device features an exceptional 2-millisecond response time. This rapid processing capability means that as soon as an object breaks the optical path, the signal is instantaneously relayed to the control system. Such swift reaction times are indispensable for high-speed automated production lines, particularly in sectors like electronics and semiconductors, where a delay of mere milliseconds can result in misaligned components or significant material waste.

Electrical Stability & Wiring Adaptability

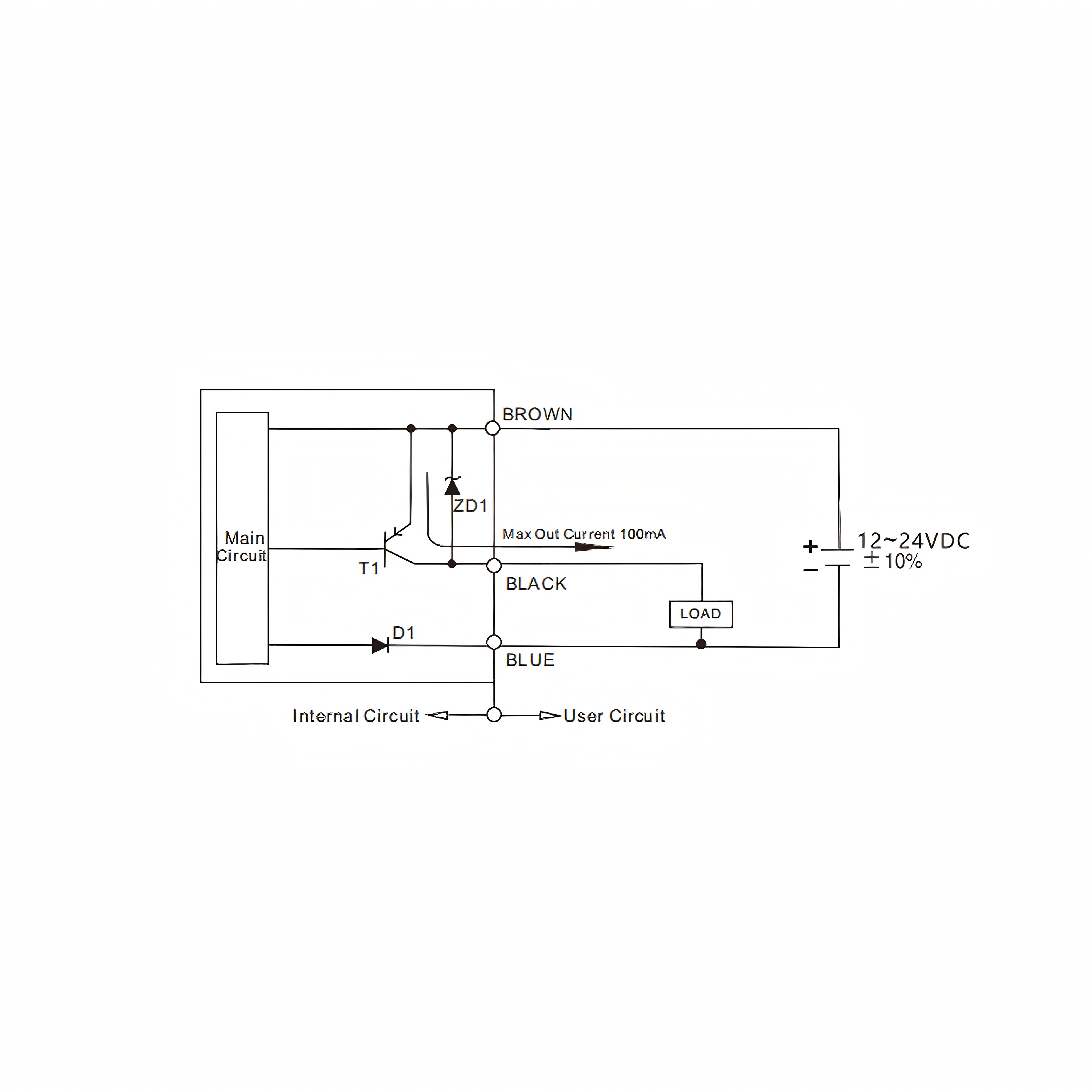

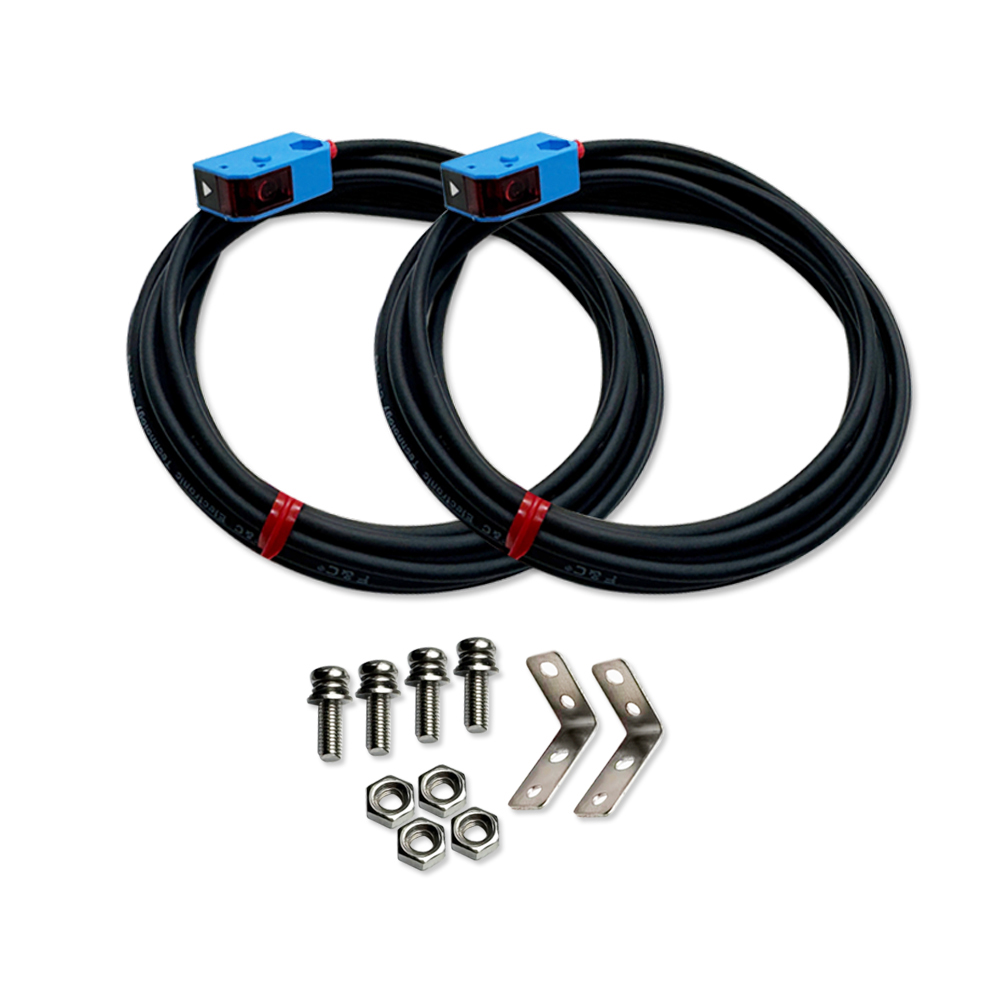

Electrical reliability forms the backbone of any continuous manufacturing process. The PJTI-S150P2 R2M is fortified with built-in reverse polarity and short-circuit protection circuits. These internal safeguards act as an invisible shield, protecting the delicate internal components from unexpected voltage spikes, incorrect wiring during installation, and severe electromagnetic interference commonly found in heavy-duty industrial environments. The sensor operates steadily on a 12 to 24 VDC supply, accommodating minor power fluctuations with a ±10% tolerance. For physical integration, the unit is equipped with a two-meter, highly flexible straight-out cable. The wire jacket feels supple yet highly resilient, allowing technicians to route the cable through tight corners, robotic joints, and complex cable carriers without risking internal wire fatigue or breakage. Operating in a PNP Normally Closed (NC) output mode with a load current capacity of 100 mA, it provides a fail-safe signaling mechanism that integrates directly into standard Programmable Logic Controllers (PLCs), ensuring that any loss of power or wire disconnection immediately halts the machine to prevent damage.

Core Industry Applications & Strategic Implementation

The unique combination of miniature size, extended detection range, and rapid signal processing makes this through-beam sensor an invaluable asset across several precision-driven industries. Its deployment significantly enhances operational efficiency and error reduction in the following critical areas:

• Electronics Manufacturing: Accurately detecting the presence, orientation, and positioning of tiny surface-mount components on printed circuit boards before they enter the soldering phase.
• Semiconductor Processing: Monitoring the movement of delicate silicon wafers through automated handling systems, ensuring precise alignment without any physical contact that could cause contamination or micro-fractures.
• Automotive Parts Assembly: Verifying the correct insertion of small fasteners, clips, and micro-switches in complex dashboard assemblies or engine control units, preventing incomplete assemblies from moving down the line.
• Automated Packaging Systems: Confirming the passage of small pharmaceutical vials or cosmetic containers on high-speed conveyor belts, ensuring accurate counting and preventing downstream mechanical jams.
