PJTI-S150P R2M Through-beam ultra-small photoelectric sensor

Comprehensive Product Description & Operational Capabilities

The PJTI-S150P R2M Through-beam Photoelectric Sensor is engineered to deliver precise object detection in highly constrained industrial environments. By combining an ultra-small physical footprint with capable sensing electronics, this device provides consistent target recognition for automated production lines. Industrial automation requires components that can be installed in tight clearances without sacrificing detection range or reaction speed. This sensor addresses those exact operational requirements, offering a dependable solution for engineers and procurement specialists outfitting modern manufacturing facilities. Standardizing on this versatile, micro-sized sensor helps reduce inventory complexity while meeting the diverse detection needs of various machine centers.

Ultra-Compact Structural Design and Integration Adaptability

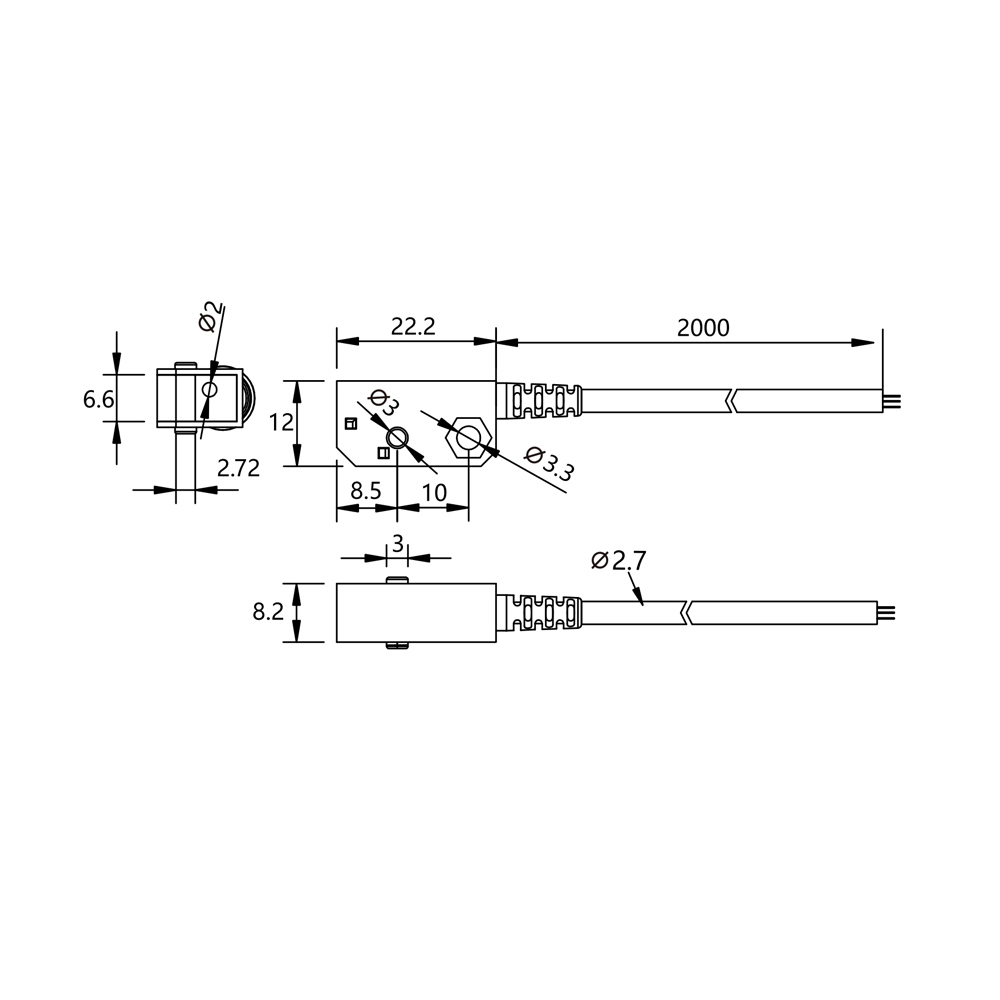

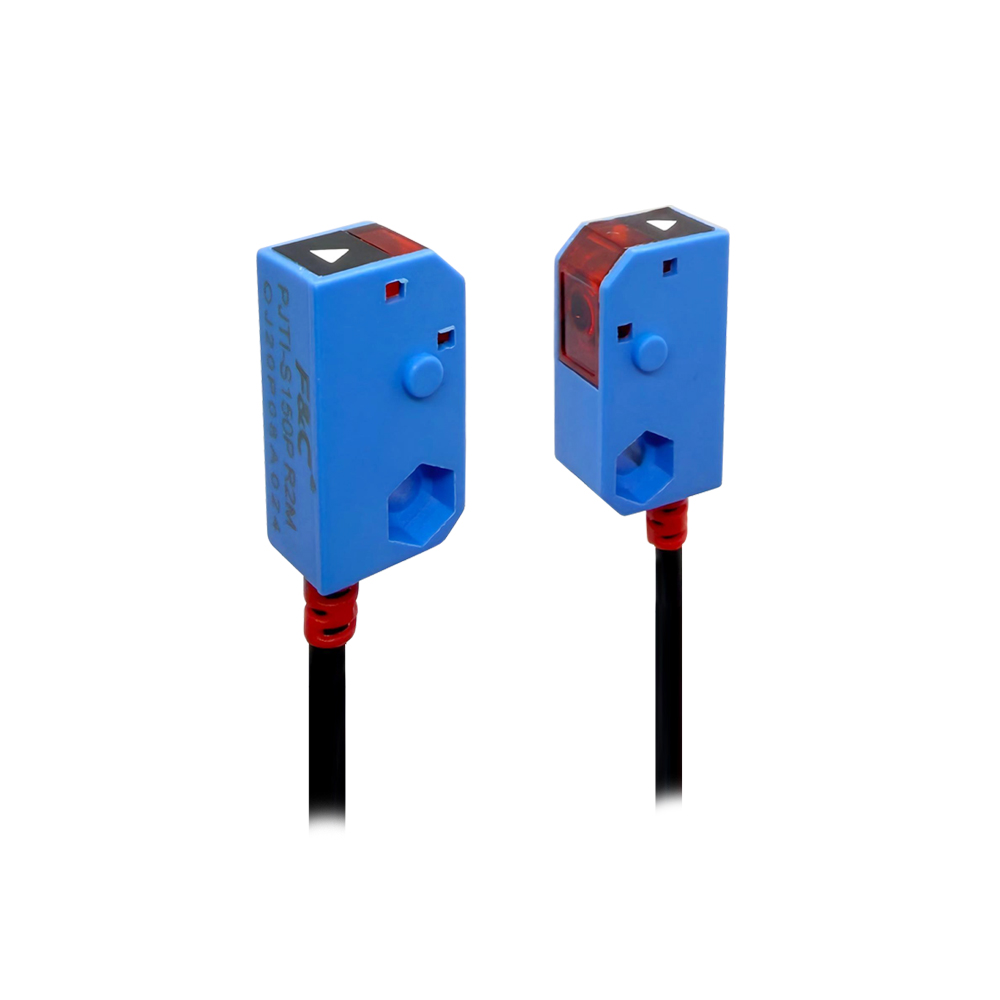

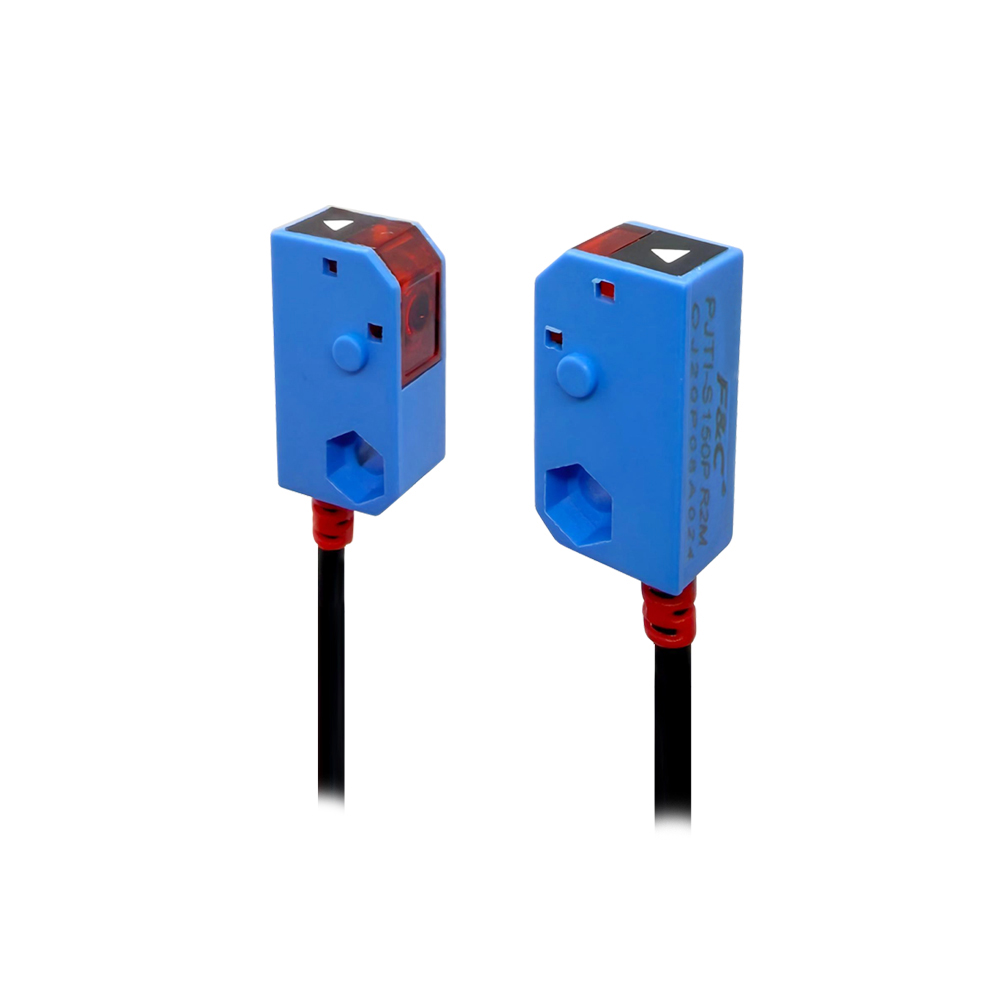

Space is a premium resource in contemporary machinery design. The PJTI-S150P R2M features an exceptionally small housing, measuring exactly 22.2 by 8.2 by 12 millimeters. This miniature profile allows installation in confined areas where standard-sized sensors simply cannot fit. The exterior shell is manufactured from a specialized blend of PBT (Polybutylene Terephthalate) and PVC. Touching the housing reveals a dense, rigid construction with a smooth matte finish that naturally resists the accumulation of industrial dust and airborne particulates. The tactile feedback of the mounting points ensures a secure fit when tightened against metal brackets, resisting loosening from constant machine vibrations.

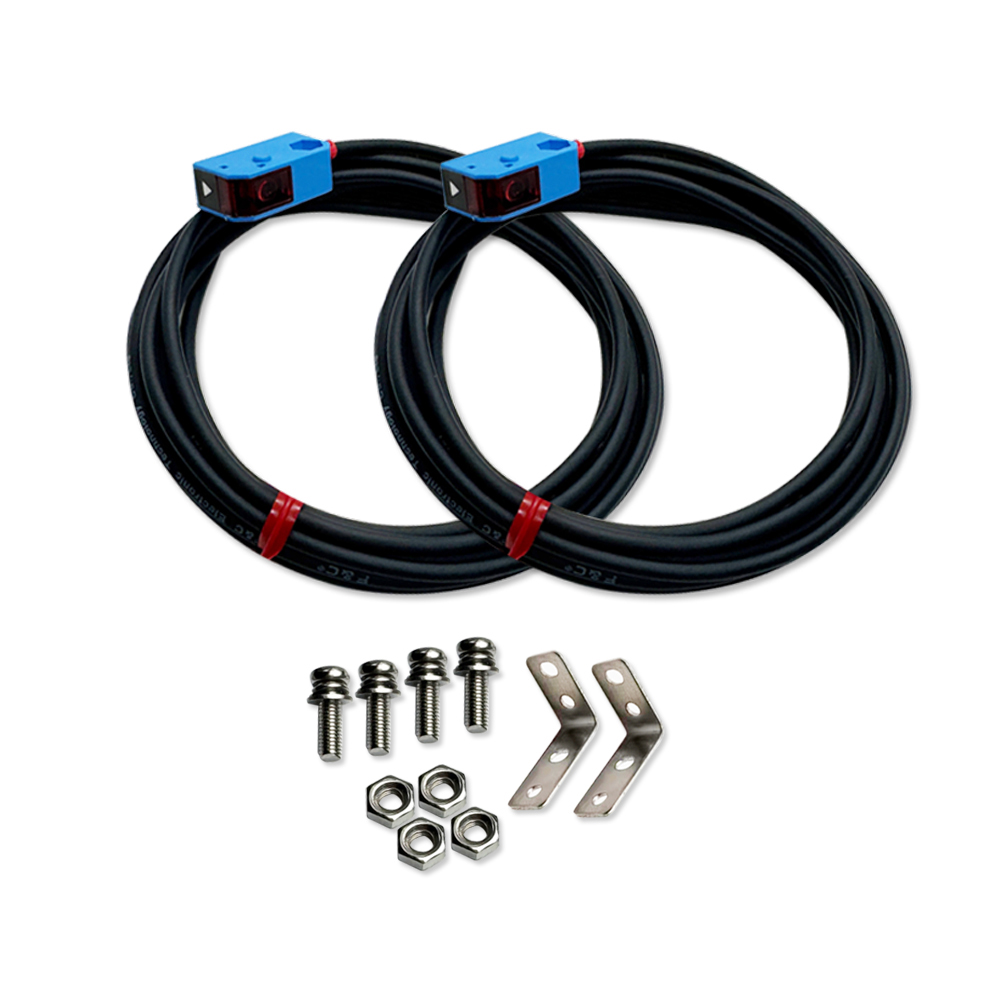

Beyond the compact dimensions, physical integration is further supported by a 2-meter straight-out cable. The cable jacket is highly flexible, providing a smooth, friction-resistant surface that bends easily around tight corners and mechanical linkages without stressing the internal wiring. This flexibility significantly reduces installation time. Coupled with a PNP Normally Open (NO) output mode, the sensor integrates directly into standard programmable logic controllers (PLCs), streamlining the electrical setup process for equipment builders and maintenance teams.

Precision Detection Performance and Rapid Response

At the core of the PJTI-S150P R2M is a highly focused optical system capable of maintaining a sensing distance of up to 1500 millimeters. The emitter projects a concentrated Ø2 beam, which is critical for isolating and identifying micro-objects that pass through the detection zone. This narrow beam prevents false triggers from adjacent moving parts, ensuring that only the intended target breaks the optical path. With a load current capacity of 100 mA, it can directly drive small relays or signaling devices without requiring intermediate amplification, simplifying the overall circuit design.

In automated assembly, speed is just as crucial as accuracy. This photoelectric sensor operates with a rapid 2-millisecond response time. When a tiny component moves down a high-speed conveyor, the sensor registers its presence almost instantaneously, sending the necessary signal to the control system to trigger the next phase of the mechanical process. This rapid reaction capability helps maintain continuous production flow, preventing the bottlenecks that occur when detection hardware fails to keep pace with mechanical throughput.

Anti-Interference Stability and Built-In Protection Mechanisms

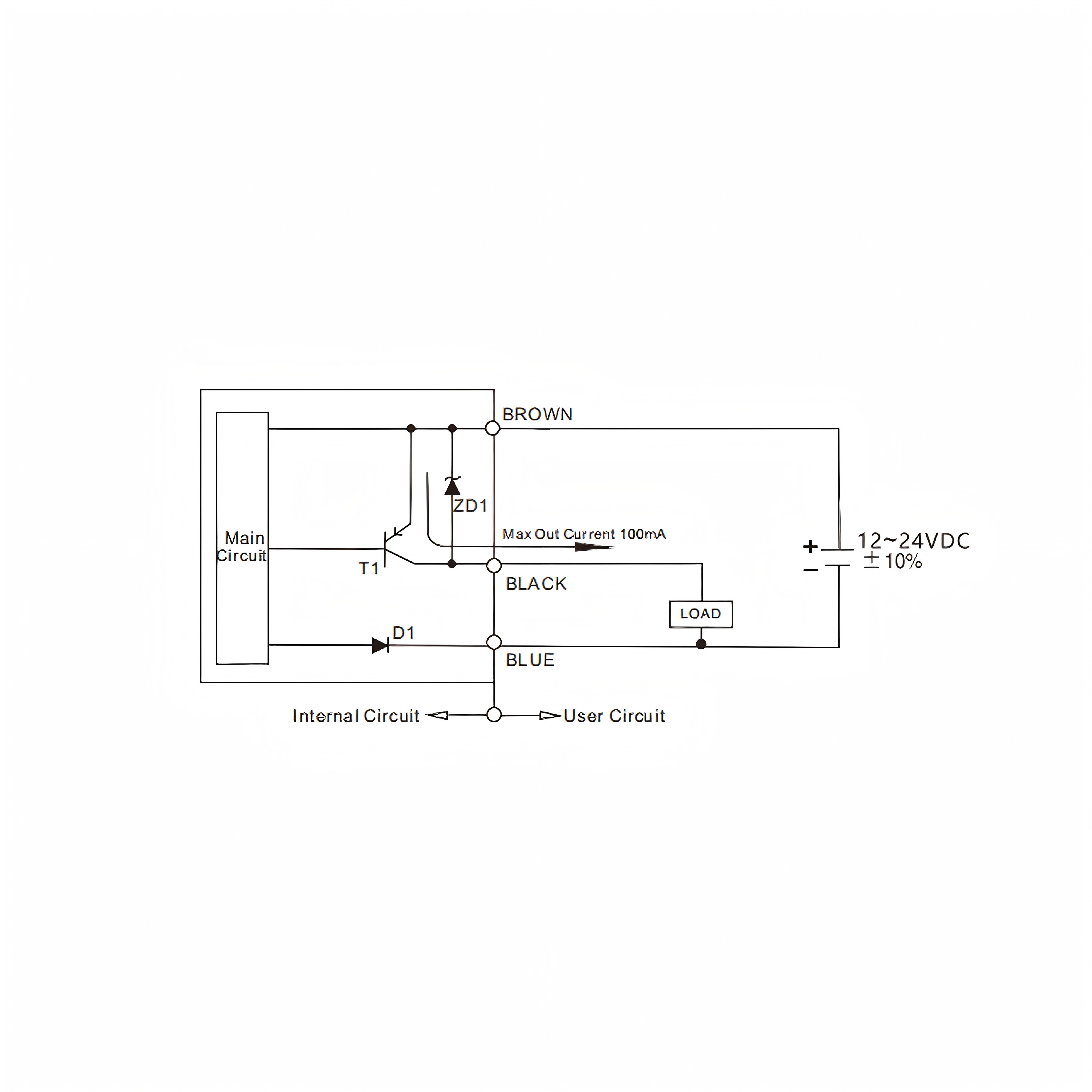

Industrial environments are inherently noisy, both acoustically and electrically. The PJTI-S150P R2M is designed with strong anti-interference circuitry that stabilizes the output signal even when surrounded by heavy machinery, variable frequency drives, or fluctuating ambient lighting. Operating on a standard 12 to 24 VDC supply voltage, it maintains consistent performance despite minor power fluctuations within the ±10% tolerance range, ensuring that detection remains reliable shift after shift.

To safeguard the internal electronics and the broader control network, the sensor includes comprehensive built-in protection. It features both reverse polarity and short-circuit protection, preventing catastrophic failure if wiring errors occur during installation or routine maintenance. Physically, the device carries an IP54 environmental rating. The sealed PBT and PVC enclosure provides a reliable barrier against dust ingress and splashing water. The IP54 rating means the internal optics remain clear and functional even when exposed to the ambient mist and airborne particles common in machining areas. It is rated to function optimally in ambient temperatures ranging from -10 to 50 degrees Celsius and relative humidity levels between 35% and 85%, ensuring long-term operational stability in unconditioned factory spaces.

Primary Application Scenarios Across Manufacturing Sectors

The unique combination of a miniature form factor, a narrow Ø2 beam, and rapid response makes this through-beam sensor highly effective across several demanding industries. Its versatile design allows it to be deployed in various specialized detection roles:

• Electronics and Semiconductor Manufacturing: In cleanroom environments where microchips and delicate wafers are processed, the sensor detects the presence and exact position of tiny substrates without physical contact, preventing contamination and mechanical damage.
• 3C Industry (Computers, Communications, Consumer Electronics): During the assembly of smartphones and tablets, the sensor verifies the placement of microscopic screws, connectors, and internal metallic brackets on fast-moving indexing dials.
• Automotive Parts Production: When stamping or assembling small metallic clips, springs, and fasteners, the sensor confirms component ejection from dies, preventing tool damage and ensuring that every sub-assembly contains the required parts before moving to the next station.
• High-Speed Packaging Lines: The 2-millisecond response time accurately counts small packaged goods or detects missing items in blister packs as they travel along rapid conveyor systems, maintaining strict inventory control and packaging accuracy.
