PJTI-S150N R2M Through-beam ultra-small photoelectric sensor

Comprehensive Product Description & Application Insights

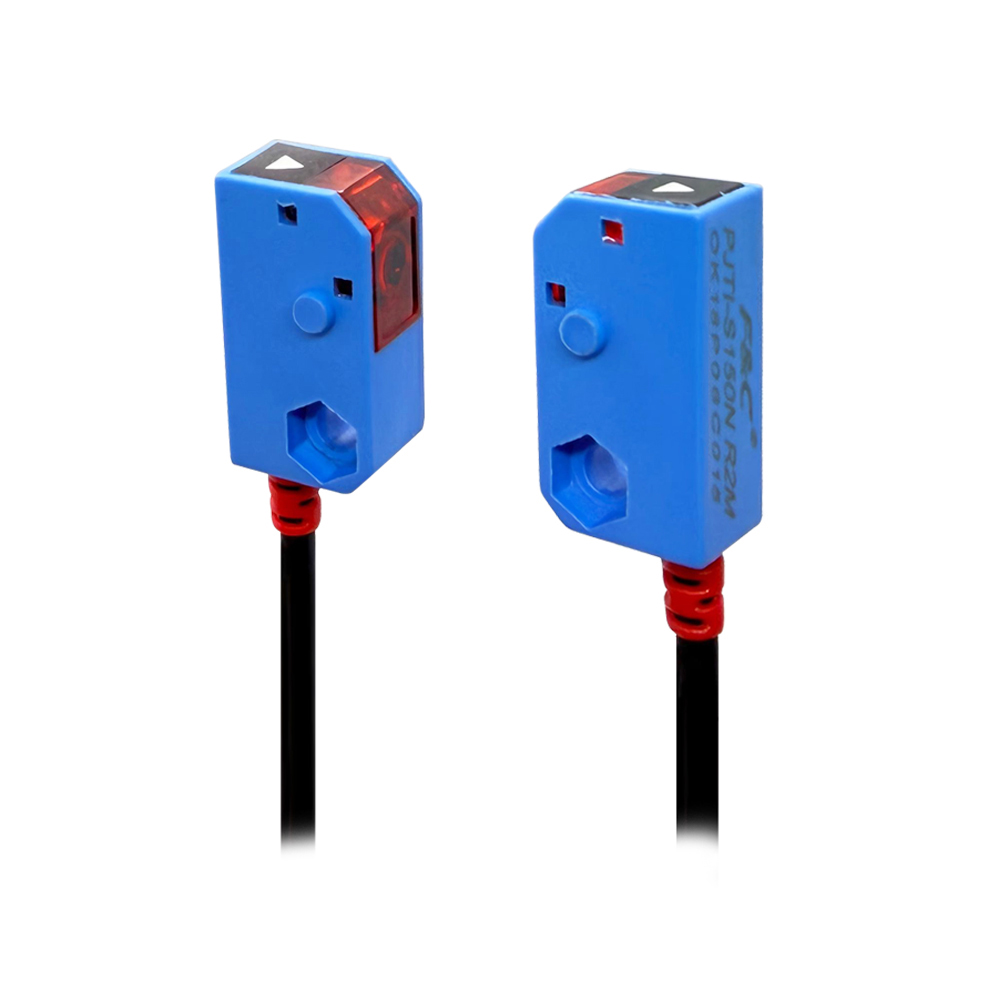

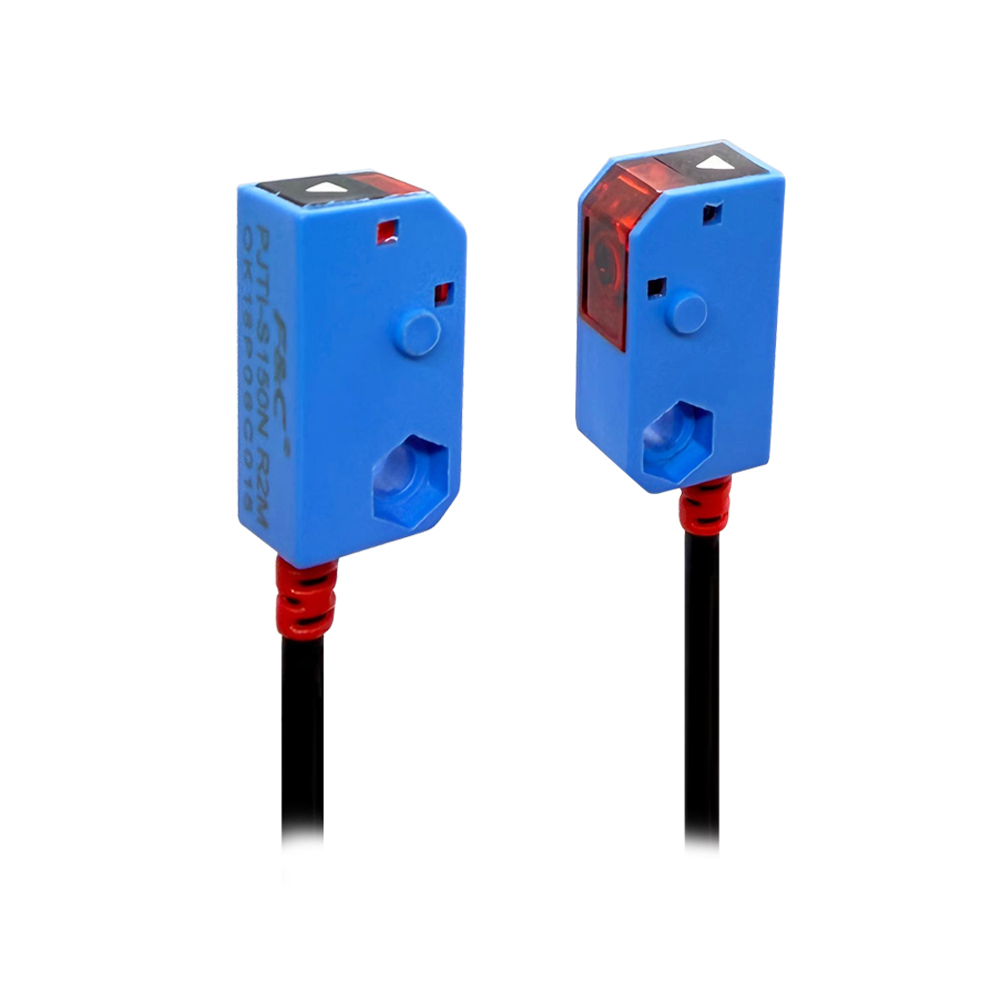

The PJTI-S150N R2M represents a highly specialized approach to micro-object detection within spatially constrained industrial environments. Engineered as a precision through-beam photoelectric sensor, this unit delivers consistent, error-free identification across complex automated production lines. By combining an exceptionally small physical footprint with a formidable 1500 mm sensing distance, it resolves the common engineering conflict between spatial limitations and necessary detection range requirements. Procurement teams, facility managers, and system integrators will find this sensor highly capable of maintaining continuous, reliable operation without the frequent maintenance interruptions or recalibration needs typical of lesser-shielded alternatives. The unit feels remarkably solid and well-constructed in hand, a direct result of its dense PBT and PVC material composition. This tactile feedback provides an immediate sense of its industrial-grade durability and manufacturing excellence long before it is even wired into a control panel or deployed on the factory floor.

Ultra-Compact Architecture & Environmental Resilience

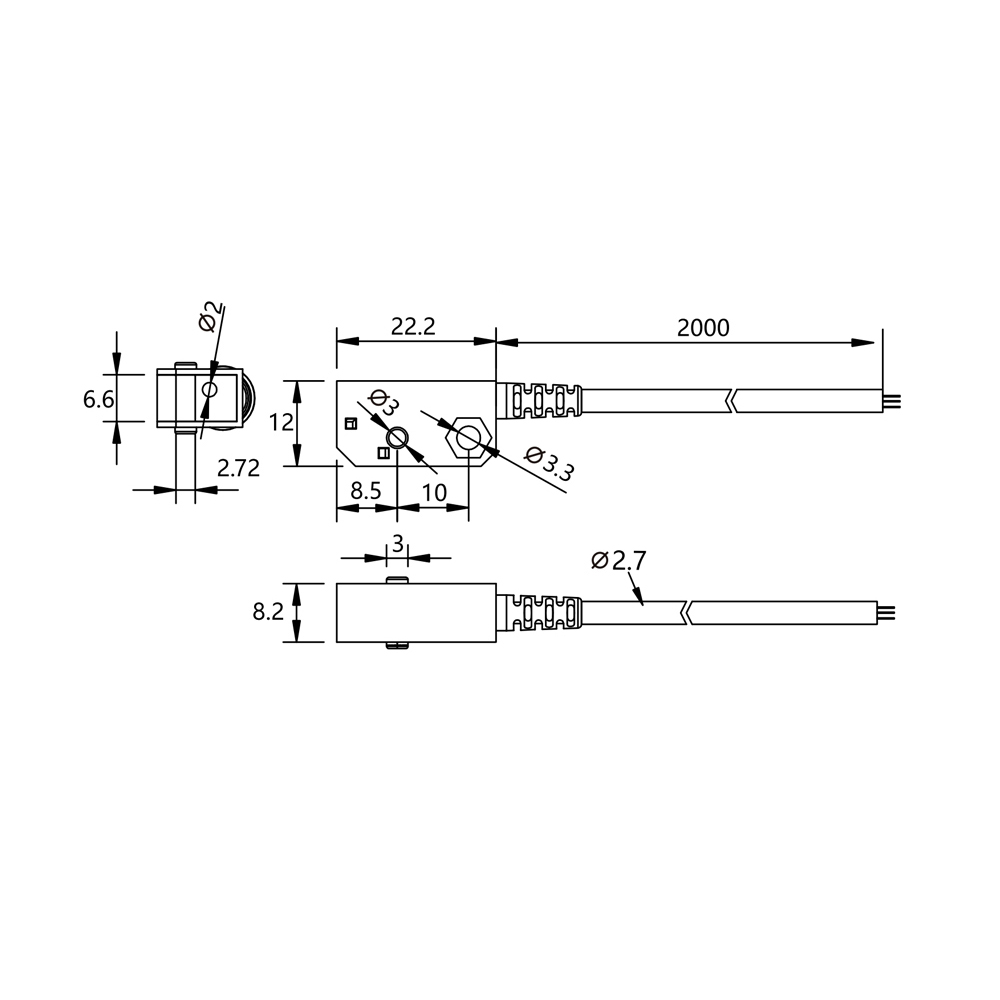

Space optimization remains a critical, defining factor in modern machine design and factory layout. Measuring merely 22.2 by 8.2 by 12 millimeters, the sensor housing is meticulously proportioned to slide into the tightest micro-stations, confined conveyor sections, and compact mechanical assemblies without interfering with moving components or robotic arms. This severely miniaturized profile does not compromise structural integrity in any way. The outer shell is molded from a specialized, eco-friendly blend of Polybutylene Terephthalate (PBT) and Polyvinyl Chloride (PVC), offering a rigid, smooth exterior that actively repels industrial particulates, oil mist, and resists long-term mechanical wear. Rated strictly at IP54, the enclosure effectively shields internal optics and delicate circuitry from dust ingress and splashing fluids common in active, heavy-duty factory settings. Furthermore, the device maintains peak functionality across a broad thermal span of -10 to 50 degrees Celsius and handles ambient humidity levels up to 85% RH, ensuring reliable, uninterrupted deployment in unconditioned warehouses, temperature-variable processing zones, or demanding seasonal climates.

Precision Detection & Millisecond Processing Speed

At the core of the PJTI-S150N R2M is a highly focused, intense Ø2 beam capable of bridging a 1500 mm gap with absolute clarity and zero signal degradation. This extended through-beam capability allows automation engineers to position the emitter and receiver units safely away from the immediate hazard zones of moving machinery, while still capturing microscopic targets passing precisely through the detection field. Speed is equally prioritized alongside distance; the sensor boasts a rapid, deterministic 2-millisecond response time. In practical, everyday operations, this means the device can reliably register and transmit the presence of fast-moving components on a conveyor before any subsequent mechanical action is delayed or missed entirely. This rapid processing capability effectively eliminates missed detections and prevents costly material pile-ups or sequence errors in high-velocity sorting, metal stamping, or automated packaging operations, directly contributing to higher overall equipment effectiveness (OEE) and noticeably smoother operational workflows across the entire facility.

Electrical Stability & Seamless Control Integration

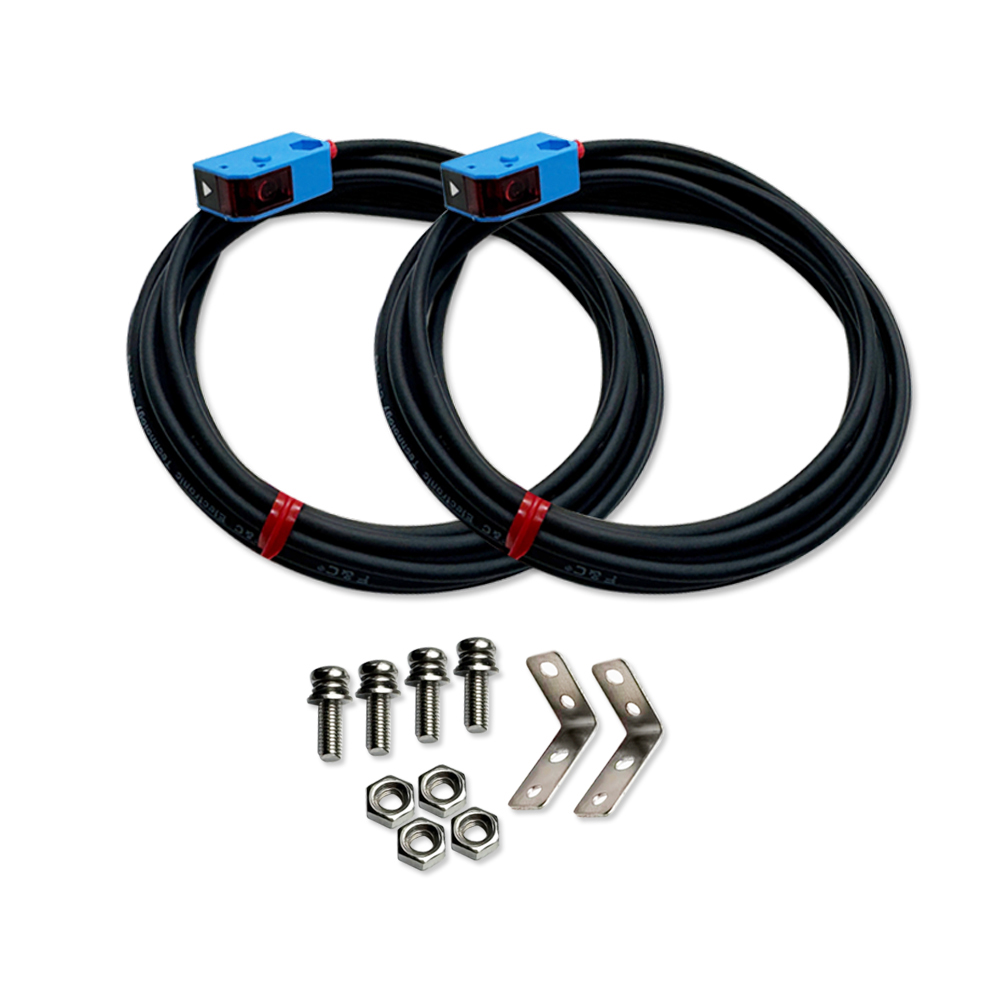

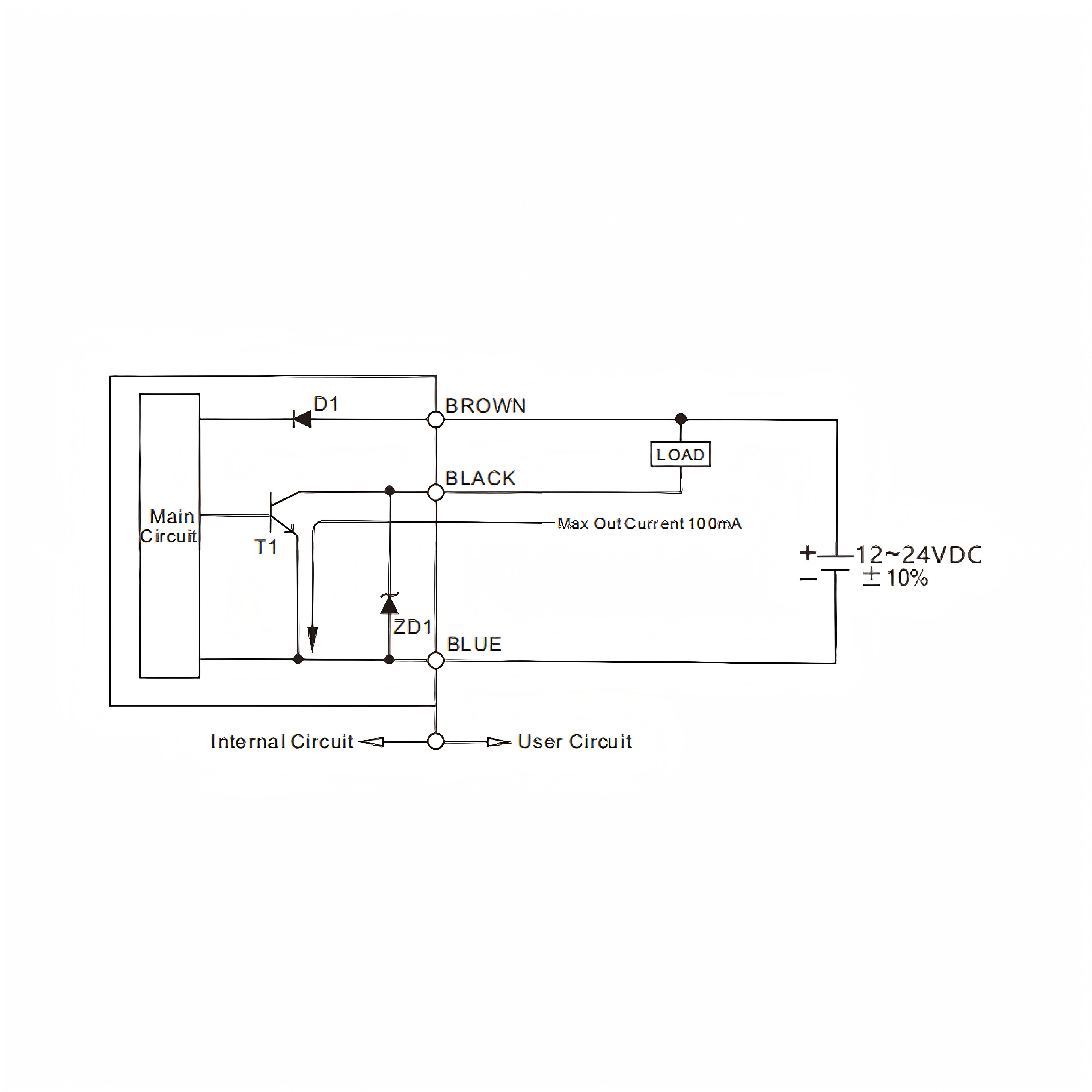

Industrial power grids and complex control panels are frequently plagued by unpredictable voltage spikes, electrical noise, and electromagnetic interference. To actively safeguard against these common electrical anomalies, this photoelectric sensor incorporates advanced internal circuitry featuring comprehensive reverse polarity and short-circuit protection mechanisms. If a wiring error inadvertently occurs during a rapid installation or maintenance cycle, the sensor safely absorbs the fault rather than suffering catastrophic internal damage, thereby protecting your critical hardware investment and drastically reducing unplanned downtime. Operating on a highly versatile 12 to 24 VDC power supply (with a ±10% tolerance), it adapts effortlessly to standard industrial power configurations without requiring specialized converters. The output mode is configured as NPN Normally Open (NO), providing a clean, decisive, and immediate signal to programmable logic controllers (PLCs), relays, or direct-drive mechanisms. Physical connection is facilitated by a durable, pre-attached 2-meter straight-out cable, which offers ample length for flexible routing through cable carriers and protective conduits, minimizing the need for additional extension splices on the busy factory floor.

Primary Industry Applications

Given its unique combination of a microscopic footprint, extended detection range, and rapid electrical response, this through-beam sensor is expressly engineered for industrial sectors where precision is absolutely non-negotiable.

• Semiconductor & Microelectronics Manufacturing: Accurately verifies the exact position of delicate silicon wafers, PCBs, and lead frames without any physical contact, entirely eliminating the risk of surface contamination, static discharge, or mechanical damage.
• 3C Electronics Assembly Lines: Consistently detects miniature consumer electronic components, such as smartphone camera lenses, micro-batteries, or tiny connectors, as they move rapidly along high-speed robotic assembly and inspection tracks.
• Automotive Parts Production: Confirms the precise presence and alignment of small metallic fasteners, plastic clips, and electronic control unit (ECU) components in heavily automated, vibration-prone automotive sub-assembly cells.
• Precision Packaging & Sorting: Monitors the rapid, continuous flow of medical vials, pharmaceutical blister packs, and small retail cartons, ensuring accurate counting, sorting, and verification even in the most fast-paced packaging environments.

By integrating this highly capable sensor into these demanding environments, facility managers and production engineers can significantly reduce false rejection rates, minimize manual interventions, and substantially improve the overall throughput and reliability of their automated systems.
