| Parameter | Value |
|---|---|
| Measurement center distance | 200mm |
| Measurement range | ±80mm |
| Repeatability accuracy | 200μm |
| Linearity | ±0.2% FS |
| Temperature characteristics | 0.03% F.S./°C |
| Light source | 655nm red semiconductor laser, Class II |
| Beam diameter | Approx. φ300μm |
| Response time | 1.5ms / 5ms / 10ms (switchable) |
| Power supply voltage | 24VDC ±10% |
| Residual voltage | <1.5V |
| Current consumption | <100mA |

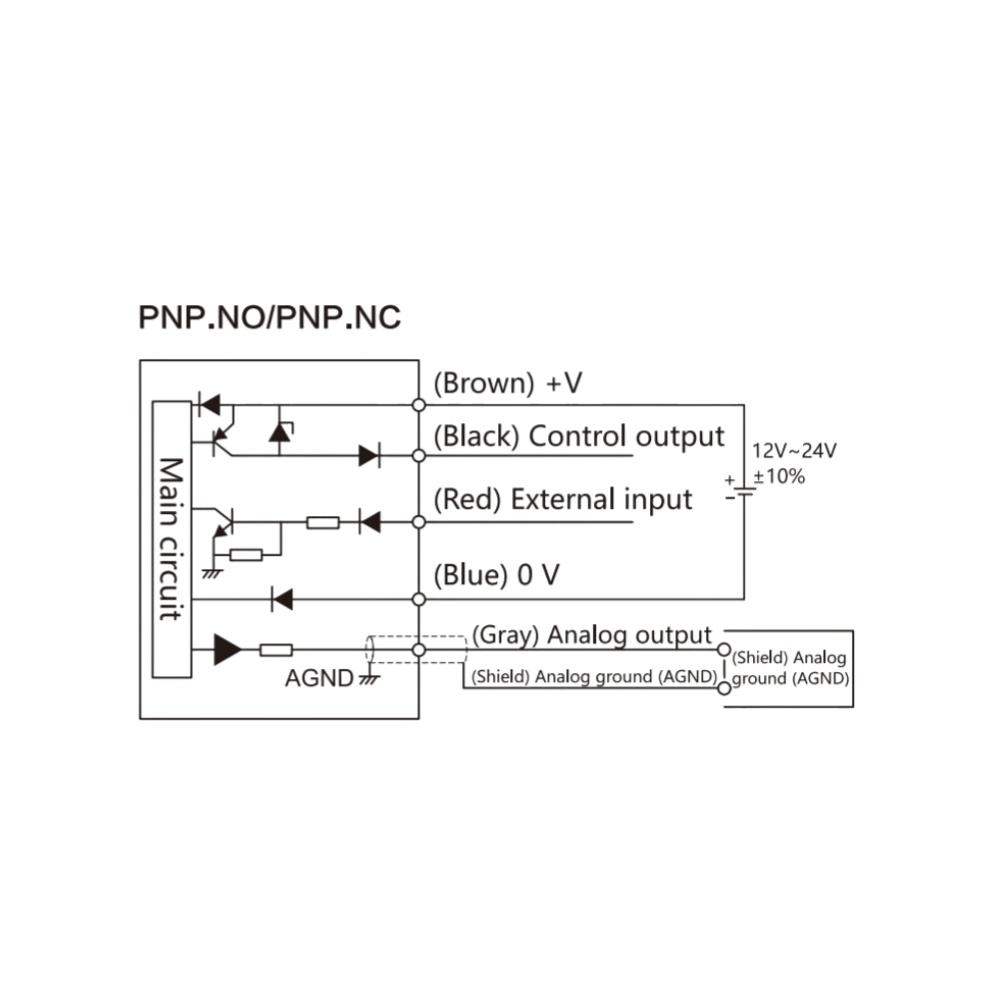

| Output mode | PNP + analog voltage |
| Output action | Light-ON / Dark-ON (switchable) |
| Short-circuit protection | Yes |
| Reverse protection | Yes |
| Analog output | 0-5V (normal), +5.2V (alarm), output impedance: 100Ω |
| Ambient temperature | -10~45°C (no frost/ice) |
| Environmental humidity | 35~85% RH |
| Ambient illuminance | Incandescent: ≤3000 Lux |
| Storage temperature | -20~60°C (no frost/ice) |
| Protection rating | IP67 |
| Connection method | Pre-wired cable |

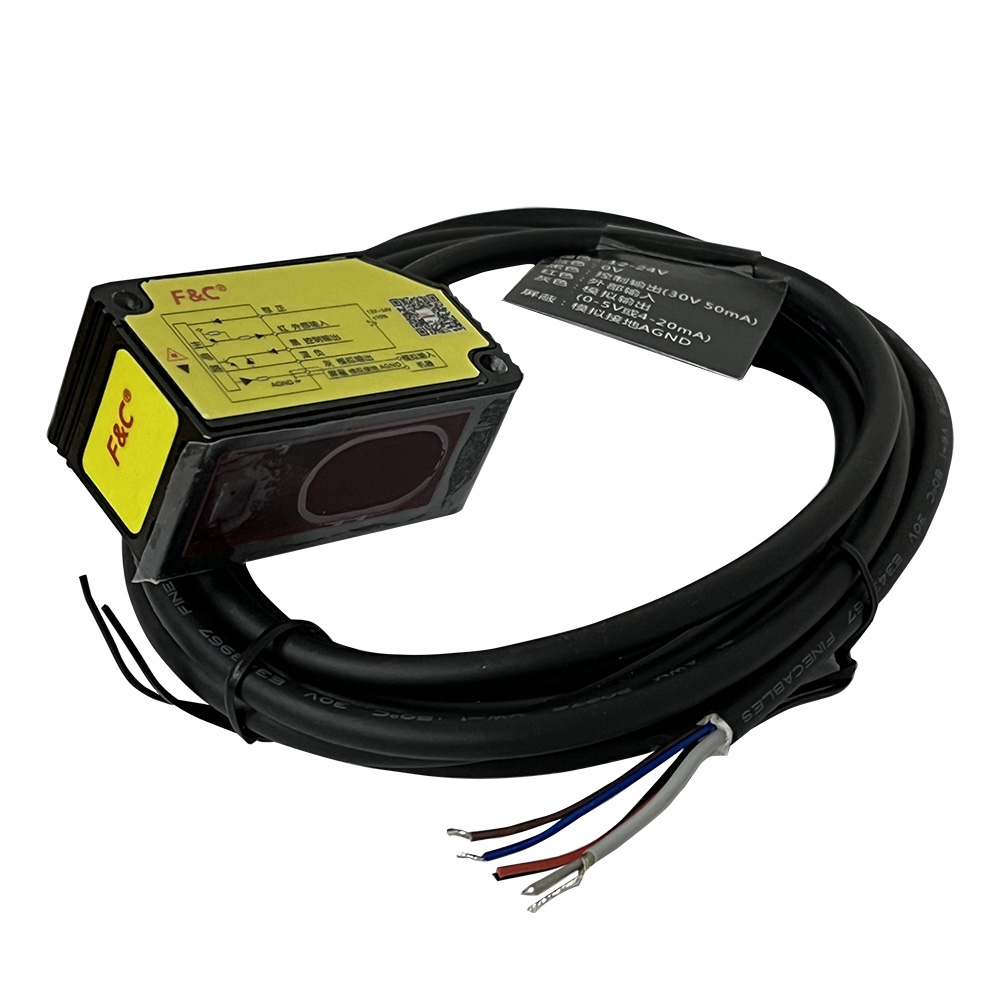

| Cable specification | 5-core, 2M flexible cable (0.3mm²), extendable up to 10m |
| Housing material | Aluminum casting |
| Front cover | Acrylic |

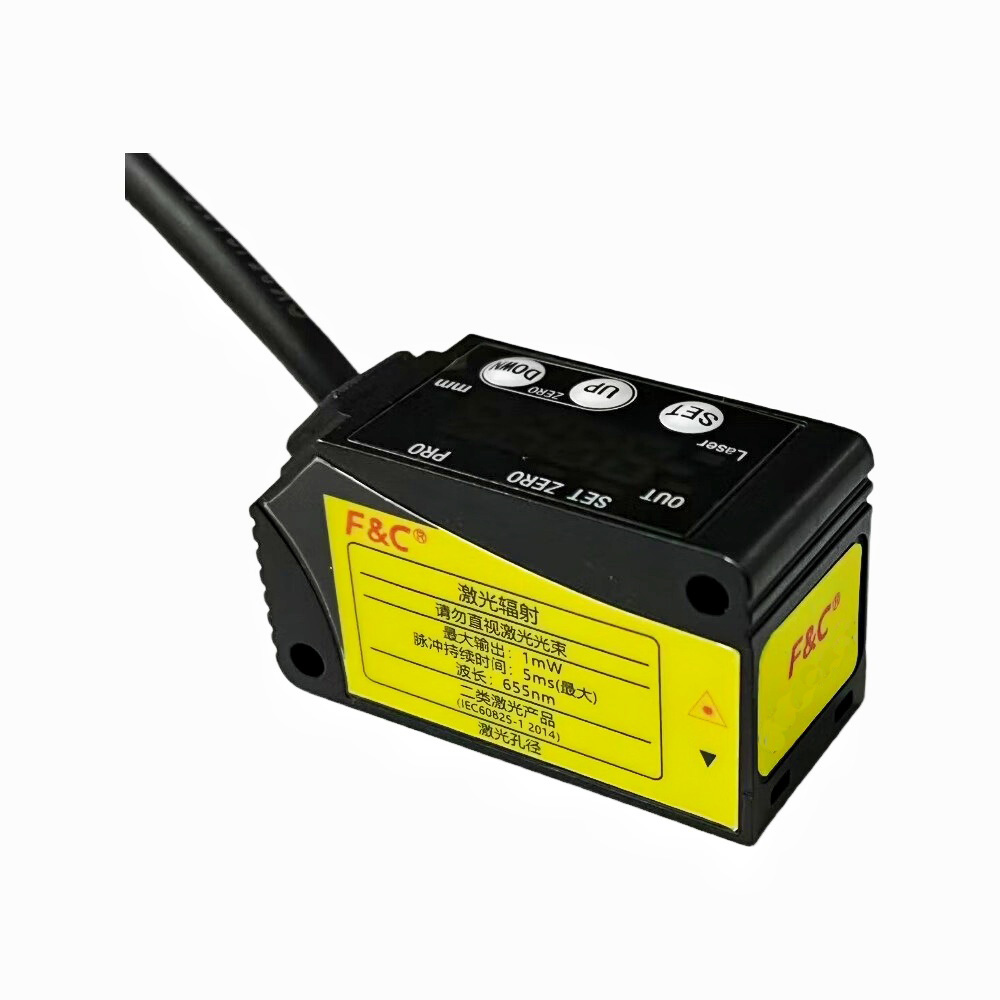

| Indicators | Orange (output) / Green (laser) / Yellow (zero adjust/teach/PRO) |

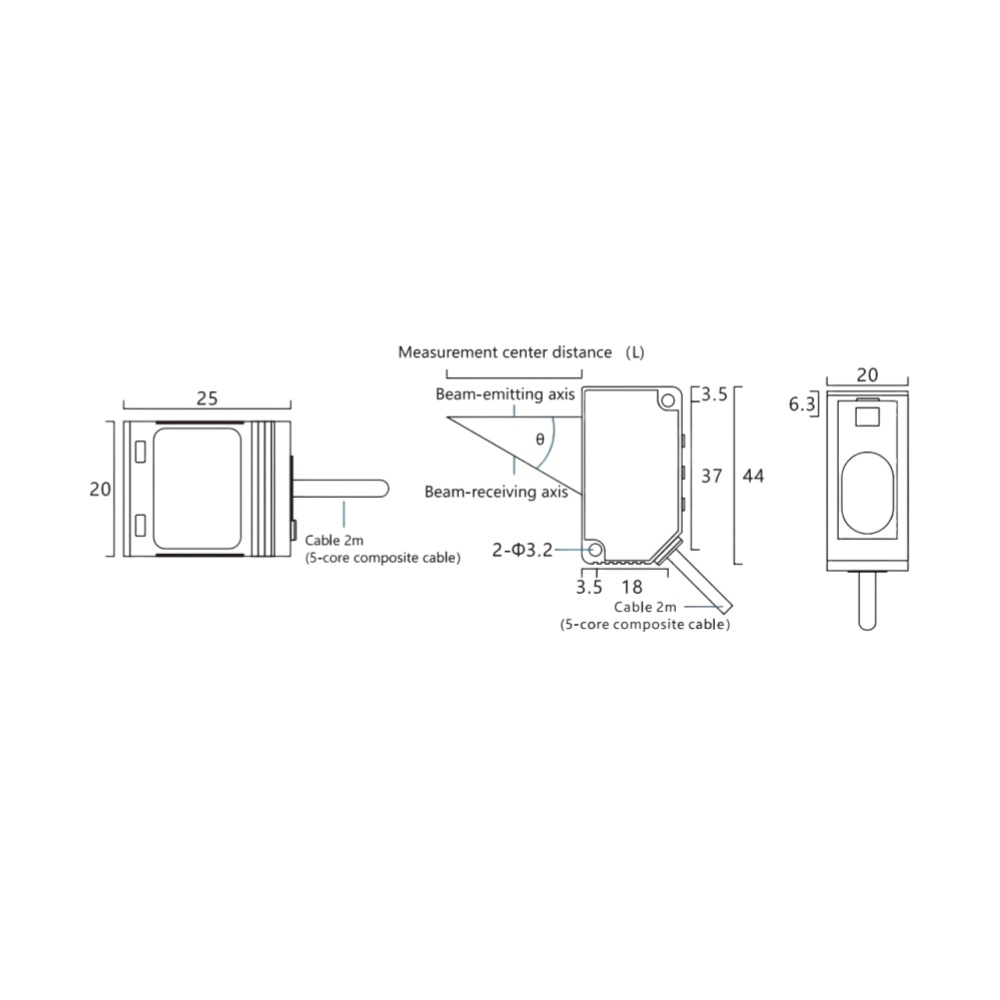

| Dimensions | 20 × 25 × 44mm |
| Weight | ~35g (without cable) / ~85g (with cable) |
| Certification | CE |

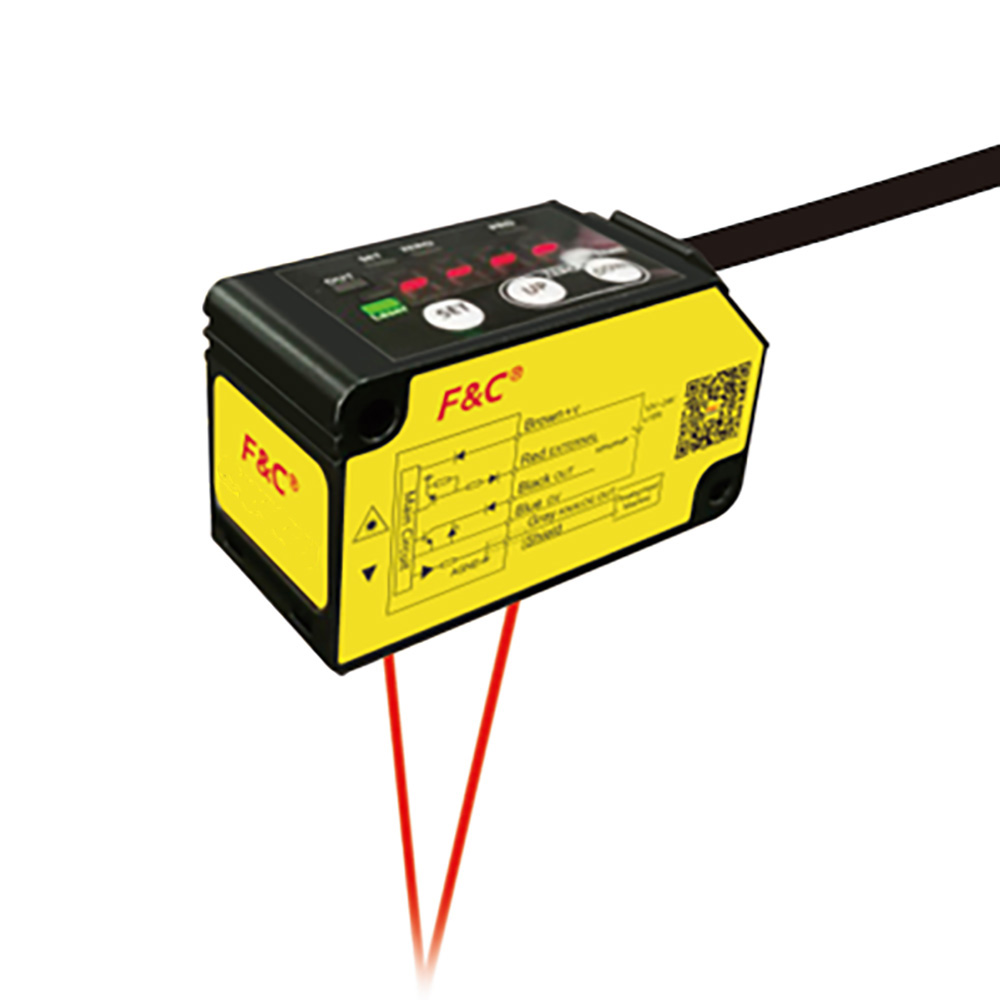

JGWY3-200PV
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Measurement center distance | 200mm |
Measurement range | ±80mm |
Repeatability accuracy | 200μm |
Linearity | ±0.2% FS |
Temperature characteristics | 0.03% F.S./°C |
Light source | 655nm red semiconductor laser, Class II |
Beam diameter | Approx. φ300μm |
Response time | 1.5ms / 5ms / 10ms (switchable) |
Power supply voltage | 24VDC ±10% |
Residual voltage | <1.5V |
Current consumption | <100mA |
Output mode | PNP + analog voltage |
Output action | Light-ON / Dark-ON (switchable) |
Short-circuit protection | Yes |
Reverse protection | Yes |
Analog output | 0-5V (normal), +5.2V (alarm), output impedance: 100Ω |
Ambient temperature | -10~45°C (no frost/ice) |
Environmental humidity | 35~85% RH |
Ambient illuminance | Incandescent: ≤3000 Lux |
Storage temperature | -20~60°C (no frost/ice) |
Protection rating | IP67 |
Connection method | Pre-wired cable |
Cable specification | 5-core, 2M flexible cable (0.3mm²), extendable up to 10m |
Housing material | Aluminum casting |
Front cover | Acrylic |
Indicators | Orange (output) / Green (laser) / Yellow (zero adjust/teach/PRO) |
Dimensions | 20 × 25 × 44mm |
Weight | ~35g (without cable) / ~85g (with cable) |
Certification | CE |
