| Parameter | Value |
|---|---|
| Type | Pneumatic version |
| Response time | 1ms |
| Range | 25mm |
| Working current | <50mA |
| Working voltage | 24VDC |
| Resolution | 5μm |
| Precision | ±5μm |
| Detection system | Optical absolute value linear encoder |
| Signal output | RS485 |
| Communication protocol | Modbus RTU |
| Measuring force | 3-4N |
| Protection rating | IP54 |
| Ambient temperature | 0~50°C |
| Ambient humidity | 35~85% RH (non-condensing) |
| Housing material | Aluminum alloy |
| Protective cover | Fluororubber (FKM) |
| Probe tip | Cemented carbide |
| Weight | ~145g |

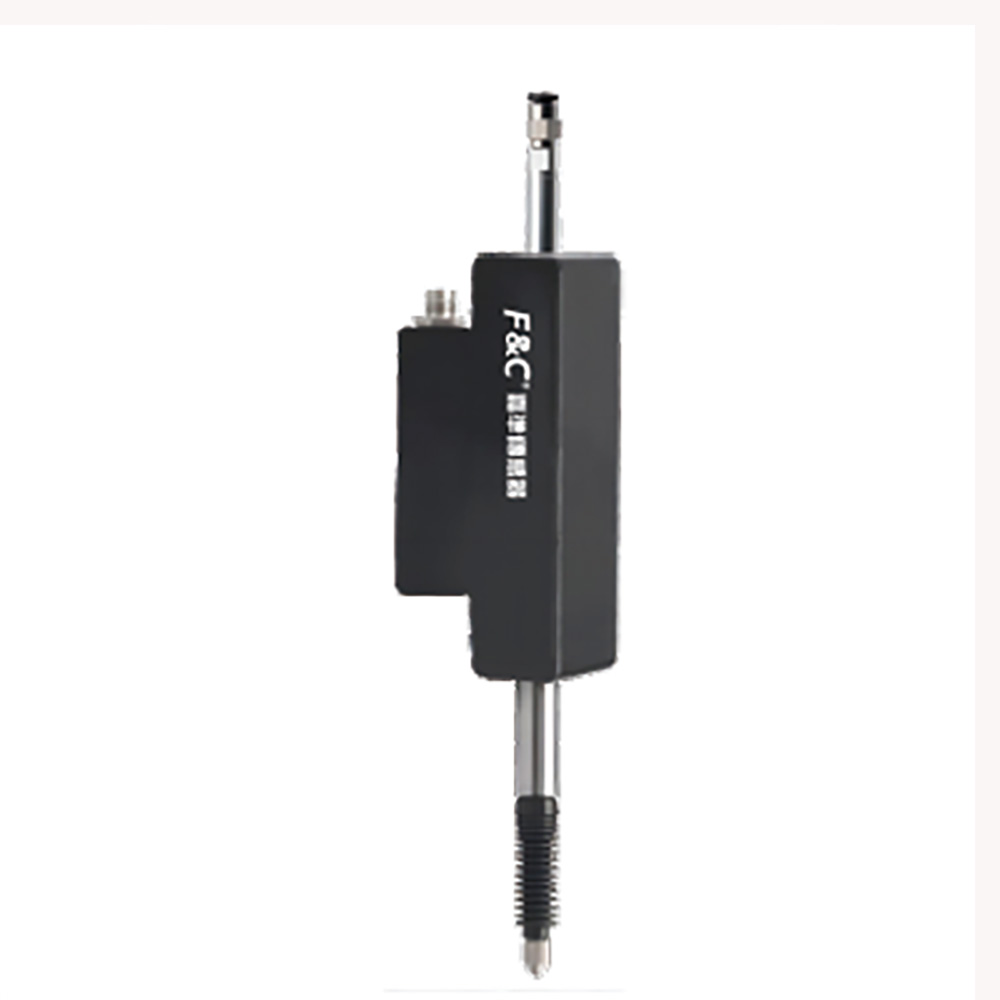

JCWY-GTD2550/485Q
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Type | Pneumatic version |
Response time | 1ms |
Range | 25mm |
Working current | <50mA |
Working voltage | 24VDC |
Resolution | 5μm |
Precision | ±5μm |
Detection system | Optical absolute value linear encoder |
Signal output | RS485 |
Communication protocol | Modbus RTU |
Measuring force | 3-4N |
Protection rating | IP54 |
Ambient temperature | 0~50°C |
Ambient humidity | 35~85% RH (non-condensing) |
Housing material | Aluminum alloy |
Protective cover | Fluororubber (FKM) |
Probe tip | Cemented carbide |
Weight | ~145g |
