| Parameter | Value |
|---|---|
| Type | Pneumatic version |
| Detection system | Optical absolute value linear encoder |
| Range | 12.5mm |
| Precision | ±2μm |
| Measuring force | 3-4N |
| Resolution | 0.1μm |
| Working voltage | 24VDC |
| Working current | <50mA |
| Reaction time | 1ms |
| Signal protocol | RS485 |
| Communication protocol | Modbus RTU |
| Ambient temperature | 0~50°C (no frost/ice) |
| Environmental humidity | 35~85% RH |
| Storage temperature | -20~60°C (no frost/ice) |
| Protection rating | IP54 |
| Connection method | M8 connector |

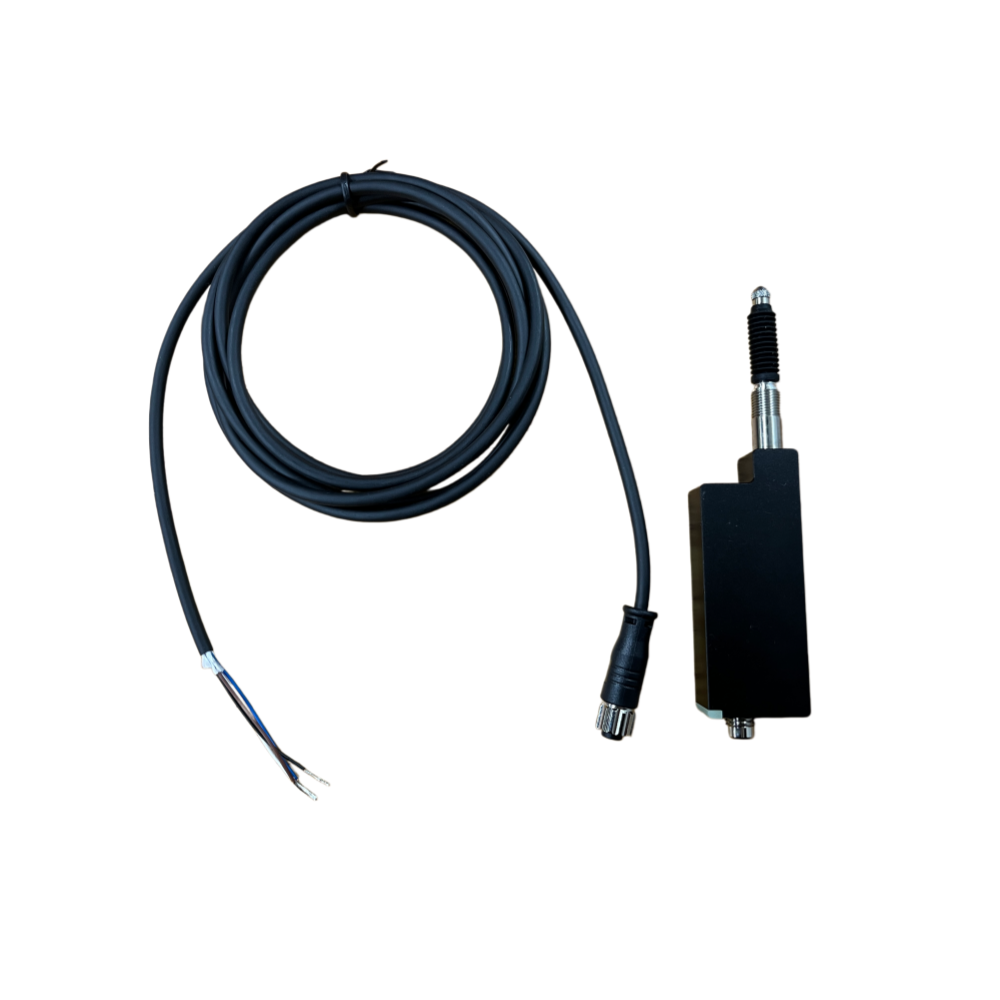

| Cable specification | Φ4.0 4-core 2M female cable |
| Air tubing specification | Outer diameter Φ4mm |
| Material | Aluminum + FKM + YG |

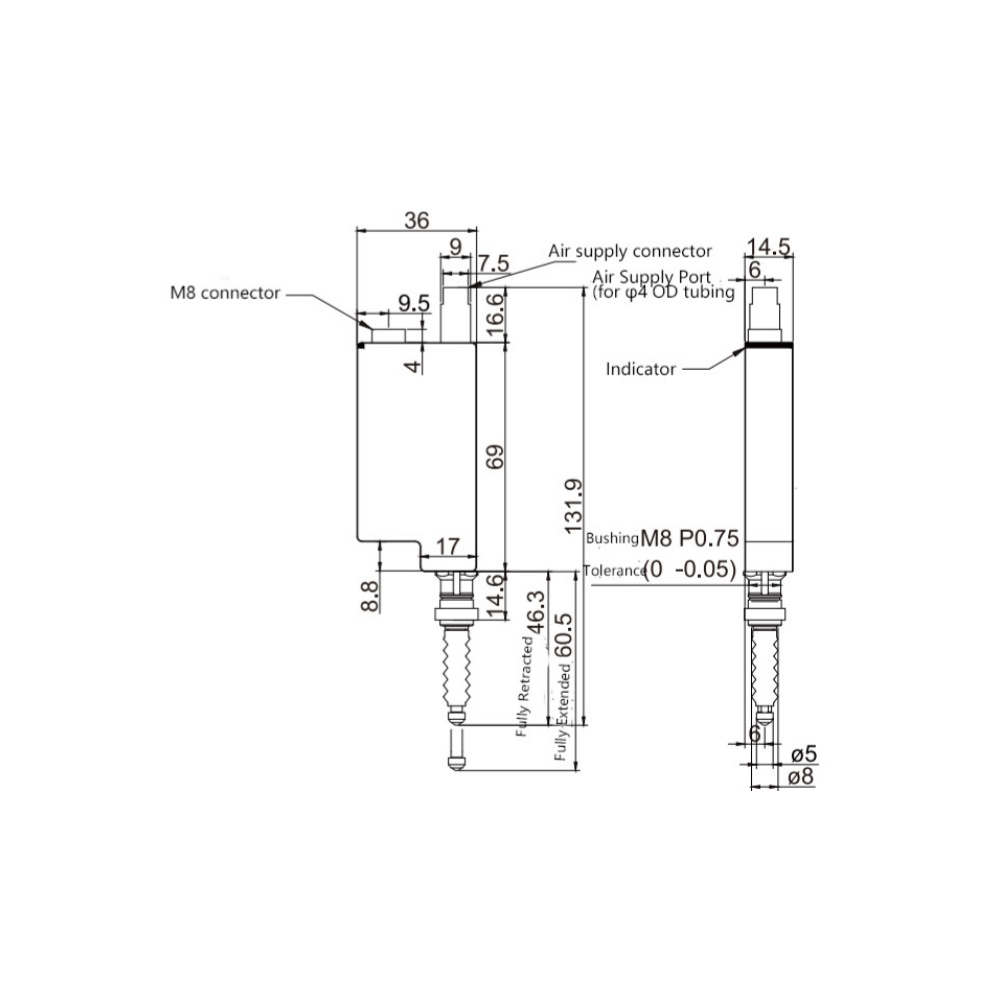

| Dimensions | 14.5 × 36 × 131.9mm |
| Weight | Approx. 145g |

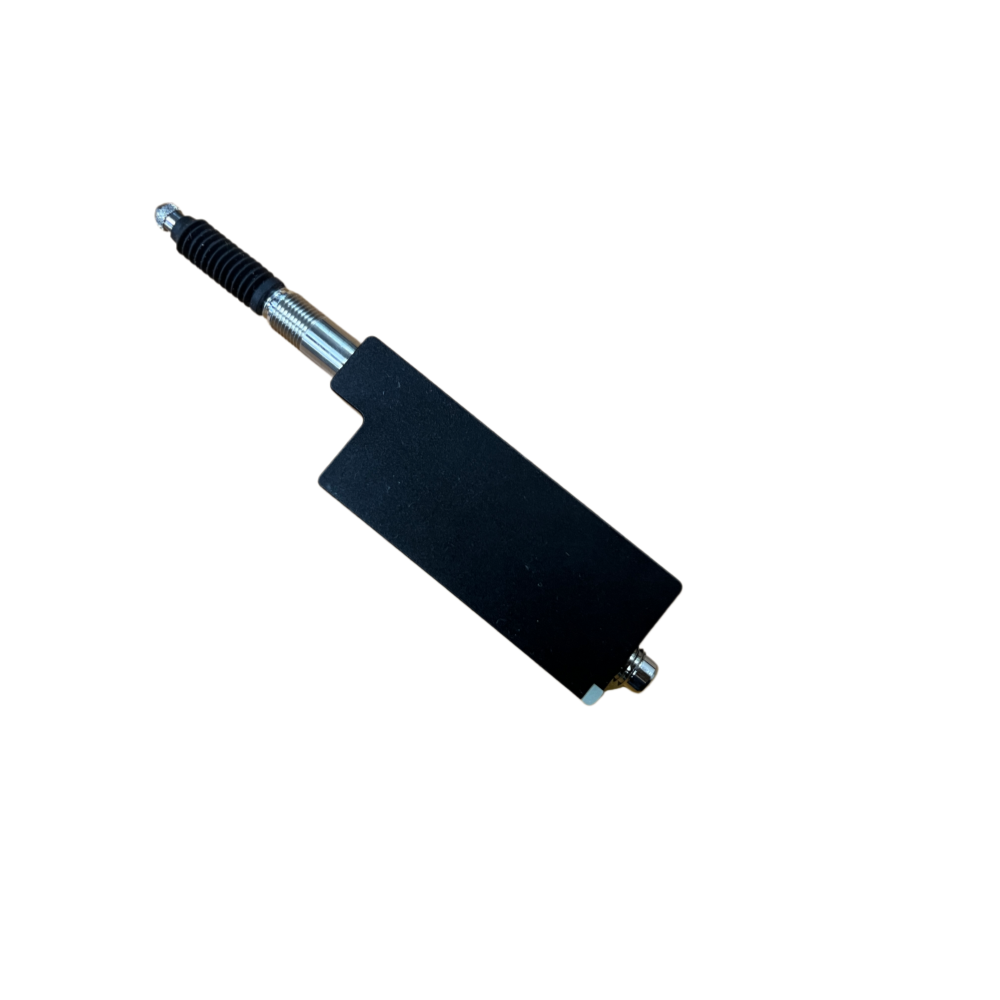

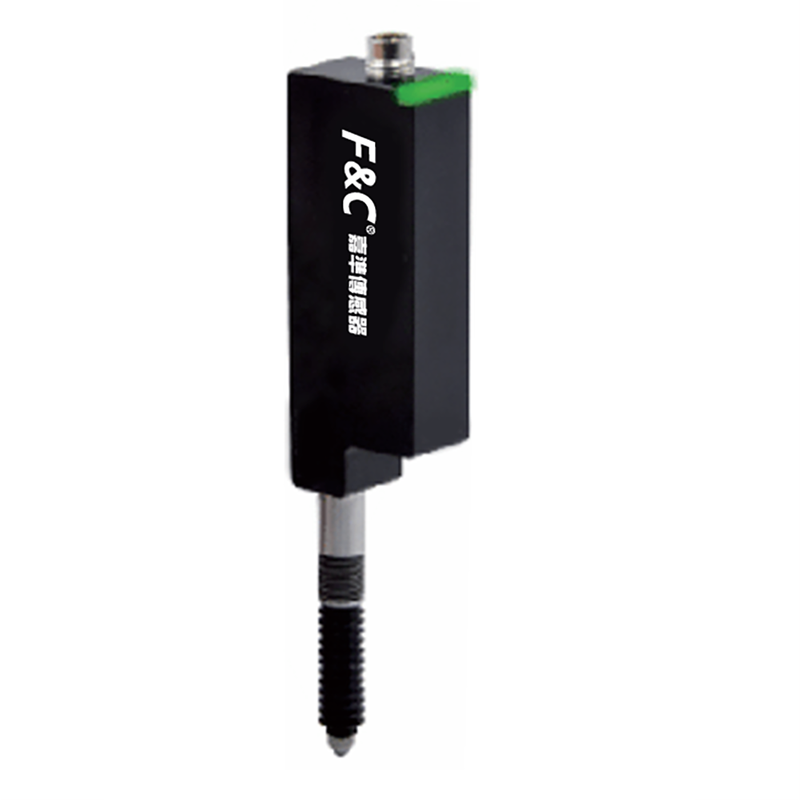

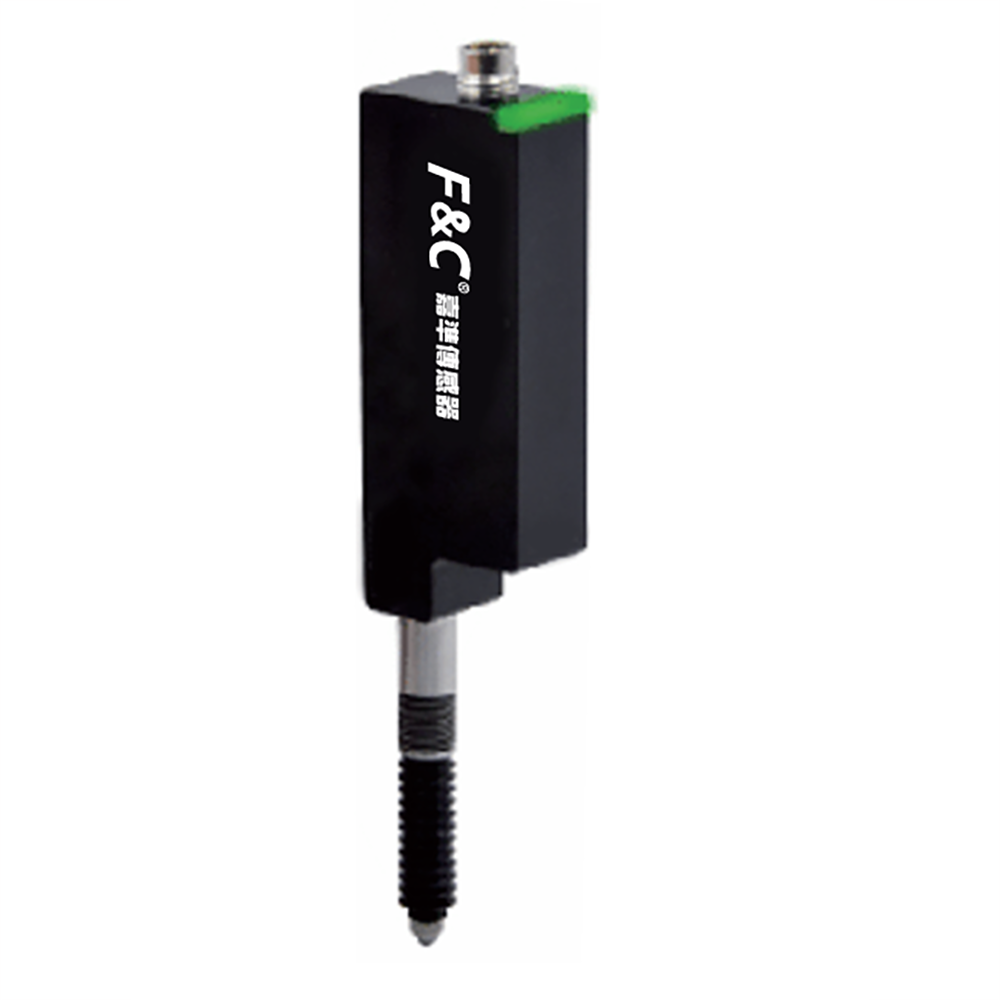

JCWY-GTD1205/485Q
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Type | Pneumatic version |
Detection system | Optical absolute value linear encoder |
Range | 12.5mm |
Precision | ±2μm |
Measuring force | 3-4N |
Resolution | 0.1μm |
Working voltage | 24VDC |
Working current | <50mA |
Reaction time | 1ms |
Signal protocol | RS485 |
Communication protocol | Modbus RTU |
Ambient temperature | 0~50°C (no frost/ice) |
Environmental humidity | 35~85% RH |
Storage temperature | -20~60°C (no frost/ice) |
Protection rating | IP54 |
Connection method | M8 connector |
Cable specification | Φ4.0 4-core 2M female cable |
Air tubing specification | Outer diameter Φ4mm |
Material | Aluminum + FKM + YG |
Dimensions | 14.5 × 36 × 131.9mm |
Weight | Approx. 145g |
