| Parameter | Value |
|---|---|
| Type | Spring style |
| Detection system | Optical absolute value linear encoder |
| Range | 12.7mm |
| Precision | ±2μm |
| Measuring force | 1.1-1.2N |
| Resolution | 1μm |
| Working voltage | 5VDC |
| Working current | <50mA |
| Reaction time | 50ms |
| Signal protocol | RS485 |
| Communication protocol | Modbus RTU |
| Ambient temperature | -10~50°C (no frost/ice) |
| Environmental humidity | 35~85% RH |
| Storage temperature | -20~60°C (no frost/ice) |
| Protection rating | IP65 |
| Connection method | M8 connector |

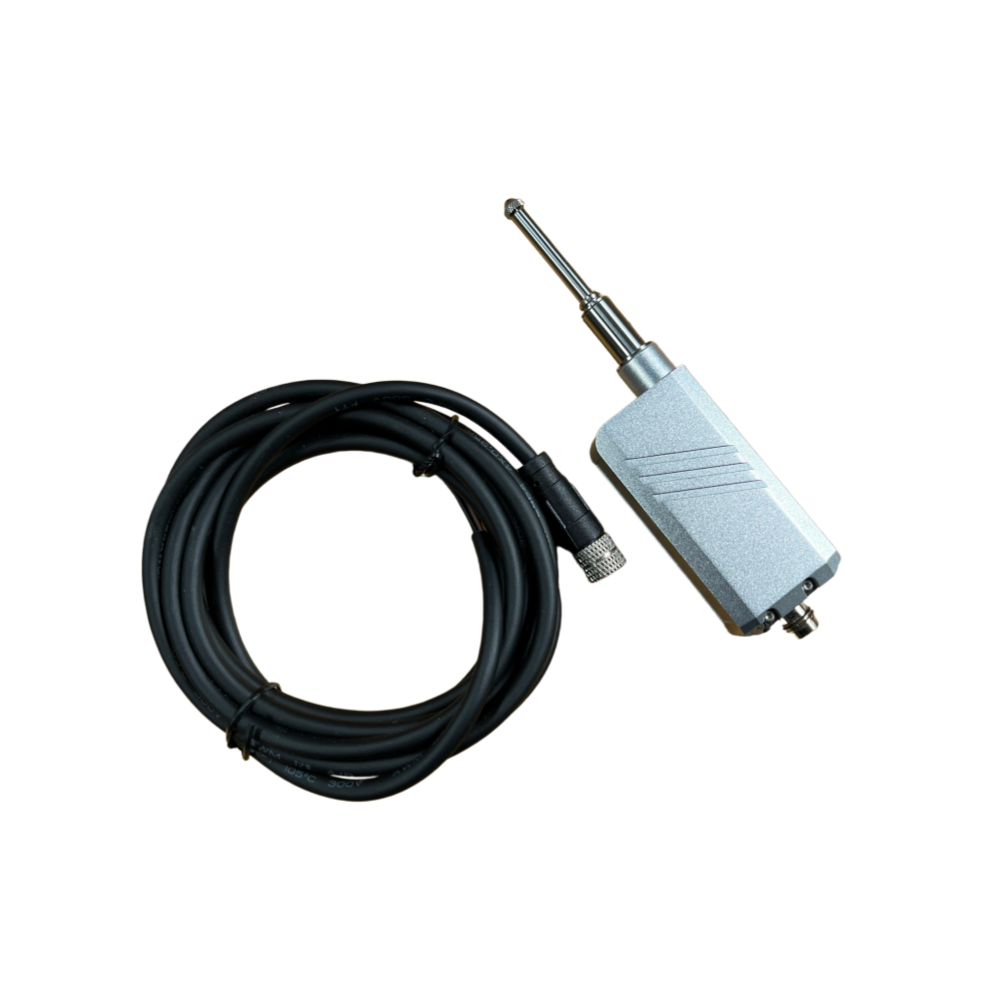

| Cable specification | Φ4.0 4-core 2M female cable |
| Material | Aluminum + FKM + YG |

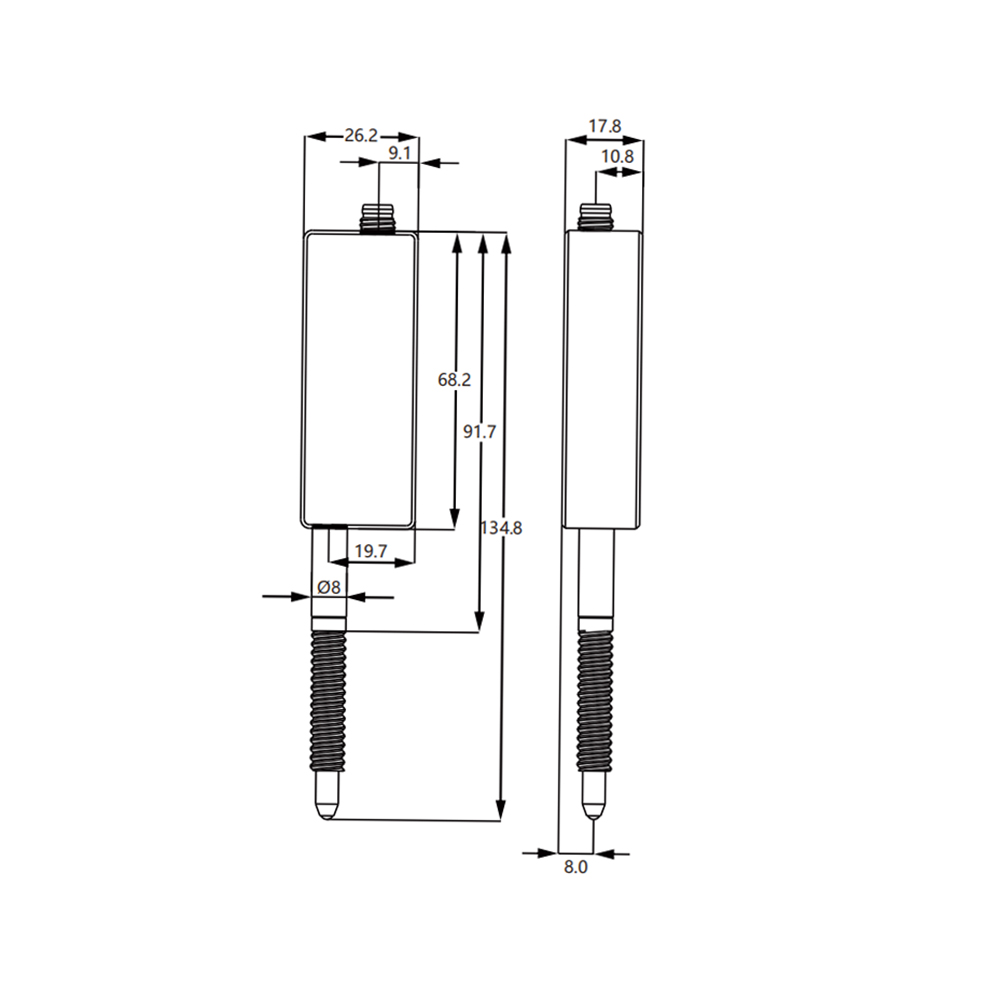

| Dimensions | 17.8 × 26.2 × 134.8mm |
| Weight | Approx. 72g |

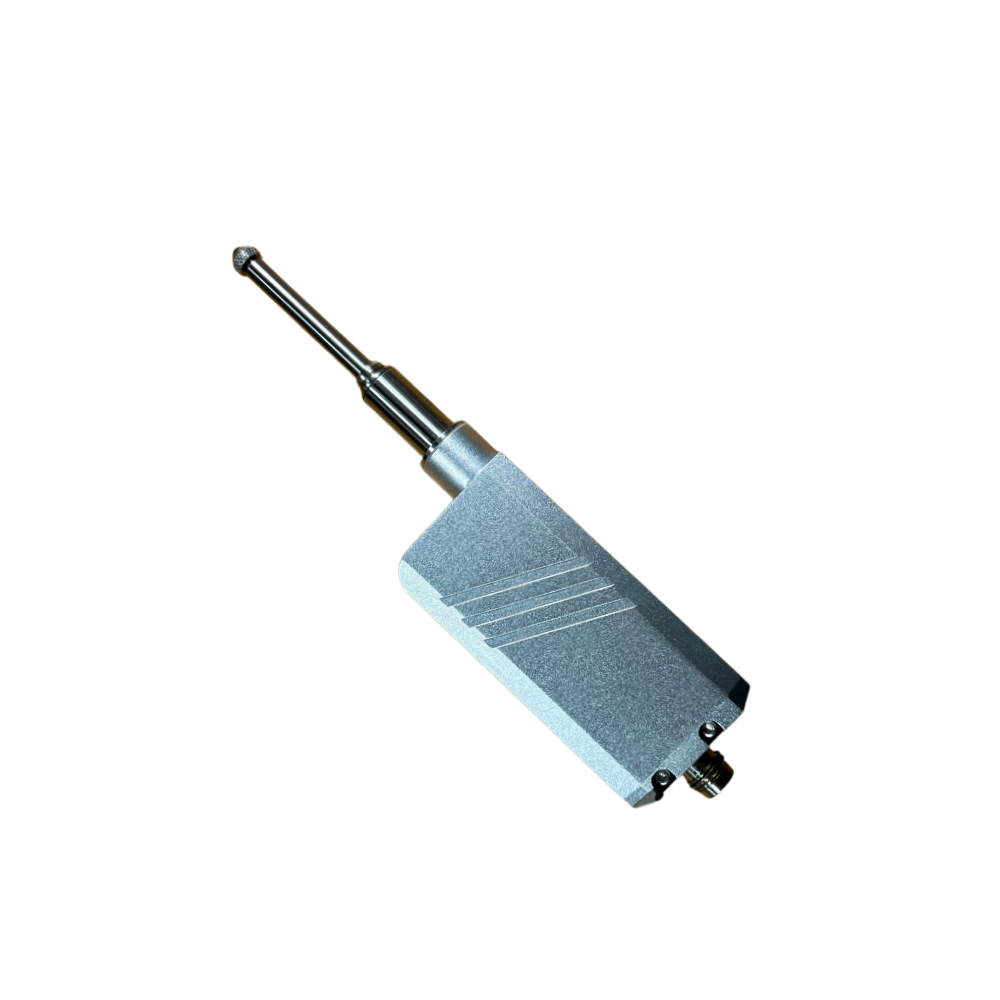

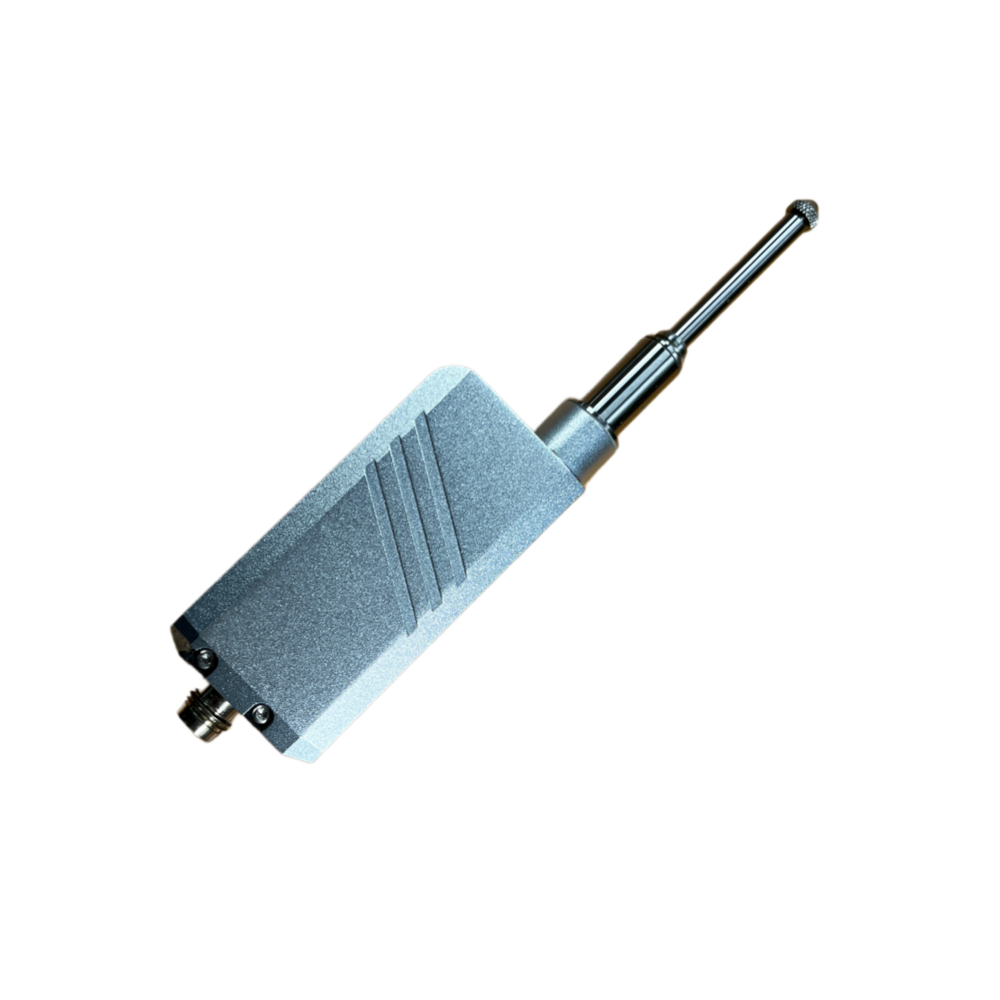

JCWY-GTC1220/485
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Type | Spring style |
Detection system | Optical absolute value linear encoder |
Range | 12.7mm |
Precision | ±2μm |
Measuring force | 1.1-1.2N |
Resolution | 1μm |
Working voltage | 5VDC |
Working current | <50mA |
Reaction time | 50ms |
Signal protocol | RS485 |
Communication protocol | Modbus RTU |
Ambient temperature | -10~50°C (no frost/ice) |
Environmental humidity | 35~85% RH |
Storage temperature | -20~60°C (no frost/ice) |
Protection rating | IP65 |
Connection method | M8 connector |
Cable specification | Φ4.0 4-core 2M female cable |
Material | Aluminum + FKM + YG |
Dimensions | 17.8 × 26.2 × 134.8mm |
Weight | Approx. 72g |
