FFRE-1510-6 Multi-head slot-type fiber optic cable

Product Overview: FFRE-1510-6 Multi-Head Slot-Type Fiber Optic Cable

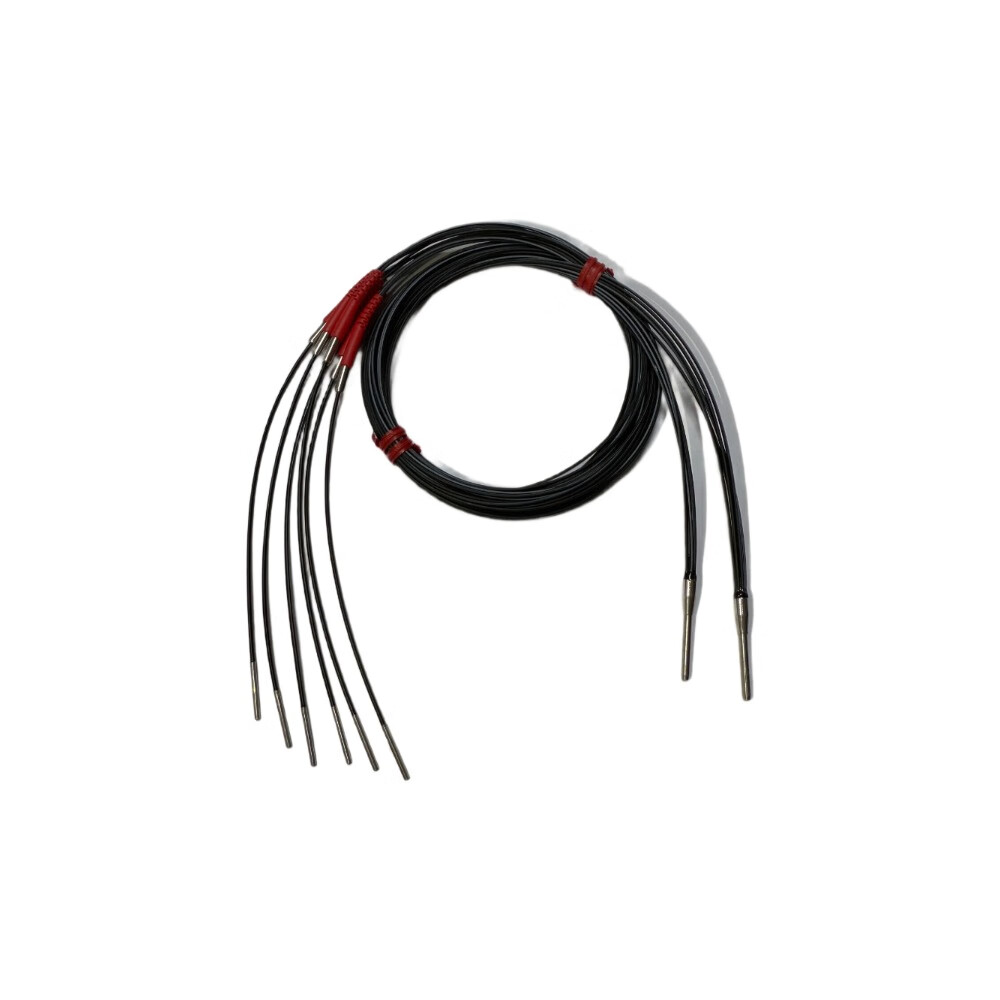

The FFRE-1510-6 Multi-head slot-type fiber optic cable is engineered to solve the most demanding spatial and accuracy challenges in modern industrial automation. When handling this component, operators immediately notice the firm, cool metallic touch of the SUS stainless steel interwoven with a dense, flexible PVC outer jacket. This composite construction provides exceptional mechanical strength and tensile resistance, ensuring the internal glass fibers remain fully protected against physical stress. Designed specifically for tight slot-type configurations, this cable delivers consistent, error-free signal transmission even when routed through the most complex machinery frameworks. By focusing on structural integrity and optical clarity, this multi-head cable minimizes maintenance downtime and maximizes operational efficiency for procurement teams and facility managers looking to upgrade their sensing infrastructure.

Engineered for Precision and Longevity

Extreme Flexibility for Complex Routing

The R10 minimum bending radius is a critical advantage for facility engineers dealing with highly confined spatial constraints. Unlike rigid alternatives that suffer from internal micro-cracking when forced into tight corners, this cable maintains its physical and optical integrity even under severe, continuous curvature. This extreme flexibility translates to a significantly prolonged bending lifespan. It is specifically tailored for dynamic machinery, robotic arms, and automated tracks where continuous flexing and repetitive motion are mandatory daily operations.

Micro-Object Detection Accuracy

At the core of its performance is an exceptionally precise optical axis diameter of φ0.25, which directly enables a minimum detectable object size of just φ0.05. This extraordinary level of precision guarantees zero-error signal transmission when identifying microscopic electronic components, ultra-thin films, or fine metallic wires on a fast-moving assembly line. The highly concentrated light beam prevents unwanted scattering, delivering a sharp, decisive, and instantaneous signal back to the central control unit, thereby preventing costly production errors.

Amplifier Compatibility and Rapid Termination

Designed to integrate smoothly with the FF-403 amplifier, this multi-head cable achieves a highly reliable sensing distance ranging from 0mm to 15mm (±10%). The standardized connection interface supports rapid, non-destructive termination into existing mainstream systems. Technicians will appreciate the physical tactile feedback—a firm, secure mechanical click—when installing the cable. This optimized termination process significantly reduces initial setup time, minimizes the need for specialized installation tools, and ultimately lowers long-term maintenance expenditures for large-scale deployments.

Advanced Manufacturing and Extended Lifespan

By utilizing an advanced manufacturing process, the inherent risk of glass core damage typically caused by outer jacket stripping is entirely eliminated. This meticulous attention to production detail results in a fiber optic cable that significantly outlasts conventional market options. It provides a superior operational lifecycle, maintaining peak optical transmittance even after years of deployment in high-vibration, high-friction, or continuous-impact industrial environments.

Technical Specifications

Reliability in Demanding Climates

Industrial facilities often expose sensitive equipment to severe climate fluctuations. The FFRE-1510-6 is engineered with a broad operating temperature range spanning from -40°C to +60°C. This exceptional thermal tolerance includes specialized anti-freezing properties, ensuring that no ice formation disrupts the optical path or degrades the outer jacket when deployed in cold storage warehouses or outdoor winter conditions. The composite SUS and PVC housing acts as a formidable thermal barrier. It prevents the internal fibers from becoming brittle in sub-zero temperatures while simultaneously resisting softening or deformation during high-heat operational phases. This all-weather stability guarantees uninterrupted, round-the-clock performance, giving plant managers the confidence that their detection systems will not fail when environmental conditions become severe.

Optimized for Complex Automation Environments

The unique combination of extreme precision, tight-space flexibility, and environmental durability makes this multi-head slot-type fiber optic cable an indispensable component across various demanding sectors:

• Precision Manufacturing: Ideal for semiconductor fabrication and micro-electronics assembly, where detecting the exact position of miniature components is critical to maintaining high yield rates.
• Automated Assembly Lines: Ensures flawless counting, positioning, and sorting of parts moving at high velocities, preventing bottlenecks and reducing manual inspection requirements.
• Confined Space Monitoring: The R10 bending radius allows the cable to be routed through the narrowest machine chassis, providing reliable sensing where traditional bulky photoelectric sensors simply cannot fit.
• High-Frequency Operation Cycles: Built to withstand the constant vibration and repetitive motion of modern robotics and automated packaging machinery without suffering from signal degradation or physical fatigue.
