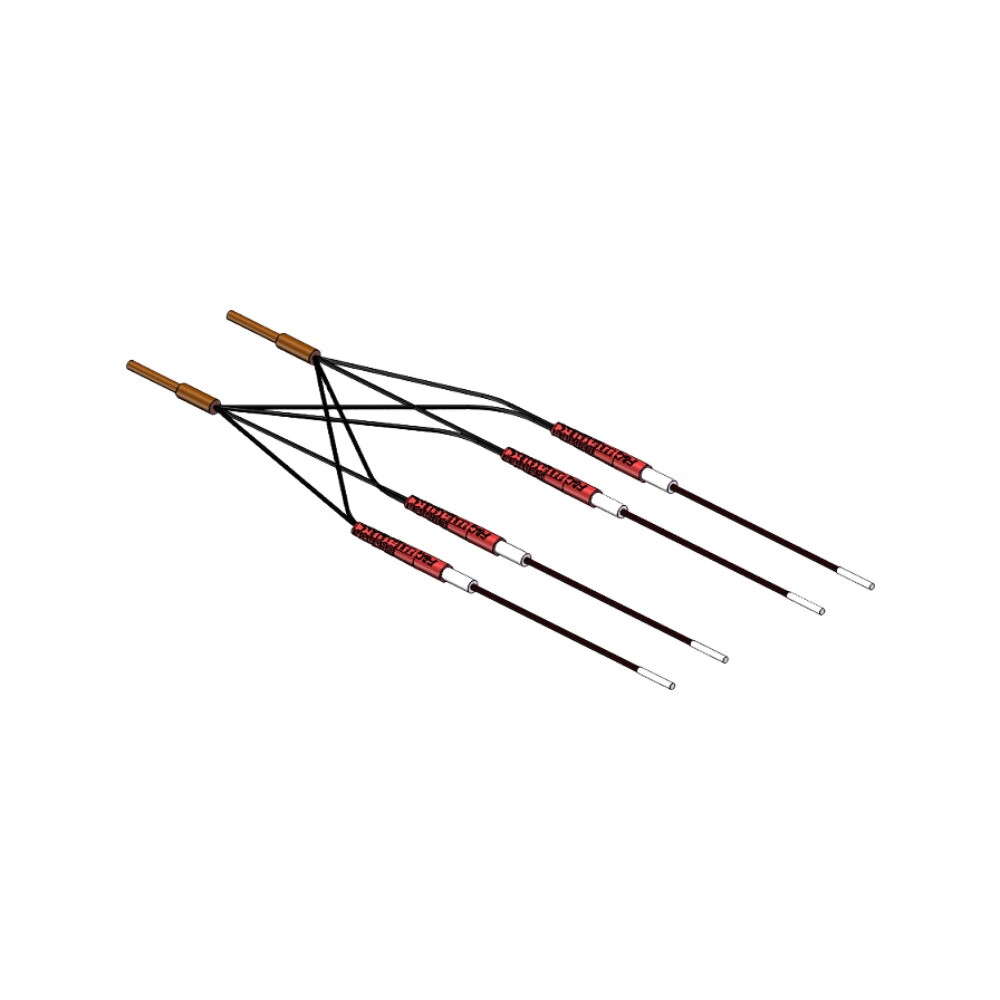

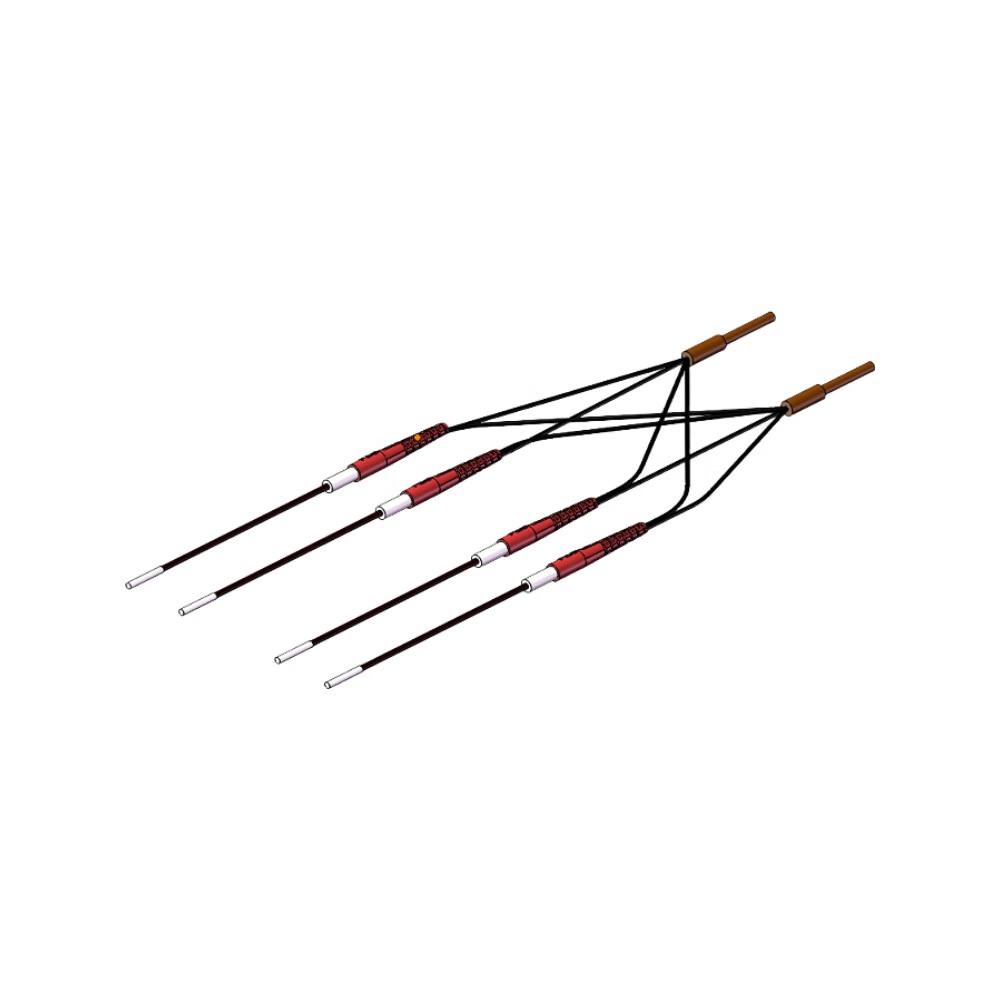

FFRE-1510-4 Multi-head slot-type fiber optic cable

FFRE-1510-4 Multi-Head Slot-Type Fiber Optic Cable Overview

The FFRE-1510-4 Multi-head slot-type fiber optic cable represents a precise engineering solution designed for demanding sensing environments. Encased in a tactile, resilient PVC outer jacket combined with a rigid stainless steel (SUS) sensing head, this cable offers immediate physical confirmation of its structural integrity. The outer surface feels smooth yet firm, specifically formulated to resist environmental contaminants while maintaining essential flexibility. At the core of its construction lies a patented polymer coating process. This specialized layer surrounds the internal optical glass, acting as a critical buffer against mechanical stress and environmental fluctuations. By isolating the delicate glass fibers from external pressure, the polymer ensures consistent light transmission even when routed through complex machinery layouts.

The multi-head configuration allows for versatile mounting orientations, accommodating complex spatial geometries in automated machinery. When handling the cable, technicians will notice the precise machining of the slot-type head, which provides a secure, vibration-resistant fit once installed. This physical stability directly translates to optical stability, preventing micro-movements that could trigger false positive readings in sensitive detection arrays.

Technical Specifications

Engineering Advantages & Application Integration

Mechanical Durability and Material Composition

The physical construction of the FFRE-1510-4 is optimized for continuous movement and tight spatial constraints. With a specified minimum bending radius of R10, the fiber cable can navigate sharp corners and compact equipment enclosures without risking signal attenuation or physical degradation. The tactile contrast between the cold, rigid stainless steel head and the pliable, dark PVC jacket highlights the dual-nature engineering of the product: unyielding precision at the detection point, and adaptable routing along the transmission path. The R10 bending radius is not merely a theoretical specification; it represents thousands of hours of flex-testing, ensuring the internal glass fibers do not suffer from micro-bending losses even when subjected to repetitive motion in robotic arms or automated gantries. The combination of SUS and PVC materials allows the cable to perform reliably across a broad thermal range, from -40°C up to +60°C (assuming no freezing or ice formation). This thermal stability prevents the outer jacket from becoming brittle in cold storage facilities or softening excessively near heat-generating industrial motors.

Installation Efficiency and Signal Integrity

One of the most critical phases of fiber optic deployment is the termination process. Traditional cables often require intricate stripping procedures that can inadvertently introduce microscopic scratches or stress fractures to the glass core. The FFRE-1510-4 addresses this vulnerability directly. Its engineered jacket and coating system simplify the termination workflow, allowing for rapid, secure connections without the need for aggressive mechanical stripping. The simplified termination process also significantly reduces the reliance on specialized, hyper-precise stripping tools on the job site. Technicians can achieve a clean, factory-grade connection in a fraction of the time, lowering labor costs and minimizing the risk of installation-induced failures. By eliminating the primary cause of glass surface defects, the cable maintains absolute signal integrity from end to end. This pristine optical path is essential for the cable's sensing capabilities, directly supporting the ±0.05 minimum detectable object specification. When paired with the FF-403 amplifier, the cable achieves a highly reliable sensing distance of 0mm to 15mm (±10%), delivering consistent performance without the signal loss typically associated with compromised fiber ends.

System Compatibility and Integration

Facility upgrades and equipment maintenance require components that interface predictably with existing infrastructure. The FFRE-1510-4 is engineered for broad compatibility, streamlining the integration process across various operational platforms. Key integration benefits include:

• Amplifier Synchronization: Designed to work optimally with the FF-403 amplifier to achieve the full 0mm to 15mm sensing range.
• Connector Adaptability: Fully compatible with standard multimode and singlemode optical connectors used in modern industrial panels.
• Dimensional Consistency: The standardized 1000mm (±2%) length and ±0.25 optical axis diameter ensure exact alignment tolerances during every connection.

This exact dimensional consistency means technicians can integrate the cable into complex optical networks or discrete manufacturing sensors with minimal calibration time, reducing overall equipment downtime during installation or replacement cycles.

Industry Applications and Operational Impact

The precise detection capabilities and physical resilience of the FFRE-1510-4 make it highly suitable for a diverse range of operational environments. In semiconductor manufacturing and electronics assembly, the multi-head slot-type configuration excels at identifying minute components on fast-moving conveyors, where the ±0.05 detection threshold is critical for quality control. Packaging facilities utilize this exact sensing profile to monitor edge alignment and verify material presence in high-speed sorting machines. In pharmaceutical production lines, where equipment is frequently subjected to rigorous washdown procedures and temperature shifts, the -40°C to +60°C operating range ensures continuous monitoring of vial positioning and fill levels. The multi-head design enables redundant sensing setups within a single compact footprint, providing fail-safe detection mechanisms for critical operational nodes. Beyond discrete manufacturing, the cable's stable signal transmission and protective polymer coating support the strict data integrity requirements of broadband network hardware. Whether deployed in a climate-controlled server facility or exposed to the fluctuating temperatures of an automated logistics hub, the cable delivers consistent optical feedback, driving operational efficiency and reducing the frequency of maintenance interventions.
