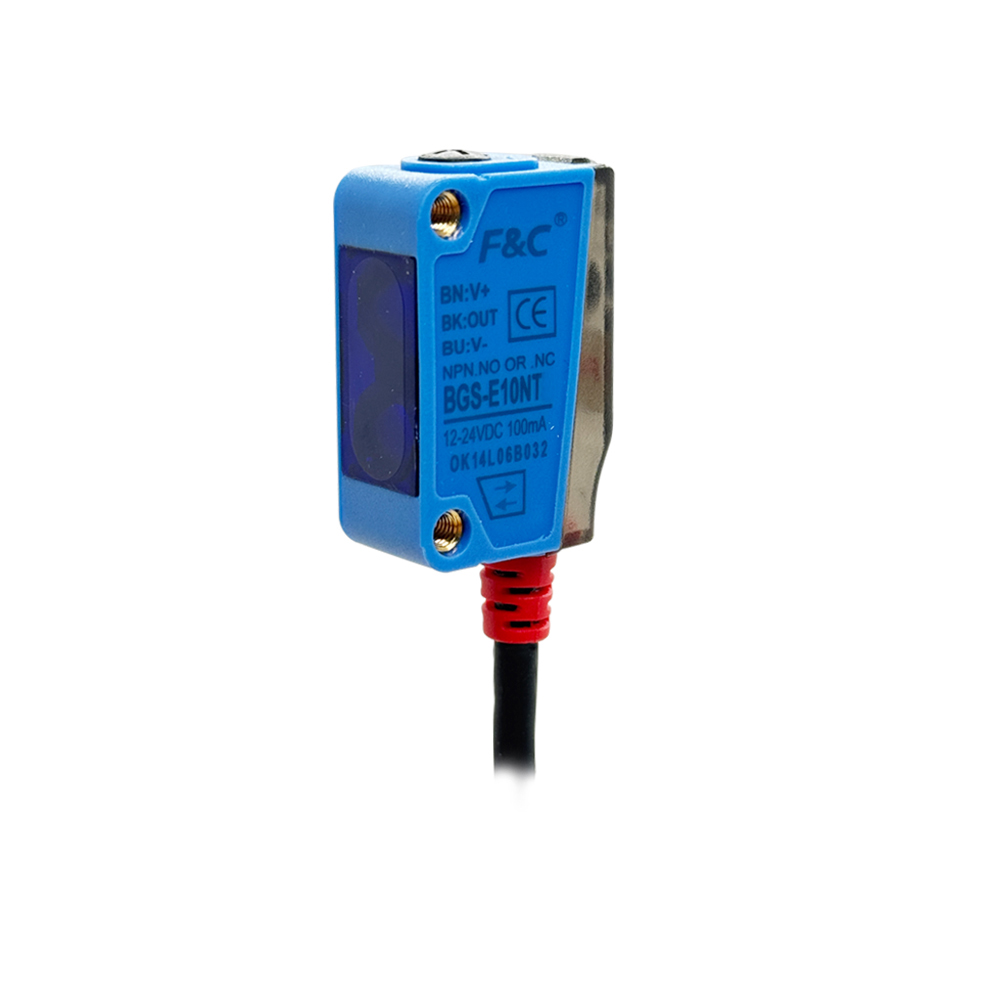

BGS-E10NT Background Suppression Photoelectric Sensor

Comprehensive Product Details

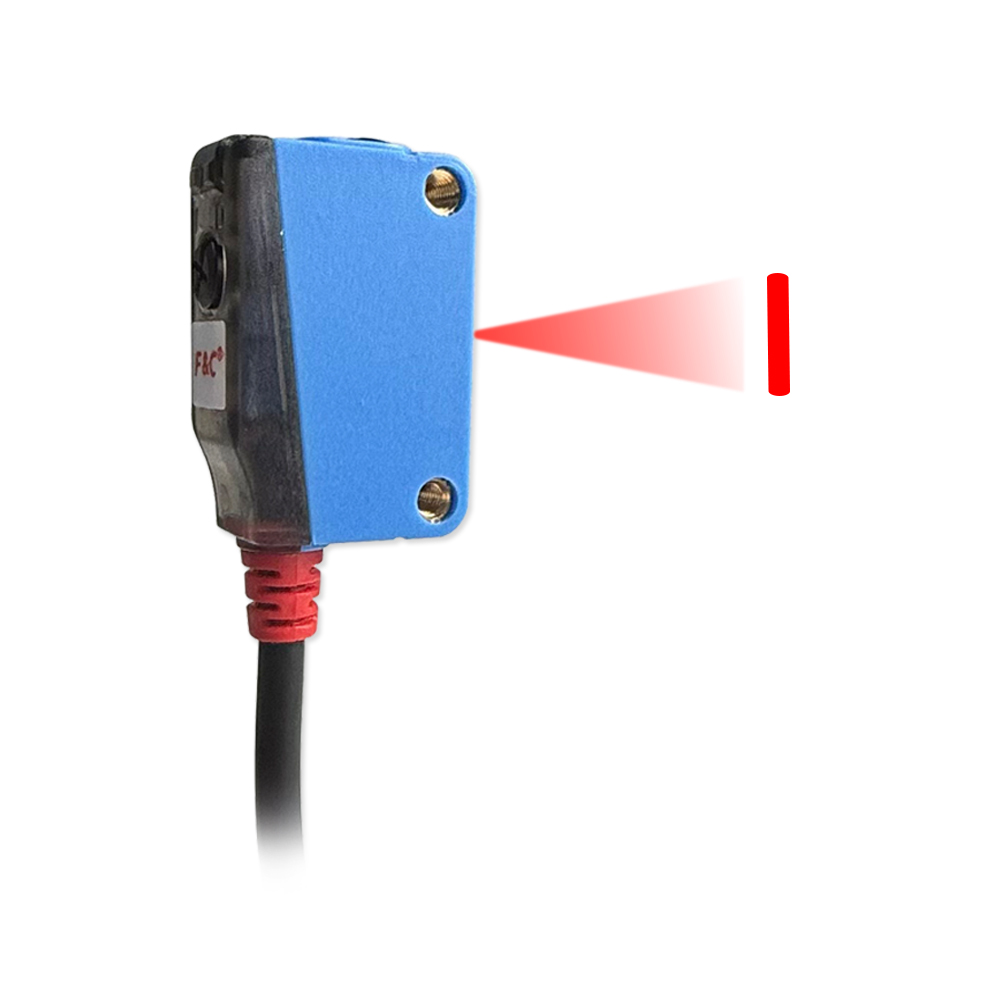

The BGS-E10NT is engineered to solve complex detection challenges in automated production environments. Utilizing advanced triangulation measurement principles combined with intelligent recognition algorithms, this photoelectric sensor adaptively detects target objects while effectively shielding against background color interference. The 650nm modulated red light ensures a sharp, highly visible strip-shaped spot for precise positioning, guaranteeing that variations in background reflectivity do not compromise detection accuracy. Operators will immediately notice the tactile rigidity of the composite enclosure and the clear, focused projection of the red light beam, which remains highly visible even in environments with heavy airborne particulates. This device is designed to elevate the operational efficiency of modern assembly lines by eliminating false triggers and ensuring continuous, uninterrupted workflow.

Mastering Complex Workpiece Detection

In modern manufacturing, components come in an endless variety of textures, finishes, and geometries. The BGS-E10NT excels in identifying workpieces that traditional sensors struggle to register. Whether the production line processes high-gloss metallic parts, components with highly uneven or textured surfaces, or exceptionally dark materials that absorb light, this sensor maintains a steadfast 100 mm sensing distance. By relying on geometric triangulation rather than pure light intensity return, it ignores the deceptive reflections of shiny surfaces and the weak return signals of matte black items. This capability ensures that automated arms, conveyors, and sorting mechanisms receive consistent, reliable trigger signals without false positives caused by shifting background elements or varying component colors. The intelligent algorithm continuously adapts to the target, providing a stable reading that keeps production moving at optimal speeds without the need for constant manual recalibration.

Streamlined System Compatibility and Flexible Output

Integration into existing control architectures is highly intuitive, designed to minimize setup time for engineering teams. The sensor interfaces accurately with all mainstream Programmable Logic Controllers (PLCs) and industrial control networks.

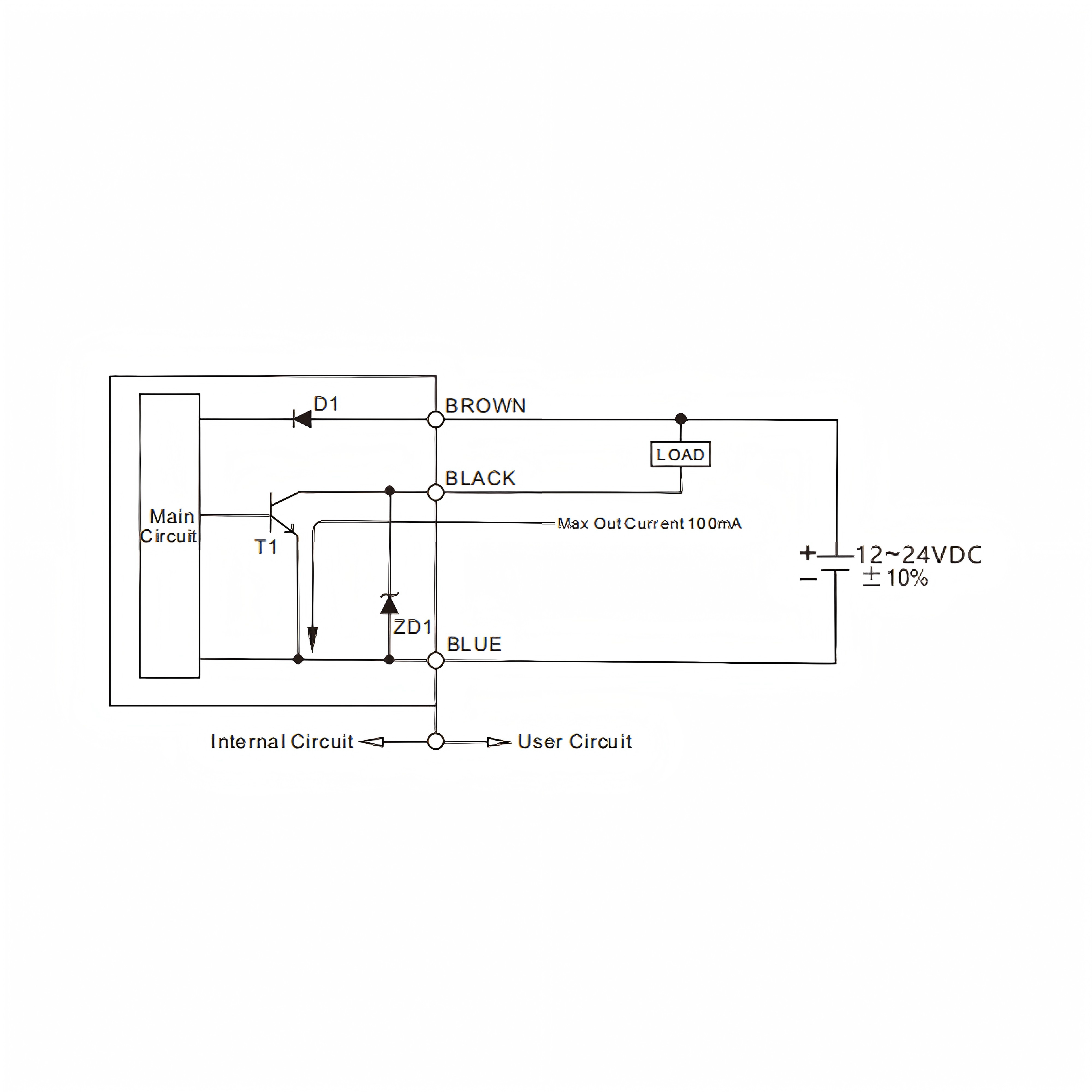

• Adjustable Output Logic: Features an NPN output mode, allowing engineers to easily toggle between Normally Open (NO) and Normally Closed (NC) states depending on specific logic requirements.
• Versatile Power Input: Powered by a 12 to 24 VDC operating voltage range (with a ±10% tolerance), accommodating fluctuations in factory power supplies.
• Rapid Response: With a response time of just 3 ms, the device delivers the high-speed signaling necessary for fast-paced sorting and assembly operations.

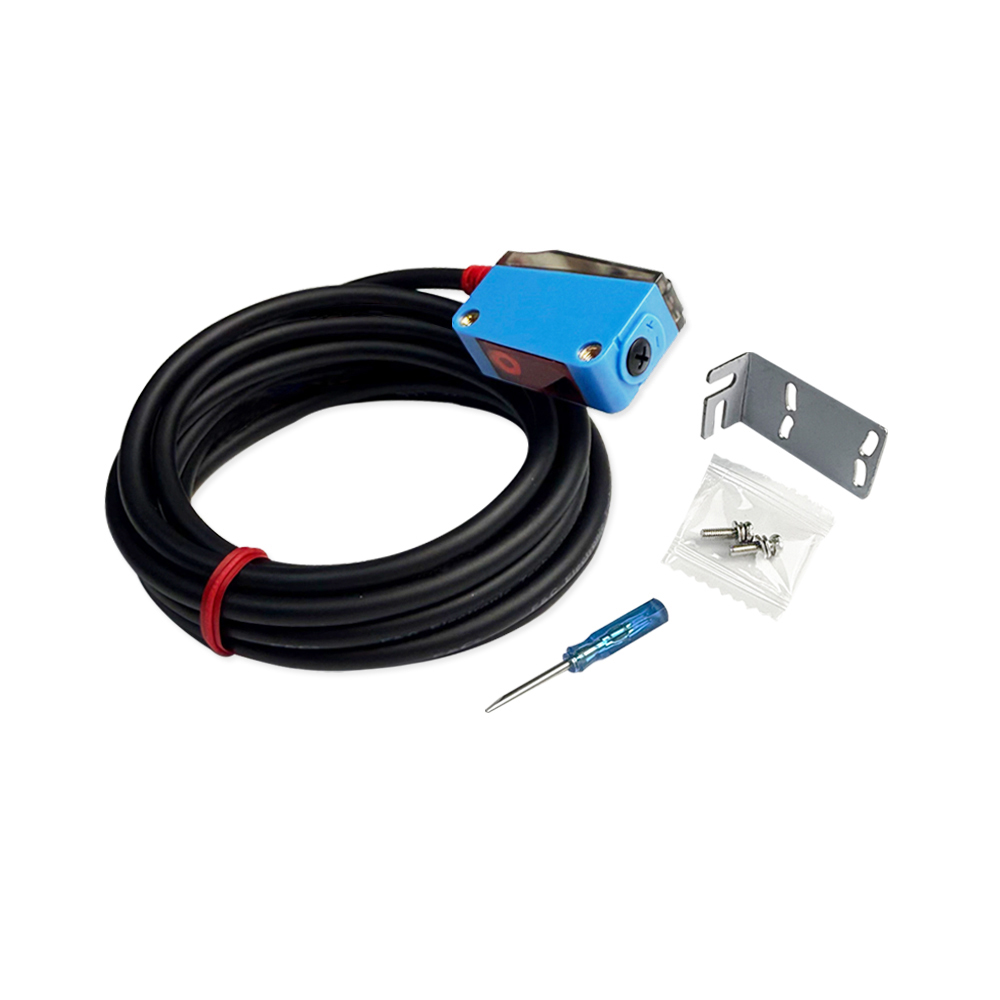

• Dependable Current Delivery: Maintains a steady load current capacity of 100 mA, ensuring strong signal transmission through the included 2m straight-out cable.

The generous cable length provides ample routing flexibility within complex machine frames, allowing for neat and secure wiring practices that resist mechanical wear over time.

Industrial-Grade Durability and Structural Design

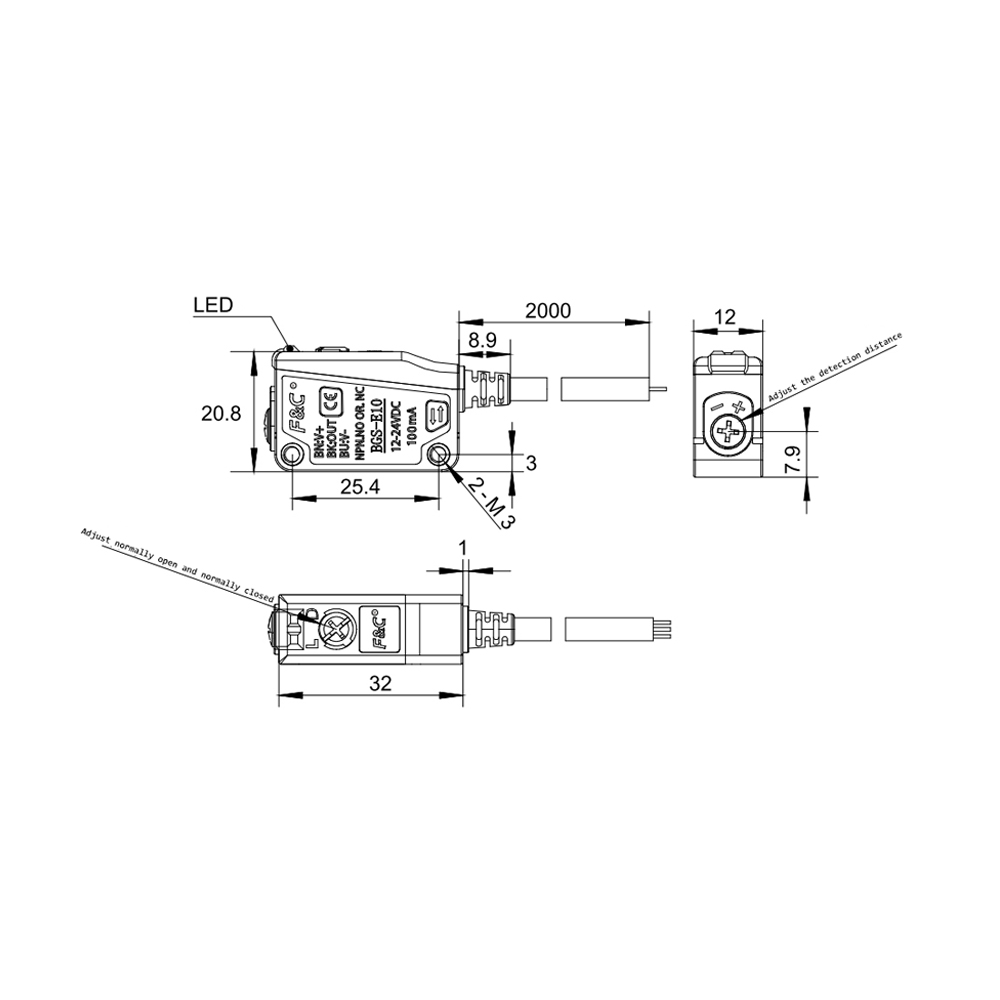

Built to endure the unforgiving conditions of active factory floors, the sensor is housed in a high-strength composite enclosure made from a precise blend of ABS, PC, and PVC materials. This resilient construction provides exceptional resistance to mechanical impacts, daily vibrations, and accidental strikes from moving machinery parts. Measuring a highly compact 32 by 20 by 18 millimeters, the unit is specifically designed for installation in confined spaces and intricate machinery where real estate is at a premium. It boasts an IP54 protection rating, safeguarding the internal optics and electronics against dust ingress and splashing water. Furthermore, the internal circuitry is fortified with strong electromagnetic interference (EMI) resistance, alongside built-in reverse polarity and short-circuit protection. These protective measures guarantee long-term operational stability even in electrically noisy environments, operating reliably across ambient conditions ranging from -10 to 50℃ and 35 to 85%RH.

Optimized for Critical Industry Applications

The precision and reliability of the BGS-E10NT make it an indispensable asset across a multitude of highly demanding sectors. In the 3C electronics industry, where miniaturized components move at blistering speeds, the sensor's sharp strip-shaped spot accurately detects the presence of delicate printed circuit boards and smartphone chassis without being fooled by reflective solder masks or underlying transport belts. Within semiconductor manufacturing facilities, its adaptive background suppression ensures that silicon wafers are tracked consistently, regardless of their mirror-like finishes or the presence of complex handling trays. Additionally, in automotive parts assembly, the sensor easily handles the diverse surface treatments of metal gears, plastic housings, and dark rubber seals. By delivering consistent detection across these varied applications, the sensor significantly reduces machine downtime, minimizes sorting errors, and elevates overall throughput for complex automated production lines, proving its value as a fundamental component in advanced manufacturing.
