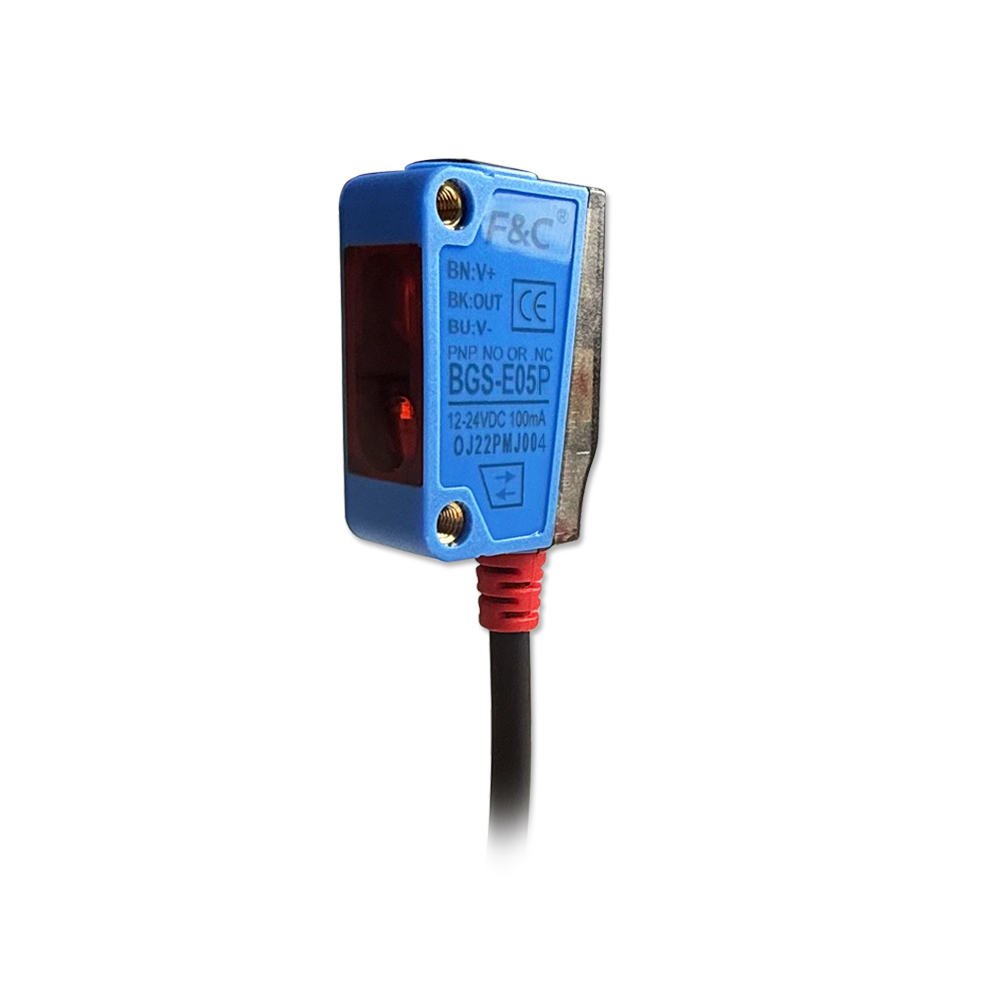

BGS-E05P Background Suppression Photoelectric Sensor

Comprehensive Product Overview & Engineering Advantages

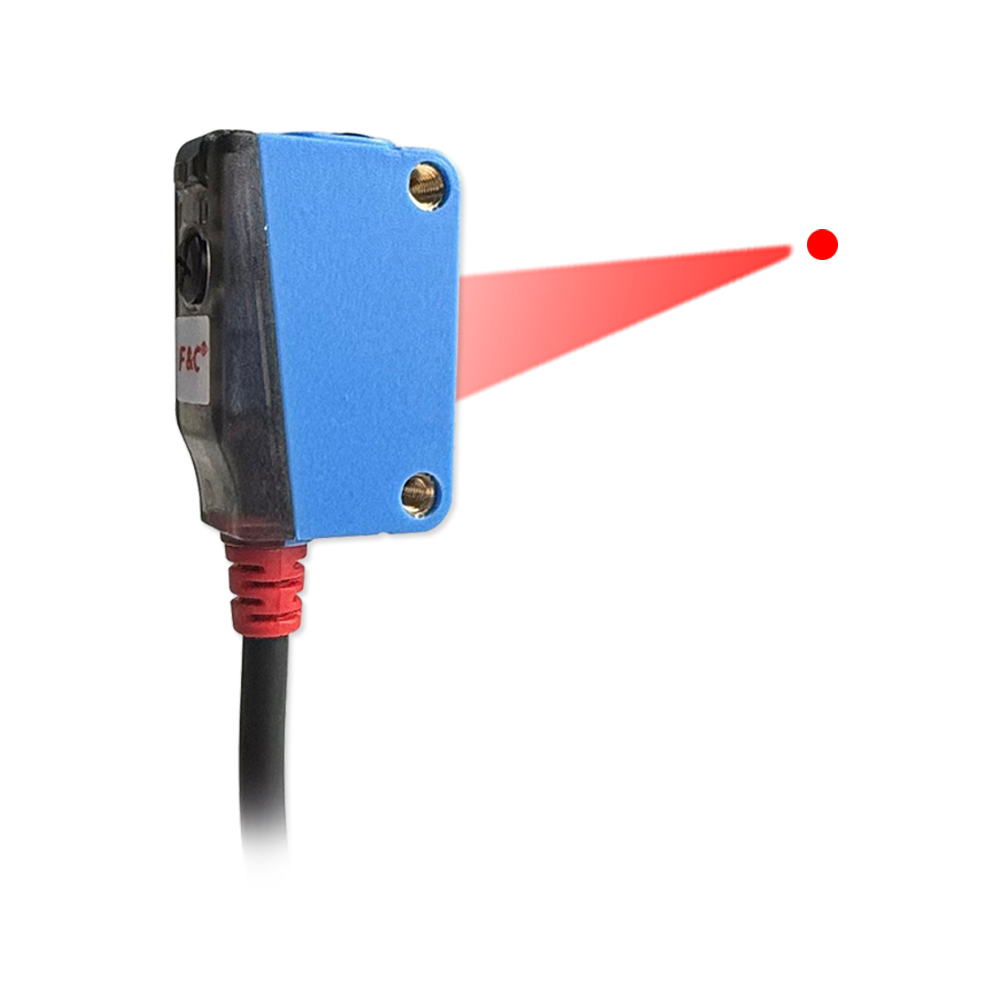

Engineered for demanding industrial automation tasks, the BGS-E05P Background Suppression Photoelectric Sensor redefines precision detection by completely eliminating background color interference. At the heart of this device lies an advanced triangulation measurement principle paired with an intelligent recognition algorithm. Unlike standard diffuse sensors that rely solely on light intensity, this unit calculates the precise angle of the reflected light. This means the sensor accurately identifies the target object within its 100 mm sensing distance while entirely ignoring highly reflective or brightly colored backgrounds located just beyond the focal point. Facility managers and automation engineers can rely on this mechanism to maintain continuous production rhythms without the constant need for manual recalibration. The resulting operational stability directly translates to higher throughput and reduced maintenance overhead, ensuring your assembly lines operate with unyielding consistency.

Precision Detection for Complex Workpieces

Manufacturing environments rarely present perfectly uniform targets. The BGS-E05P excels in identifying complex workpieces that typically confound conventional optical sensors. Whether your production line handles highly reflective metallic components, deeply contoured plastic moldings, or parts with rapidly changing surface colors, this sensor delivers unwavering accuracy.

• Reflective and Shiny Surfaces: The intelligent algorithm filters out blinding reflections that cause false triggers, ensuring the actual presence of the part is what registers in the system.
• Uneven and Textured Geometries: The focused beam maintains its integrity across undulating surfaces, providing a consistent read regardless of the angle of incidence.
• Variable Color Palettes: Because the detection is based on distance rather than reflectivity, transitioning from matte black components to bright white parts requires absolutely no parameter adjustments.

This adaptability drastically reduces setup times during product changeovers, empowering your facility to handle diverse production runs with exceptional agility.

Electrical Protection and System Stability

Reliability in industrial electrical systems is non-negotiable. The BGS-E05P is engineered with comprehensive internal safeguards to protect against common electrical faults that can halt production. Built-in reverse polarity protection ensures that accidental miswiring during installation will not damage the internal circuitry, while the short-circuit protection actively shields the sensor from sudden current spikes or load faults. Operating on a wide voltage range of 12 to 24 VDC (±10%), it accommodates the natural voltage fluctuations often experienced in heavy machinery environments. Furthermore, its superior anti-interference capabilities mean it operates flawlessly even when surrounded by electrically noisy equipment like variable frequency drives or large motors. This steadfast electrical stability guarantees long-term operational health, minimizing replacement costs and preventing unexpected downtime in critical automation loops.

Flexible Output Modes and Effortless Compatibility

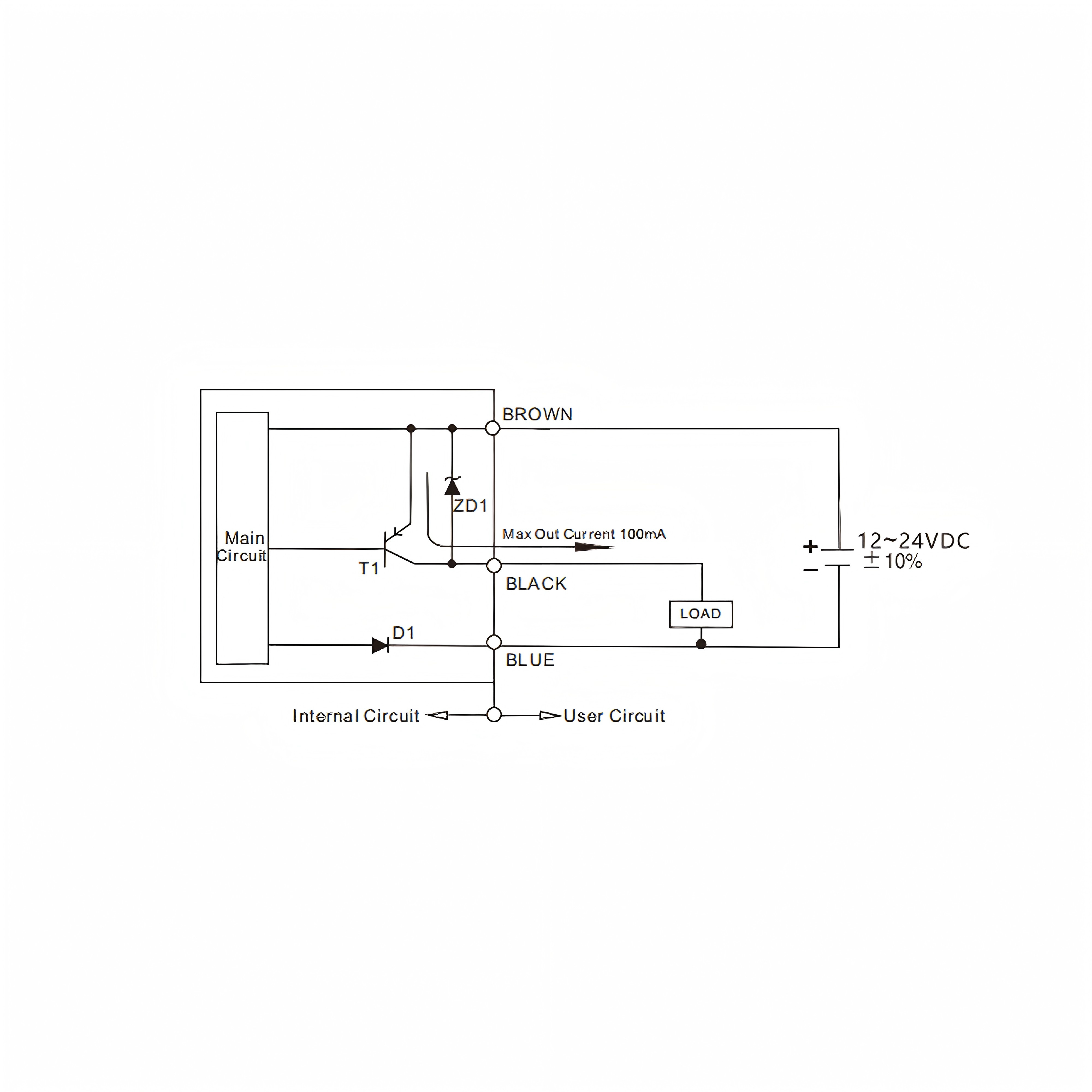

Integration into existing control architectures is incredibly straightforward with this sensor's versatile output configuration. The device features a PNP output mode with easily adjustable Normally Open (NO) and Normally Closed (NC) states. This flexibility allows control engineers to standardize on a single sensor model across various machine designs, simplifying inventory management and spare parts procurement. The rapid 3-millisecond response time ensures that even high-speed sorting mechanisms receive immediate positional feedback, allowing for rapid actuation of pneumatic cylinders or diverter gates. Coupled with a solid 100 mA load current capacity, the sensor can directly drive a wide array of relays and micro-controllers without the need for intermediate amplification. The tactile adjustment mechanism for switching between NO and NC states provides a satisfying, definitive click, assuring the technician that the setting is securely locked in place.

Durable Structural Design for Harsh Environments

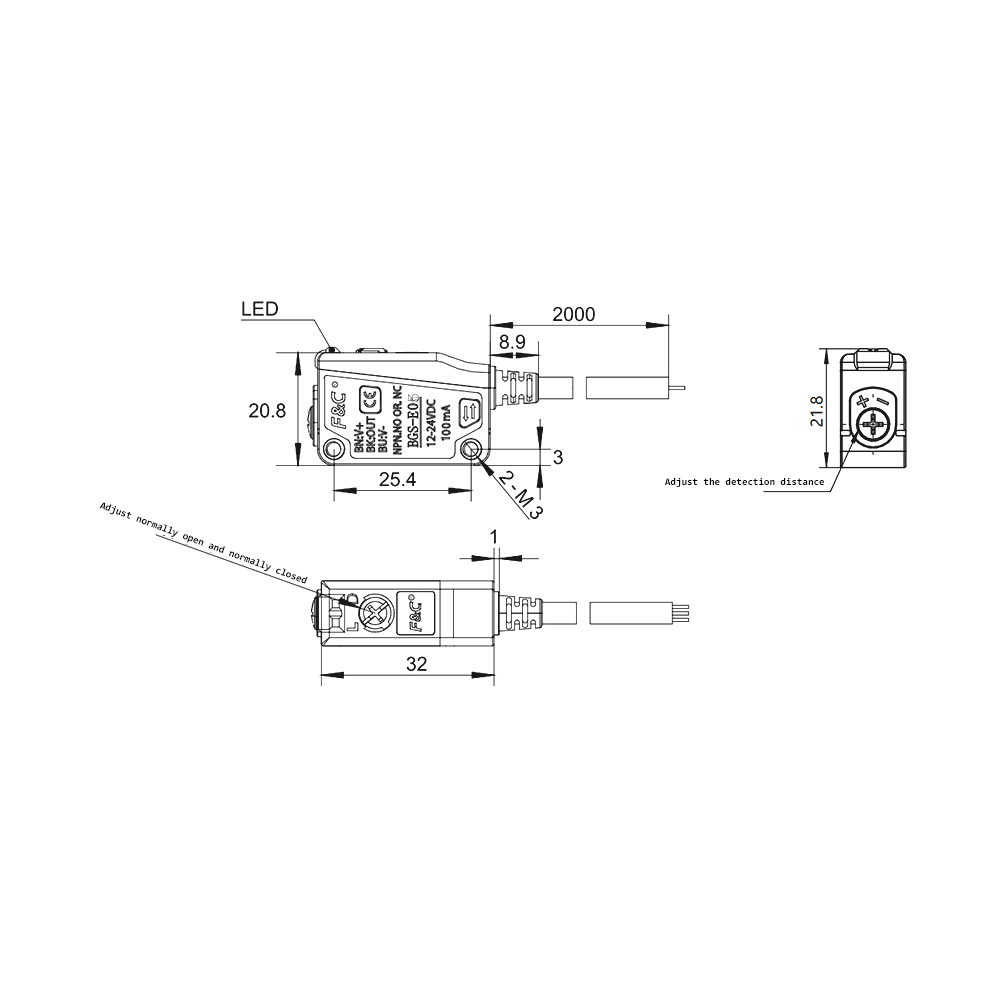

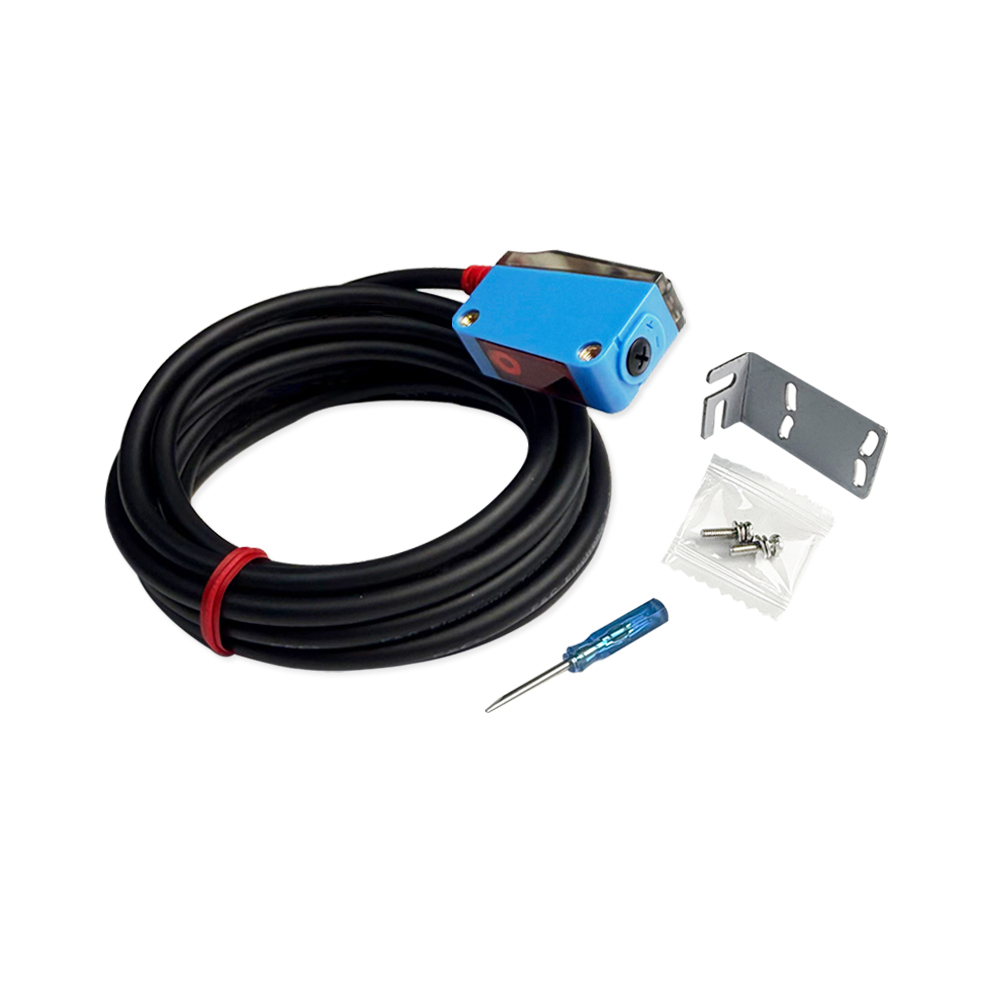

The physical construction of the BGS-E05P is a testament to its industrial pedigree. Housed in a compact 32×20×18mm enclosure, it is manufactured from a specialized ABS, PC, and PVC composite. Running your hand along the exterior, you can feel the dense, matte finish of the housing, which is specifically formulated to resist chemical degradation and physical impacts. The IP54 protection rating certifies its defense against dust ingress and splashing water, making it perfectly suited for environments where airborne particulates and occasional moisture are unavoidable. The integrated 2-meter straight-out cable is thickly insulated, offering a firm, heavy-duty feel that resists kinking and abrasion against moving machine parts. Rated for ambient temperatures ranging from -10 to 50℃, this sensor remains thermally stable, ensuring the optical lenses do not warp or degrade when subjected to the ambient heat of continuously running machinery.

Primary Industry Applications

Given its exceptional background suppression and versatile detection capabilities, the BGS-E05P is the sensor of choice across multiple high-precision sectors.

• 3C Electronics Manufacturing: Ideal for detecting ultra-thin, dark-colored smartphone chassis or printed circuit boards on high-speed conveyors without being fooled by the metallic conveyor belt beneath.
• Semiconductor Fabrication: Ensures the precise positioning of silicon wafers and carriers, where non-contact, highly accurate detection is critical to preventing catastrophic material damage.
• Automotive Parts Assembly: Reliably senses heavily lubricated, irregular metal gears and engine components, ignoring the reflective sheen of industrial oils.
• Automated Packaging Lines: Accurately counts and positions multi-colored retail packages, maintaining the rapid pace of the packaging machinery regardless of the graphic designs on the boxes.
