| Type | Diffuse-reflective Photoelectric Sensor |
| Sensing Distance | 30 mm |

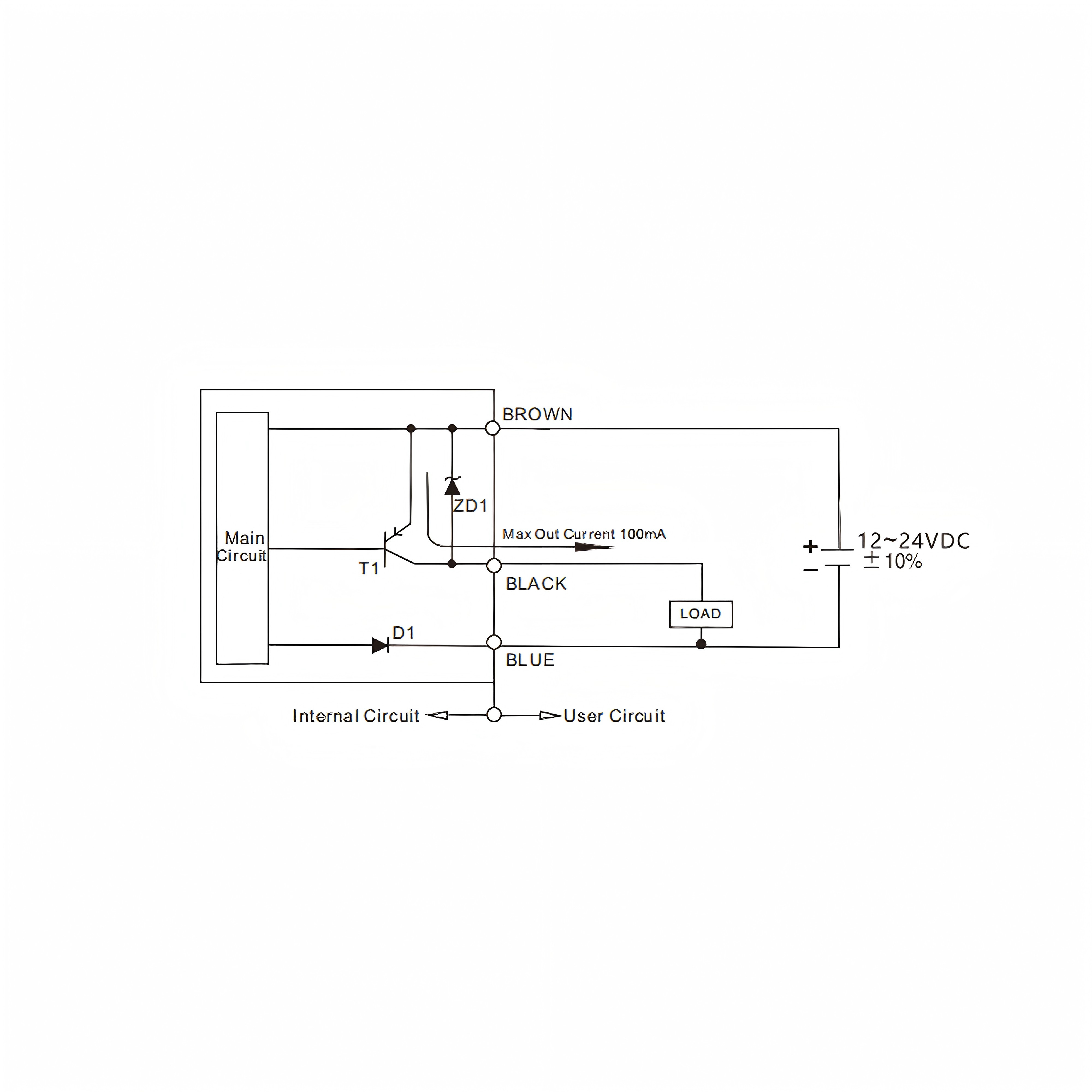

| Output Mode | PNP, Normally Open (NO) |

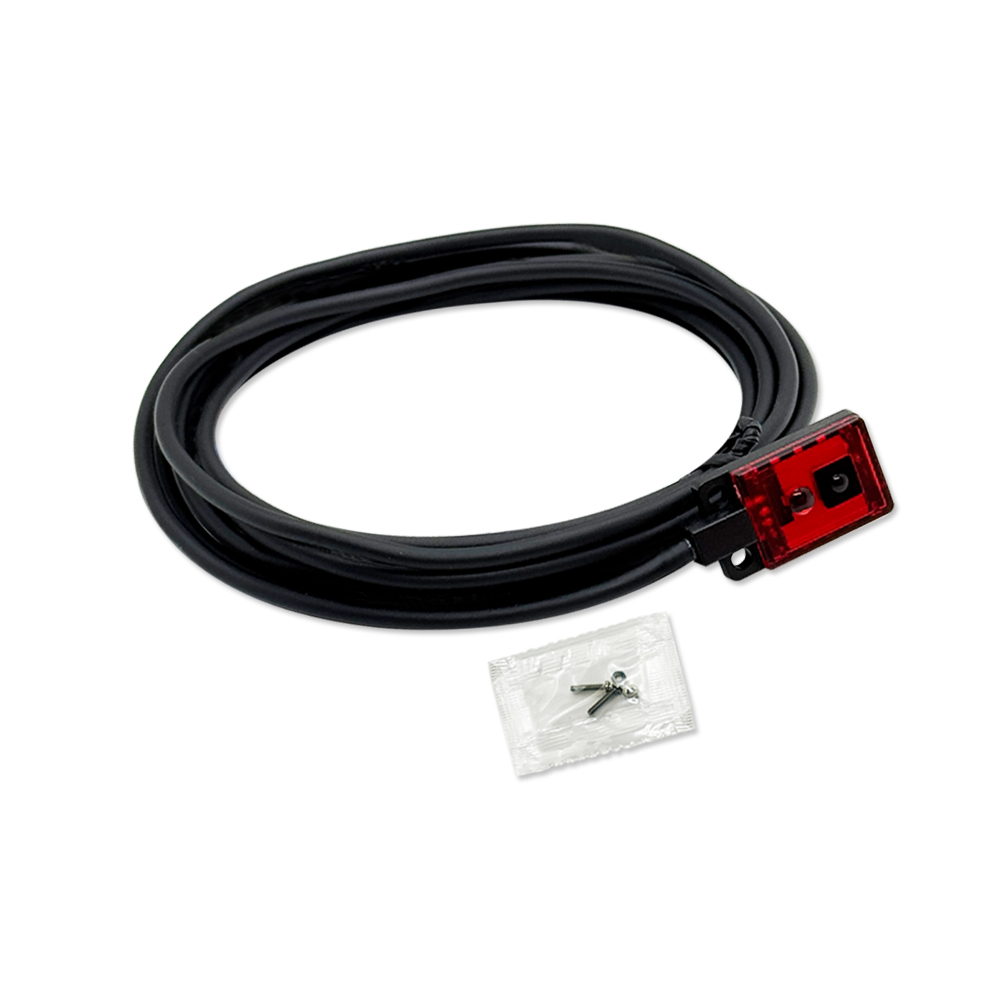

| Connection | 2m straight-out cable |

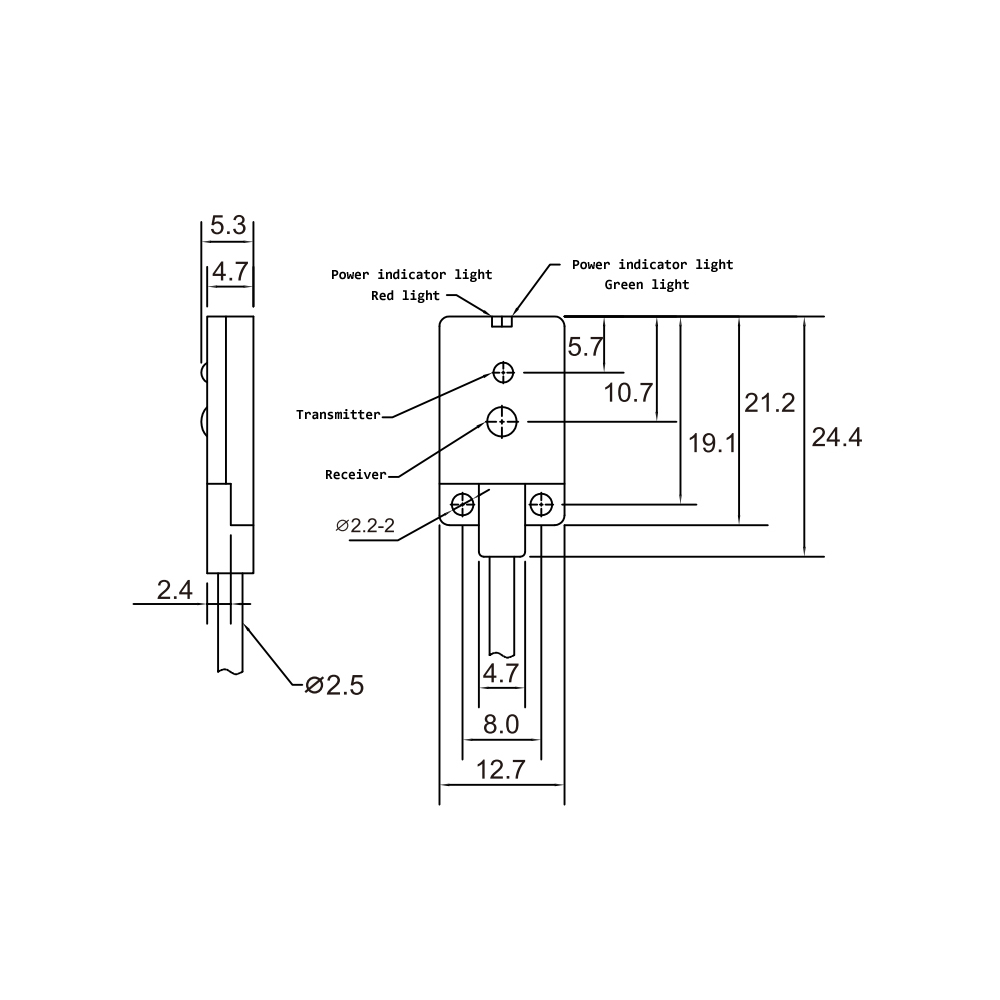

| Mechanical | Housing: PBT+PC+PVC, IP66, Size 21.2×12.7×4.7mm |
| Operating Voltage | 12~24 VDC ±10% |
| Response Time | 3 ms |
| Load Current | 100 mA |
| Protection | Reverse polarity & short-circuit protection |
| Ambient Conditions | -10~50℃, 35~85%RH, IP66 |

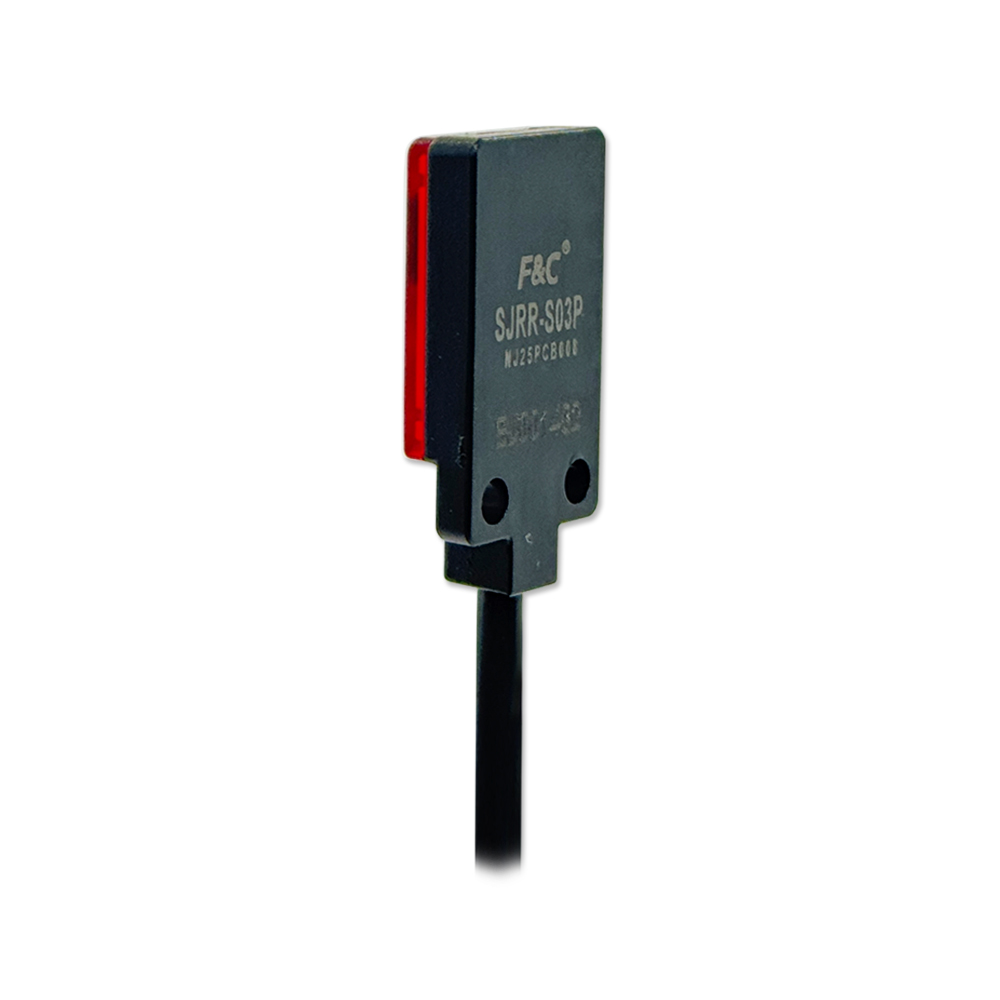

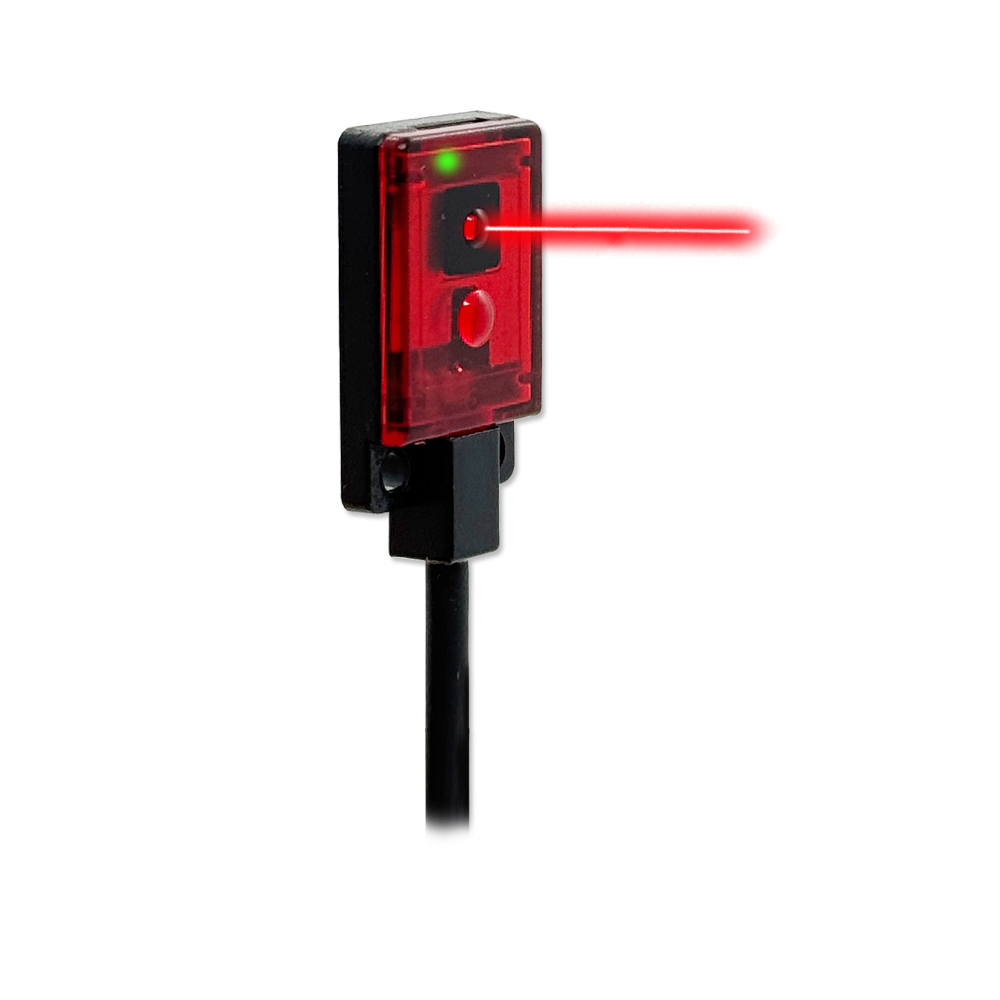

SJRR-S03P R2M
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Specification |
|---|---|
Type | Diffuse-reflective Photoelectric Sensor |
Sensing Distance | 30 mm |
Output Mode | PNP, Normally Open (NO) |
Connection | 2m straight-out cable |
Mechanical | Housing: PBT+PC+PVC, IP66, Size 21.2×12.7×4.7mm |
Operating Voltage | 12~24 VDC ±10% |
Response Time | 3 ms |
Load Current | 100 mA |
Protection | Reverse polarity & short-circuit protection |
Ambient Conditions | -10~50℃, 35~85%RH, IP66 |
