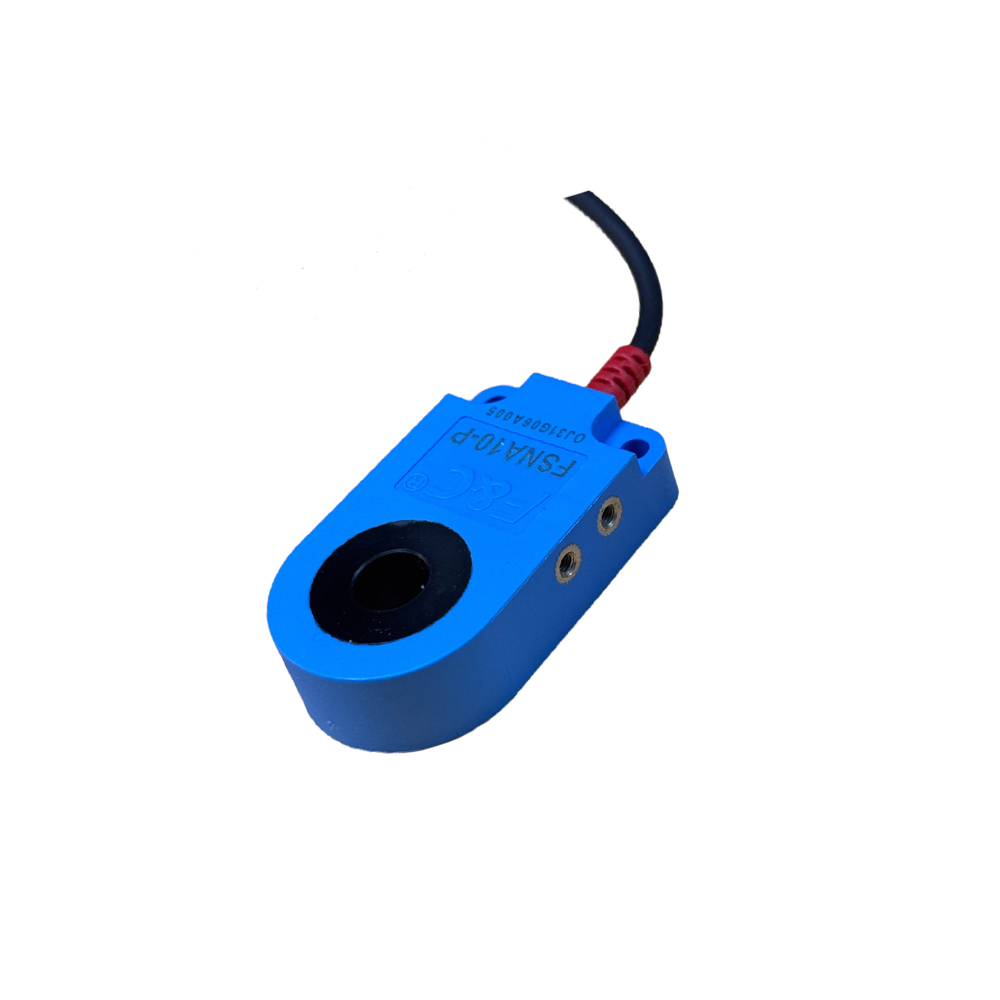

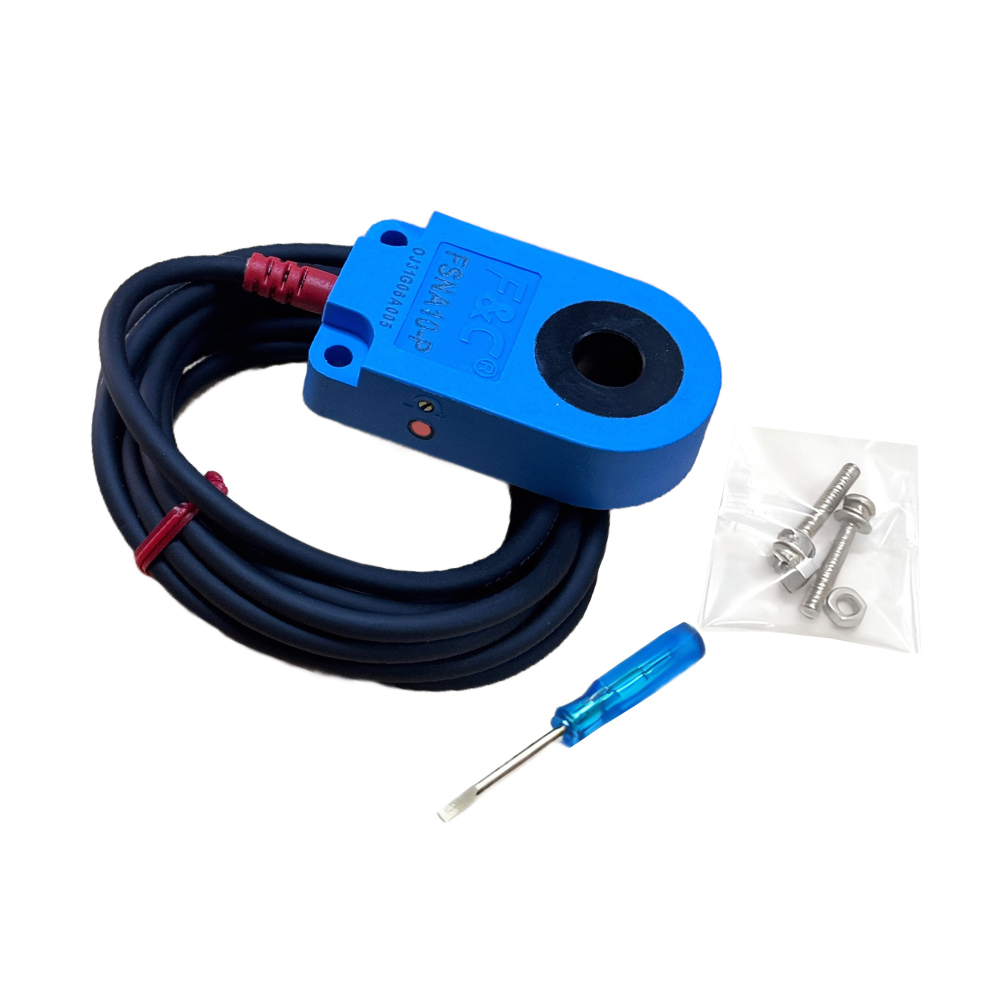

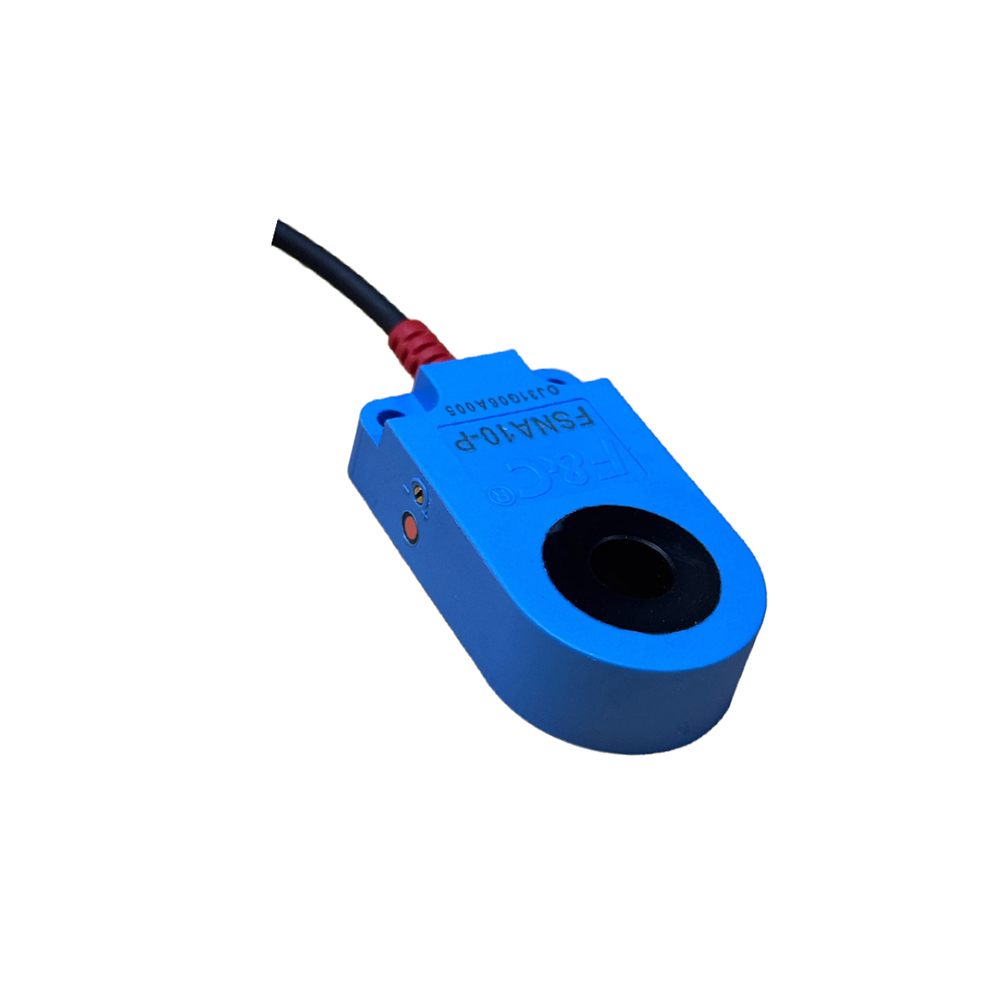

Ring Proximity Sensor FSNA10-P

Parameter Specification
Product Description Channel Size φ10 / Output Mode PNP.NO / Sensing Frequency 1KHz
Cable Specification Φ4.0 3-core 2M Flexible Cable
Connection Type Direct Lead-out Type
Material ABS+PBT
Net Weight 77.23g
Protection Rating IP66

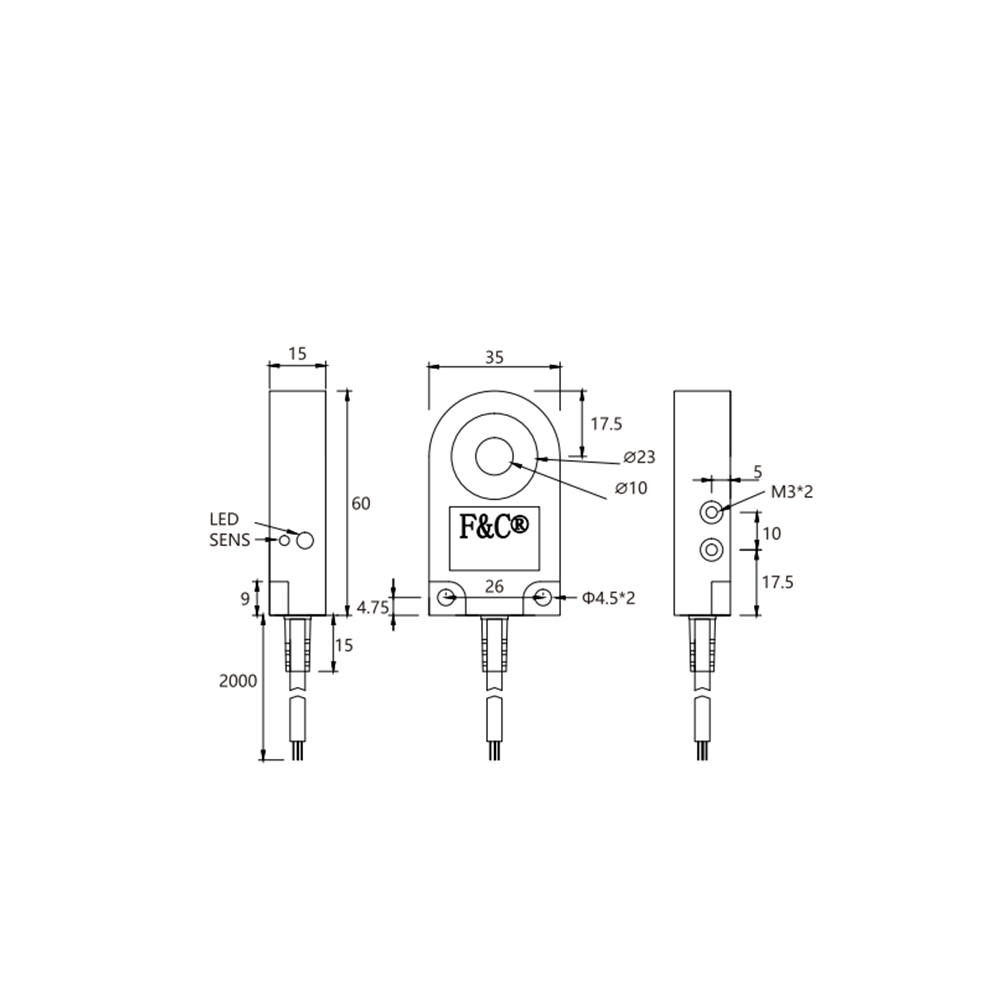

Dimensions (L×W×H) 35×60×15mm
Channel Diameter φ10
Standard Test Object φ3×2 (metal wire)
Certification CE

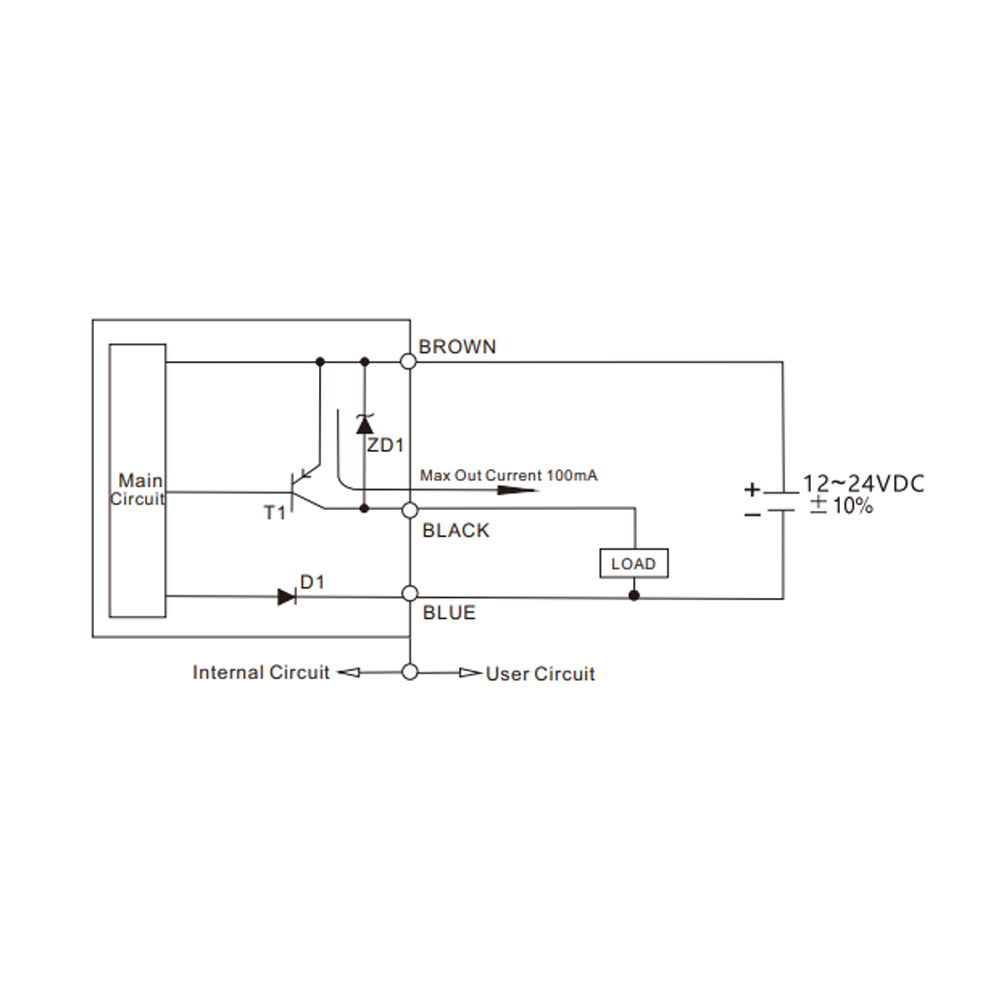

Output Configuration PNP.NO (Normally Open)
Sensing Frequency 1KHz
Hysteresis <10% of sensing distance
Dielectric Withstand Voltage 1000VAC 50~60Hz 1min (between live part and housing)
Supply Current <10mA
Load Current 100mA
Reverse Polarity Protection Yes
Operating Voltage 12~24VDC ±10%
Adjustable Sensing Range Adjustable
Repeat Accuracy ≤2% of sensing distance
Insulation Resistance ≥20MΩ (between live part and housing)
EFT Level NA
Detectable Objects Steel / Metal
Mounting Type Non-shielded
Output Short-Circuit Protection Yes
Leakage Current (No Load) <0.01mA
Residual Voltage <1.5VDC
Operating Temperature -25 ~ 70℃ (no frost/icing)
Temperature Drift ±10% of sensing distance at ≤25℃
Relative Humidity 35~95% RH (no condensation); Storage: 35~95% RH (no condensation)
