| Type | Diffuse-reflective Photoelectric Sensor |
| Sensing Distance | 100 mm |

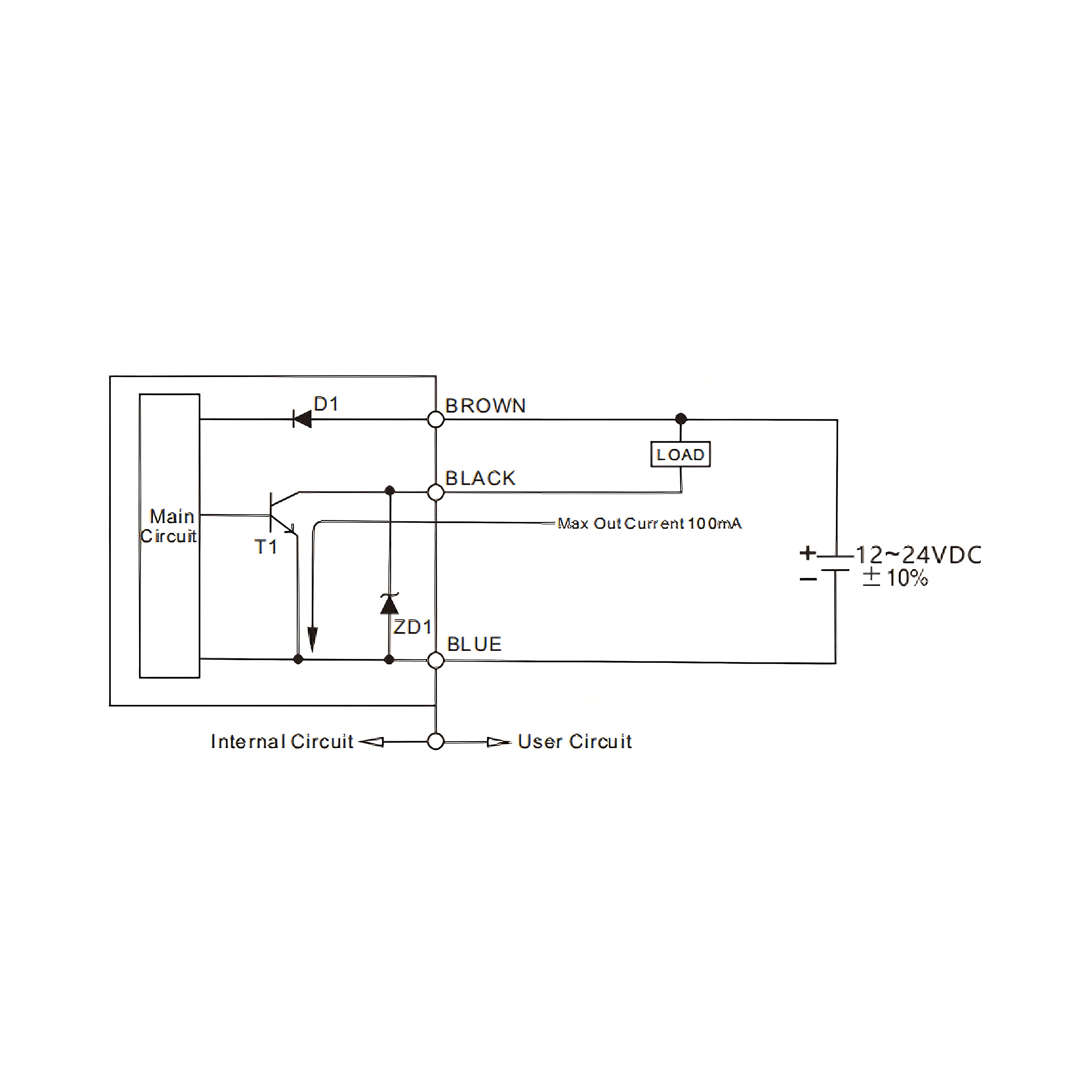

| Output Mode | NPN, Normally Closed (NC) |
| Connection | 2m straight-out cable |

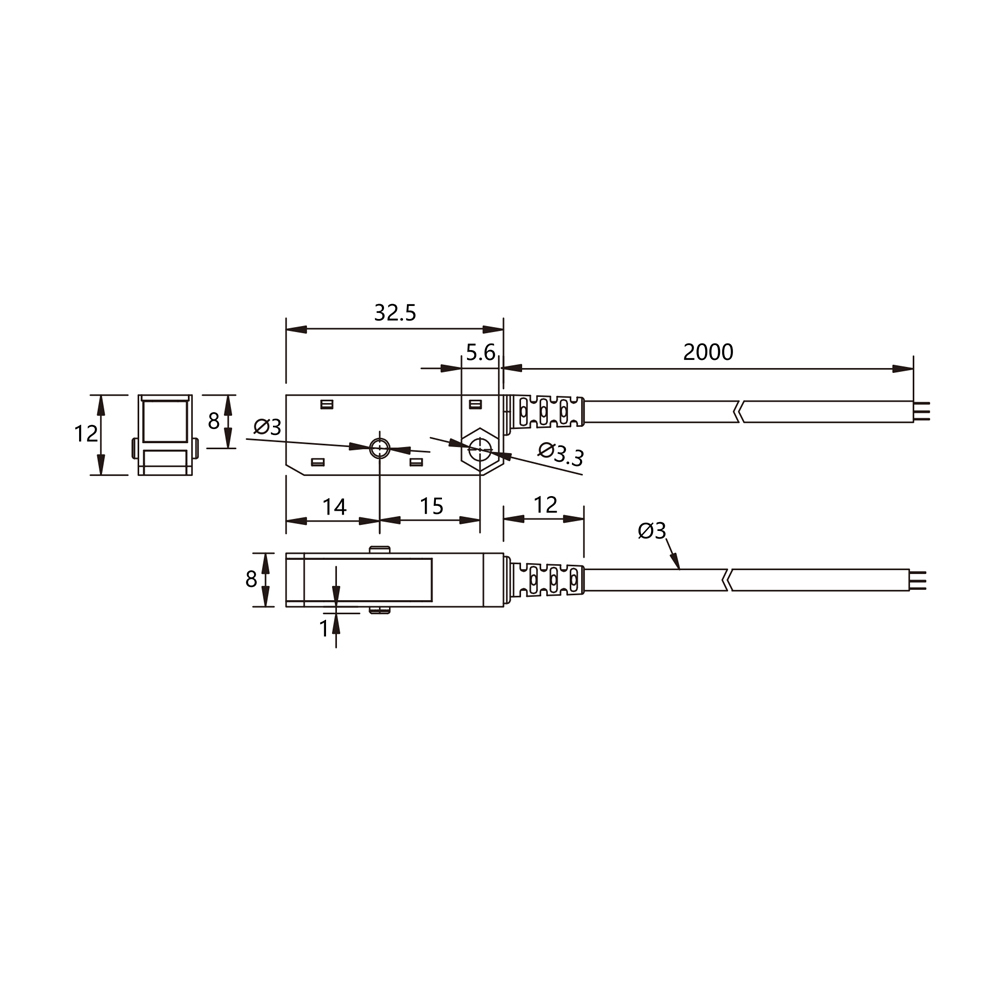

| Mechanical | Beam Ø2, Housing: PBT+PVC, IP54, Size 32.5×12×8mm |
| Operating Voltage | 12~24 VDC ±10% |
| Response Time | 2 ms |
| Load Current | 100 mA |
| Protection | Reverse polarity & short-circuit protection |
| Ambient Conditions | -10~50℃, 35~85%RH, IP54 |

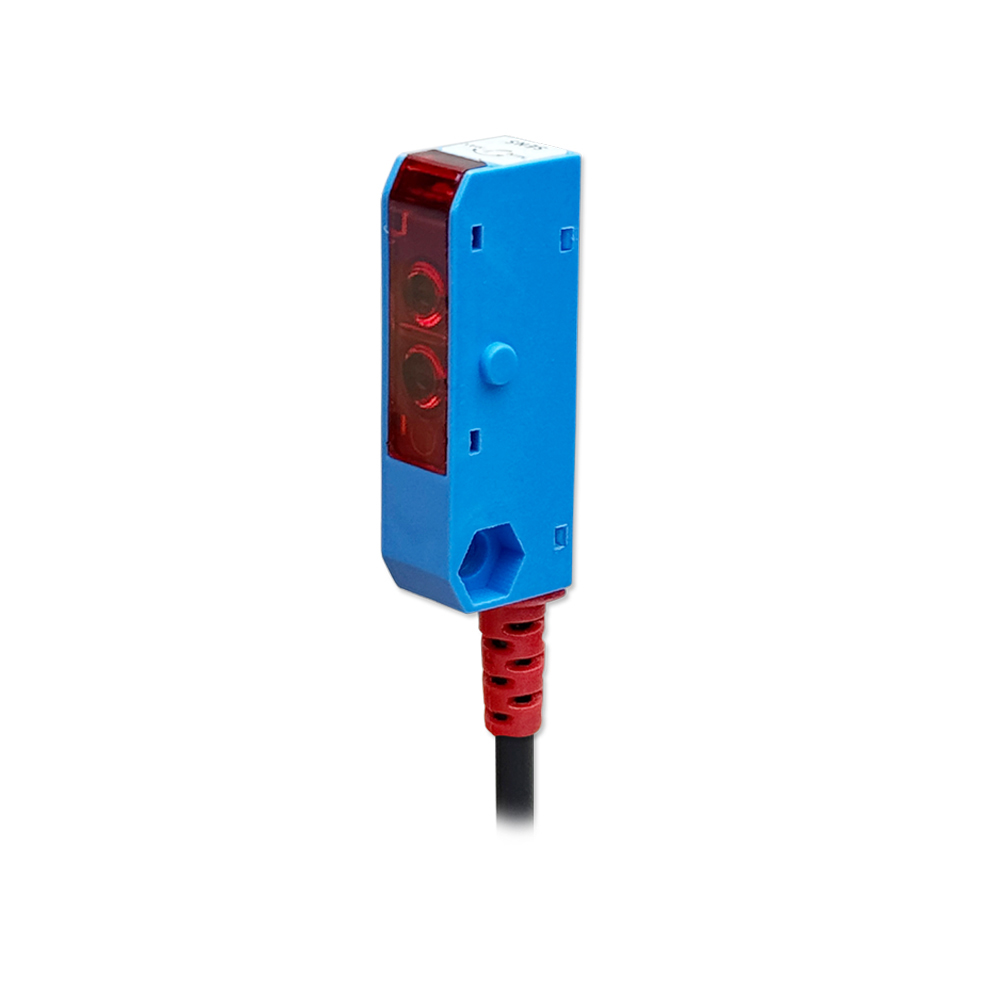

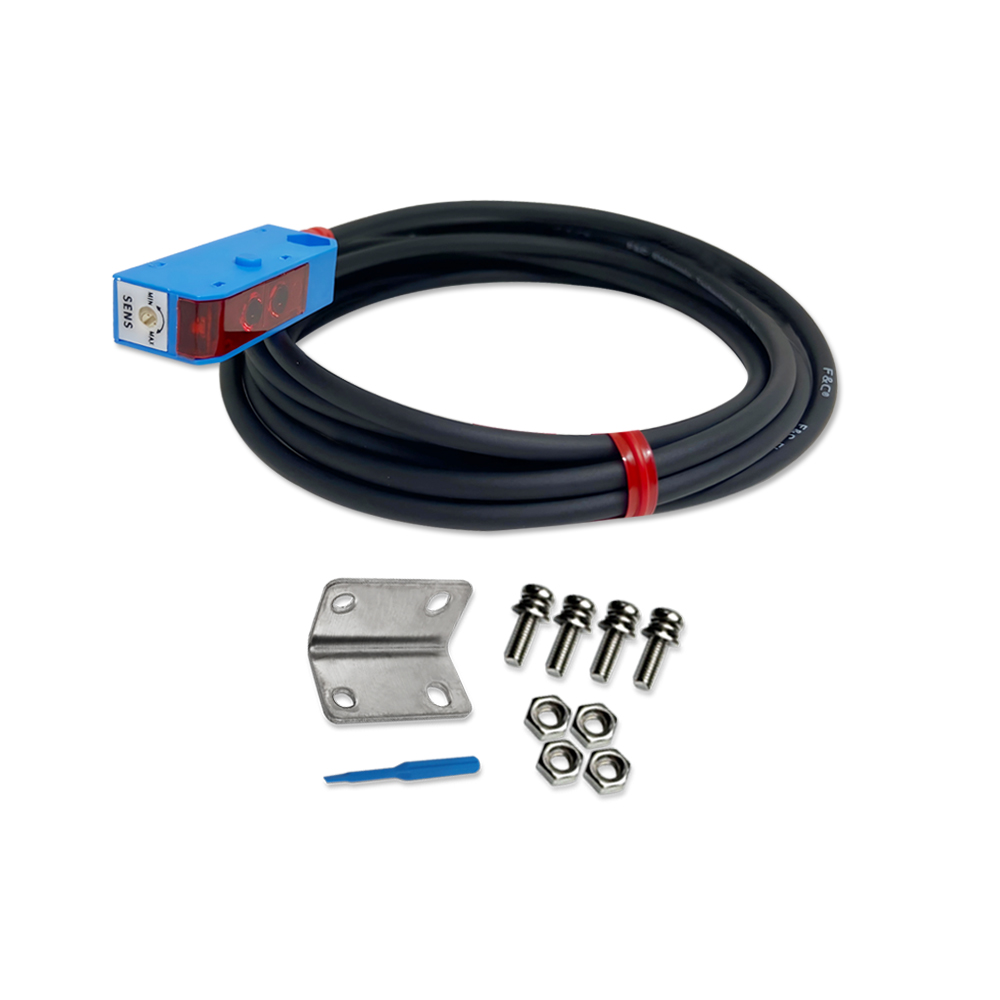

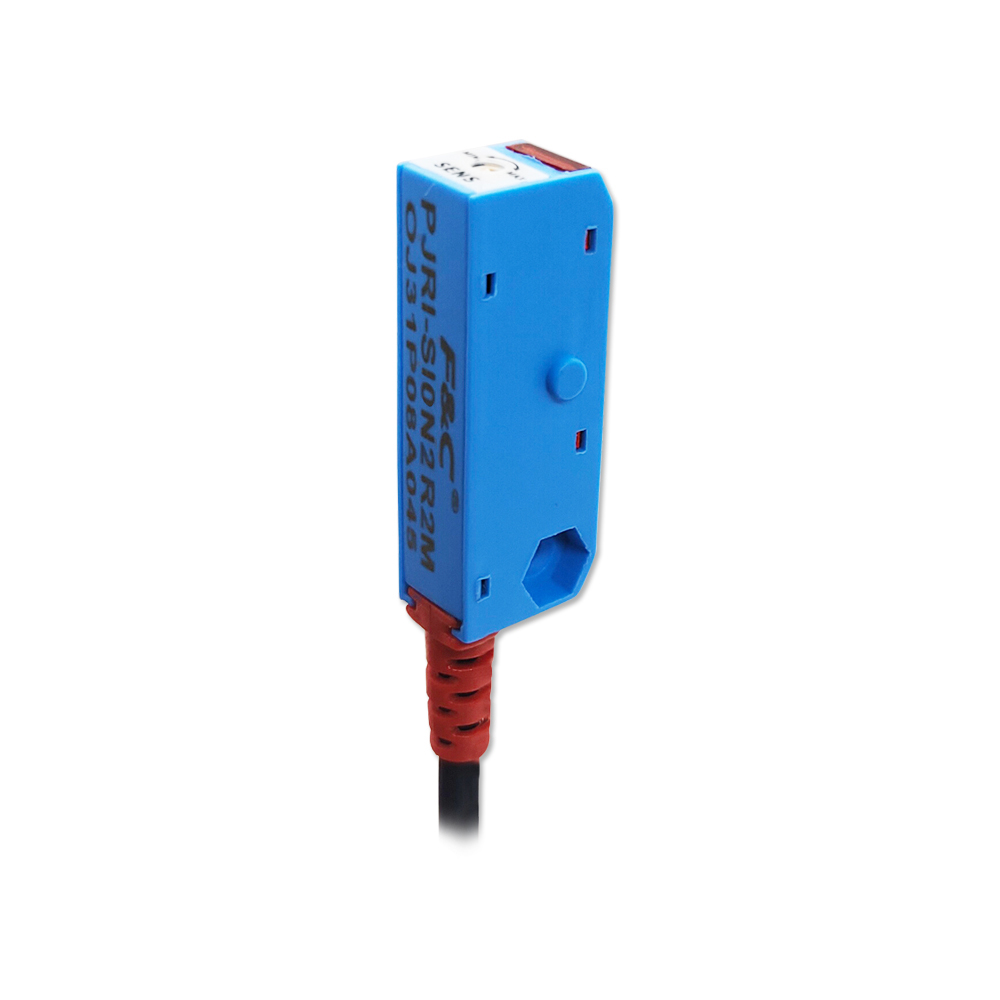

PJRI-S10N2 R2M
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Specification |
|---|---|
Type | Diffuse-reflective Photoelectric Sensor |
Sensing Distance | 100 mm |
Output Mode | NPN, Normally Closed (NC) |
Connection | 2m straight-out cable |
Mechanical | Beam Ø2, Housing: PBT+PVC, IP54, Size 32.5×12×8mm |
Operating Voltage | 12~24 VDC ±10% |
Response Time | 2 ms |
Load Current | 100 mA |
Protection | Reverse polarity & short-circuit protection |
Ambient Conditions | -10~50℃, 35~85%RH, IP54 |
