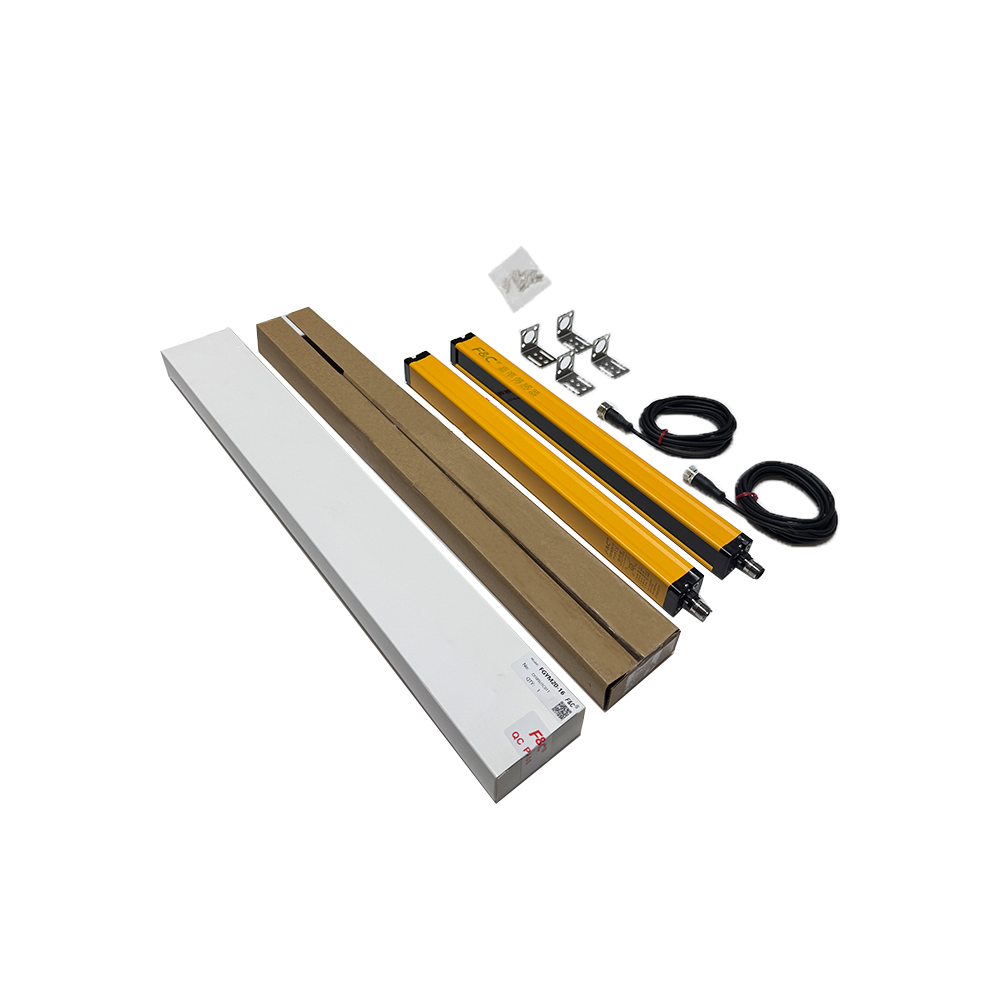

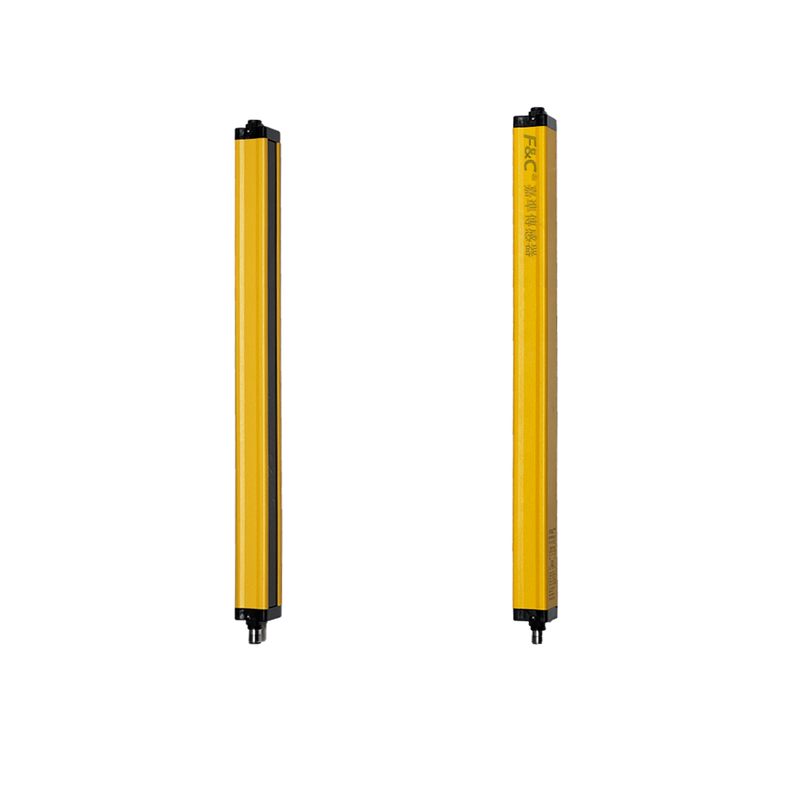

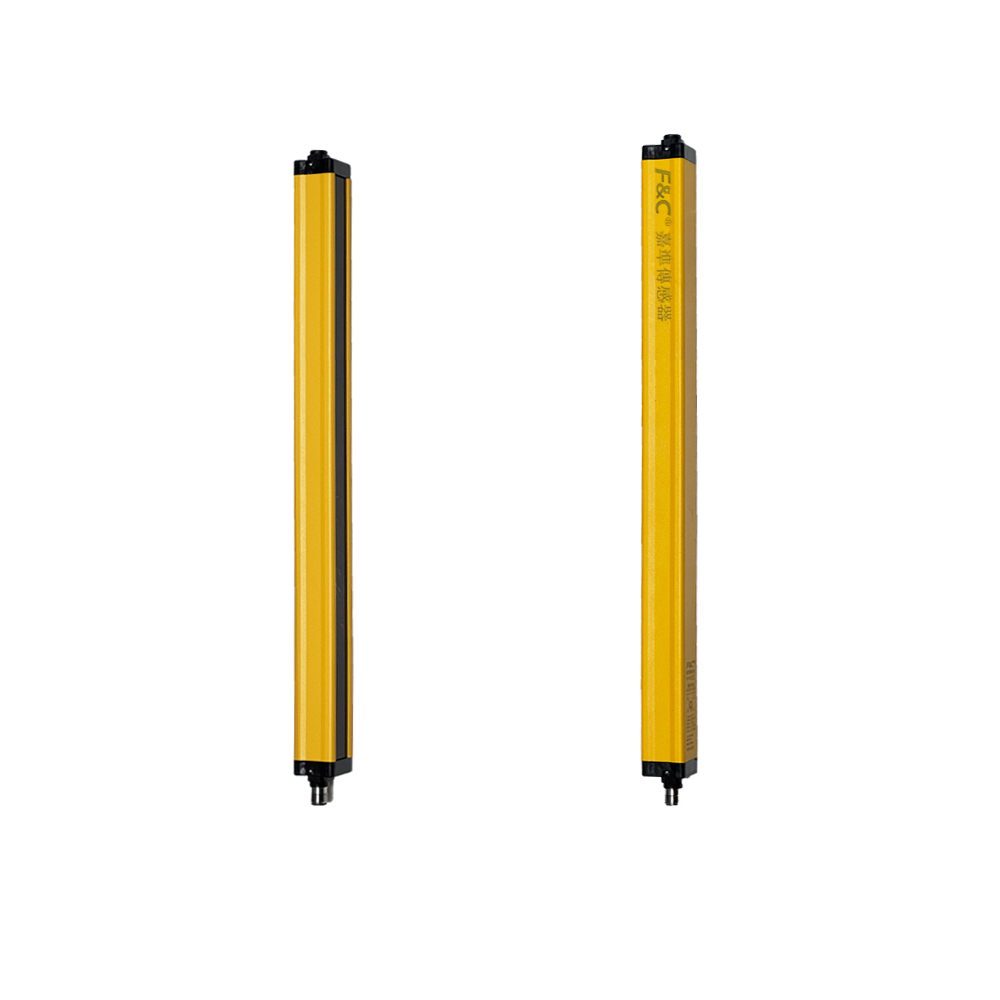

FGYM40-10 FGYM Light curtain

Detection method

Through-beam

Detection distance

2000mm

Working voltage

12~24VDC ±10%

Current consumption

<60mA

Leakage current

<0.01mA (no load)

Residual voltage

<1.5VDC

Load current

100mA

Protection circuit

Reverse polarity protection, output short circuit protection

Surge withstand level

National Standard Level 3

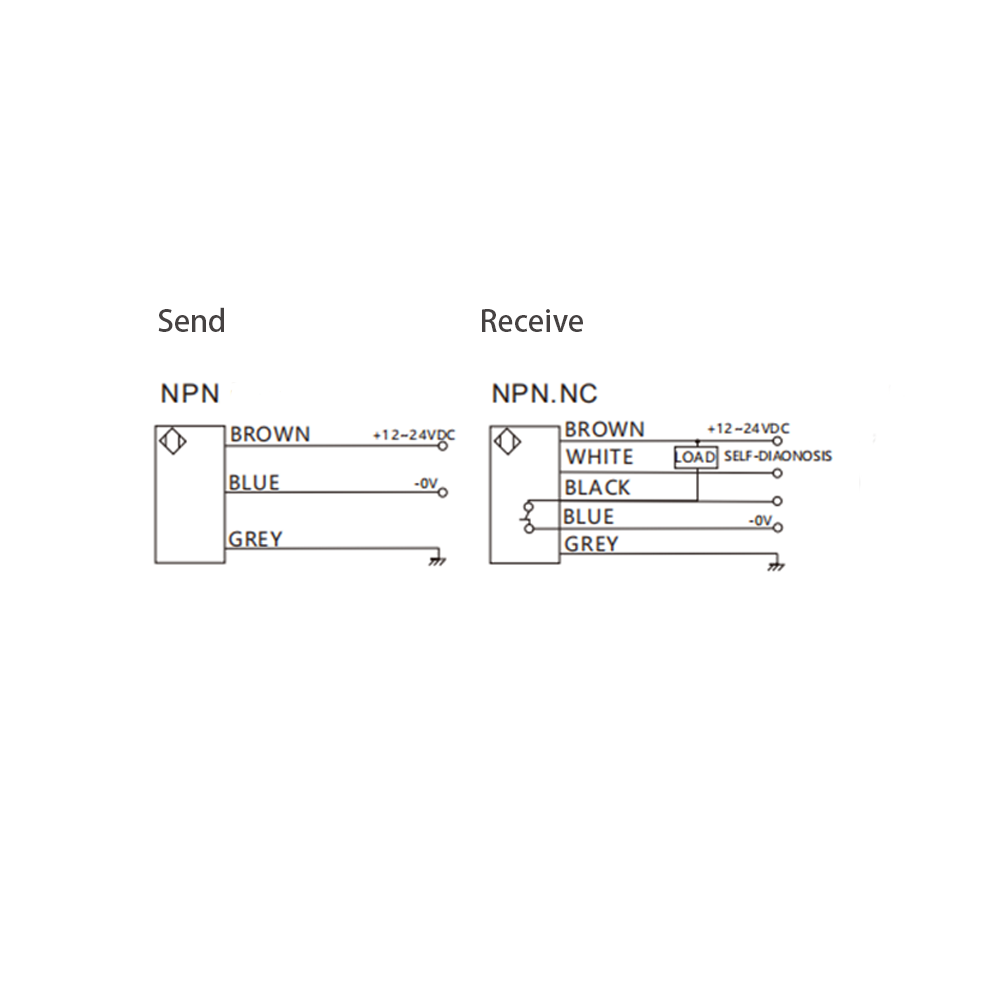

Output mode

NPN N.C. (dual NC)

Light source

850nm infrared modulated light

Indicator light (Emitter)

Power: green flashing / red steady

Indicator light (Receiver)

Power: red steady; Output: green

Adjustment range

Non-adjustable

Repeatability accuracy

<2% of detection distance

Reaction time

20ms

Minimum detectable object

Φ60.0mm non-transparent object

Insulation resistance

>20MΩ (between charging part and housing)

Protection rating

IP65

Connection method

M12 connector

Cable specification

4.0mm 5-core 2M female shielded cable

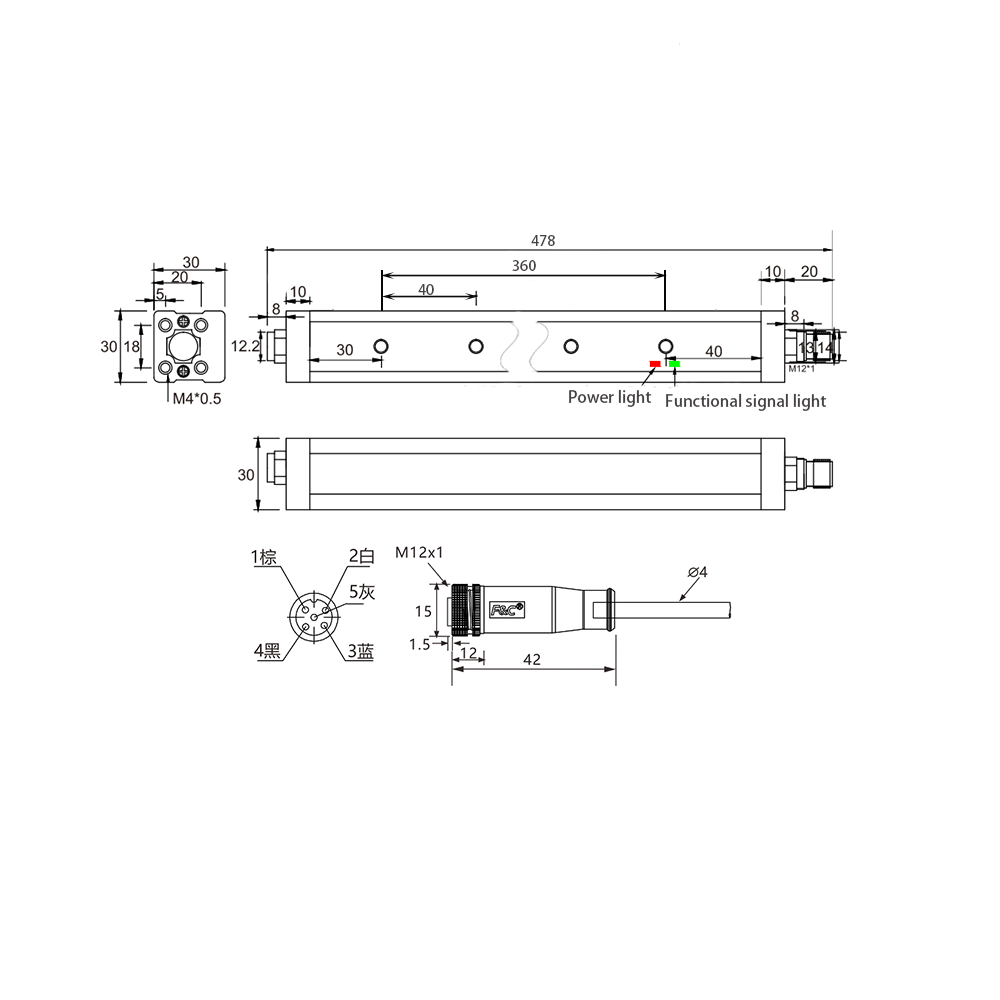

Dimensions

478 × 30 × 30mm

Number of optical axes

10

Optical axis spacing

40mm

Detection length

400mm

Total light curtain length

478mm

Housing material

ABS + Aluminum alloy

Lens material

Optical acrylic

Weight

931.54g

Ambient temperature

-10~50°C (no frost/ice)

Impact withstand voltage

1000VDC 50-60Hz for 1 minute (between charging part and housing)

Storage temperature

-20~60°C (no frost/ice)

Ambient illuminance

Incandescent: ≤5000 Lux

Environmental humidity

35~85% RH

Vibration resistance

10~50Hz, 2 hours each in X, Y, Z directions

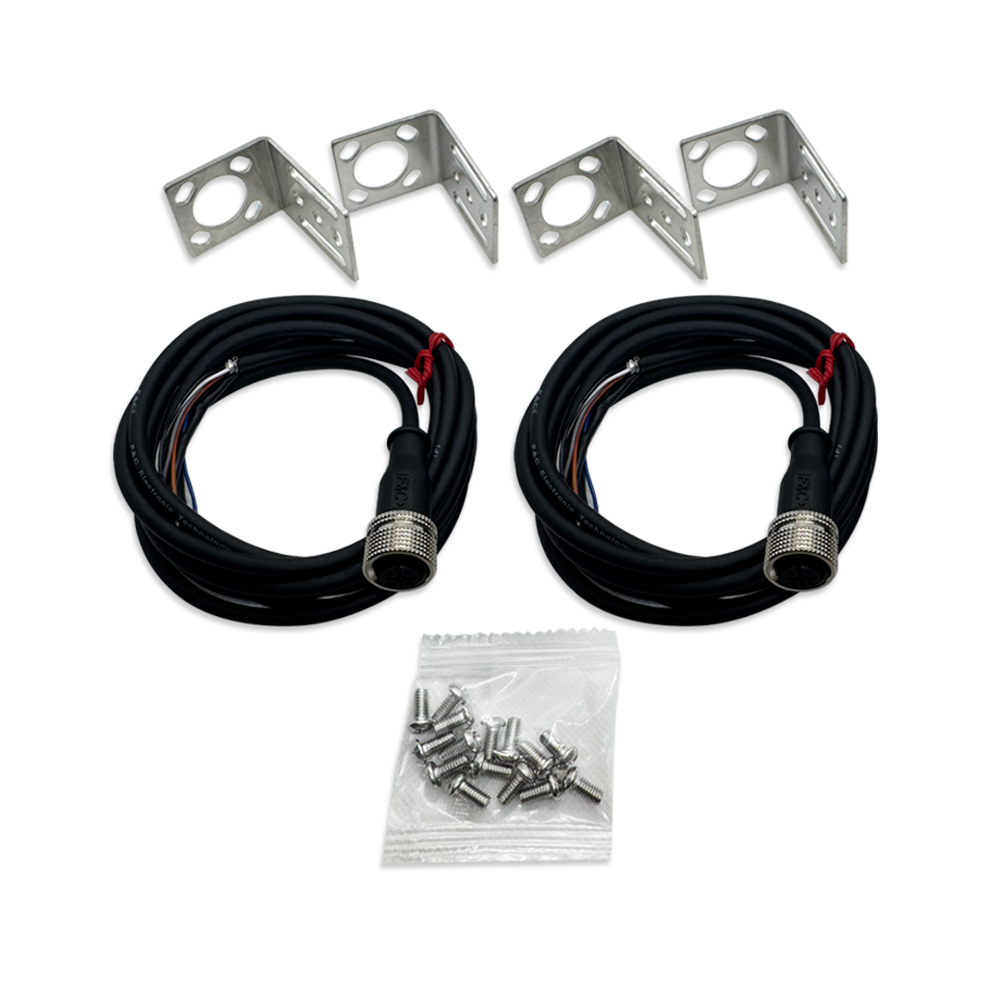

Mounting bracket

4 brackets + 16 screws

Certification

GB/T4584-2022
