FFTW-54TZ 2M Mounting bracket through-beam fiber optic cable

Comprehensive Product Overview & Engineering Capabilities

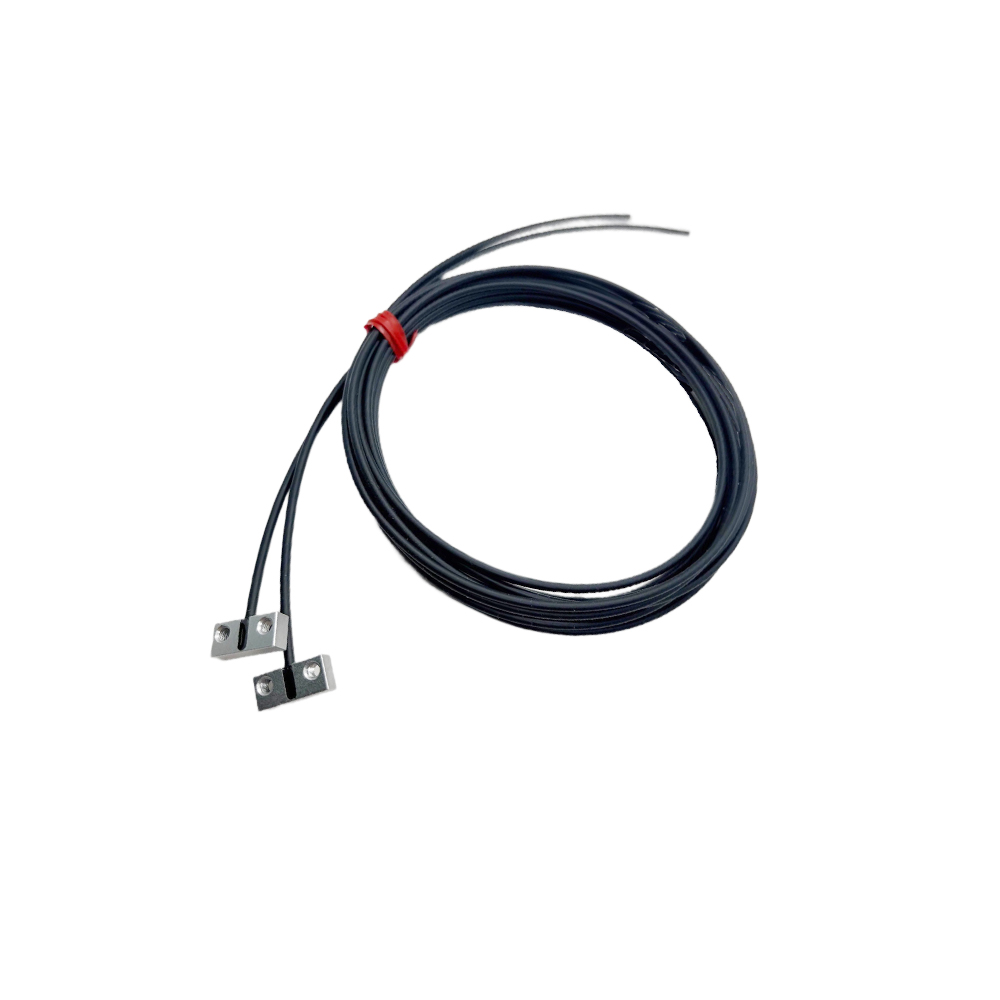

The FFTW-54TZ 2M through-beam fiber optic cable is meticulously engineered to resolve complex spatial constraints and signal transmission challenges in modern automated machinery. By combining a highly adaptable physical form factor with reliable optical performance, this unit provides a definitive solution for precise target detection. The architecture of the sensor focuses on eliminating installation friction while ensuring that optical signals remain stable, even when subjected to continuous mechanical movement or environmental fluctuations in demanding industrial settings.

Integrated Mounting & Spatial Adaptability

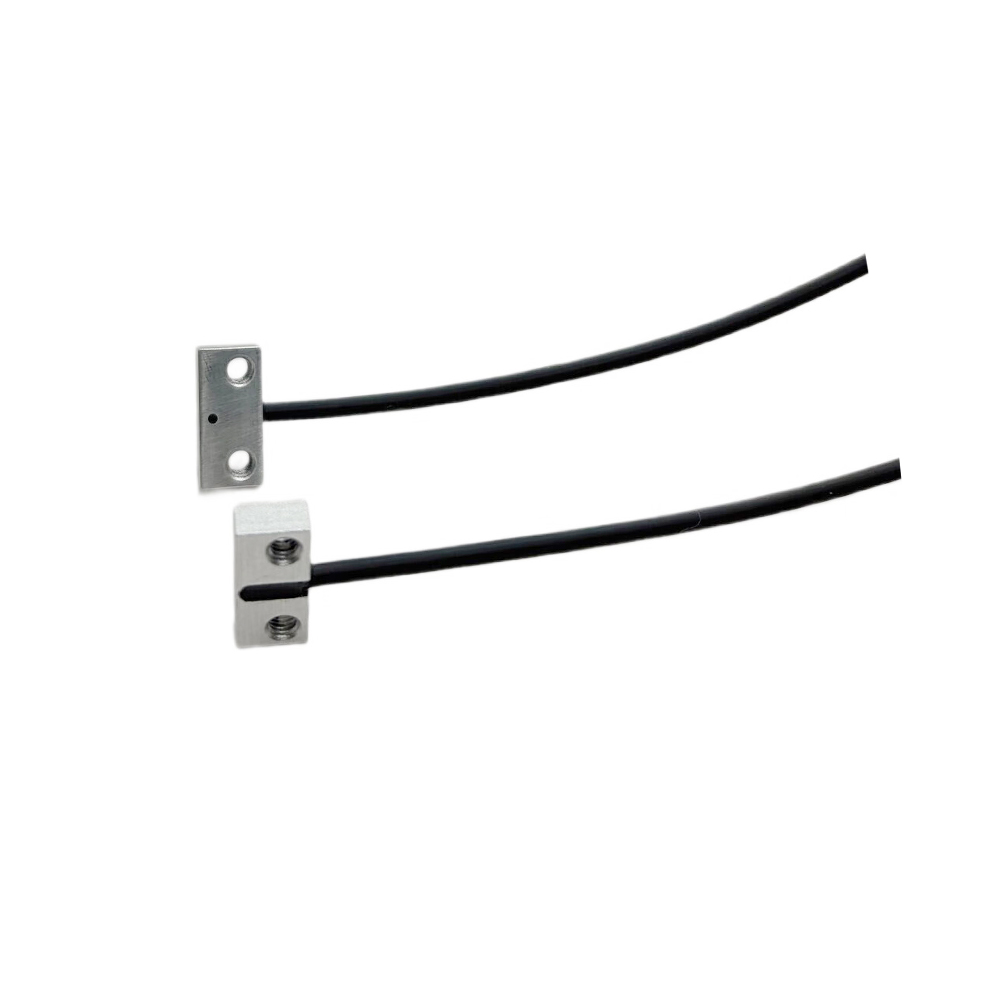

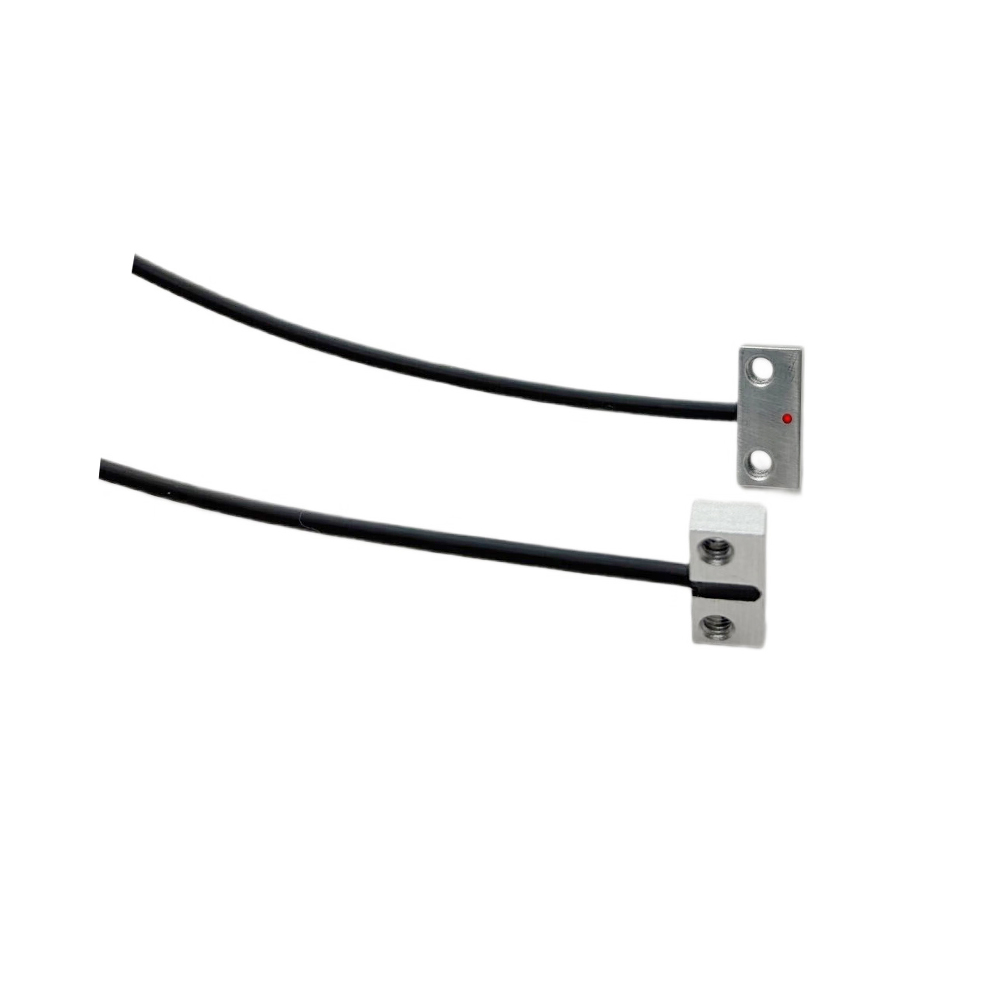

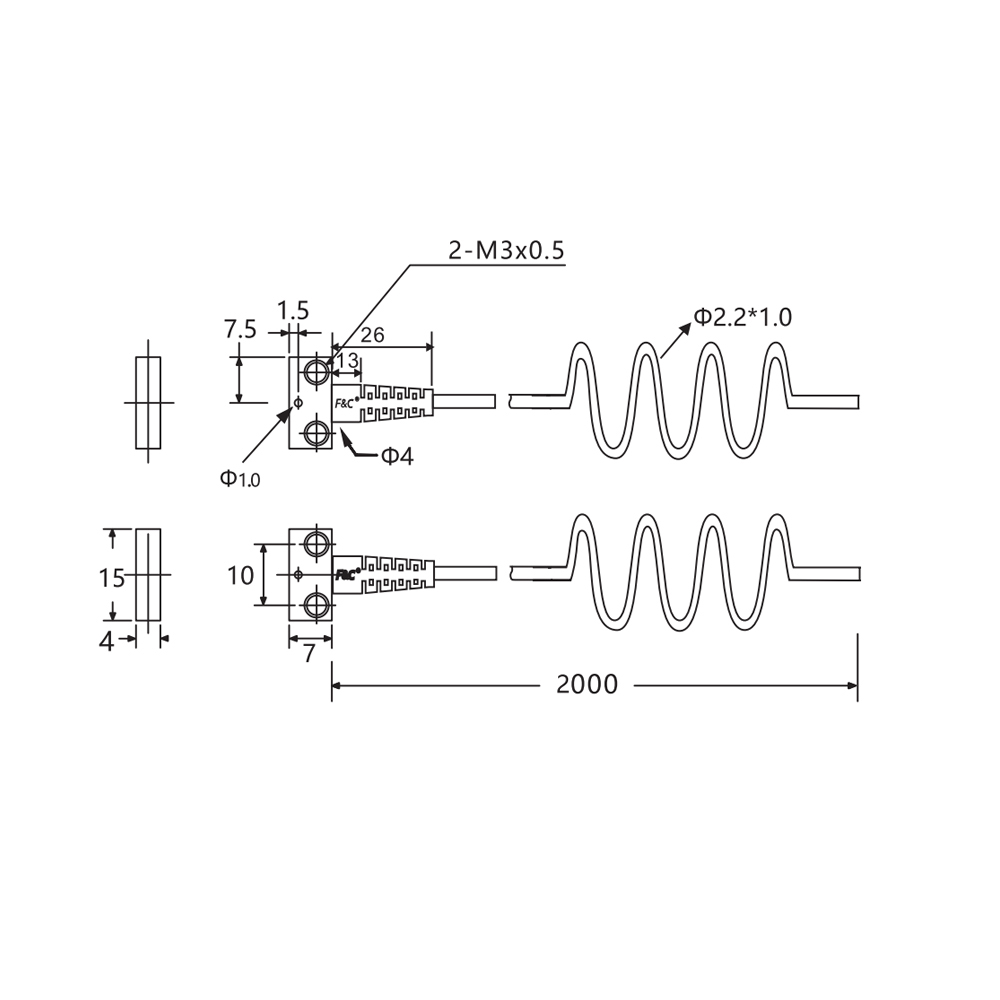

One of the most significant physical advantages of this unit is its integrated mounting bracket design. Unlike traditional cylindrical sensors that require secondary fixtures or custom-machined brackets, this unit is ready to be secured straight out of the box. The compact external dimensions of 15 × 7 × 4 mm allow it to slide effortlessly into micro-machinery, robotic end-effectors, and densely packed conveyor rails. Furthermore, the side-exit light configuration means the cable runs parallel to the mounting surface rather than jutting out perpendicularly. This specific geometry saves critical millimeters in tight enclosures, preventing the cable from interfering with moving mechanical parts and significantly reducing the risk of accidental snagging during operation.

Core Detection Performance & Amplifier Compatibility

At the heart of its operational value is a highly focused through-beam detection mechanism. When properly aligned, the system achieves a standard sensing distance of 500MM, which can be extended up to an impressive 600MM when paired with an amplifier operating in LONG mode. This extended reach ensures accurate detection of passing objects without requiring the sensor heads to be mounted dangerously close to moving targets. Additionally, the fiber cable features a standard Φ2.2 outer diameter and a Φ1 core. This precise sizing guarantees universal compatibility with the vast majority of standard fiber optic amplifiers available on the market. Technicians will appreciate the smooth insertion and the secure, tactile feedback when locking the cable into an amplifier, ensuring a stable optical connection without the need for proprietary adapters or complex modifications.

Material Resilience & Environmental Tolerance

Industrial environments subject sensitive components to continuous mechanical stress, airborne particulates, and extreme temperature variations. To combat this, the fiber head is constructed from solid stainless steel. Running a finger along the machined edges reveals a cold, rigid metallic finish that signifies its exceptional resistance to physical impacts, continuous vibration, and localized corrosion. Despite this rugged construction, the entire assembly maintains an exceptionally low weight of just 17.66g, minimizing the inertial load when mounted on fast-moving robotic arms or sorting mechanisms. The materials selected for both the head and the cable jacket ensure stable operation across a broad temperature range from -20°C to +70°C, preventing the optical core from degrading during cold-storage operations or when positioned near heat-generating motor housings.

Flexible Routing & Cable Customization

Machine builders frequently encounter unpredictable routing paths that demand highly adaptable wiring solutions. The generous 2M cable length provides ample reach for most standard machine frames, allowing the amplifier to be safely housed in a remote control panel away from the primary action zone. Because the cable is fully cuttable, installation technicians can trim the exact required length using a standard fiber cutter, eliminating messy coils of excess wire that can trap dust or cause electromagnetic interference issues. Crucially, the cable is engineered with an R2 bending radius. This allows the fiber to be routed around sharp corners and through narrow cable carriers without suffering from micro-bending light loss. The smooth, friction-resistant exterior of the cable ensures it glides easily through protective conduits during the initial setup phase.

Industry Applications & Compliance Standards

• Semiconductor Manufacturing: The compact footprint and precise optical beam are ideal for mapping delicate wafers or detecting the presence of fragile lead frames without any physical contact.
• Electronic Component Assembly: Reliably verifies the positioning of printed circuit boards (PCBs) and micro-components on high-speed placement machines, remaining completely unaffected by the reflective surfaces of solder joints.
• Automated Packaging Lines: Consistently detects the edges of thin films, transparent wrappers, or small pharmaceutical boxes moving at high velocities down the conveyor.
• Quality & Compliance Assurance: Manufactured under strict factory testing protocols to ensure consistent optical transmission rates across every batch. The unit fully complies with critical international standards, including RoHS and CE, supporting safe, reliable, and environmentally responsible integration into globally exported machinery.
